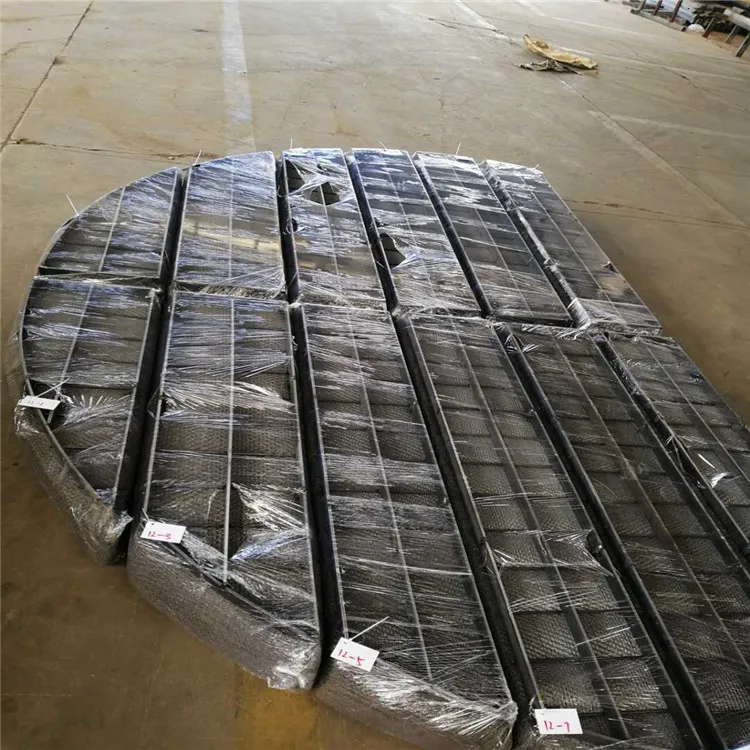

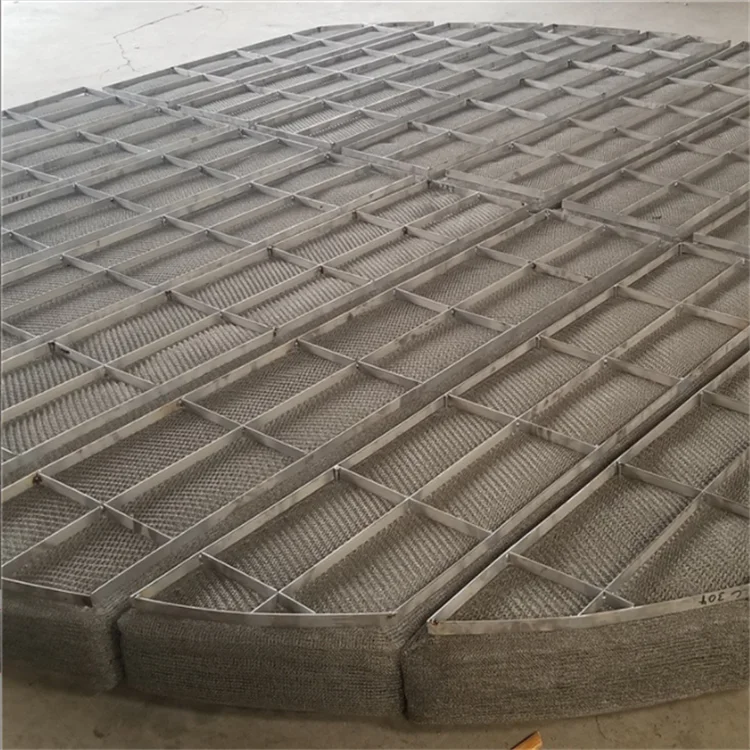

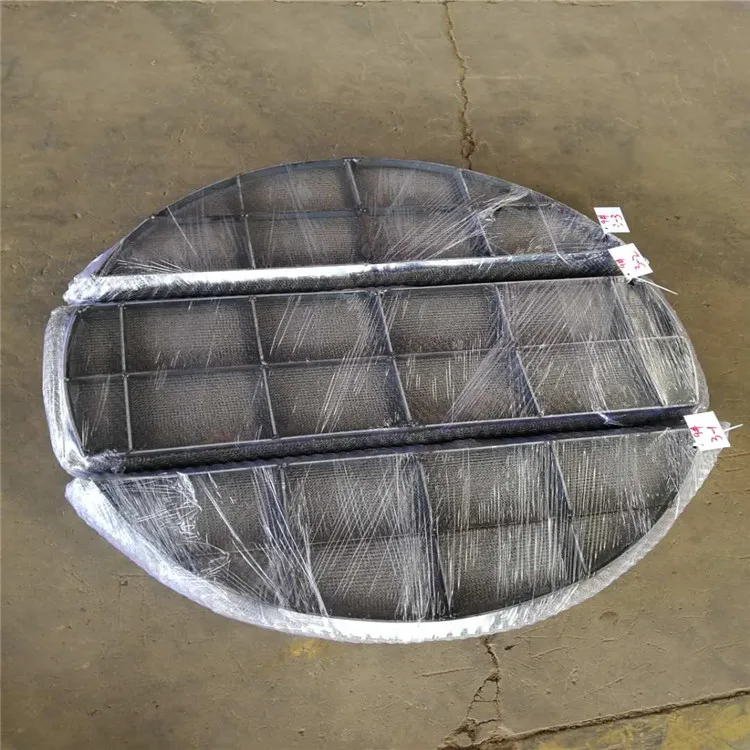

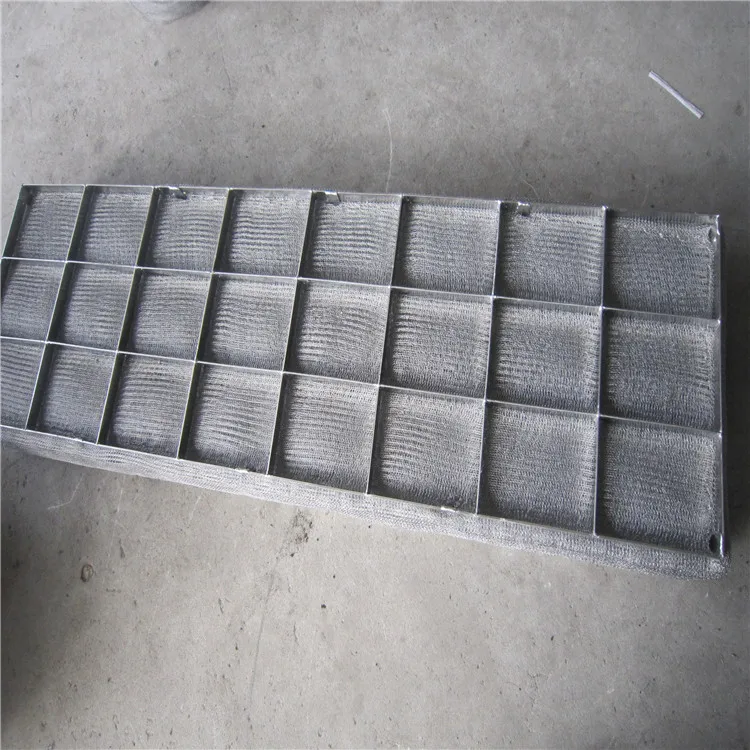

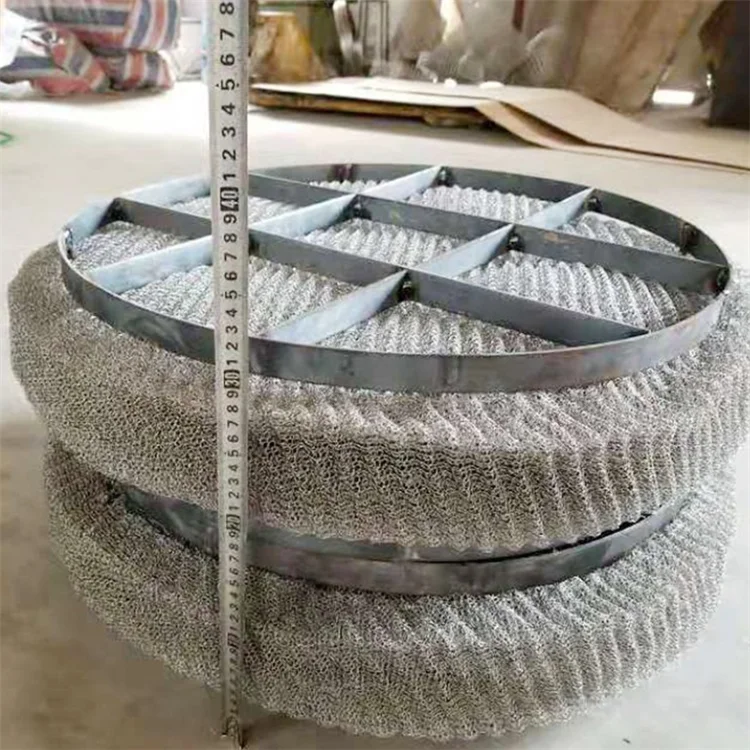

High filtering and separating efficiency standard knit wire demister pad/mesh pad demister

DEMISTER STYLE

DEMISTER FEATURES

Demister

Can permit highest vapour velocities for mist load than any other styles. Used in case of low-pressure loss is required, or when
blocking-up may occur, or when the removal of larger mist or high efficiency is not required. Usually used 150 m/m thickness. As
for the efficiency equivalent to SL-Style, used in 200 m/m thickness

Demister N-Style

For all round use. It has 95-99% efficiency against 8μ mist at 1-5 m/sec velocity.

Demister

Used when high efficiency is required. Though pressure loss is increased slightly, it is considered to have 95-98% efficiency
against 3μ mist at 1-6 m/sec velocity. This S-Style is especially needed when approximately 90% efficiency at 1 m/sec velocity is
required.

Demister

Used when removing of approximately 2μ-3μ mist. Especially when the entrainment is 1.0 gr/m³ or less; 200 m/m to 300 m/m thickness
is used.

Demister

Used for removing of every minute mist of approximately 1μ. The most efficient type for its thickness.
