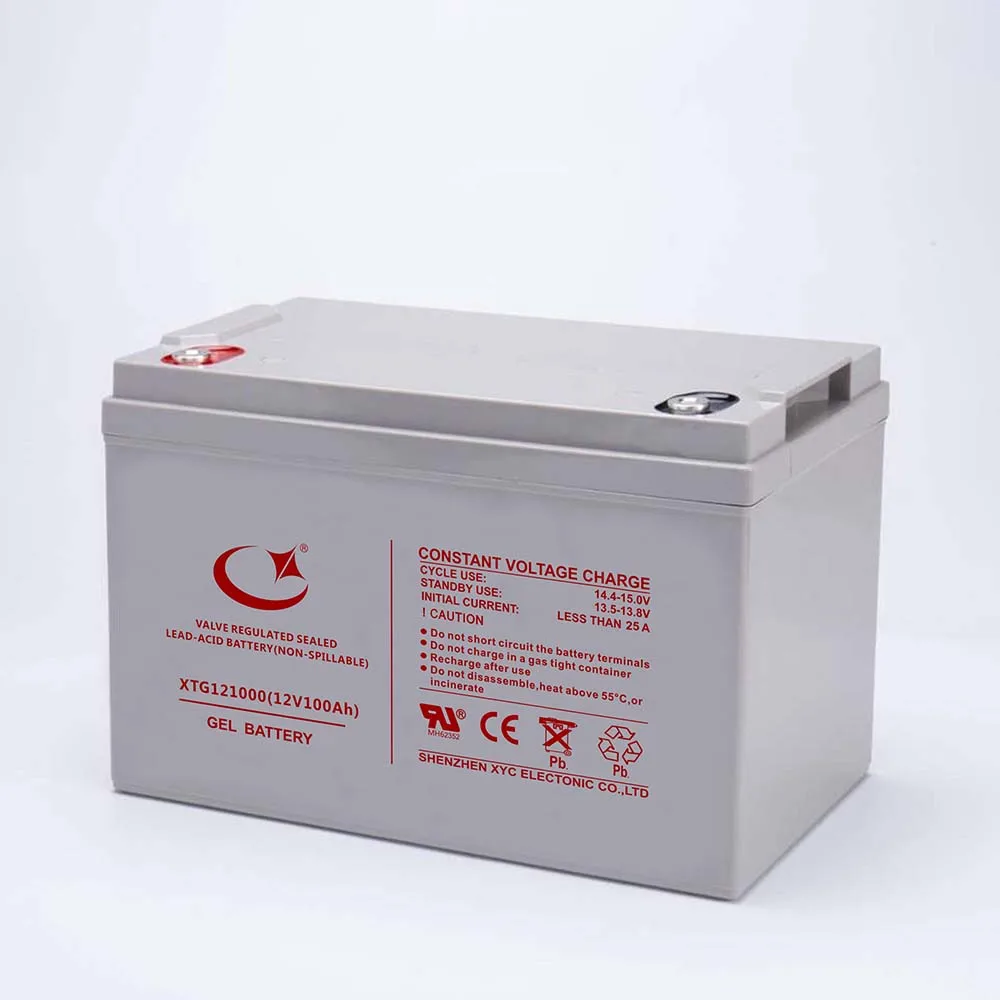

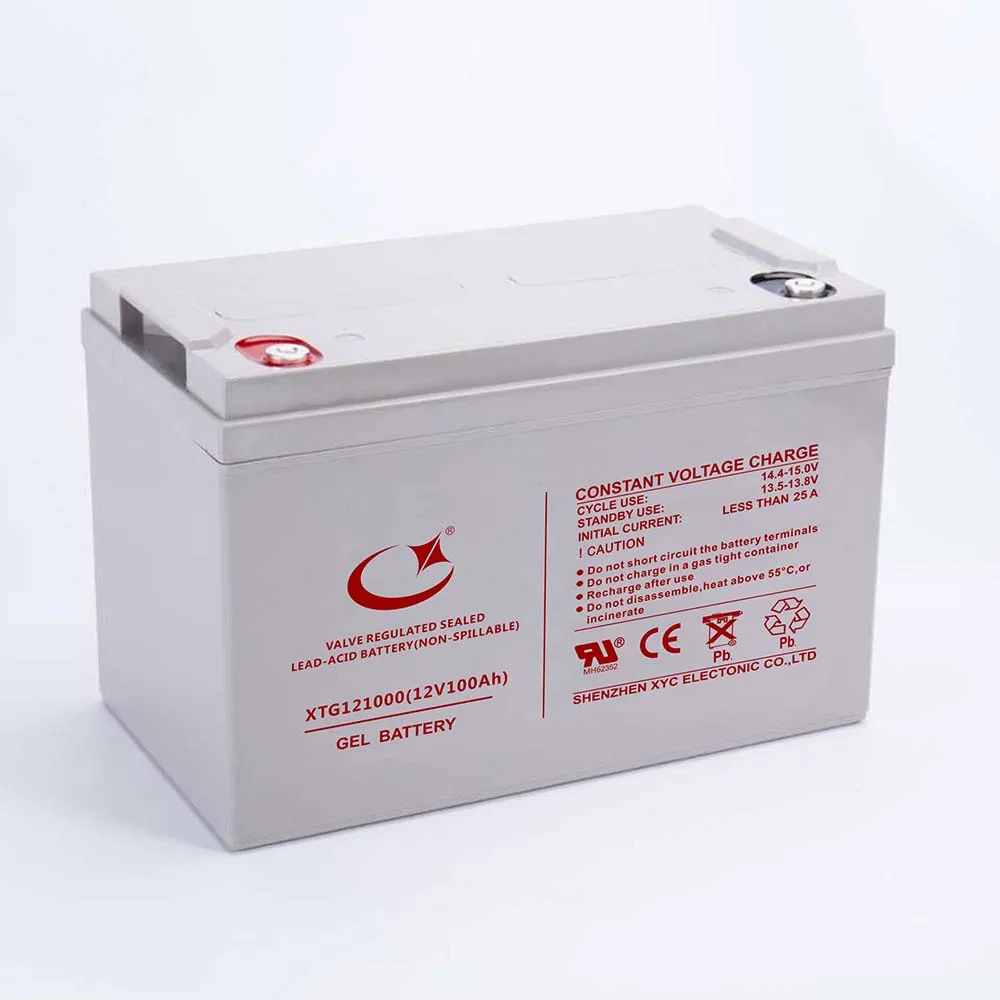

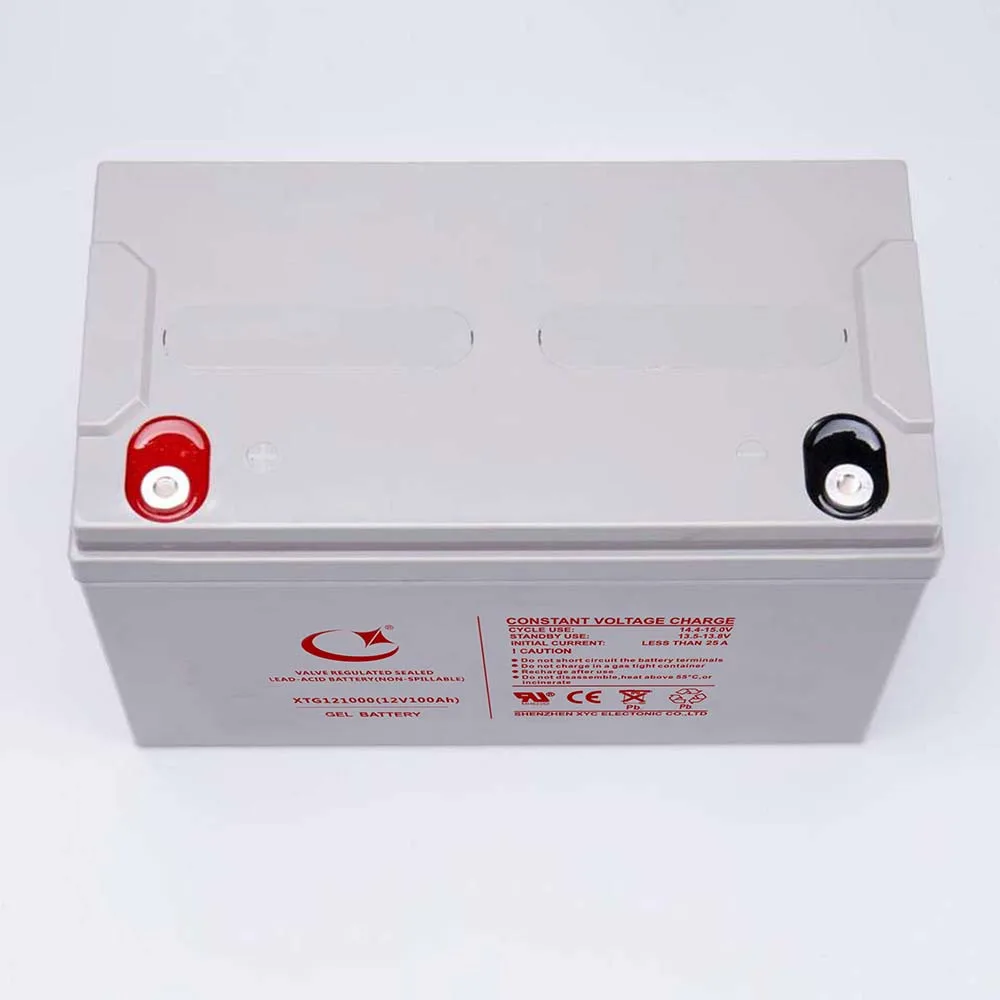

Solar Gel Battery 12V 100AH Energy Storage Batteries
- Category: >>>
- Supplier: Shenzhen Xyc Electronic Co. Ltd.
Share on (1600569184957):
Product Overview
Description
XTG Series :Gel Battery
.The XYC gel battery is a maintenance-free sealed battery that combines true deep cycling ability with sealed , spill-proof construction. made in china
XYC XTG series are exceptionally reliable, it is long lasting,very resistant to hot and cold temperatures.The completely maintenance free, sealed construction eliminates periodic watering, corrosive acid fumes and spills. Electrolyte
will not stratify, no equalization charging required, allowing faster recharge.
will not stratify, no equalization charging required, allowing faster recharge.
The XYC XTG series features increased durability and deep cycle ability for heavy demand applications. Stand loss of less than 2% per month means little deterioration during transport and storage. Transports easily and safely by air.
Product Description
Product Name | Gel battery |
Model | XTG121000 |
Voltage | 12V |
Capacity | 100Ah/20hr |
Battery Size | 330*174*222mm |
Date of Delivery | 15-20 days |
Warranty | 1 years |
Packing | 1pcs/ctn |
XTG series Features
* Valve regulated design with sealed construction eliminates periodic watering, corrosive acid fumes and spills.
* Gelled electrolyte will not stratify, no equalization charging required.
* Compu-cast, power path grids and computer-controlled oxide increases durability and deep cycle ability for heavy demand
applications.
* Less than 2% stand loss per month means less deterioration during transport and storage.
* Tank formed plates ensures voltage matching between cells.
* Rated non-spillable by ICAO, IATA and DOT allows transportation by air safe and easy, no special containers needed.Made in the china
* Gelled electrolyte will not stratify, no equalization charging required.
* Compu-cast, power path grids and computer-controlled oxide increases durability and deep cycle ability for heavy demand
applications.
* Less than 2% stand loss per month means less deterioration during transport and storage.
* Tank formed plates ensures voltage matching between cells.
* Rated non-spillable by ICAO, IATA and DOT allows transportation by air safe and easy, no special containers needed.Made in the china

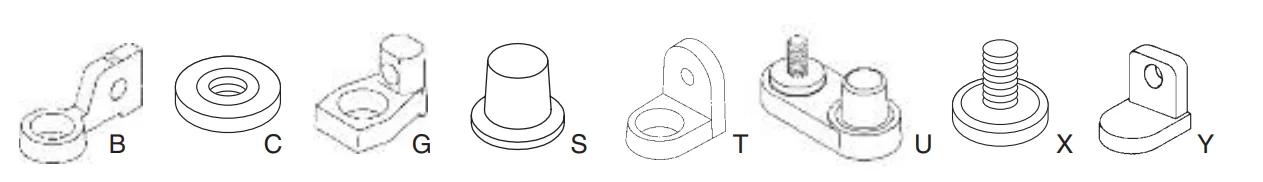

Terminal Information
FEATURES&BENEFITS | ||
Valve-Regulated | Sealed construction eliminates periodic watering,corrosive acid fumes,and spills | |
Gelled Electrolyte | Electrolyte will not stratify | |
Positive and Negative Plate | Lead calcium | |
Self-Discharge | Less than 2% per month stand loss means little deterioration during transport and storage | |
Exclusive Technology | Optimizes power capacity, cell consistency, and long-term reliability | |
Rated Non-Spillable by ICAO, Transports easily and safely by air, IATA, and DOT | Transports easily and safely by air no special containers needed | |
APPLICATIONS | ||
Renewable Energy • Water pumping • Residential • Communications • Cathodic protection • Remote monitoring • Refrigeration • Lighting • Aids to navigation • Wind generation | ||
Related Products
Solar & Wind Applications Parameters Settings | ||
Over voltage disconnect: | 2.45±0.01V/cell @ 20～25°C | |
Regulation/equalize voltage: | 2.40±0.01V/cell @ 20～25°C | |
Array roconnection voltage: | 2.25±0.005V/cell @ 20～25°C | |
Float voltage setting: | 2.27±0.005V/cell @ 20～25°C | |
Low voltage alarm voltage: | 1.95±0.005V/cell @ 20～25°C | |
Low voltage disconnect: | 1.90±0.005V/cell @ 20～25°C | |
Load reconnect voltage: | 2.09±0.01V/cell @ 20～25°C | |
Temp. compensate coefficienty: | -5mV/cell/°C | |
Discharge Current VS Discharge Voltage | ||||||||
Final Discharge Voltage V/Cell | 1.8 | 1.7 | 1.55 | 1.3 | ||||
Discharge Current(A) | 0.2C≥(A) | 0.2C＜(A)＜0.5C | 0.5C＜(A)＜1.0C | (A)＞1.0C | ||||

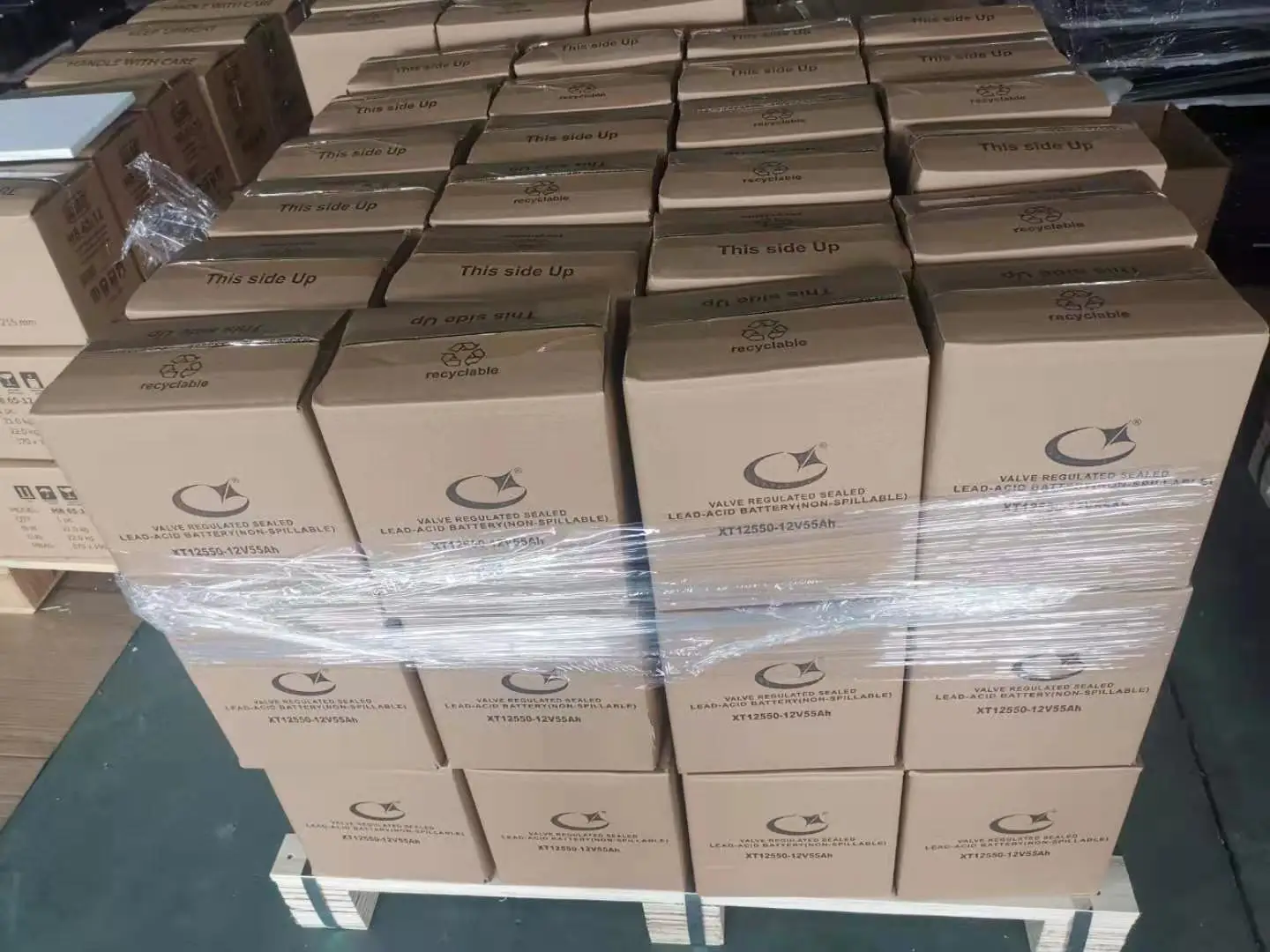

Packing&Shipping
Certifications
Company Introduction
Shenzhen XYC Electronic Co.,Ltd.is a sealed lead acid (SLA) battery company.Established in November 2008,XYC manufacture and sells environmentally friendly sealed lead acid (SLA) batteries.
XYC is a high-tech enterprise headquartered in longhuan new district,Shenzhen,china and has a manufacturing base in hanchuan city,hubei province.With 6 production lines for manufacturing battery and 8 production lines for producing lead plates,products 10 series battery more than 400 types of products.
XYC adhered to introduce and develop advanced technologies and processes,had set up XYC research center,including 2 professors who have experience over 30 years in battery research,and over 10 engineers.Adopted the world’s most advanced production equipments and tesing methods.Battery products have a long service life,high energy,cadmium-free environmental protection and other features.XYC products are exported to more than 100 countries and regions all over the world.XYC batteries are applied in light electric vehicles(LEVs),uninterruptible power supply(UPS) systems,electricity and telecommunications backup power systems,automatic control,wind and solar power systems.
XYC will continue to take lead acid battery as the core business to achieve the diversification of the group in the new energy industry;continually integrates the industry resources,extends the industry value chain,drivers diversified business
modules,comprehensively promotes the industry scale,quality, and brand,with the first-class team and the international
competitiveness.
XYC is a high-tech enterprise headquartered in longhuan new district,Shenzhen,china and has a manufacturing base in hanchuan city,hubei province.With 6 production lines for manufacturing battery and 8 production lines for producing lead plates,products 10 series battery more than 400 types of products.
XYC adhered to introduce and develop advanced technologies and processes,had set up XYC research center,including 2 professors who have experience over 30 years in battery research,and over 10 engineers.Adopted the world’s most advanced production equipments and tesing methods.Battery products have a long service life,high energy,cadmium-free environmental protection and other features.XYC products are exported to more than 100 countries and regions all over the world.XYC batteries are applied in light electric vehicles(LEVs),uninterruptible power supply(UPS) systems,electricity and telecommunications backup power systems,automatic control,wind and solar power systems.
XYC will continue to take lead acid battery as the core business to achieve the diversification of the group in the new energy industry;continually integrates the industry resources,extends the industry value chain,drivers diversified business
modules,comprehensively promotes the industry scale,quality, and brand,with the first-class team and the international
competitiveness.
