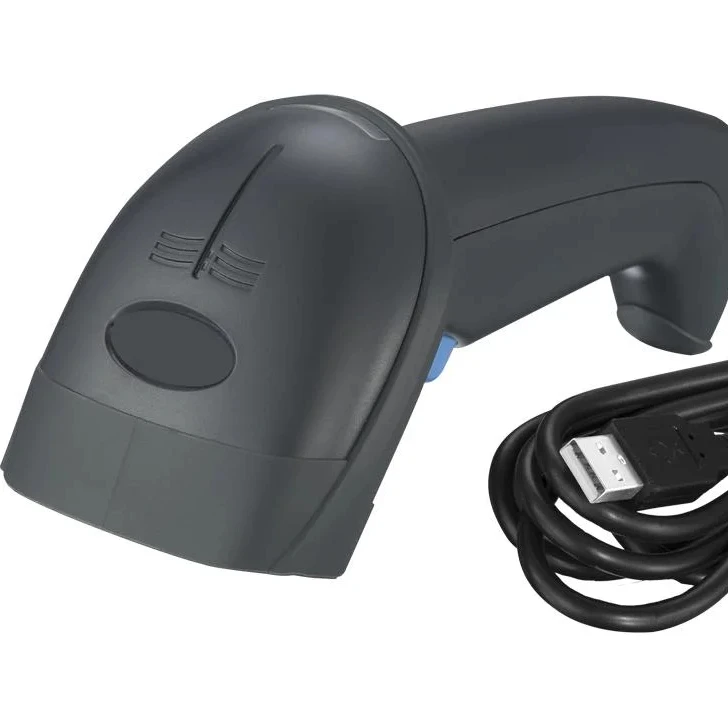

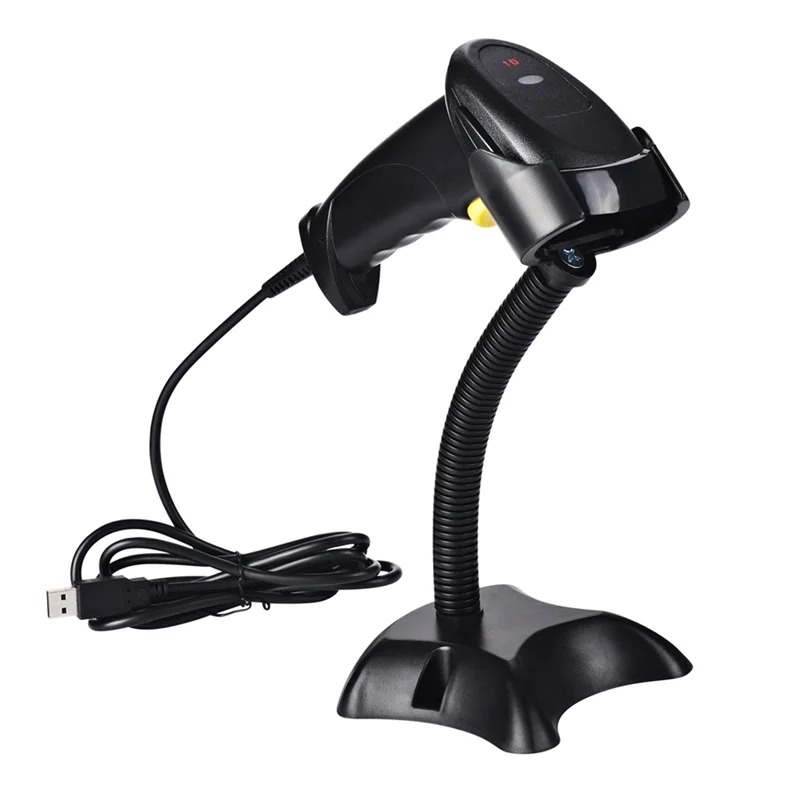

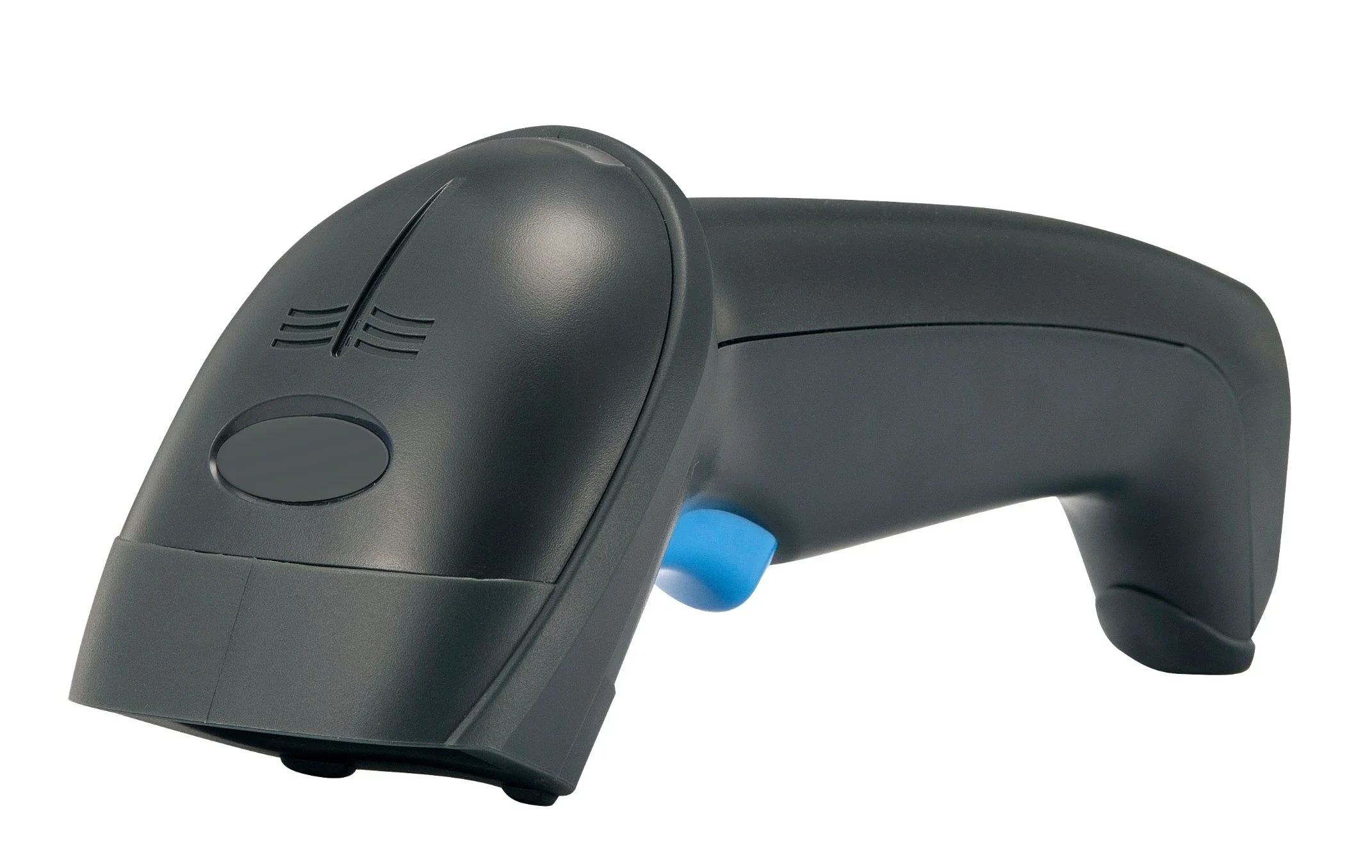

Mobile Payment Qr Bar Code Reader Wired USB Portable Handheld 1d 2D Qrcode Barcode Scanner for Android Tablet
- Category: >>>
- Supplier: Shenzhen Bailing Electronic Technology Co. Ltd.
Share on (1600569272051):
Product Overview
Description
Product Description
Technical parameter | ||
Light source | 617nm LED aiming light, white LED lighting light | |
scan model | single line Bi-directional | |
scan speed | 120 line/sec | |
resolution | 4mil | |
width of scan | 5-30cm | |
depth of scan | 2-40cm | |
decode capacity | 1D: EAN13, EAN8, UPC-A, UPC-EO, UPC-E1, CODE128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code1l, MSI Plessey, RSS -14, Restricted RSS, extended RSS 2D: QR Code, Data Matrix ( ECC200 ), PDF417 | |
interface | RS232,PS2,USB | |
print contrast | 20% minimum | |
bit error rate | 1/5 million | |
Prompt | buzzer indicator | |
scan model | handheld / auto-sense | |
material | ABS+PC | |
cable standard | straight: 2.0m | |
voltage | 5V | |
laser security | accord with national level2 laser security standards | |
working temperature | 0ºC-45ºC | |
storage temperature | -20ºC-60ºC | |
humidity | relative humidity 5%-95% (non-condensing ) | |
environment Luminance | Max.5,000 Lux ( flsorescence) | |
anti-knock | 1.5m fall to cement | |
Scanning principle image CMOS
Trigger mode :manual scanning/continuous scanning/automatic induction scanning
Scanning Angle Elevation Angle ±60°, Rotation Angle 360°, Deflection Angle ±60°
Scanning accuracy 1D≥5mil 2D≥10mil
Scanning depth of field 35-190mm
The error rate is 1/5 million
Communication interface: USB-HID, RS232,USB-COM
