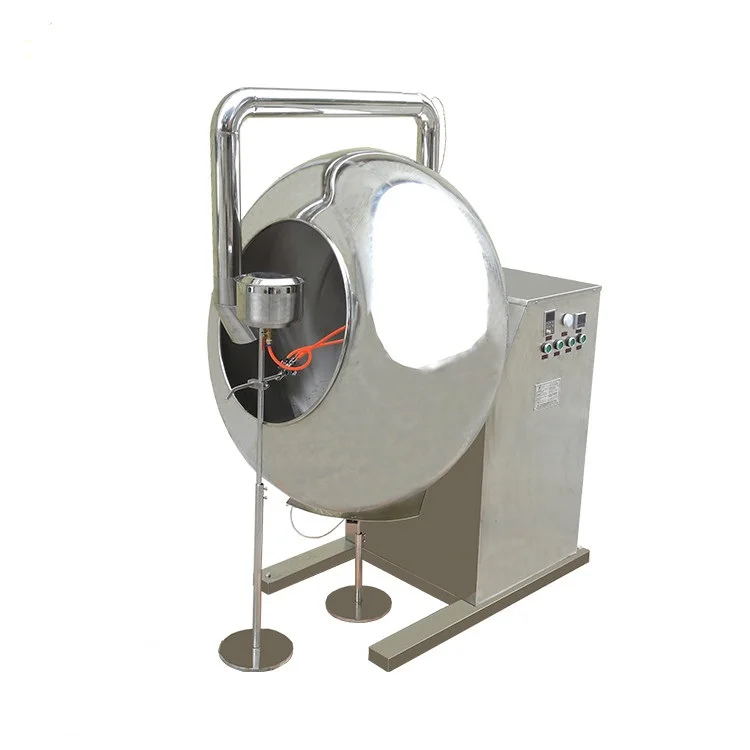

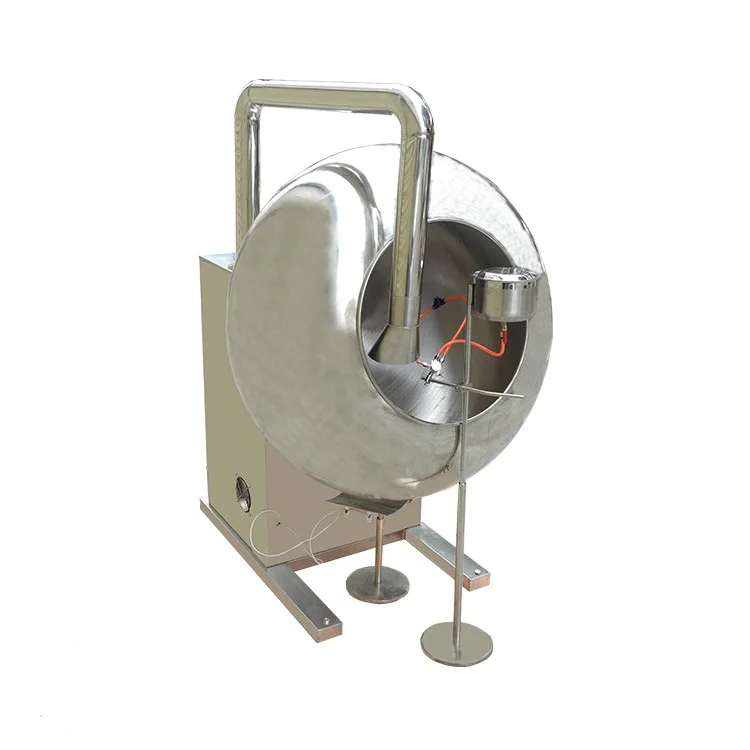

Top quality pharmaceutical and food field tablet/chocolate/dragee sugar film coating machine

Share on (1600569329119):


Price:$850.00 - $1,250.00

Quantity:


Product Overview

Description



Product Description






BYC Series Sugar Coating Machine
This sugar coating machine meet GMP standard of the pharmaceutical industry. It is a fully enclosed coating equipment modified on the basis of the water chestnut coating machine. It is mainly used for the coating and polishing of formed tablets, pills and granules in the pharmaceutical industry. It can also be applied to candy in the food industry. Machine coating, the coated and polished sugar-coated tablets have a bright surface, which can prevent oxidation, moisture or volatilization and cover the unpleasant taste, which makes the drug easy to identify and alleviates the dissolution in the human stomach.

Action Object:
Powder granulation and pilling: The powder can be made into granules and pills through the rotation of the coating pan.
Drying: It has a good drying effect on the newly made pills.
Polishing: The surface of the pill can be polished


Working Principle:
The coating machine adopts the method of automatic electrical control to spray coating accessories onto the surface of the tablet with a high atomization spray gun, and at the same time, the tablet moves in a continuous and complex trajectory in the coating pot, so that the coating liquid is evenly coated. On the core of the tablet, there is controllable normal temperature hot air in the pot to dry the tablet at the same time, so that the surface of the tablet can quickly form a firm, dense, complete and smooth surface film.




Product Paramenters


Product Model
BYC-800
BYC-1000
BYC-1250
BYC-1500
Production Capacity (kg/time)
30-50
50-70
80-150
150-250
Pot diameter (mm)
800
1000
1250
1500
Motor power (kw)
1.1
1.5
2.2
5.5
Inlet heat power (kw)
2000W
2000
4000
6000
Outlet heat power (kw)
2000W
2000
2000
4000
Machine weight (kg)
230
260
370
600
Machine speed (r/min)
32
32
28
28

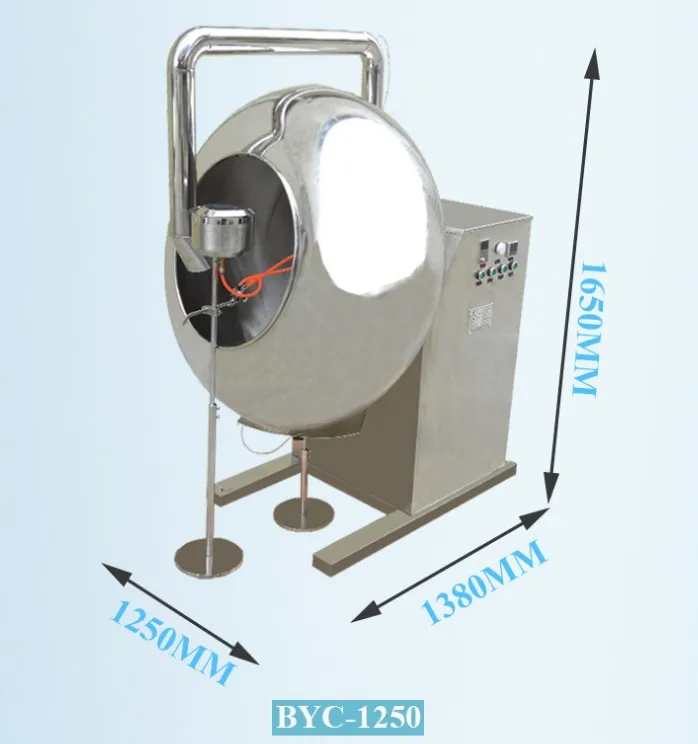

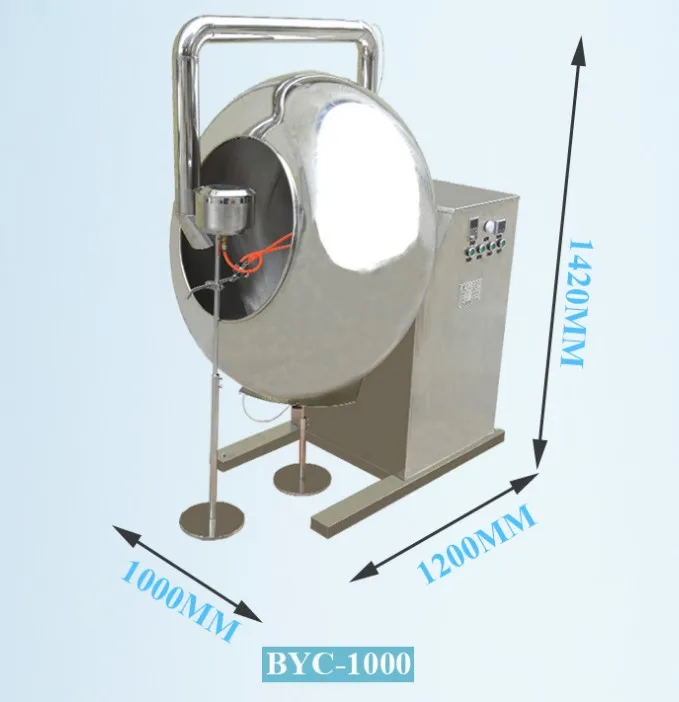

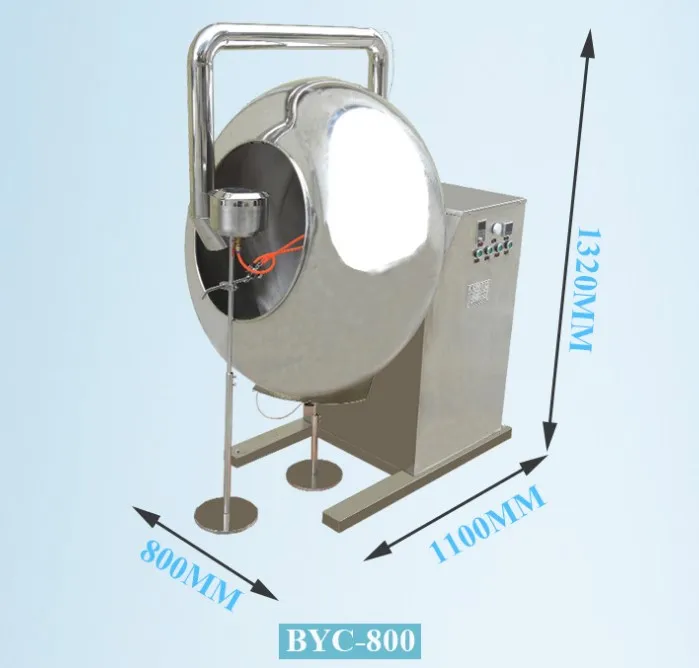

Dimension (mm)
1100*800*1320
1200*1000*1420
1380*1250*1650
1600*1500*1950

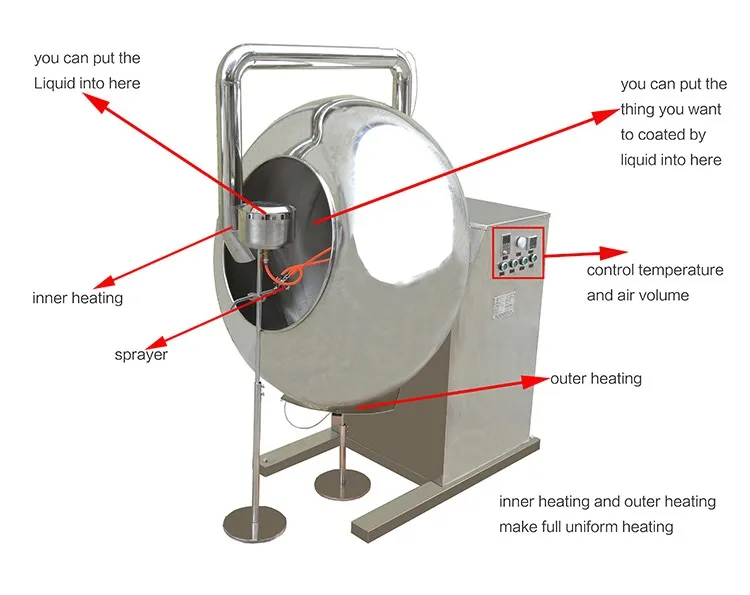

Product Detail

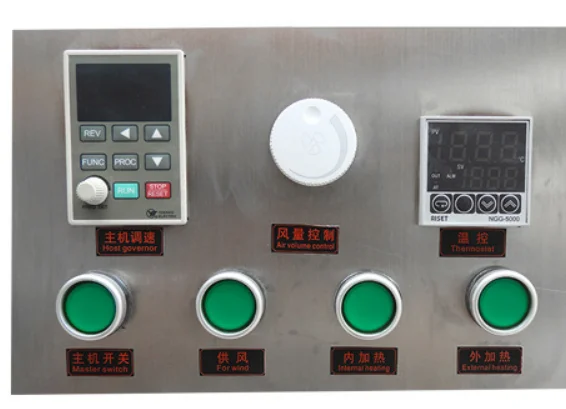

Control Panel
Chinese and English control panel, clear text, easy to operation

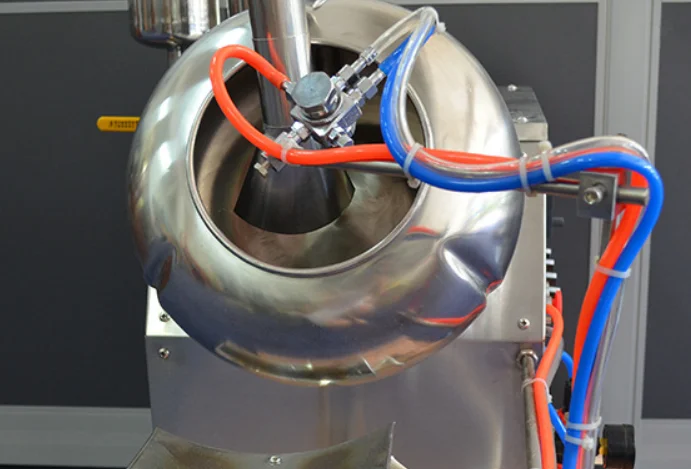

Coating Pot
Stainless steel 304 material, horseshoe type coating pot.
Internal Heating Device: The pipe delivers hot air to the inside of the coating pan.

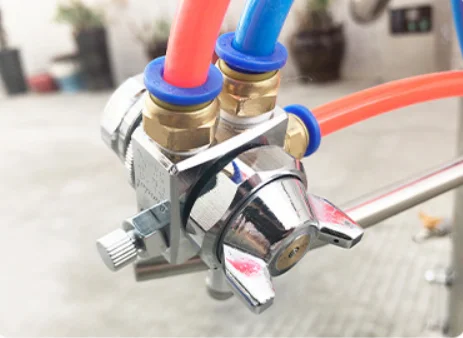

Spray Gun
The atomization direction of the spray gun, the size is adjustable, free and convenien

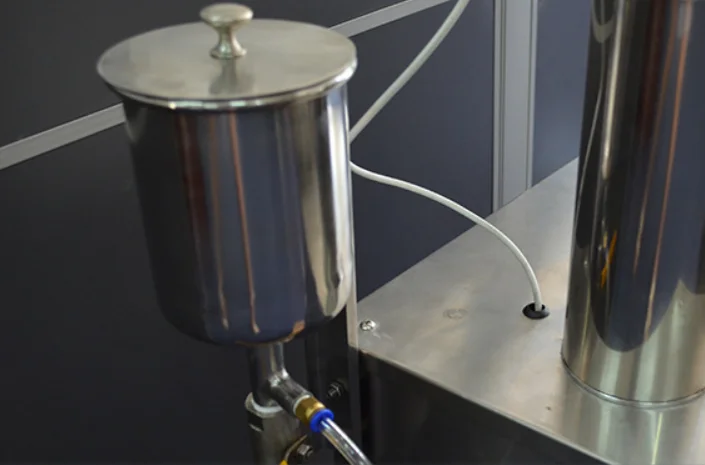

Liquid spray device
This barrel is used to store the coating liquid, then the device atomizes the liquid and sprays it evenly into the raw material

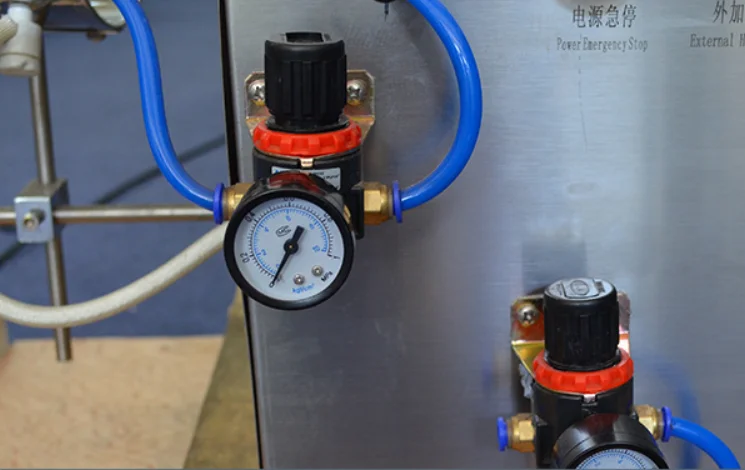

Air-pressure Gauge
Check the air pressure at any time, safe and reliable

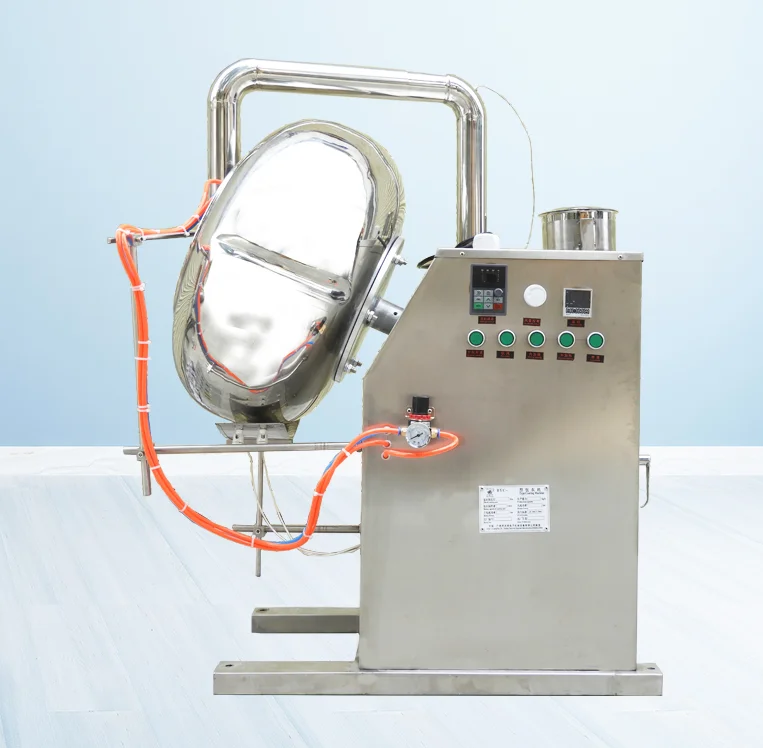

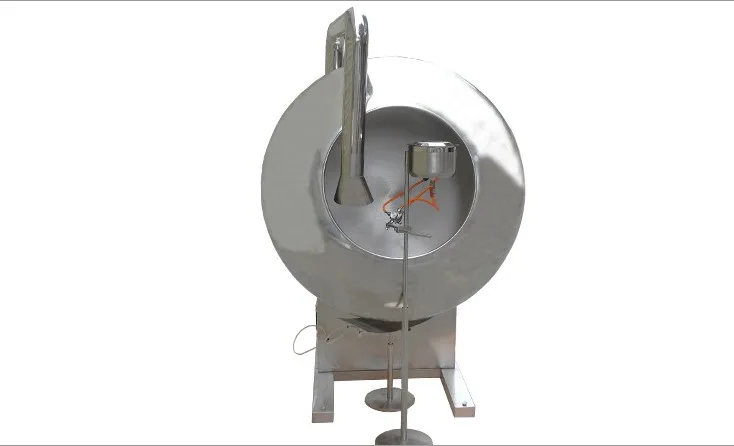

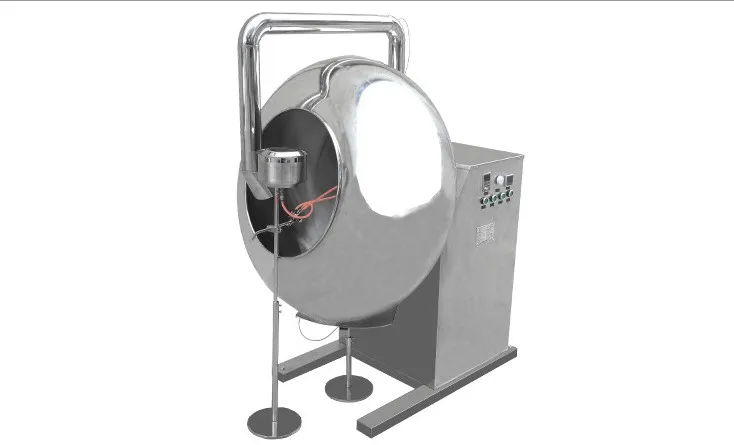

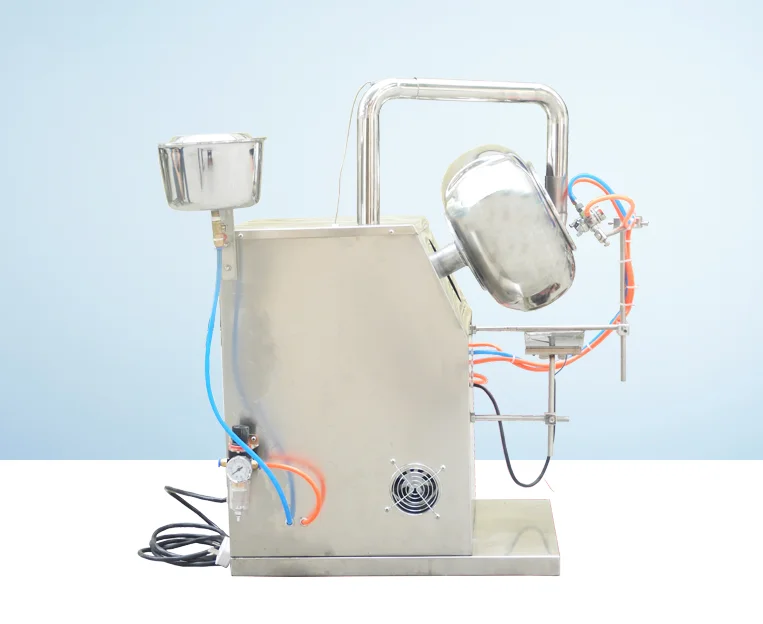

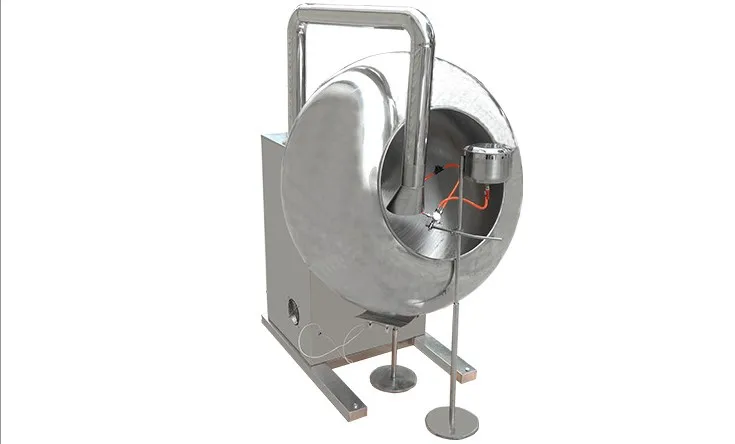

Real Photos








Directions for use


Coating Effect Display
This machine has good coating effect and uniform coating.
In the same equipment, the following functions can be completed simultaneously: powder, granule, pellet, crystal, capsule, tablet, seed coating, powder granulation, pelletizing, polishing, mixing.
