USB telephoto Camera with long focus EFL 12mm lens 25 degree live video streaming CCTV UVC 2MP HD computer camera
- Category: >>>
- Supplier: Shenzhen Novel Electronics Limited
Share on (1600569388002):
Product Overview
Description

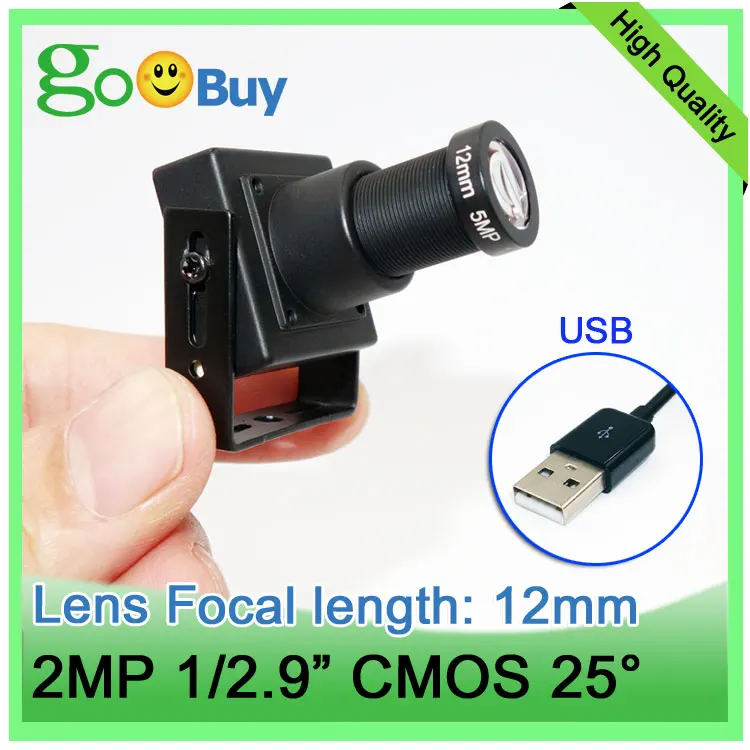

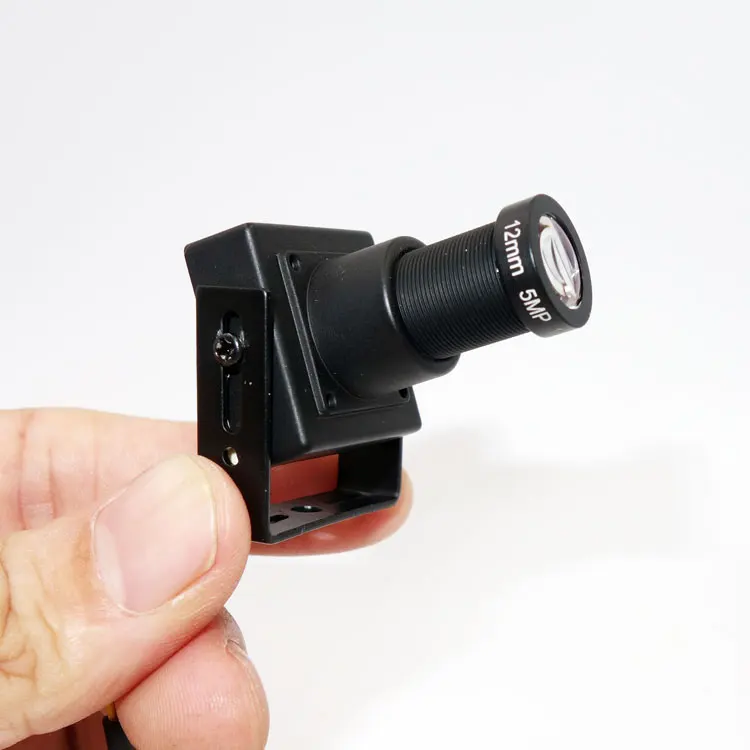

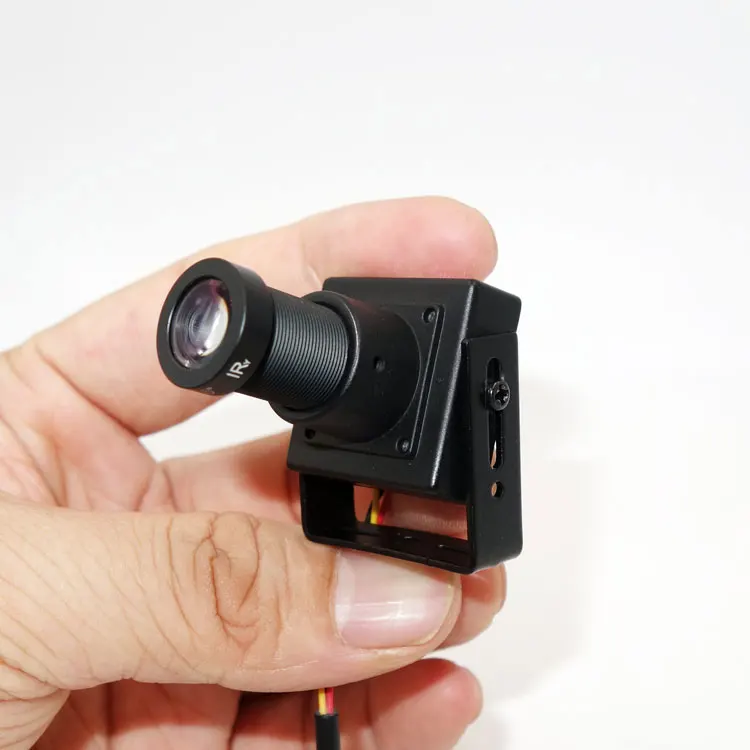

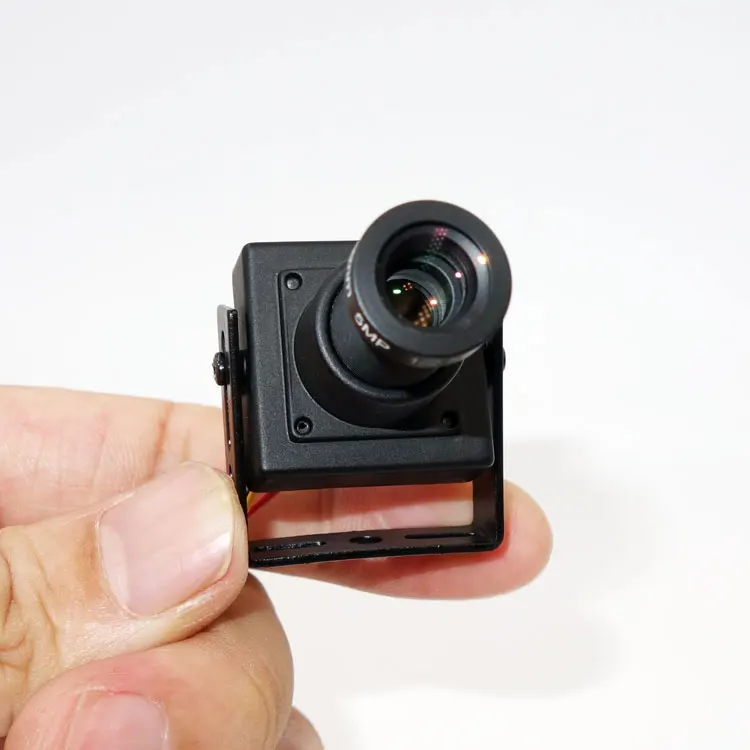

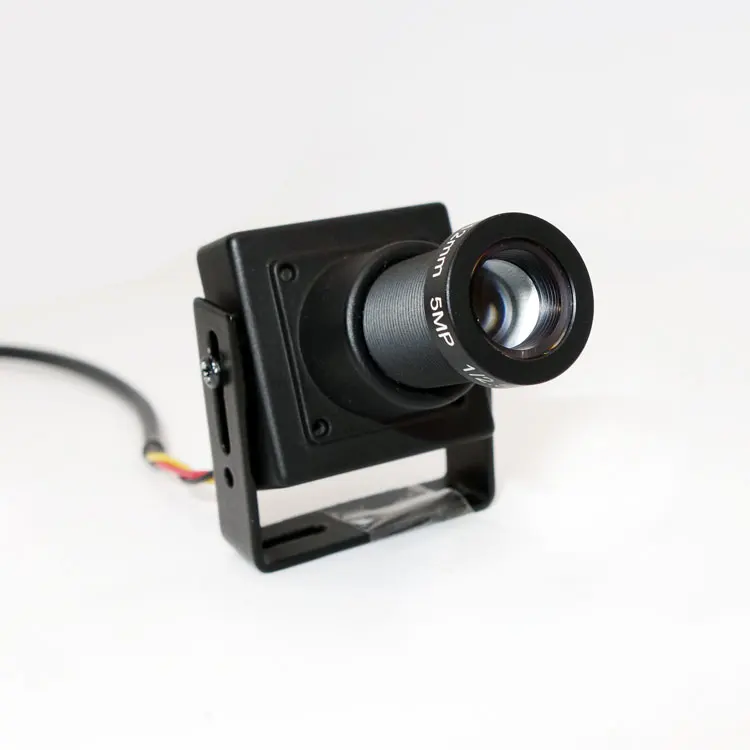

Goobuy USB telephoto Camera with long focus EFL 12mm lens 25 degree live video streaming CCTV UVC 2MP HD computer camera
This is a mini lens USB camera that can be used for PC, laptop, industrial equipment testing, Live video, CCTV, car video, self-service terminal equipment, access control system, scanner etc.
Product performance description
1, Image sensor 2.9" CMOS, 0.01Lux, 2MP image
2, Free Driver USB 2.0 (UVC)， USB2.0 HIGH SPEED, compression USB 1.1
3, Manual focus M12 Lens, interchangable lens design available
4, Support Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;
Linux(In 2.6.18 above the kernel version);Mac ps3; Android system
5, Standard 1.5m cable
6, Application: intelligent machine, ATM Machine, Industrial equipment,
medical instrument , Laboratory Instruments
7, Can be customized or ODM based on your requirements
Product Description
Product Name | mini USB camera |
Cmos Sensor | 1/2.9 inch |
Video Resolution | 1920*1080P, @30fps |
Lens Focal Length | 12mm |
Lens FOV | 25 degree |
Photo Pixel | 2 Mega pixels |
Photo Format | MJPG |
Video output | MJPG/YUY2 |
AGC | OSD |
Minimum illumination | 0.01Lux |
S/N Ratio | ≥52dB |
Gammar | 0.45 |
Backlight Compensation | OSD |
Shutter | 25f/s |
White balance | Auto |
Audio Microphone | Built in Microphone, Support |
System Sync | Internal |
Power | 5V |
Power consumption | 150mA |
Product Size | Lens base size:about 25*25mm |
Signal Type & Interface | USB or TYPE-C or Micro USB interface, Digital Signal |
Length of Cable | 1.5Meter ( 1M or other size custom available ) |
System | WIN10/WIN7/WIN8/Linux/Android/Apple Mac |
Working temperature | -10~+50℃ |
Attentions
1. This camera has no recording function. If you want to record, you need to connect the camera to the recording device.
2. We can change other focal length fixed focus m12 Lens except above to meet your special demand.
3. Size of PCBA Dimension can be changed or custom too
4, The cameras can be produced for different interfaces.
5. The shape of the product can also be changed according to demand,
6. The above changes can be negotiated, different requirements will increase production costs.
7. The camera is not waterproof.
2. We can change other focal length fixed focus m12 Lens except above to meet your special demand.
3. Size of PCBA Dimension can be changed or custom too
4, The cameras can be produced for different interfaces.
5. The shape of the product can also be changed according to demand,
6. The above changes can be negotiated, different requirements will increase production costs.
7. The camera is not waterproof.
Camera Application
(2)Mobile phone (OTG/Type-C), 3D AR/VR, Smart box, TV BOX, STB, 3D scanner,MID and Ipad, laptop/PC, Any Andriod Device.
(3)Embedded Camera Systems, Iris/Face/Fingerprints/palm prints image recognition technology，USB Document Scanner, Monitoring 3D printer,
(4)Industrial endoscopes，Industrial PC/Machine/equipments，automobile Industry, Vehicle video applications, Car Parking Security
(5) Home/Commercial/Industry security equipment,safety box, Baby Monitoring, Smarthome, Video Door Phone,attendance machine, Home/office/Street Surveillance
(6) AI intelligent machine/Systems/Terminal,Robot and machine vision, Video conference / video teaching, intelligent code scanning Terminal
(7) Laboratory Instruments, remote control monitoring, environmental monitoring
Car and boat control, oil field equipment, Assisting medical beauty treatment
Medical Diagnostic video acquisition and Precise medical instrument
(8) Raspberry PI / Jetson Nano intelligent robot device etc .
CUSTOM OPTIONS
CUSTOM SOLUTIONS
Spinel provides a selection of various custom options for new and existing projects. We also welcome any unique requests. Design, development, prototyping, and mass production are offered at reasonable prices. Our team works closely with each client to assure satisfaction from start to finish. We do not require any minimum quantity orders, in order to provide a prosperous and welcoming environment for bright ideas to shine.
Customization options include, but are not limited to:
Specific image sensor requirements, WDR, panoramic, thermal, Dual lens, low-light capturing, different angles of view, infrared solutions, low temperature rated, weatherproof, wire harness, cable assembly, desired power voltage, resolutions, frame rate, unique serial number, etc.
Spinel provides a selection of various custom options for new and existing projects. We also welcome any unique requests. Design, development, prototyping, and mass production are offered at reasonable prices. Our team works closely with each client to assure satisfaction from start to finish. We do not require any minimum quantity orders, in order to provide a prosperous and welcoming environment for bright ideas to shine.
Customization options include, but are not limited to:
Specific image sensor requirements, WDR, panoramic, thermal, Dual lens, low-light capturing, different angles of view, infrared solutions, low temperature rated, weatherproof, wire harness, cable assembly, desired power voltage, resolutions, frame rate, unique serial number, etc.
1. Other lenses are optional,
Various M12 lenses Various Wide angle lens Various M12 telephoto lens Various shaped lens etc
2. Other shapes are optional,
Mini cube shaped Mini bullet shaped Mini square-shaped Bullet shaped
3. Other interfaces are optional,
Micro USB interface Type C interface DC+AV interface DC+BNC interface
1. Choose the focal length of the lens according to the sensor and viewing Angle requirements.
The greater the focal length of lens, the farther you can see and the smaller the angle of view;The smaller the focal length of lens, the closer you look, and the greater the angle of view.
The figure below shows the best monitoring distance for different focal lengths.
