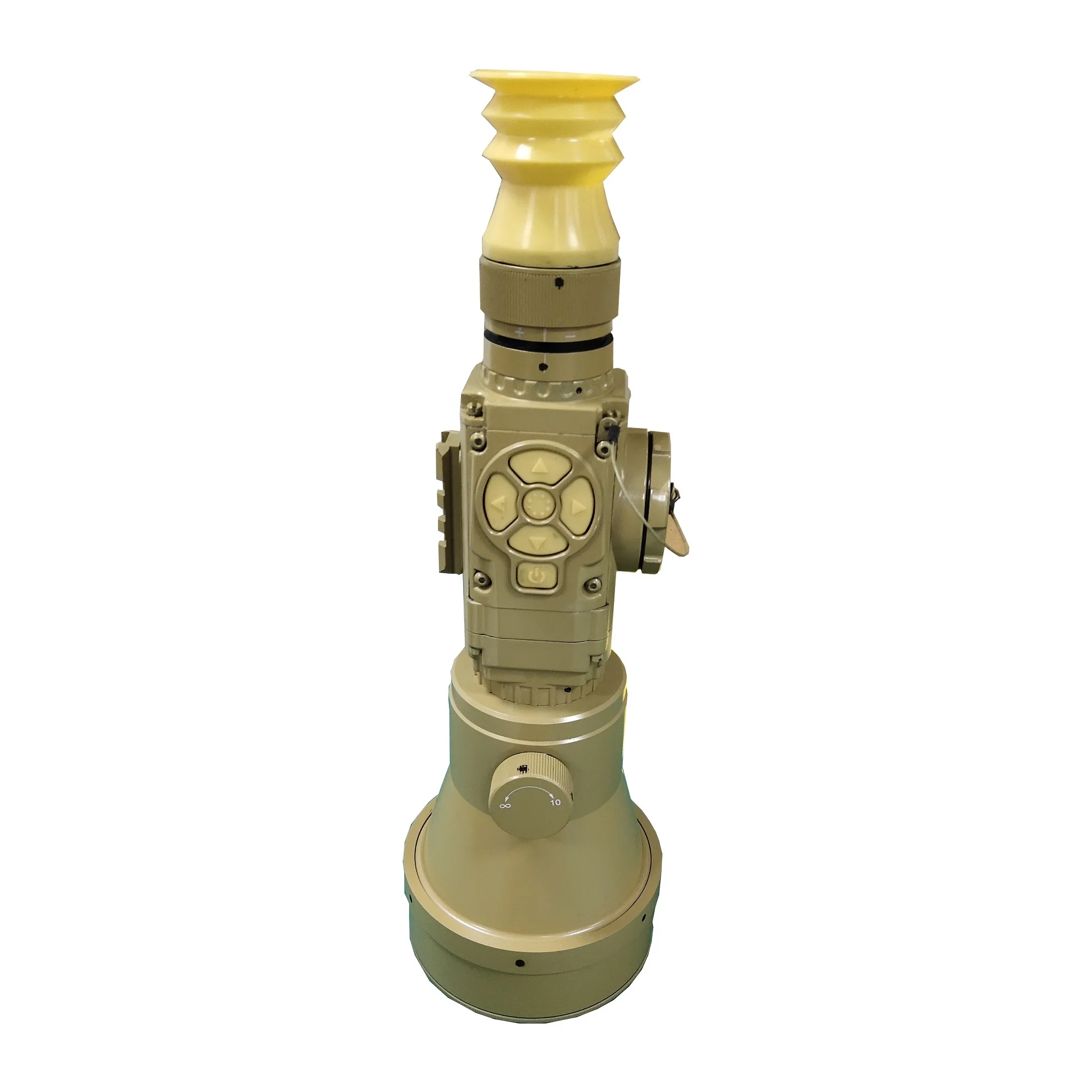

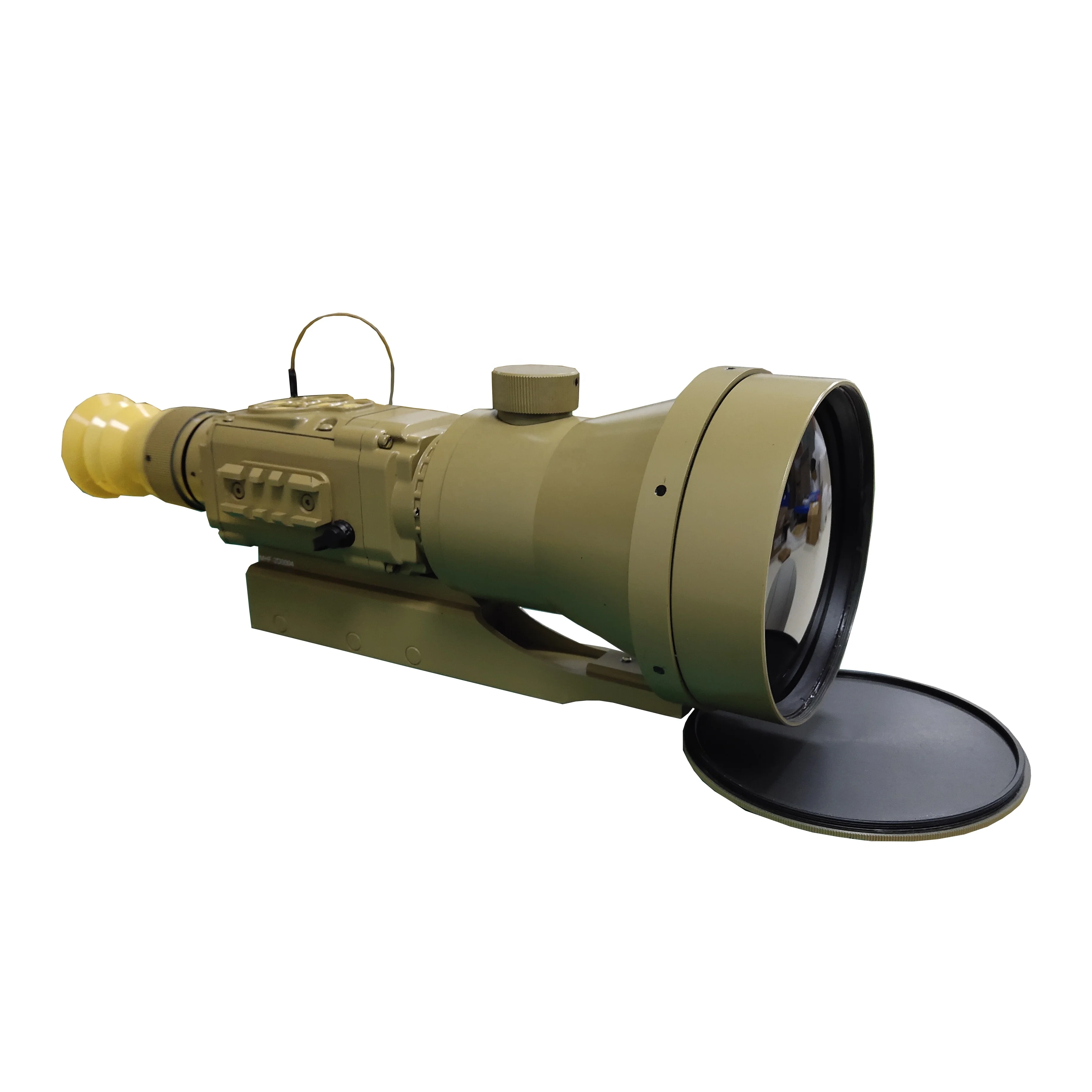

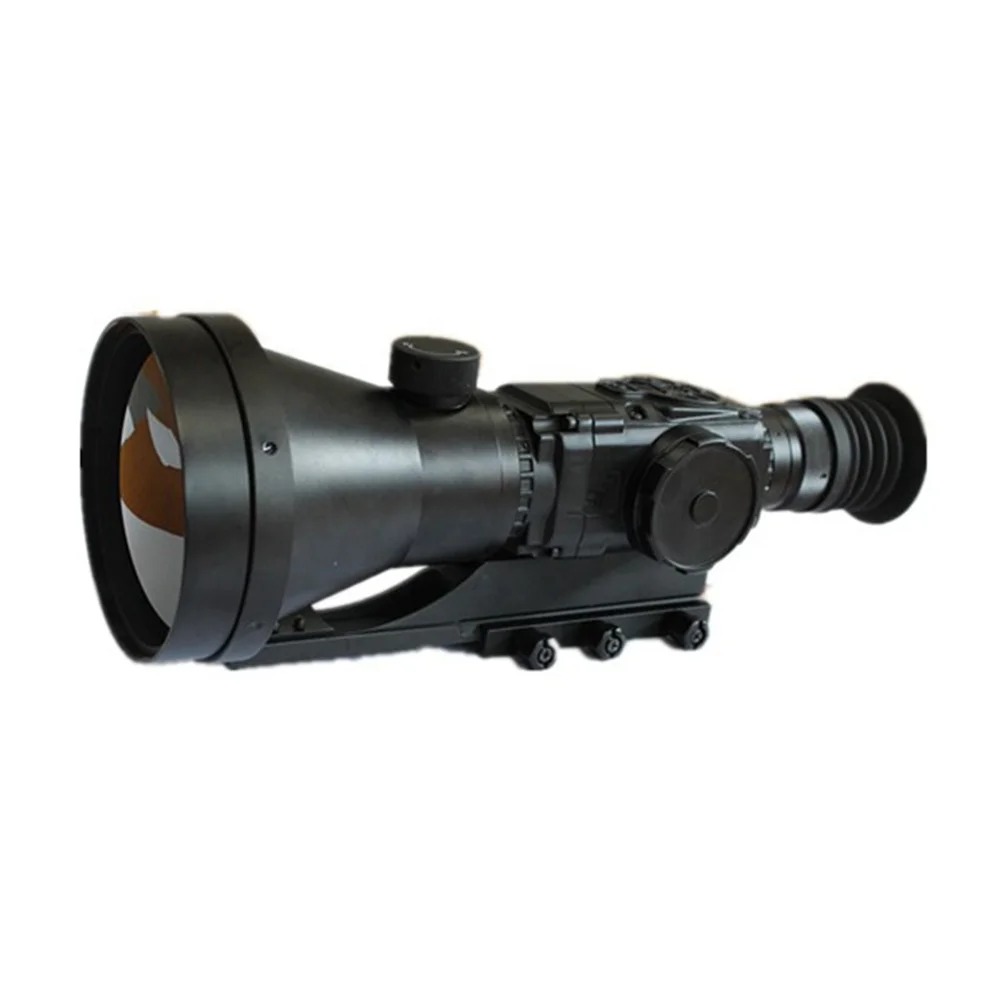

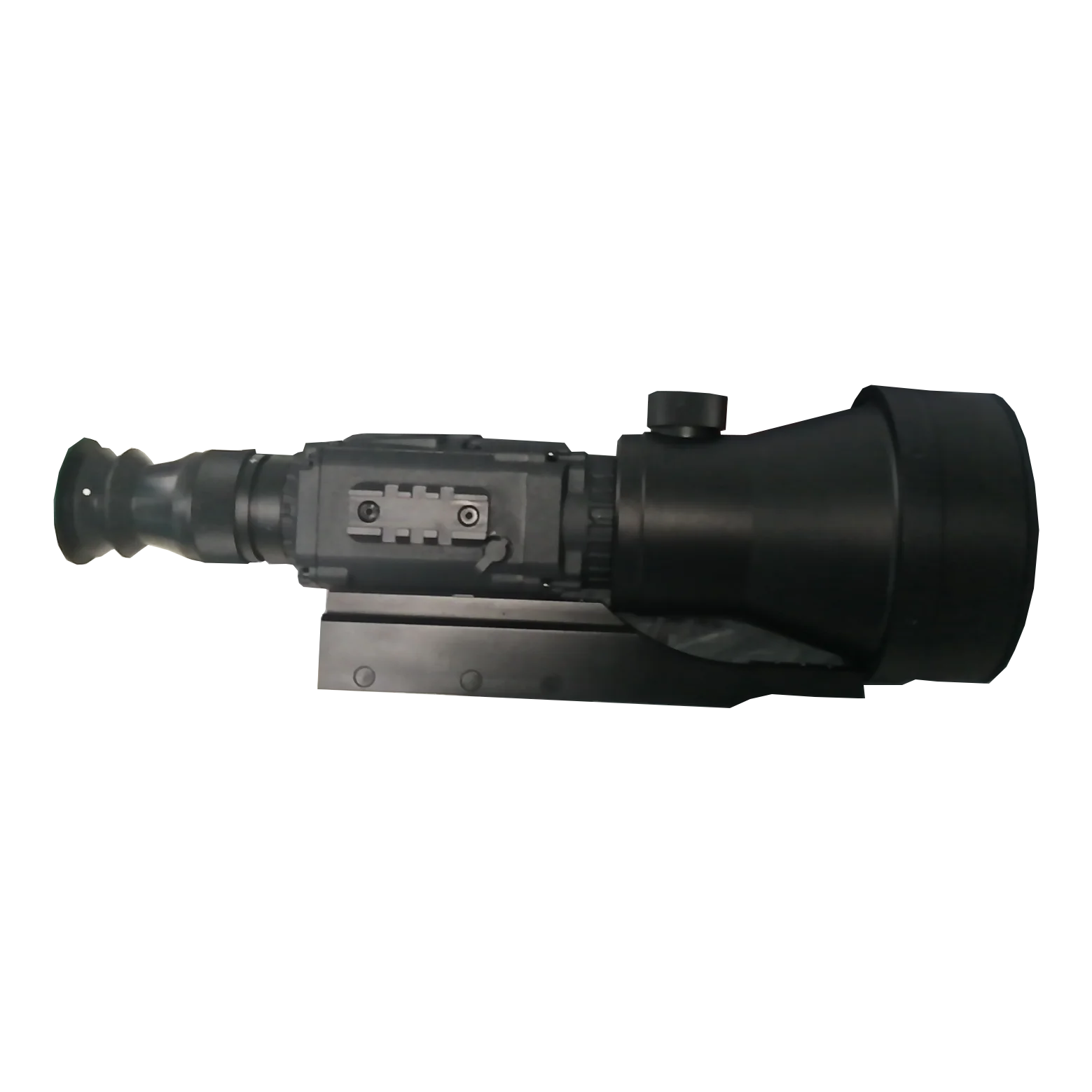

Long range infrared thermal imaging hunting monocular
- Category: >>>
- Supplier: Shandong Gloryvision Intelligence Equipment Co. Ltd.
Share on (1600569426047):
Product Overview
Description
Products Description
Overview

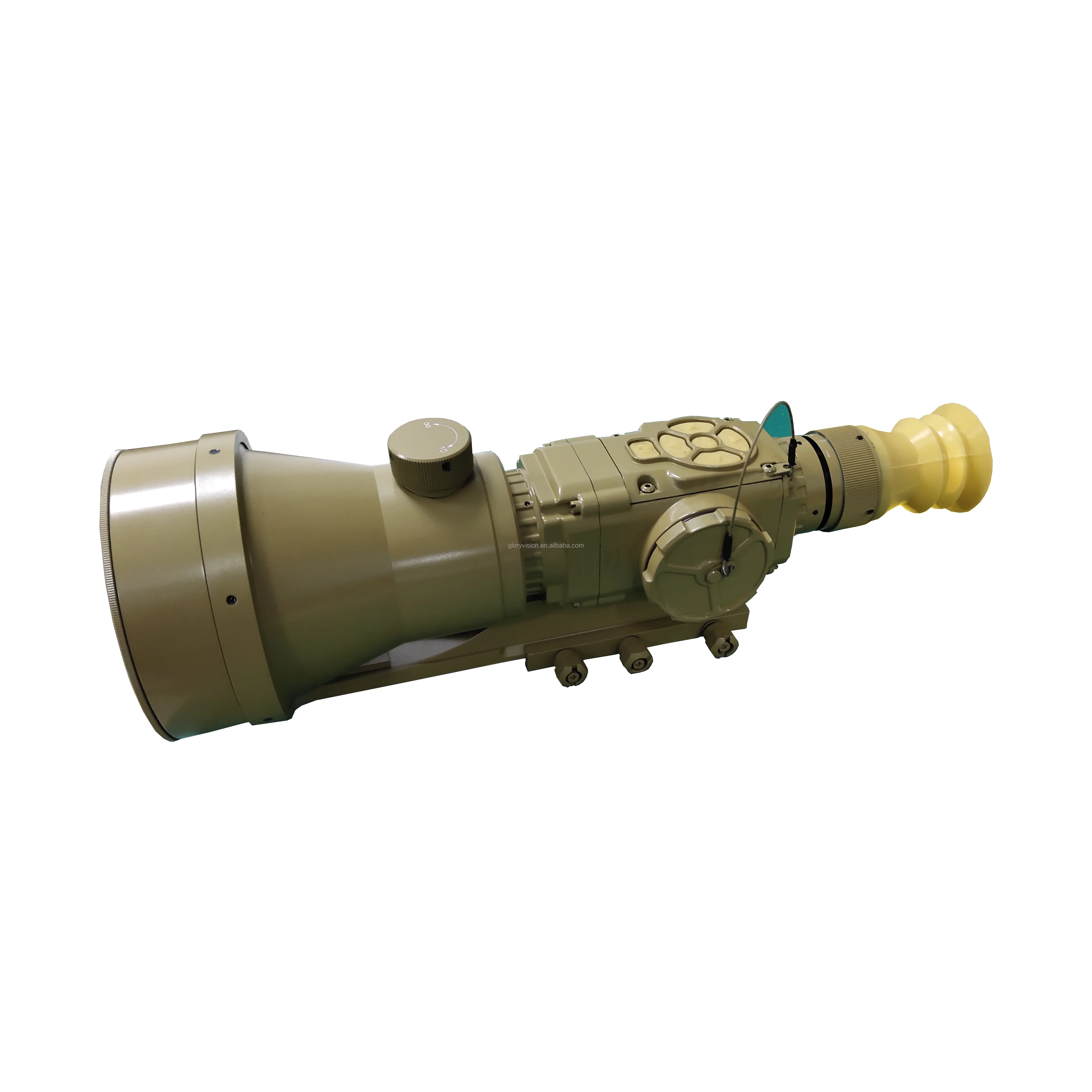

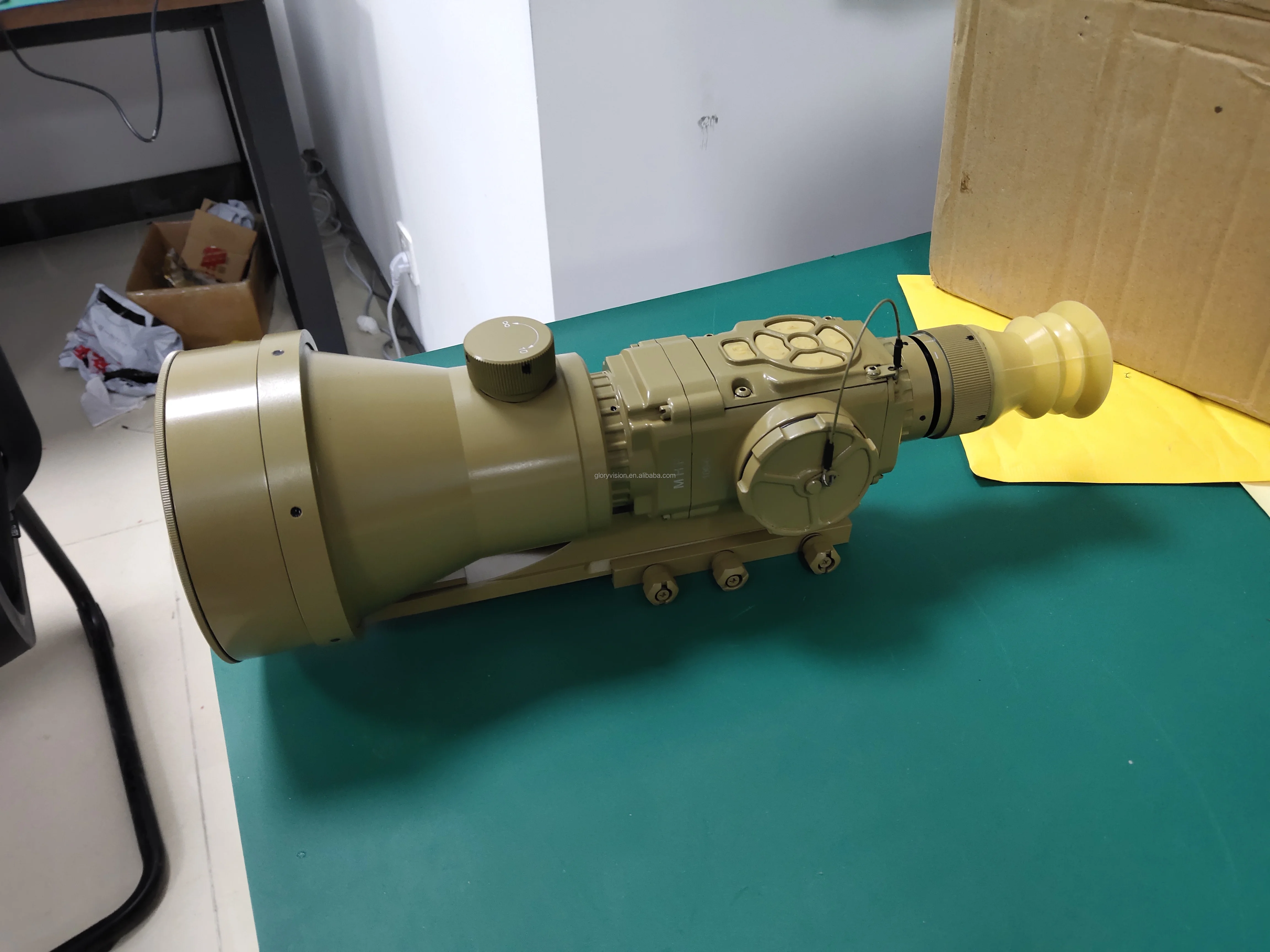

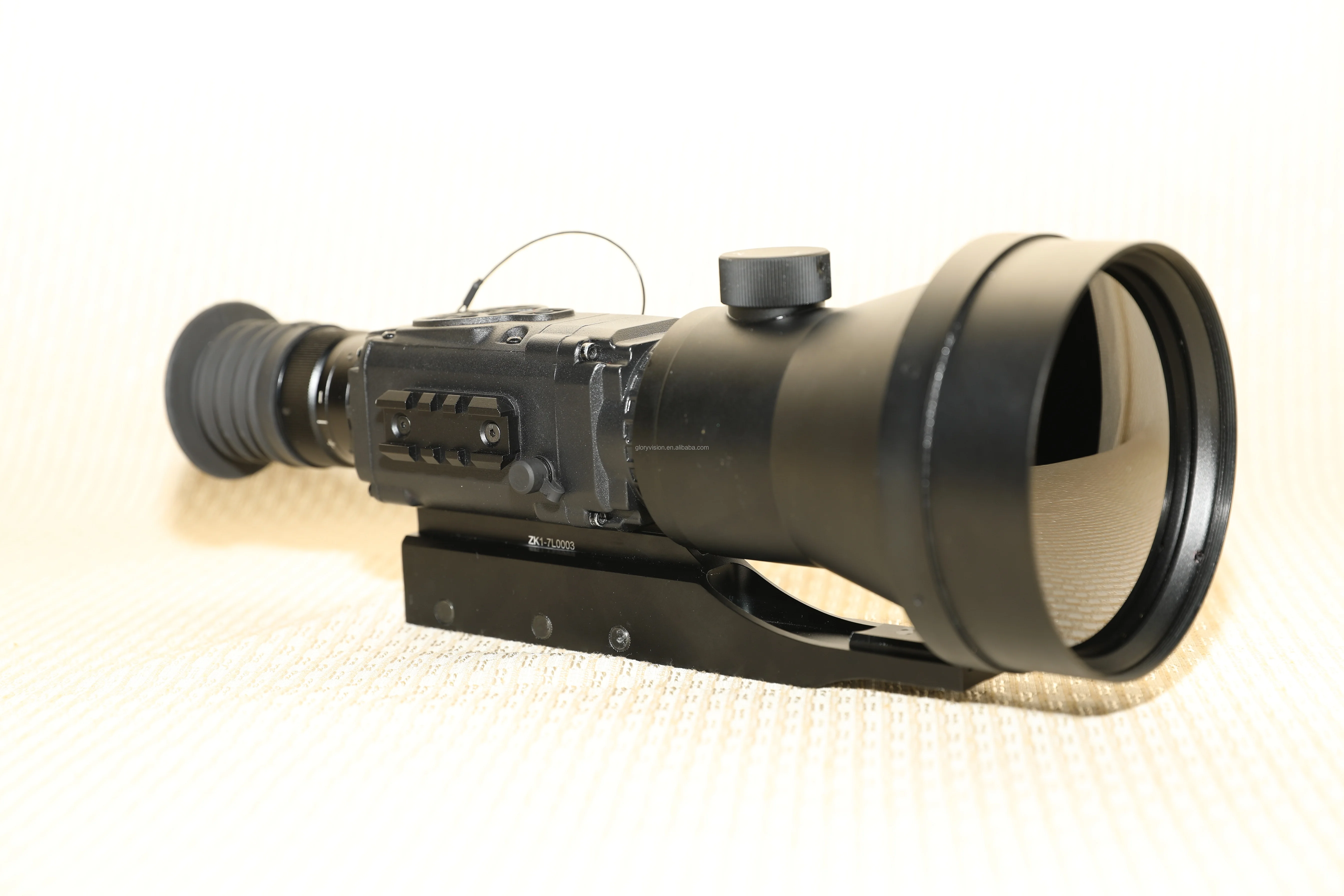

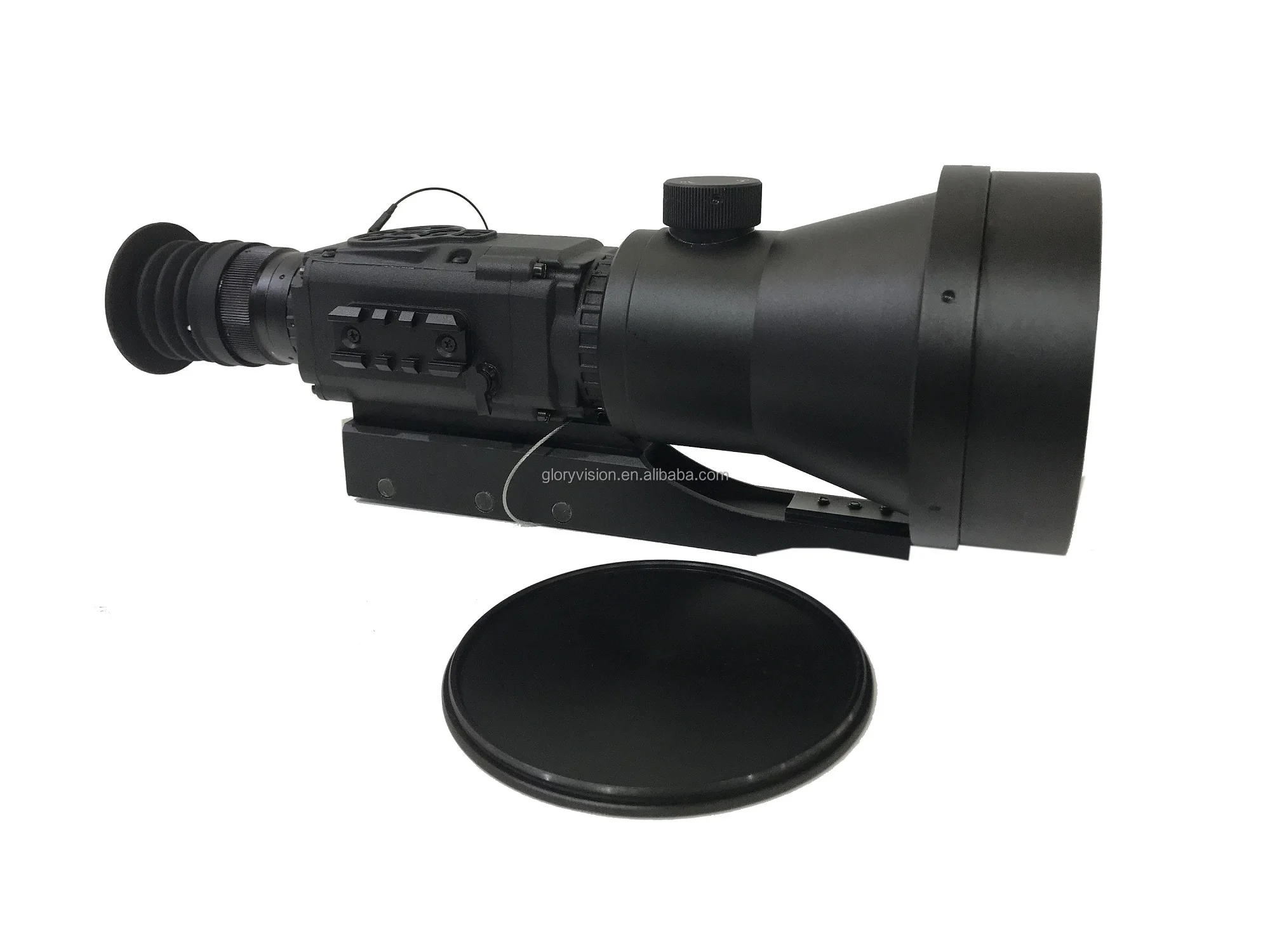

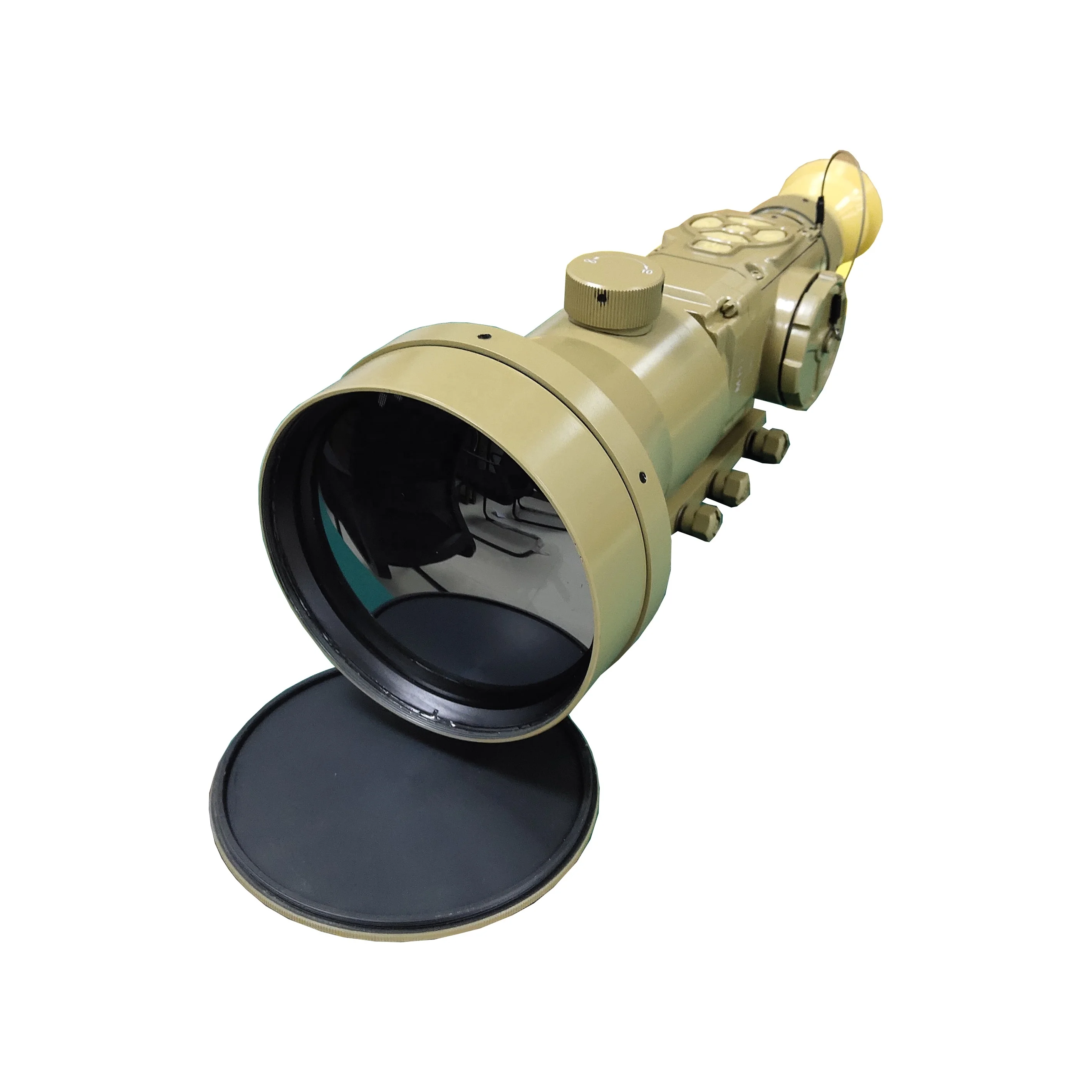

Infrared Thermal Scope adopts uncooled VOx (vanadium oxide) detector. It’s portable and easy to operate. It’s widely used in night scout, tracking and aiming, which enhances individual combat ability at night or under other harsh environment. which can collect and form images by penetrating smoke, rain, snow, and dust etc, can be used both Day & Night as well, suitable for searching, identification and surveillance at long distance.
Features
* Small size
* excellent performance
* 100mm big lens
* Harsh environmental adaptability
* Powerful ability to penetrate smoke and smog
* excellent performance
* 100mm big lens
* Harsh environmental adaptability
* Powerful ability to penetrate smoke and smog
Sensor | 640x512 px |
Type | Uncooled FPA detector (Vox) |
Frame rate | 50Hz |
Thermal Sensitivity | <50 mK |
Spectrum | 8~14 μm |
Lens System | 100mm, F1.2 |
Field of View | ≥6.2°×4.7° |
Eye relief | 52 mm |
Dioptor | -5~+5 |
NETD | ＜ 50mk |
Brightness control | Manual/Auto |
Contrast | Manual/Auto |
Polarity | Black/White Hot |
Pseudo color | Red, green, red/green mixed |
3types | |
Calibration | |
Setting range ≥±100mil | |
Precision ≤0.25mil | |
D-ZOOM | 1×,2×,4× |
Picture in Picture | Yes |
NUC | |
Digital filtering and Noise reduction | |
DDE | |
Battery indicator | Yes |
ENG/CHINESE/ARABIC/RUSSIAN | |
Parameters Save | |
Restore defaults setting | |
Battery | 4 x CR123A battery type |
Consumption | ≤2.5W |
Duration | ≥8hrs |
Video output: Pal | |
RS-232 | |
Operation Temp | -40℃～+50℃ |
Storage Temp | -50℃～+60℃ |
Product packaging

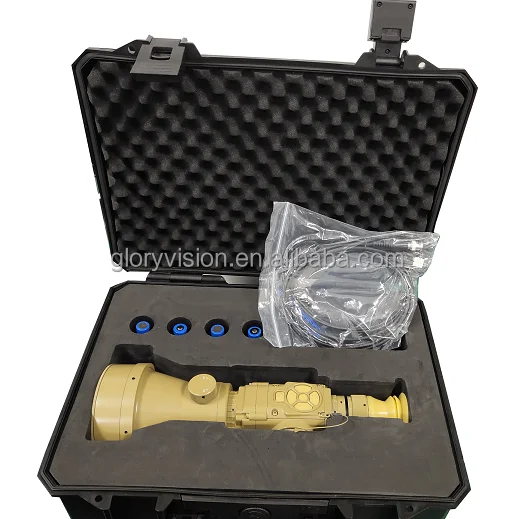

The thermal rifle scope is packaged with safety case.
FAQ
How to get the latest price?
You can contact sales online to get latest price; Or you can leave message to us. Our sales will contact you as soon as possible. And the price we provide is normally FOB price.
What is MOQ?
Our minimum order quantity is 1 pc.
What is the lead time?
Please contact sales to confirm if we still have goods in stock. If yes, we will ship goods to you in one week time after we receive your payment. If not, please confirm with sales.
How to ship goods to customer?
Usually we ship goods to customer via express, such as DHL, FedEx, UPS, TNT or airway transportation. You can also ask us to send goods to your forwarder in China. And we will pay domestic freight.
Do you provide customization service?
Yes, we provide OEM/ODM service. Lead time of customized products need to be confirmed with sales. Usually we will ship products after 2 months time after we receive customer's payment.
After-sale service
Our service
1. We offer 1 years warranty to the devices.
2. Engineers remotely diagnose problems online.
3. Spare modular hardware can be dispatched just in time.
4. Update remotely to solve most firmware problems
5. Modulized design of each part, client can replace modules under instruction.
Our Advantages
Various configurations are optional and customizable
1. Cameras can be configured according to the specific requirements of the project;
2. Different modules can be selected according to the project budget;
3. OEM and ODM are available;
4. New products can also be jointly developed
Modular design, easy maintenance
1. Device firmware can be upgraded remotely, and engineers can remotely solve device program failures
2. Hardware modular assembly, people with basic electrical knowledge can realize the replacement of faulty modules. Greatly saves the time and cost of maintenance.
3.In normal use, cleaning and maintenance are simple, and there is almost no additional cost
3.In normal use, cleaning and maintenance are simple, and there is almost no additional cost
Multiple Shipping Methods
Express, air, sea, land and other methods are optional. You can choose the best way you prefer.
Third Party Guarantee
Alibaba online credit insurance orders to protect your rights to the greatest extent
Recommend Products
Company Profile
Introduction
Shandong Gloryvision Intelligence Equipment Co., Ltd was established in 2019. The company's products have been continuously developed and expanded from the initial laser night vision surveillance cameras. At present, the company's products include: uncooled infrared thermal imaging PTZ cameras, cooled infrared thermal imaging PTZ cameras, multi-functional day and night monitoring PTZ cameras, Vehicle mounted long range day/night vision PTZ cameras, Ultra-long-distance gating night vision cameras, handheld infrared thermal imaging devices, laser listening equipment, laser dazzling equipment, security inspection robots, mrine used gyro-stabilization cameras, UAV used gyro-stabilization cameras, LRF moudule etc.
