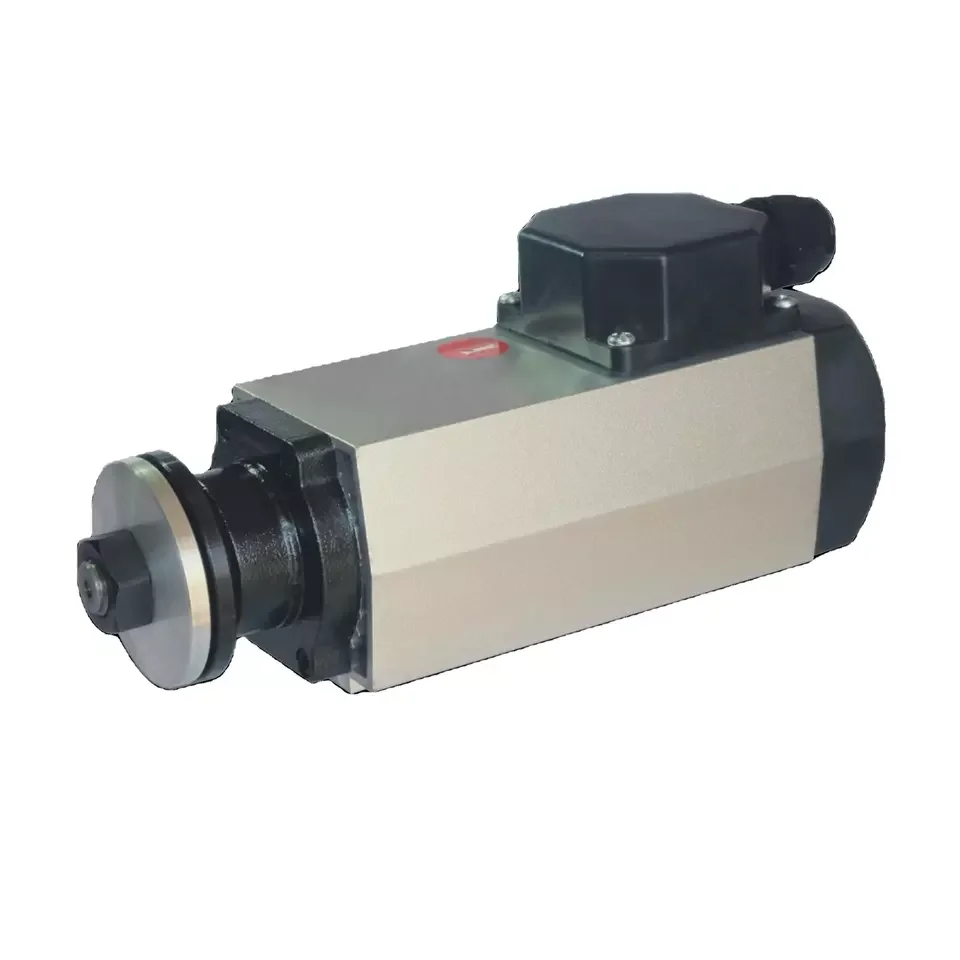

SM4955 spindel cnc motor atc spindle motor spindle edge banding motor
- Category: >>>
- Supplier: Shandong Pengchuan Electromechanical Technology Co. Ltd.
Share on (1600569475175):
Product Overview
Description
Manufacturing parameters

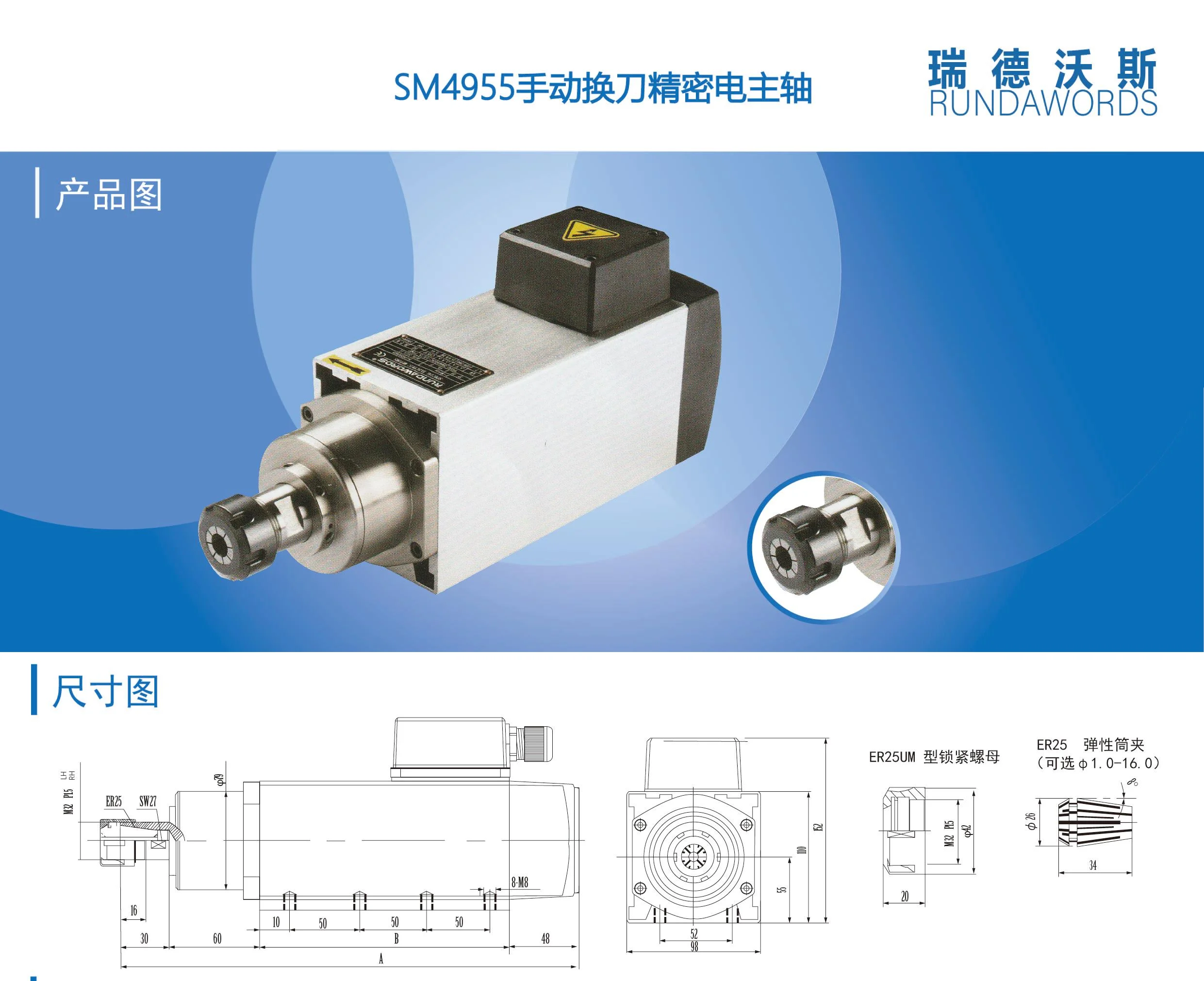

TYPE | KW | V | HZ | R.P.M | A | COSψ | A 【mm】 | B 【mm】 |
SM4955A-09/1.1TMP | 1.1 | 220/380 | 150 | 9000 | 4.95/2.86 | 0.77 | 298 | 155 |
SM4955A-12/1.5TMP | 1.5 | 220/380 | 200 | 12000 | 6.50/3.72 | 0.78 | 298 | 155 |
SM4955A-18/2.2TMP | 2.2 | 220/380 | 300 | 18000 | 9.70/5.60 | 0.79 | 298 | 155 |
SM4955A-24/3.0TMP | 3.0 | 220/380 | 400 | 24000 | 11.8/6.80 | 0.80 | 298 | 155 |
SM4955B-09/1.5TMP | 1.5 | 220/380 | 150 | 9000 | 6.50/3.72 | 0.78 | 313 | 170 |
SM4955B-12/2.2TMP | 2.2 | 220/380 | 200 | 12000 | 9.70/5.60 | 0.79 | 313 | 170 |
SM4955B-18/3.0TMP | 3.0 | 220/380 | 300 | 18000 | 11.8/6.80 | 0.80 | 313 | 170 |
SM4955B-24/3.7TMP | 3.7 | 220/380 | 400 | 24000 | 15.8/9.20 | 0.81 | 313 | 170 |
SM4955C-09/3.0TMP | 3.0 | 220/380 | 150 | 9000 | 11.8/6.80 | 0.80 | 353 | 210 |
SM4955C-12/3.7TMP | 3.7 | 220/380 | 200 | 12000 | 15.8/9.20 | 0.81 | 353 | 210 |
SM4955C-18/4.5TMP | 4.5 | 220/380 | 300 | 18000 | 17.2/10.0 | 0.83 | 353 | 210 |
SM4944C-24/5.5TMP | 5.5 | 220/380 | 400 | 24000 | 21.1/12.2 | 0.84 | 353 | 210 |
SM4955D-09/3.7TMP | 3.7 | 220/380 | 150 | 9000 | 15.8/9.20 | 0.81 | 398 | 255 |
SM4955D-12/4.5TMP | 4.5 | 220/380 | 200 | 12000 | 17.2/10.0 | 0.83 | 398 | 255 |
SM4955D-18/5.5TMP | 5.5 | 220/380 | 300 | 18000 | 21.1/12.2 | 0.84 | 398 | 255 |
SM4955D-24/6.0TMP | 6.0 | 220/380 | 400 | 24000 | 21.8/12.6 | 0.85 | 398 | 255 |
Note:
When the voltage is 230 / 400, the current should be increased by 0.95a. If higher frequency is needed, please contact the engineering department; Generally, the junction box is fixed in the front position. If special requirements are required, it can also be customized and fixed on both sides.
Standard delivery：

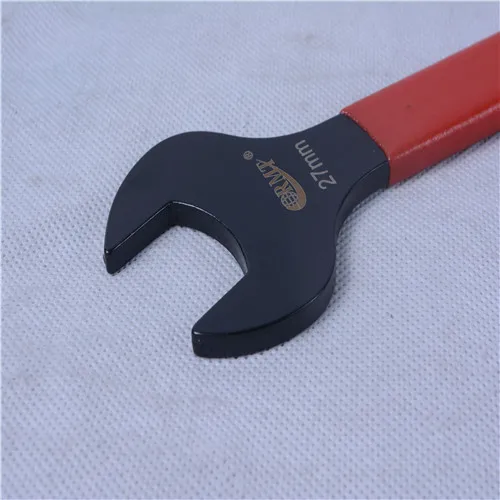

Distribution: two special spanners + dynamic balance nut + high precision chuck
