High capacity led car light smt making machine production line
- Category: >>>
- Supplier: Shenzhen Eton Automation Equipment Co. Ltd.
Share on (1600569493241):
Product Overview
Description
Product Description
SMT Line
SMT Line is the short name of surface mounting technology, it is widely apply to all kinds of electrical board and led lighting industry, usually have Semiautomatic smt line and Automatic smt line. SMT Line mainly included Stencil printing machine, Pick and place machine, Reflow oven machine, PCB Conveyor machine, Loader, etc.

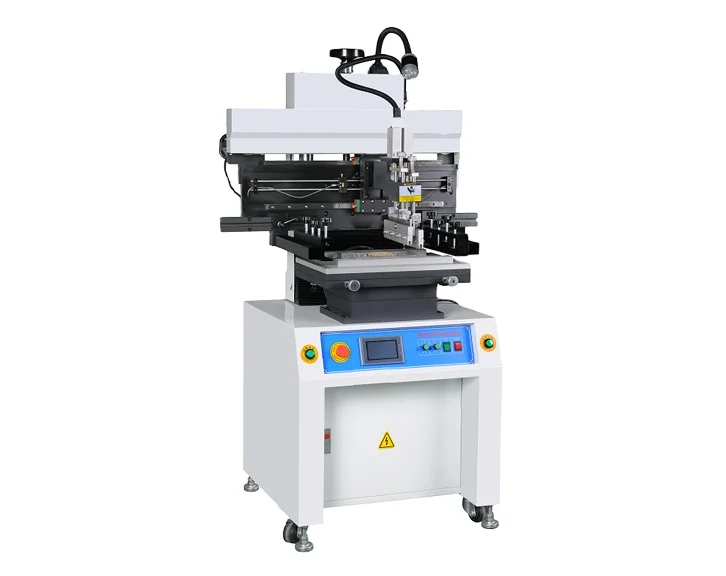

Semi-automatic Stencil Printer
Semiautomatic Stencil Printer Machine function is print solder paste on the PCB.
It is the first step on the SMT Line, semiautomatic printer is widely application and very easy to operate with different PCB Design.
ETON Stencil printer machine scrapers of different sizes are available.
Module name: | Semi auto stencil printer | Printing cycle: | 5-20 S | |
Dimension: | 1600*750*1650 mm(L*W*H) | Air Pressure: | 4-6 kgf/cm^2 | |
Platform Size: | 650*370 mm | Weight: | 280 kg | |
PCB Size: | 600*350 mm | Printing control method: | Touch screen+PLC |
Automatic Pick And Place Machine
Pick and place machine is the most important module in this line, it directly influenced the whole line capacity.

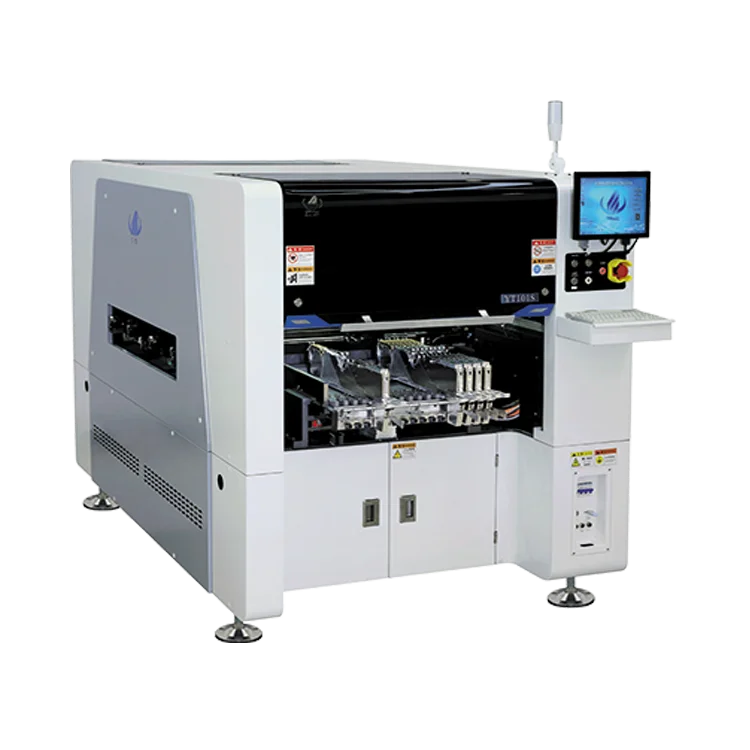

ETON pick and place machine YT101 is new upgrade multi-functional pick and place machine, suitable for mounting led chip, capacitor, resistor, lens, IC, shaped components,etc
(Mini 0201)(Max Height 20mm)
Vision Camera
2 sets of imported camera
Vision for the flight identification,
Mark correction.
Integrated structure
The highly integrated and modular design improves the performance of the machine and is also more conducive to later maintenance

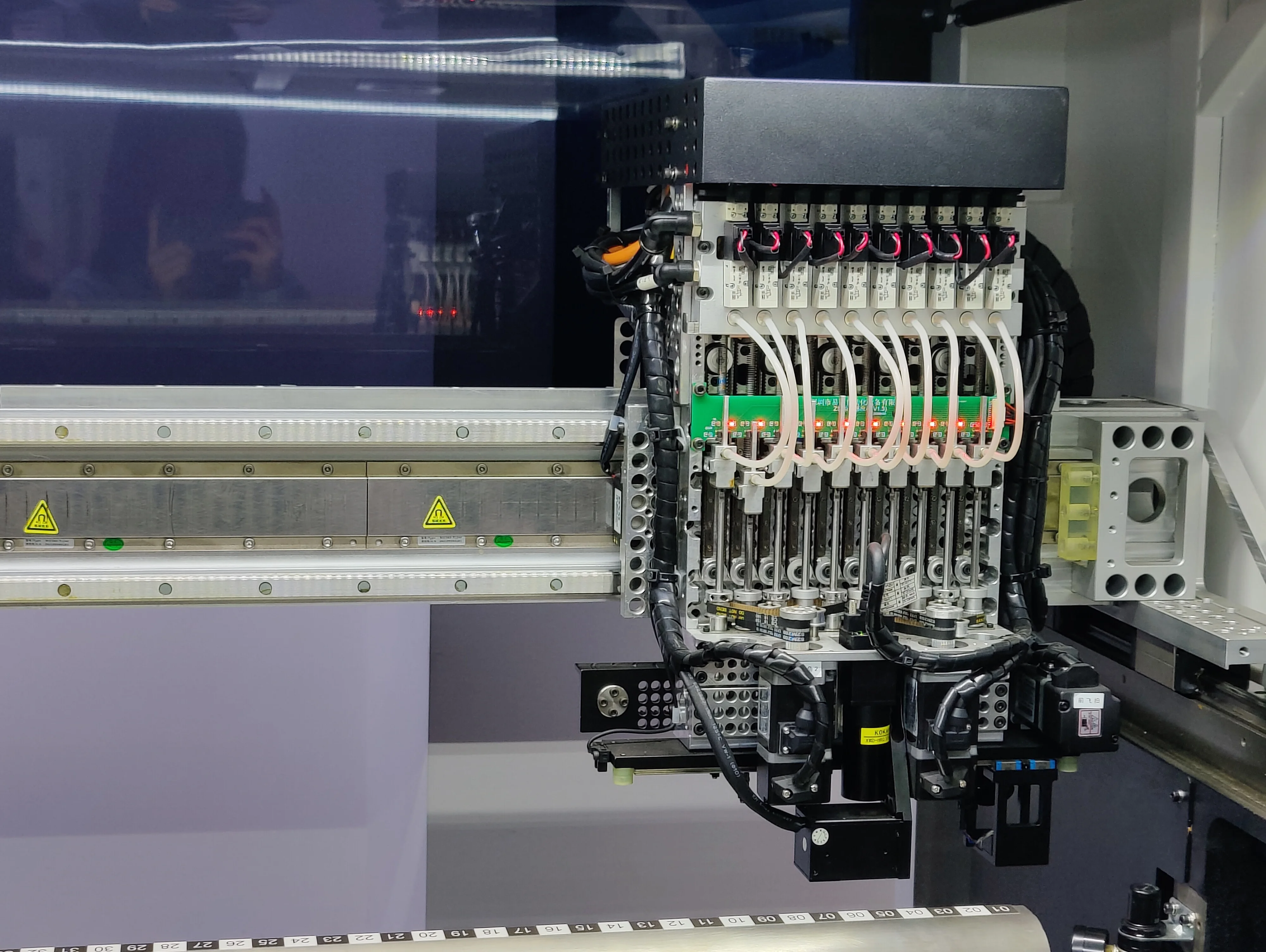

High precision mounting head
There are 10 mountings head in YT101, Using a new head design, lighter, more, and faster mounting speed
Module name: | Pick and place machine | Software: | R&D Independently | |
Dimension: | 2154*1376*1762 mm | Display: | Touch screen monitor | |
Total Weight: | 2000 kg | No.of camera: | 2 sets | |
Max PCB size: | 500*350 mm | Mounting speed: | 45000 cph |

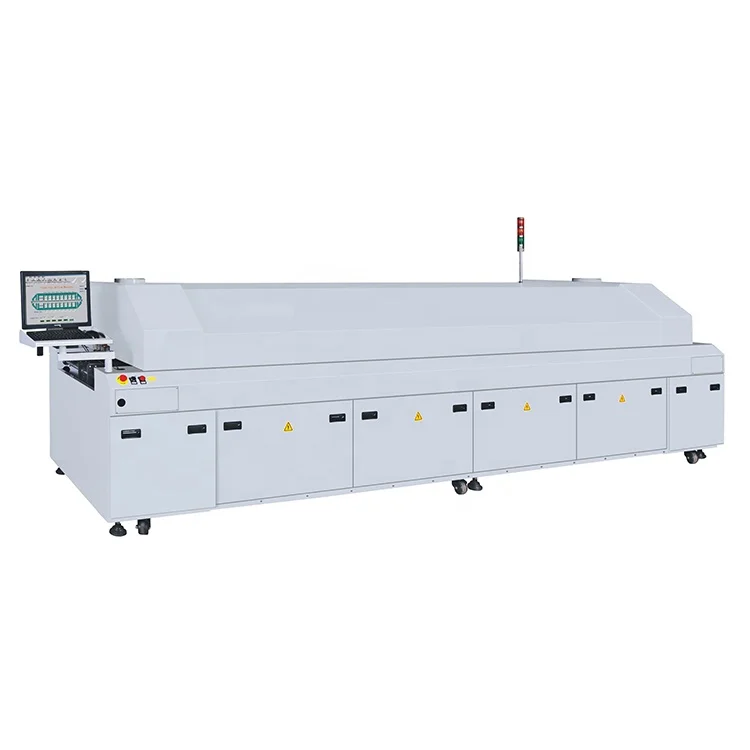

8 Zones Reflow Oven Machine
Heating system adopts high efficiency and energy saving nickel heat pipe, radiant power peak wavelength 4UM, with curved
reflector cover, high thermal efficiency, fast temperature rise, special forced hot air circulation structure system, so that PCB
and components are heated evenly
reflector cover, high thermal efficiency, fast temperature rise, special forced hot air circulation structure system, so that PCB
and components are heated evenly
Module name: | Eight zones reflow oven | PCB Limits height: | 25 mm | |
Dimension: | 4600*710*1500 mm | Transmission direction: | L-R(R.L) Optional | |
Length of heating zone: | 2800 mm | PCB transport speed: | 0-1.8 m/min | |
PCB Size: | 50-350 mm | Net weight: | 800 kg |

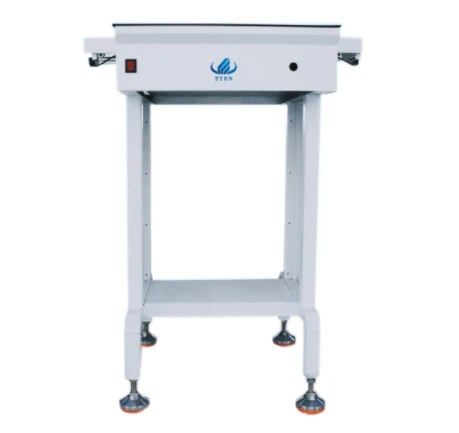

0.5 M PCB Conveyor Machine
Transfer PCB boards between two machines, play a role in buffering and testing
One section of control , two sensors.
One set of electric control box
Machine : | PCB Conveyor | Transmission Direction: | Single (Left-right or right to left) | |
Speed: | Adjustable from 0.5-9 m/min | Transmission Height: | 880-940 mm |
MORE SMT LINE DESIGN FOR DOB
For DOB Product, if you are looking for more than 120000 PCS day capacity, or higher, please see this line design, we supply more line design according to your factory size, Save much labor cost, machine cost, space cost to improve your capacity.
More than 80% big led factory all choose ETON Machine! Just contact us now!
Joy's Whatsapp/wechat number: 00861359015125
Product Usage
Multifunctional SMT Line
This smt line suitable for all kinds of led lighting and electrical board, such as：
LED Bulb
LED Tube
LED Panel
LED Strip
LED Lens
Driver Board
Display
etc....................
Not only for led chip !
It is total intelligent and widely suitable for mounting different components, such as :
LED Chip
Resistor
Capacitor
IC
Shaped Components
Various terminals
etc...................
Packing&Shipping
Sturdy packaging

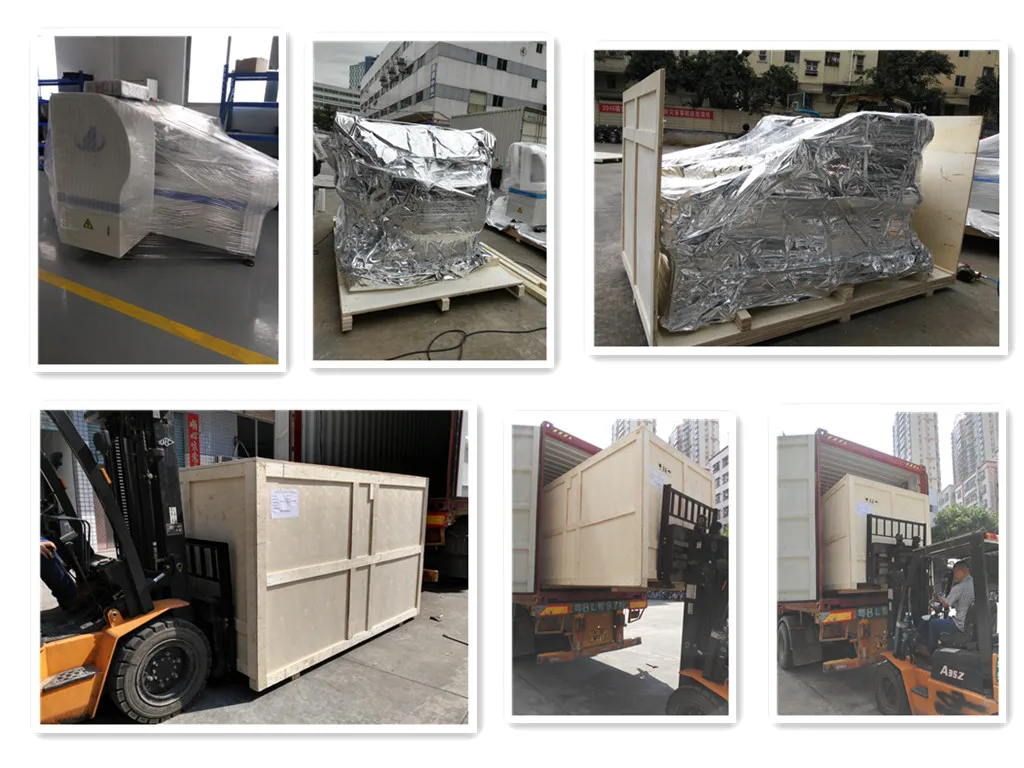

For Machine, we using Vacuum wooden box packaging, inspection-free, avoid collision damage during transportation
