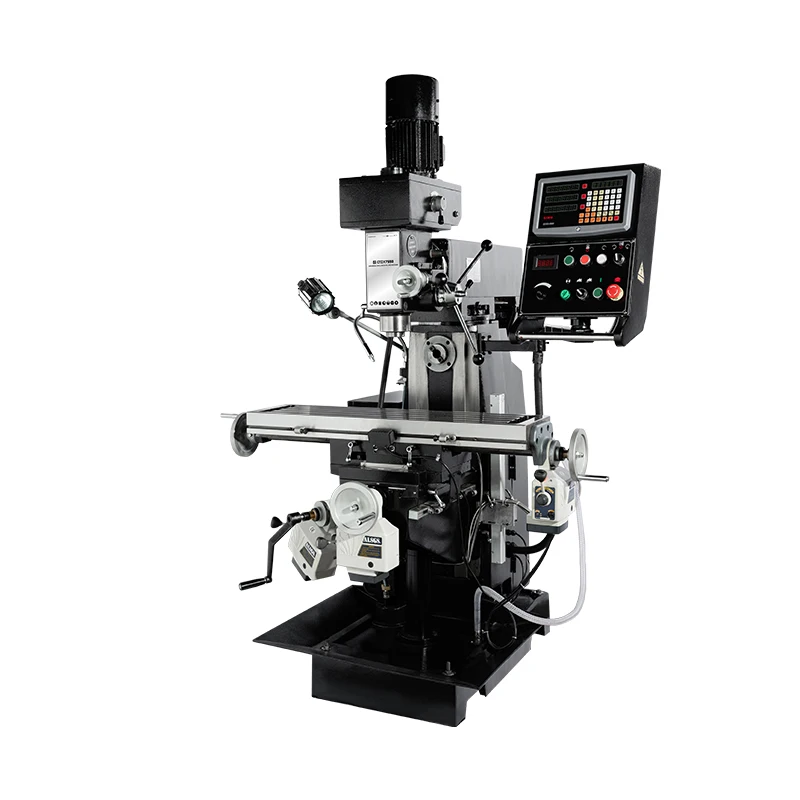

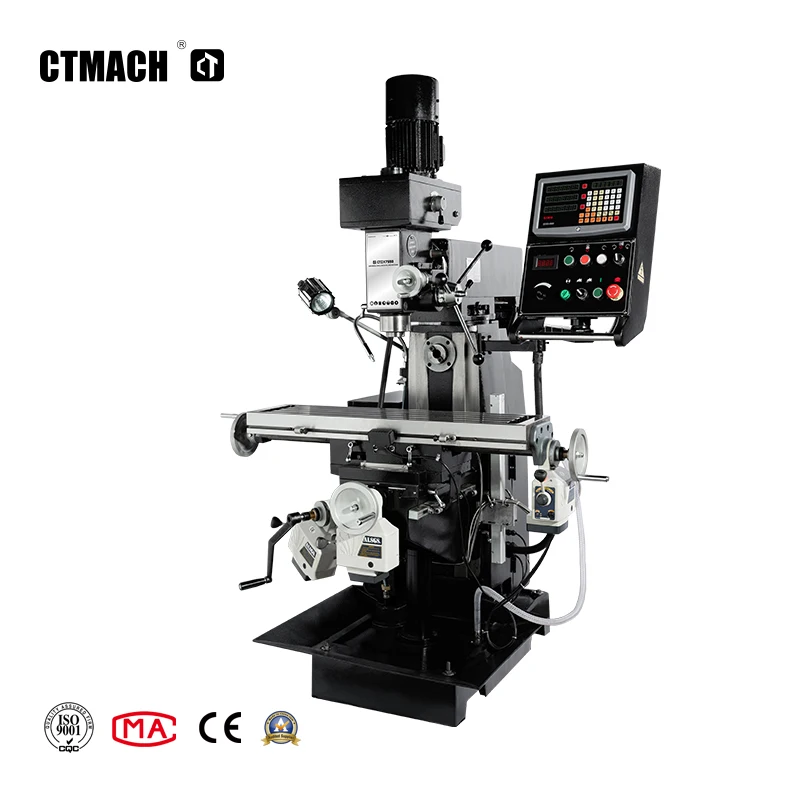

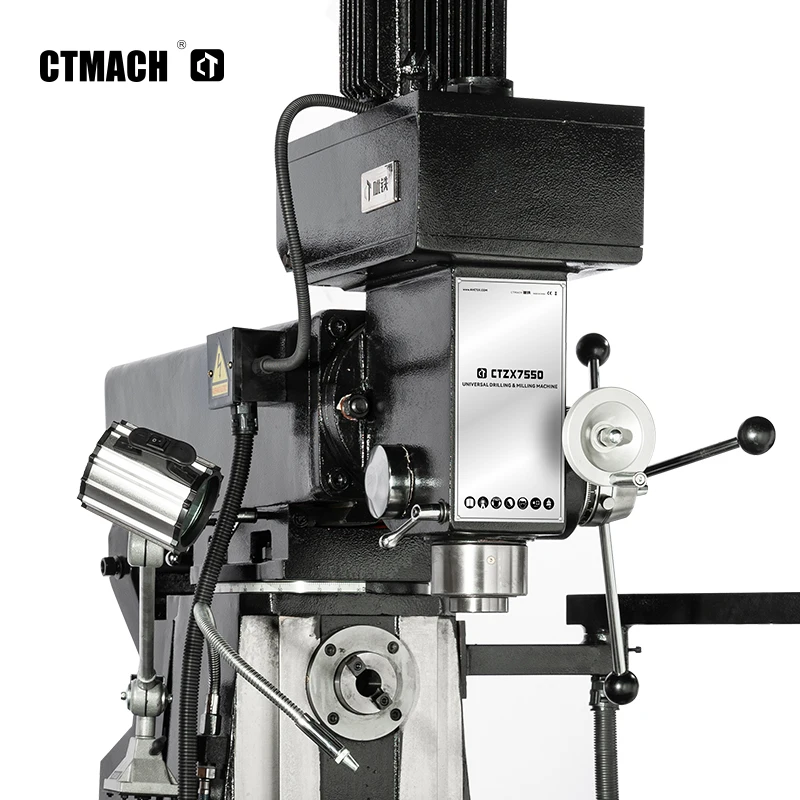

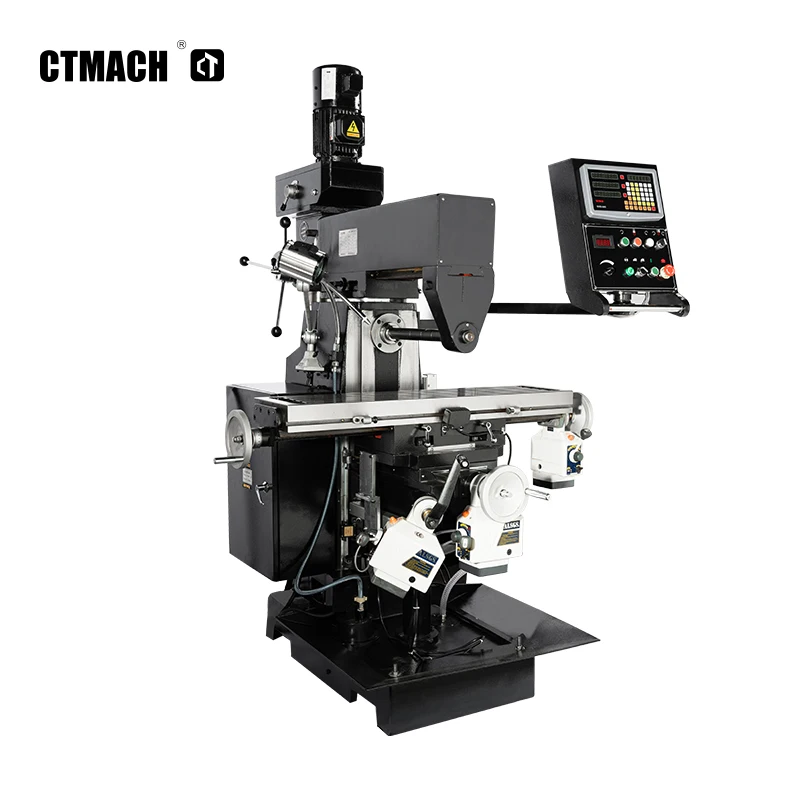

CTZX7550 Vertical and Horizontal Drilling and Milling Machine

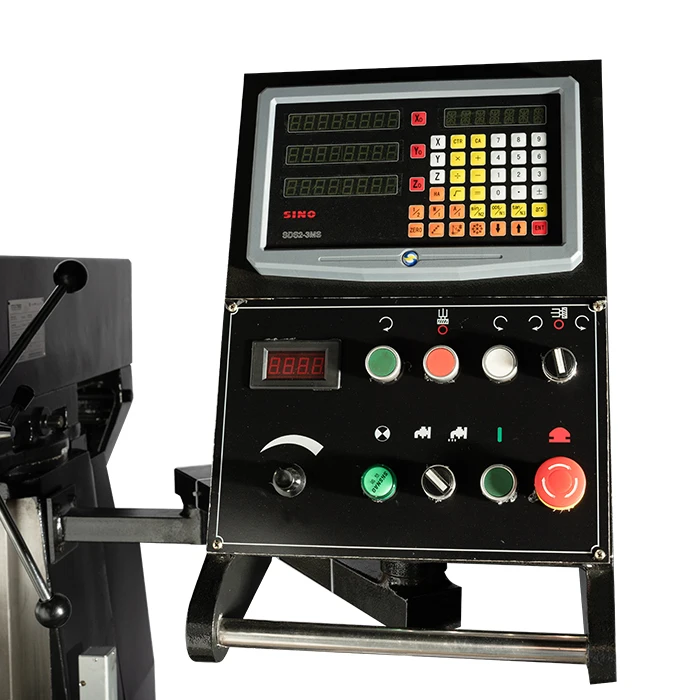

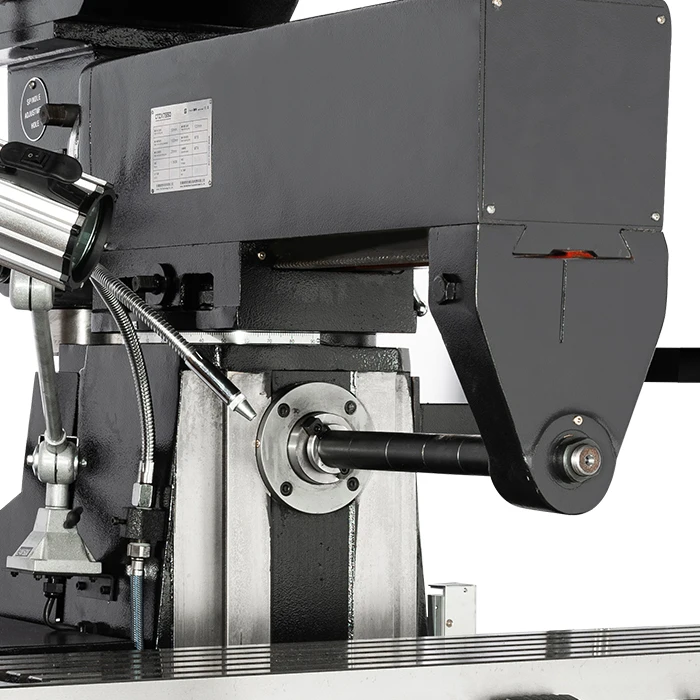

Vertical and horizontal dual-purpose drilling andmilling machine, the vertical milling drilling and milling head can be tilted left and right, theworktable can be rotated, the three-axis belt is automatic, and the grating digital display.The vertical spindle is easy to operate withstepless speed change, and the horizontal spindle has belt speed change, large torque, goodstability, and can be used for large milling.High-precision grinding all-steel spindle, ductile cast iron, headstock shaft hole through fineboring, honing and internal stress relief treatment to ensure long-term durable accuracy All-steel gears are ground to make the machinetool with high precision, strong rigidity and good stability.
With dovetail guide rails, built-in inserts, adjustable slack, and wear-resistant.
With dovetail guide rails, built-in inserts, adjustable slack, and wear-resistant.
PRODUCT SPECIFICATIONS
Max. Drilling Diamter | 50mm | ||||||
Max. Face Milling Capacity | 100mm | ||||||
Max. Vertical Milling Capacity | 25mm | ||||||
Max. Tapping Capacity | M16 | ||||||
Maximum Boring | 120mm | ||||||
End Mill Spindle Taper | MT4 | ||||||
Horizontal Milling Spindle Taper | MT4 | ||||||
Spindle Speed of Vertical Milling | 0-1750rpm | ||||||
Number/range of Horizontal Milling Spindle Speeds | 60-1350rpm (9 Kinds) | ||||||
Distance from the Axis of the end milling spindle to the surface of the column | 200-700mm | ||||||
Distance from End Face of End Milling Spindle to Table | 100-480mm | ||||||
Distance from Horizontal Milling Spindle Axis to table | 0-380mm | ||||||
End Mill Spindle Feed | 120mm | ||||||
Worktable Size | 1000*240mm | ||||||
Worktable Travel ( Vertical and Horizontal) | 600*230mm | ||||||

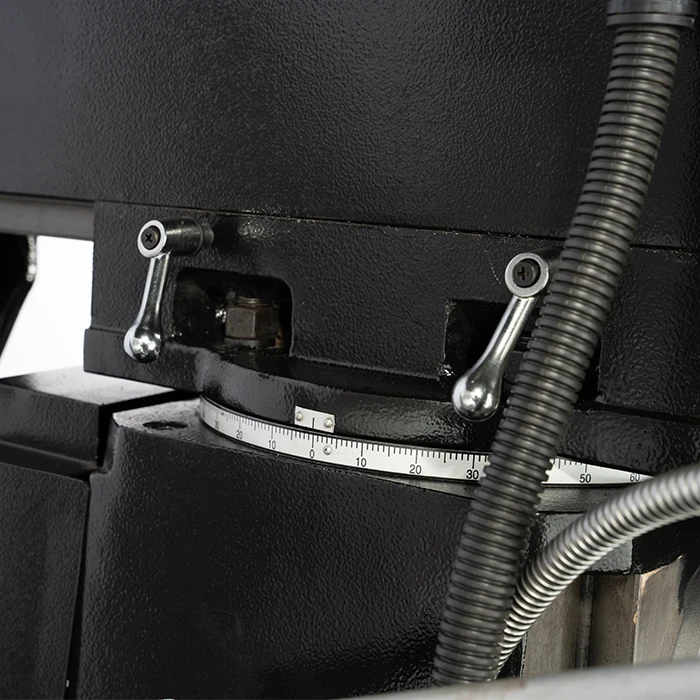

The Table Rotates Horizontally | 45° | ||||||
Horizontal Rotation of the Beam | 90° | ||||||
Vertical Swing of End Mill Headstock Head | 90° | ||||||
End Mill Spindle Motor | 1.5kw | ||||||
Horizontal Milling Spindle Motor | 1.5kw | ||||||
Overall Dimensions | 1120*1060*2035mm | ||||||
N.W. | 970kg | ||||||
FEATURES AT A GLANCE

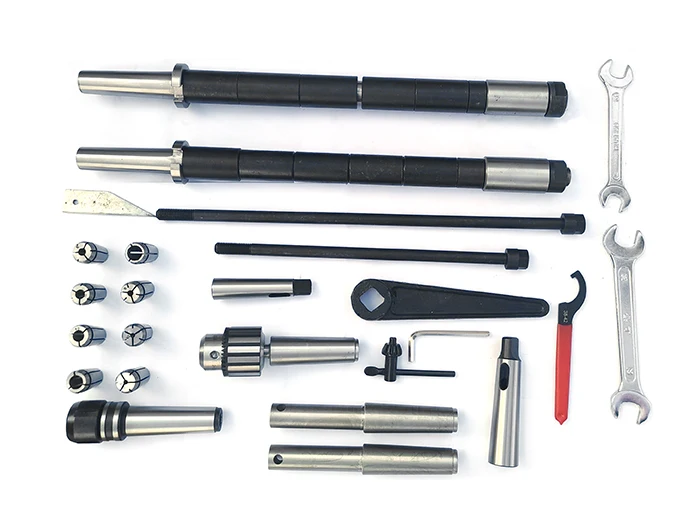

Product Acessories
