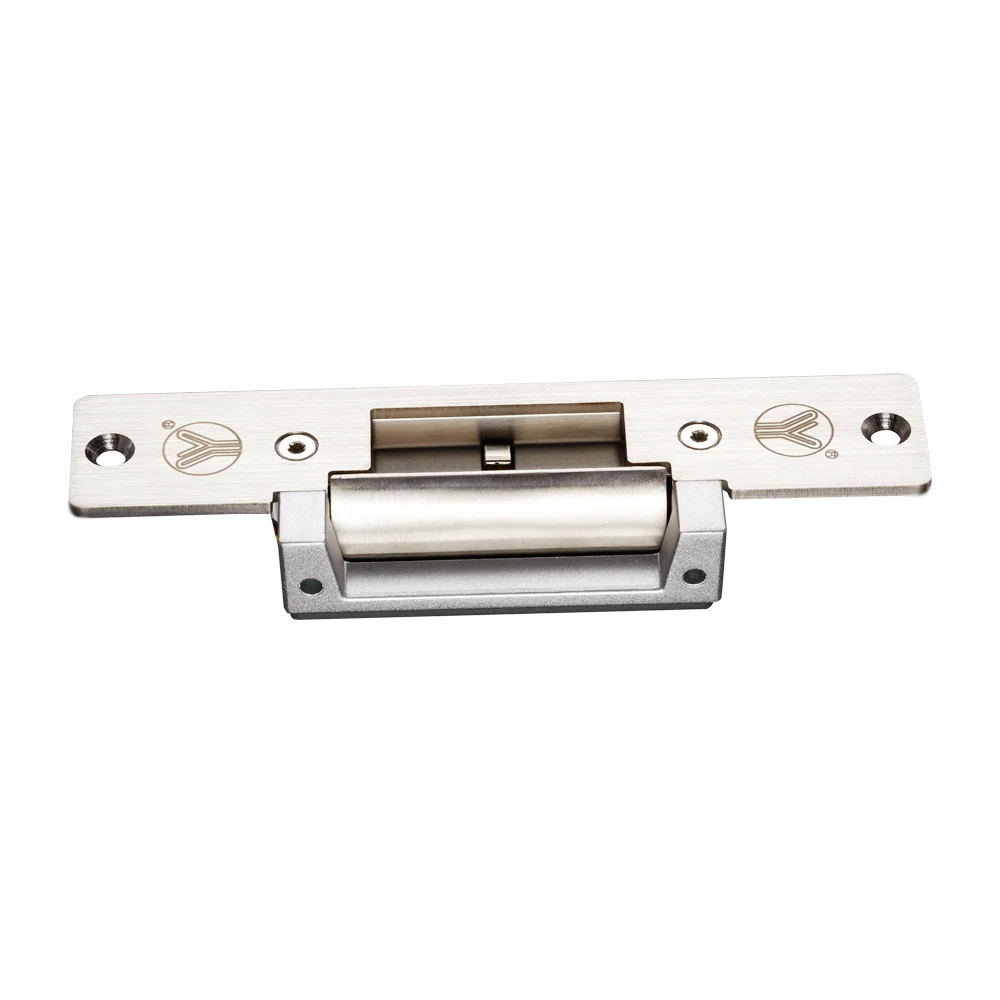

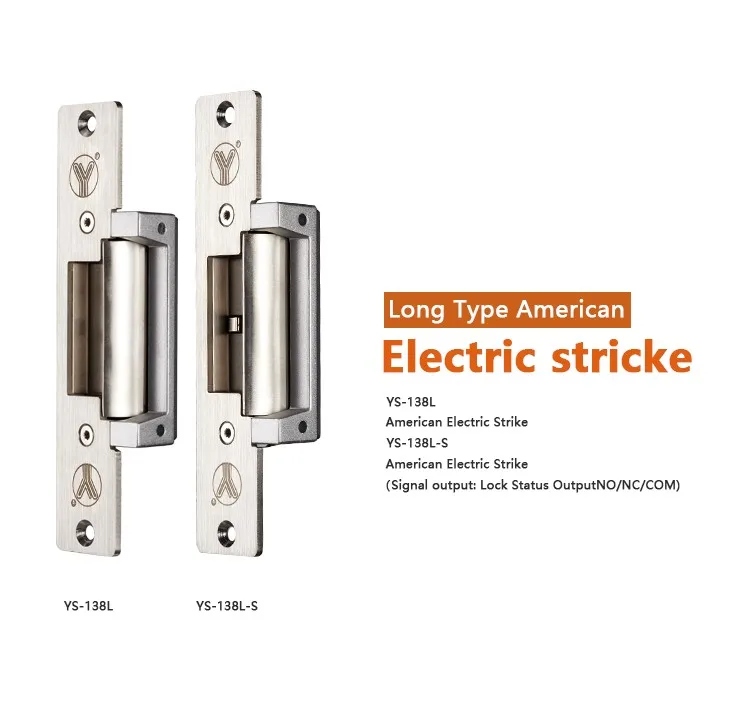

Long Type American Electric Strike YS 138L S
- Category: >>>
- Supplier: Shenzhen Yli Electric Lock Co. Ltd.
Share on (1600569595705):
Product Overview
Description
Product Description
Product Application
YS-138LNO/NC-S is designed for wooden door, metal door, PVC door and so on.There are a group of lock signal output dry contacts in the lock, they are NO/NC/COM,used for remote monitoring the state of the lock is locked or not.

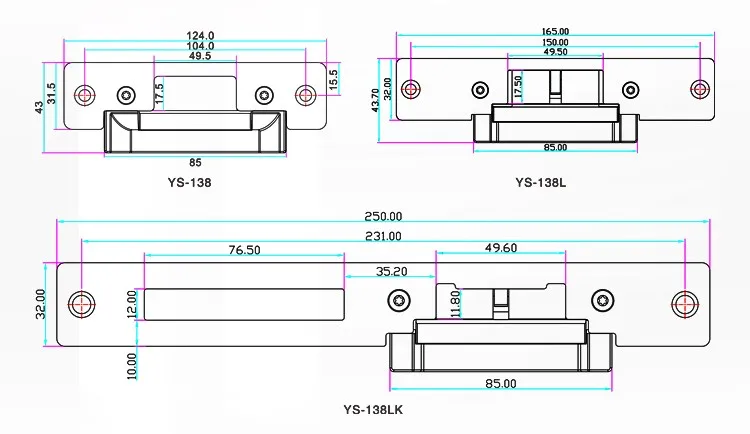

Lock Size | 165Lx43.7Wx35H(mm) | ||||
Strike Structure | Stainless Steel | ||||
Holding Force | 1000kg | ||||
Voltage | DC12V (Need Order DC24V) | ||||
Current | 12V/320mA;24V/160mA | ||||

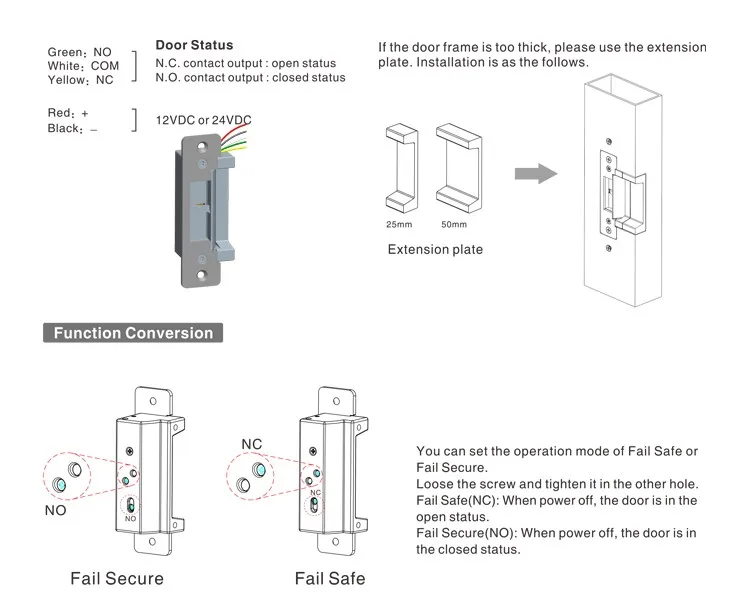

Feature | Fail Secure(YS-138LNO-S); Fail Safe(YS-138LNC-S) | ||||
Suitable For | Wooden Door,Metal Door,PVC Door | ||||
Signal Output | Door status Output,NO/NC/COM | ||||
Surface Temperature | Within +20℃ | ||||
Suitable Temperature | -10~+55℃(14-131F) | ||||
Operating Humidity | 0~90%(non-condensing) | ||||
Face plate Housing | Painted Steel | ||||
Function | Built-out MOV | ||||
Optional Accessories | YS-305,YS-306 | ||||
Weight | 0.4kg | ||||
Patent No. | 201320470904.1 | ||||
