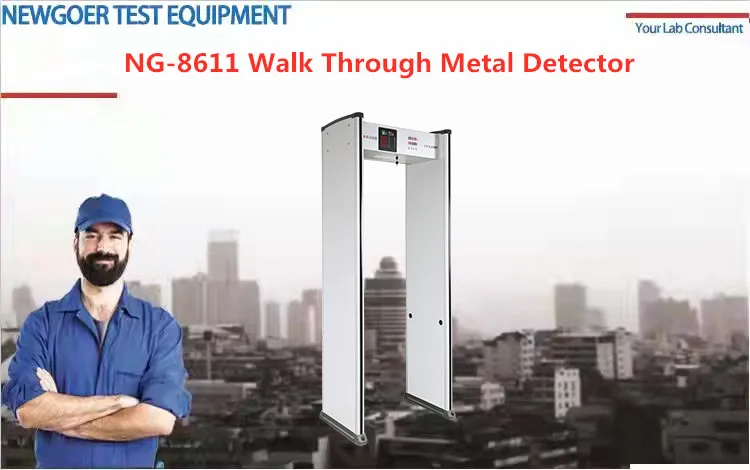

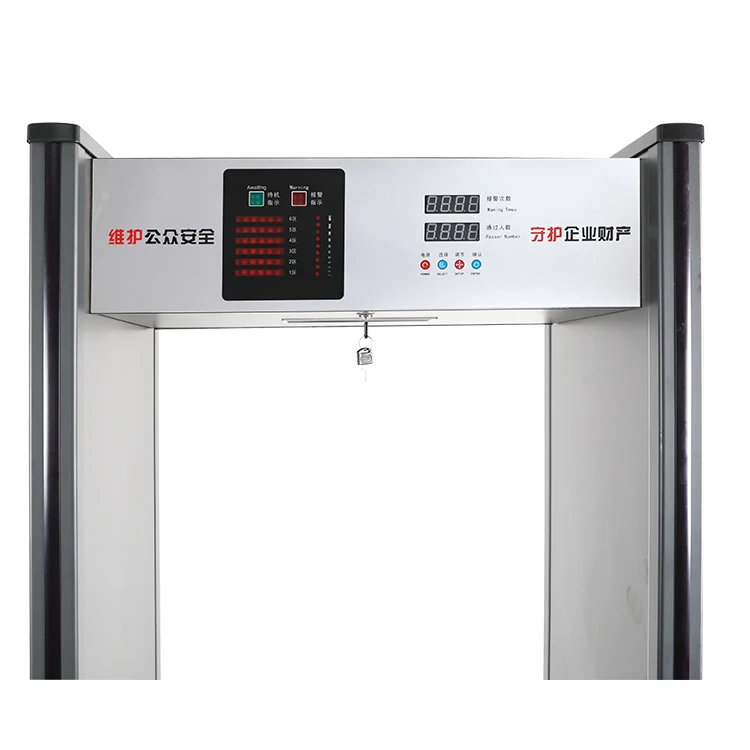

Office building security door frame walk through metal detector archway metal detector
- Category: >>>
- Supplier: Guangdong Newgoer Instrument Co. Ltd.
Share on (1600569661803):
Product Overview
Description
Product Description
Walk Through Metal Detector Body Security Scanner Metal Detector Gate For Airport Security Check
Summary:
What is Walk Through Metal Detector ?
Metal detectors provide the responder community with an essential tool to screen individuals that may be carrying weapons or contraband that contain metallic components. Available in walk-through and handheld models, metal detectors are commonly used at checkpoints in airports, schools, courthouses, prisons, and military installations. Walk-through metal detectors can be designed for either indoor or outdoor use.
Pinpointing the location of the target quickly is important so that your security personnel can respond swiftly. Larger crowds require greater through put. If you are scanning a large volume of individuals, a multi zone metal detector will let you process more individuals quicker.
How Walk Through Metal Detector Work ?
The metal detector utilizes the laws described by a Scottish physicist named James Clerk Maxwell. He discovered that magnetism and electricity are related. An example of the relationship is a coil of copper wire wrapped around a metal nail. When current is applied to the coil, the metal nail becomes magnetized.
When an electric pulse is sent through a coil of wire, it creates a magnetic field. When the field hits a metal object, it
reflects back and can be detected using another coil of wire. The size and timing of the detected pulse is used to define the size and position of the object.
reflects back and can be detected using another coil of wire. The size and timing of the detected pulse is used to define the size and position of the object.
Where are Walk Through Metal Detector Applied ?
The Metal Detector Conveyor Machine is widely applied in various industries: food industry, toy, pharmaceutical, beverage,
textile, garment, plastics, chemicals, lumber, mining, packaging industries and other industries. We offer customized metal
detectors for your special need, rigorous quality standards ensure that we meet your specification each time, every time !
textile, garment, plastics, chemicals, lumber, mining, packaging industries and other industries. We offer customized metal
detectors for your special need, rigorous quality standards ensure that we meet your specification each time, every time !
What are the Features ?
1. Display: High brightness digital display the number of through people and alarm number and alarm location.
2. Multiple Detection Zones: Suspicious objects can be accurately displayed in every area.
3. Sensitivity: Each zone has 100 degree sensitivity, adjustable as needed.
4. Pinpoint: There’re two rows of lights on both sides, which can intuitively display alarm location and simultaneously alarm with sound and light.
5. Counting: Can detect and count the numbers of people passing and alarm numbers.
6. Shockproof Design: Exclusive shockproof design, stand in the middle of the door, pat the door panels on both sides, the door will not be false alarm.
7. High Precision: The highest sensitivity can detect a pin (or 1/2) paper clip in the middle of the door. It can be detected
without missing or misreport, and detect more than 150 grams of copper, aluminum, zinc and other metals or control tools and guns.
8. Anti-Interference: In view of the electromagnetic interference in various environments, the whole system adopts the advanced electromagnetic compatibility design, and uses the DSP processor to carry out relevant operations and filtering on the sampling signal of prohibited items, so that the whole equipment has a strong ability of electromagnetic anti-interference.
9. Material: High density board, plus fire prevention board, fire prevention, moistureproof, aluminum alloy square tube pillar
inside, no deformation.
10. Harmless: harmless to cardiac pacemaker wearers, pregnant women, magnetic media, etc.
11. Additional Functions: Remote control can be optional purchase to control parameters, reserved switch signal, can be connected with computer, camera, three rollers, etc.
3. Sensitivity: Each zone has 100 degree sensitivity, adjustable as needed.
4. Pinpoint: There’re two rows of lights on both sides, which can intuitively display alarm location and simultaneously alarm with sound and light.
5. Counting: Can detect and count the numbers of people passing and alarm numbers.
6. Shockproof Design: Exclusive shockproof design, stand in the middle of the door, pat the door panels on both sides, the door will not be false alarm.
7. High Precision: The highest sensitivity can detect a pin (or 1/2) paper clip in the middle of the door. It can be detected
without missing or misreport, and detect more than 150 grams of copper, aluminum, zinc and other metals or control tools and guns.
8. Anti-Interference: In view of the electromagnetic interference in various environments, the whole system adopts the advanced electromagnetic compatibility design, and uses the DSP processor to carry out relevant operations and filtering on the sampling signal of prohibited items, so that the whole equipment has a strong ability of electromagnetic anti-interference.
9. Material: High density board, plus fire prevention board, fire prevention, moistureproof, aluminum alloy square tube pillar
inside, no deformation.
10. Harmless: harmless to cardiac pacemaker wearers, pregnant women, magnetic media, etc.
11. Additional Functions: Remote control can be optional purchase to control parameters, reserved switch signal, can be connected with computer, camera, three rollers, etc.
Speficiations:
Model | NG-8611 | NG-8612 | NG-8613 | ||
Display | Digital | 4.3 inches Screen | 7 inches Screen | ||
Channel Size | 2000*700*550mm (H*W*D) | ||||
Overall Size | 2202*820*550mm (H*W*D) | ||||
Alarm Mode | Sound and Led Lights | ||||
Detection Area | 6 Zones | ||||
Sensitivity | 100 levels adjustable | 300 levels adjustable | 1000 levels adjustable | ||
Work Condition | -20°C +55°C | ||||
Power Supply | AC 200V ~ 240V | ||||
Power Consumption | 30W | ||||
Work Frenquency | 6.99~11KHZ Adjustable | ||||
Net Weight | Approx 70Kg | ||||
Carried Standard | GB15210-2003 | ||||
Remark | 1. The electrical appliances are conform to EN60950 safety standards. 2. Radiation are conform to EN50081-1. l 3. The anti-interferenceare conform to EN50082-1 standard. l 4. Strictly implement the current national standards for walk-through metal detectors. | ||||
Company Introduction
Our services
Packing&Shipping
We have professional packing teams and shipping forwarder to pack and deliver your products!
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
IEC60695 Glow Wire Flammability Temperature Tester, Glow Wire Combustion Resistance Testing Machine, Glow Wire Burning Tester
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
IEC60695 Glow Wire Flammability Temperature Tester, Glow Wire Combustion Resistance Testing Machine, Glow Wire Burning Tester
FAQ
1.Are your company a trading one or a factory ?
Factory + trade (integration), 20 years focusing on test instruments field, 6 years exporting experience.
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Factory + trade (integration), 20 years focusing on test instruments field, 6 years exporting experience.
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
