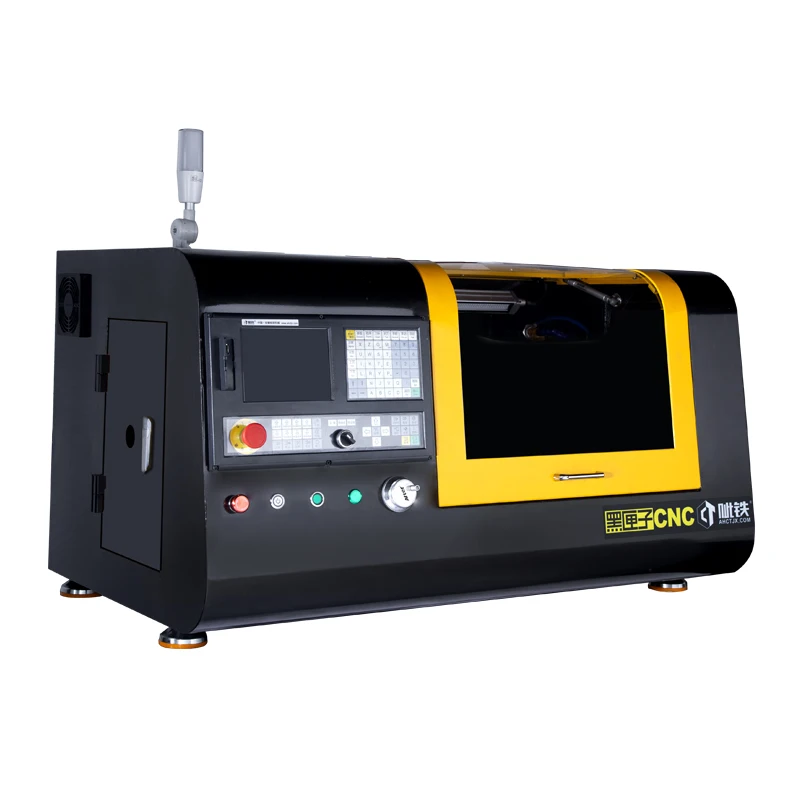

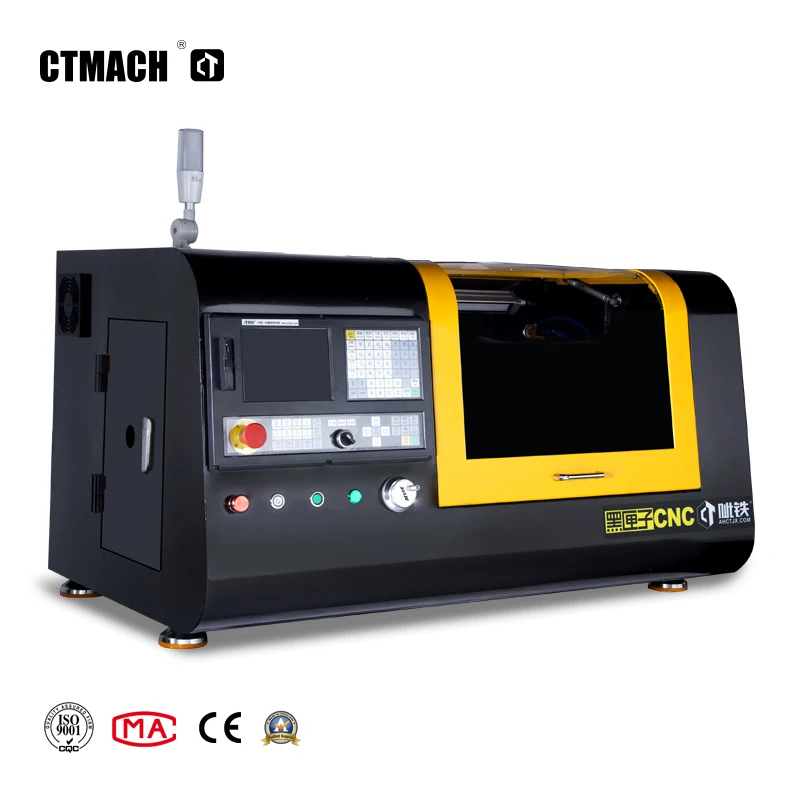

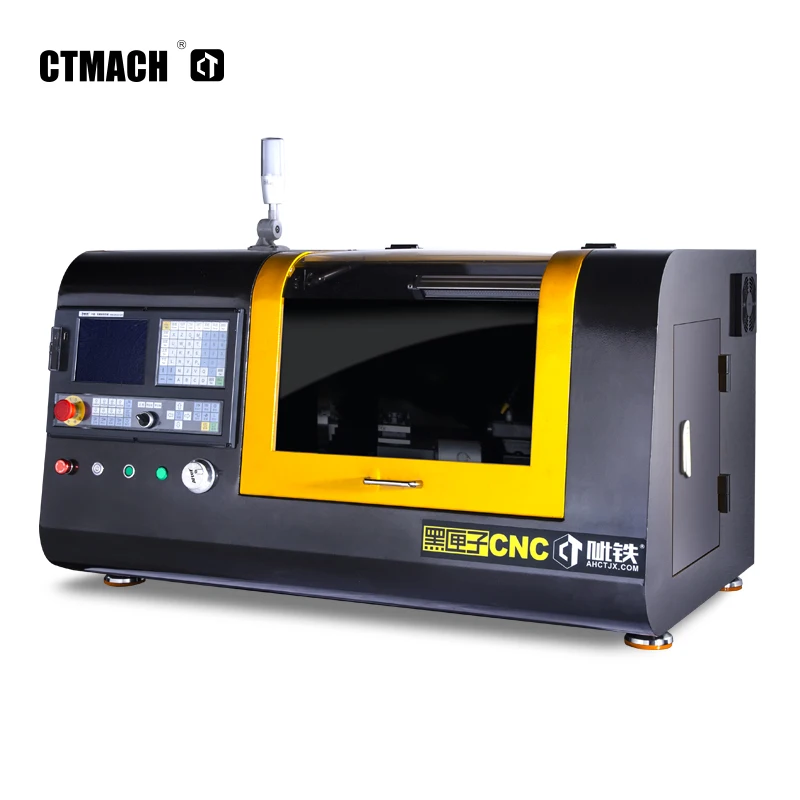

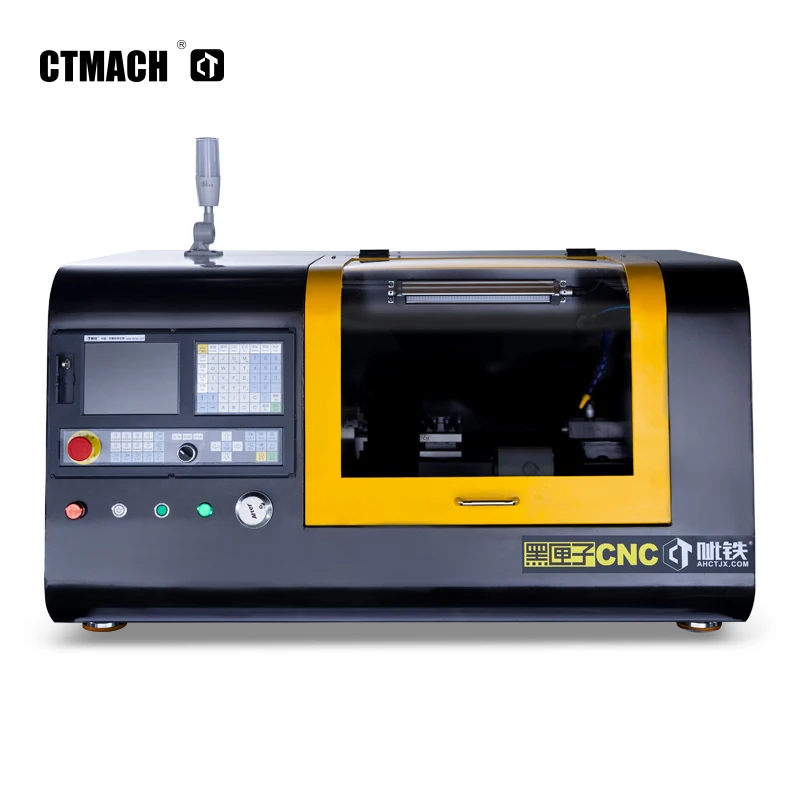

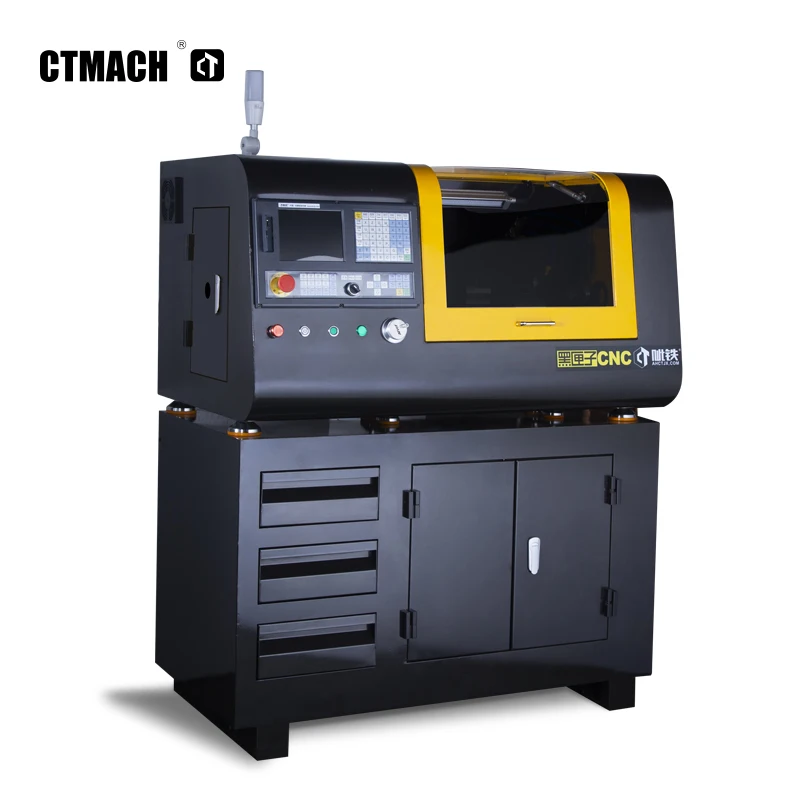

Black Box CNC lathe 210 benchtop small CNC lathe machine
- Category: >>>
- Supplier: Anhui Sinsun Electronic Commerce Co. Ltd
Share on (1600569676375):
Product Overview
Description
SIMILAR PRODUCTS
Blackbox Compact small CNC lathe
1. The machine can process precisely internal or external diameter, face, taper and threading with high efficiency.

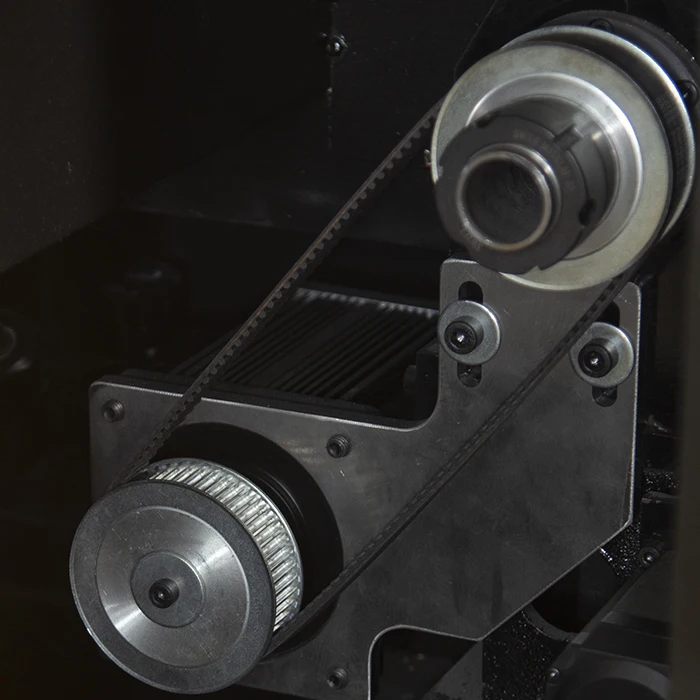

2. DC brushless spindle motor.
3. Small occuping, lower energy consumption, easy operation, suitable for small processing.
4. High-quality spindle by high-precision grinding and support by Angular contact bearin.
5. Induction harden bed-way, Bed saddle with plastic sticker can improve the accuracy and service life of machine.

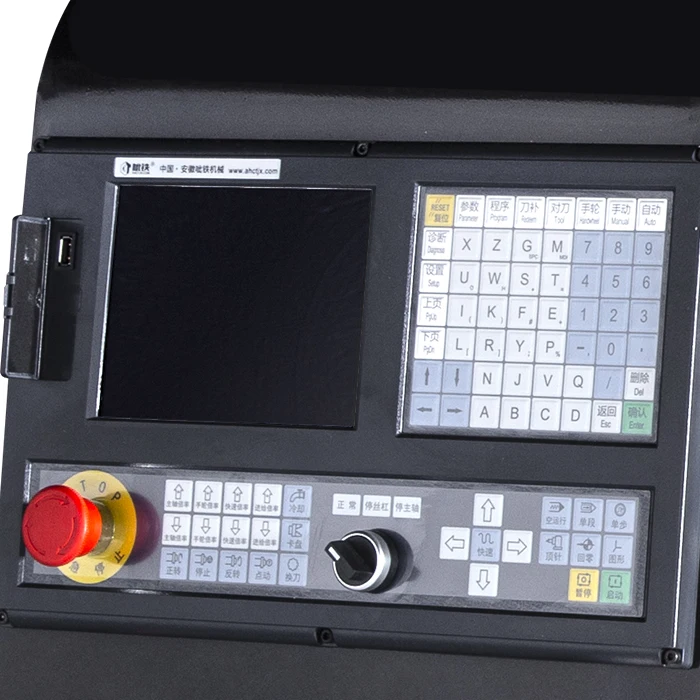

6. Macro arithmetic operation can be performed, the processing of complex parts, fully functional, economical and practical with a textbook for teaching.
2. DC brushless spindle motor.
3. Small occuping, lower energy consumption, easy operation, suitable for small processing.
4. High-quality spindle by high-precision grinding and support by Angular contact bearin.
5. Induction harden bed-way, Bed saddle with plastic sticker can improve the accuracy and service life of machine.
6. Macro arithmetic operation can be performed, the processing of complex parts, fully functional, economical and practical with a textbook for teaching.
PRODUCT SPECIFICATIONS
Max. Swing Over Bed | 210mm | ||||||
Max. Swing Over Cross Slide | 100mm | ||||||
Electric Four Stations | 12*12mm | ||||||
Max. Turning Length | 250mm | ||||||
Spindle Bore | 26mm | ||||||
Spindle Speed | 100-3000r/min | ||||||
Proximal Spindle Runout | 0.01mm | ||||||
Diameter of Tailstock Sleeve | 22mm | ||||||
Travel of Tailstock Sleeve | 50mm | ||||||
Taper of Tailstock | MT2 | ||||||
X-Axis Travel | 90mm | ||||||
Z-Axis Travel | 300mm | ||||||
X-Axis Max. Moving Speed (Stepping) | 2000mm/min | ||||||
Z-Axis Max. Moving Speed (Stepping) | 2000mm/min | ||||||
Positioning Accuracy | 0.02mm | ||||||
Repeat Positioning Accuracy | 0.02mm | ||||||
Feed Motor Torque | 3.0N.M | ||||||

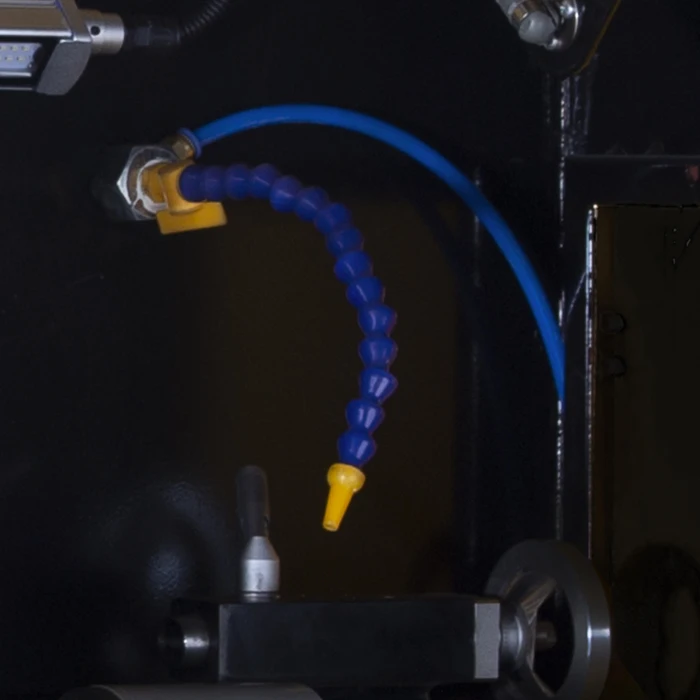

Cooling Water Pump Power | 40W | ||||||
Motor Power | 1.2KW | ||||||
N.W. | 210KG | ||||||
Overall Dimensions | 1170*700*860mm | ||||||
FEATURES AT A GLANCE

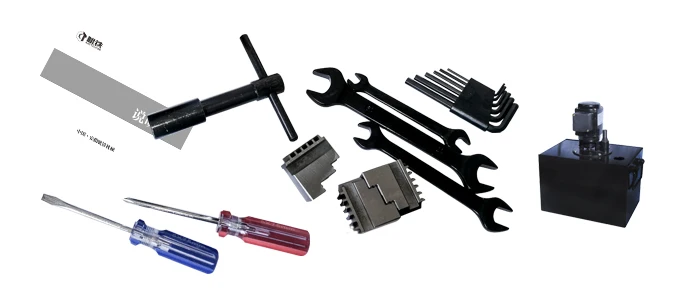

Product Acessories
SALES AND SERVICE NETWORK
Products are exported to more than 30 countries and regions in the world
EU CE standard, safe and reliable
ISO9001 quality system certification
EU CE standard, safe and reliable
ISO9001 quality system certification
Company Profile
FAQ
Q.What are your normal lead times?
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
