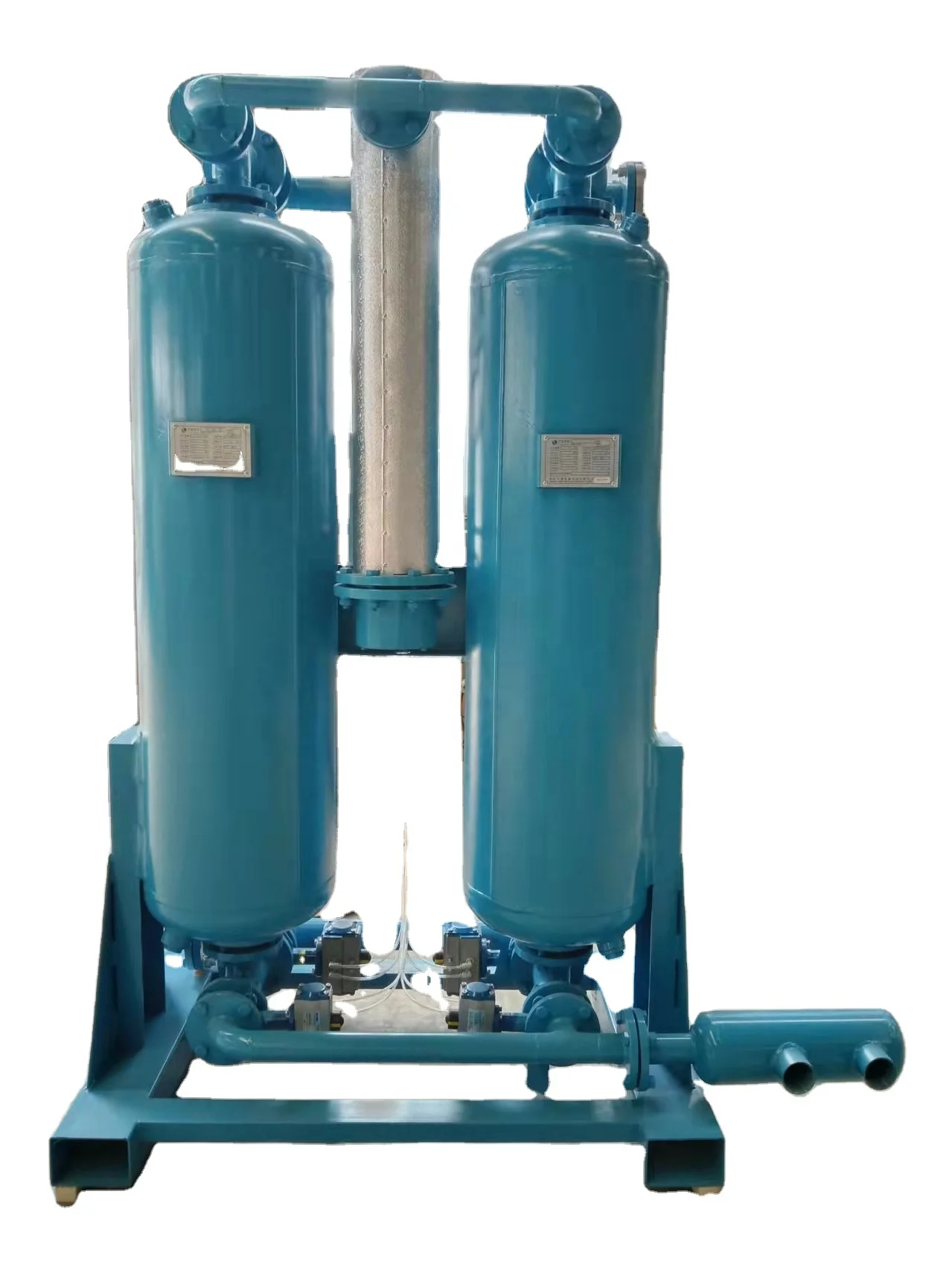

Externally Heated Regenerative Adsorption Desiccant Air Dryer Industrial Electric Heatless Regenerative Adsorption Air Dryer
- Category: Industrial Compressor Parts >>>
- Supplier: Henan,Chaodun,Industry,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Core Advantages
A. High quality spare parts
1.high-performance pneumatic valve, reliable performance and sensitive action;
2.NASS coil reversing solenoid valve has long life;
3.high torque aluminum alloy starting actuator, large torque, stable action.
B. Performance improvement
1.Low operating noise, using silent check valve and high-performance muffler to ensure the lowest noise during operation and exhaust;
2.Low voltage automatic protection function;
3.Automatic punching function.
2.NASS coil reversing solenoid valve has long life;
3.high torque aluminum alloy starting actuator, large torque, stable action.
B. Performance improvement
1.Low operating noise, using silent check valve and high-performance muffler to ensure the lowest noise during operation and exhaust;
2.Low voltage automatic protection function;
3.Automatic punching function.
Specification
IAT | ≤38 °C |
Working pressure | 0.7-0.95MPa |
Air consumption | ≤7% |
Inlet Oil Content | ≤0.1ppm |
Pressure Dew Point | -20~-40°C |
Adsorbent | Alumina, molecular sieving |
Type | microcomputer automatic control |
Product Paramenters
Model | Nm³/min | Voltage | Power(KW) | Air inlet and outlet pipe diameter | Dimension (L)*(W)*(H)mm |
CD-015WL | 1.5 | 220V | 1 | G1” | 640*500*1340 |
CD-026WL | 2.6 | 220V | 2 | G1” | 750*500*1530 |
CD-038WL | 3.8 | 220V | 2 | G1” | 740*550*1570 |
CD-072WL | 7.2 | 220V | 3 | G1 1/2” | 930*600*1850 |
CD-110WL | 11 | 380V | 4 | G2” | 1020*750*1980 |
CD-140WL | 14 | 380V | 5 | G2” | 1120*750*1980 |
CD-180WL | 18 | 380V | 6 | DN65 | 1260*800*2090 |
CD-230WL | 23 | 380V | 8 | DN65 | 1350*800*2090 |
CD-280WL | 28 | 380V | 9 | DN80 | 1455*800*2360 |
CD-330WL | 33 | 380V | 10 | DN80 | 1450*800*2400 |
CD-400WL | 40 | 380V | 12 | DN100 | 1600*1050*2500 |
CD-450WL | 45 | 380V | 12 | DN100 | 1660*1050*2590 |
CD-550WL | 55 | 380V | 15 | DN125 | 1960*1200*2750 |
CD-650WL | 65 | 380V | 18 | DN125 | 2010*1250*2850 |
CD-750WL | 75 | 380V | 22 | DN150 | 2120*1250*2900 |
CD-850WL | 85 | 380V | 27 | DN150 | 2250*1250*2920 |
CD-950WL | 95 | 380V | 27 | DN150 | 2350*1450*2950 |
CD-1100WL | 110 | 380V | 32 | DN150 | 2350*1450*2950 |
Packing & Delivery
We support transportation by railway, by sea, by air, and cooperating with TNT, DHL, FeDEX and UPS. The machines will reach you on time.
Company Profile
"Quality decides everything, service creates value". Since its establishment, Henan Chaodun Industry Co., Ltd. has been committed to the R & D and manufacturing of compressed air after-treatment purification equipment, and gradually upgraded to a high-tech enterprise integrating R & D, creation, marketing and after-sales service. The company continues to strengthen the investment in scientific research, strive to improve the manufacturing capacity, and strive to promote the continuous innovation and upgrading of compressed air after-treatment purification equipment. The company has a professional research team, advanced manufacturing equipment and perfect detection means. It can be customized for customers with air cooling, water cooling, high temperature, explosion-proof, high pressure, stainless steel and other multi-function, wide range, adapt to a variety of complex working conditions of compressed air dryer.
Our goal is to provide customers with high quality products, and to achieve the mission of "the most innovative company". We sincerely welcome you to visit our company for investigation and guidance. Let's make new contributions to the development of air purification!
Our goal is to provide customers with high quality products, and to achieve the mission of "the most innovative company". We sincerely welcome you to visit our company for investigation and guidance. Let's make new contributions to the development of air purification!
Exhibition
FAQ
1. who are we?
We are based in Henan, China, start from 2017,sell to Domestic Market(55.00%),Southeast Asia(15.00%),South Asia(8.00%),North America(3.00%),Africa(3.00%),Southern Europe(3.00%),South America(2.00%),Mid East(2.00%),Eastern Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Eastern Europe(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
Air dryer,refrigerated air dryer,adsorption air dryer,combined air dryer,precision air filter
4. why should you buy from us not from other suppliers?
Henan Chaodun Industry Co., Ltd. has almost 10 years experience of design and development of industrial air dryer. The structure of our refrigerated air dryer is top suction. The hot air is upward, so the whole machine is radiating.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union
Language Spoken:English,Chinese
We are based in Henan, China, start from 2017,sell to Domestic Market(55.00%),Southeast Asia(15.00%),South Asia(8.00%),North America(3.00%),Africa(3.00%),Southern Europe(3.00%),South America(2.00%),Mid East(2.00%),Eastern Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Eastern Europe(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
Air dryer,refrigerated air dryer,adsorption air dryer,combined air dryer,precision air filter
4. why should you buy from us not from other suppliers?
Henan Chaodun Industry Co., Ltd. has almost 10 years experience of design and development of industrial air dryer. The structure of our refrigerated air dryer is top suction. The hot air is upward, so the whole machine is radiating.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union
Language Spoken:English,Chinese
