Product Overview
Description

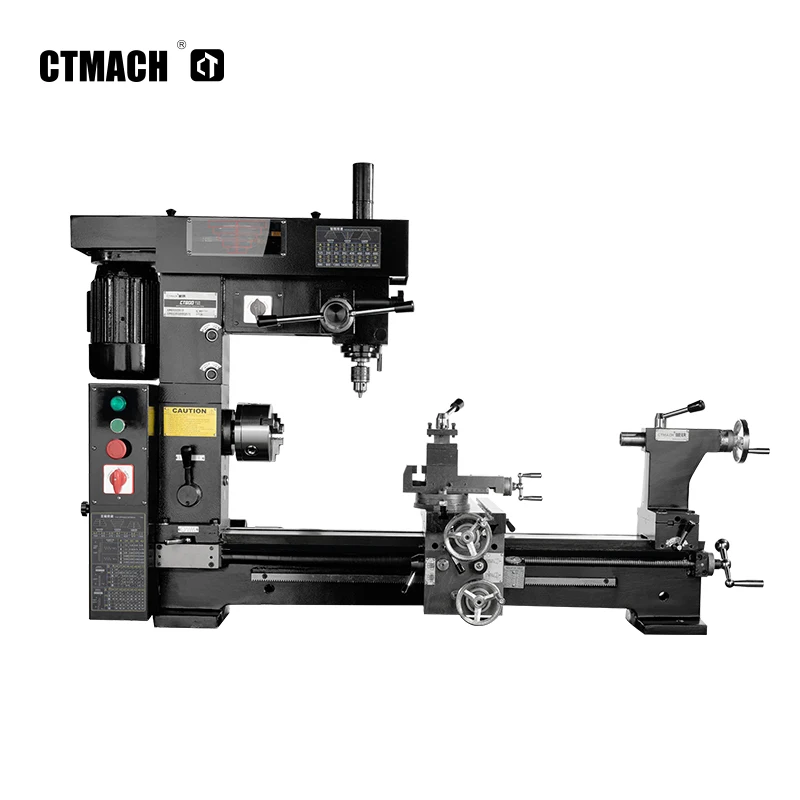

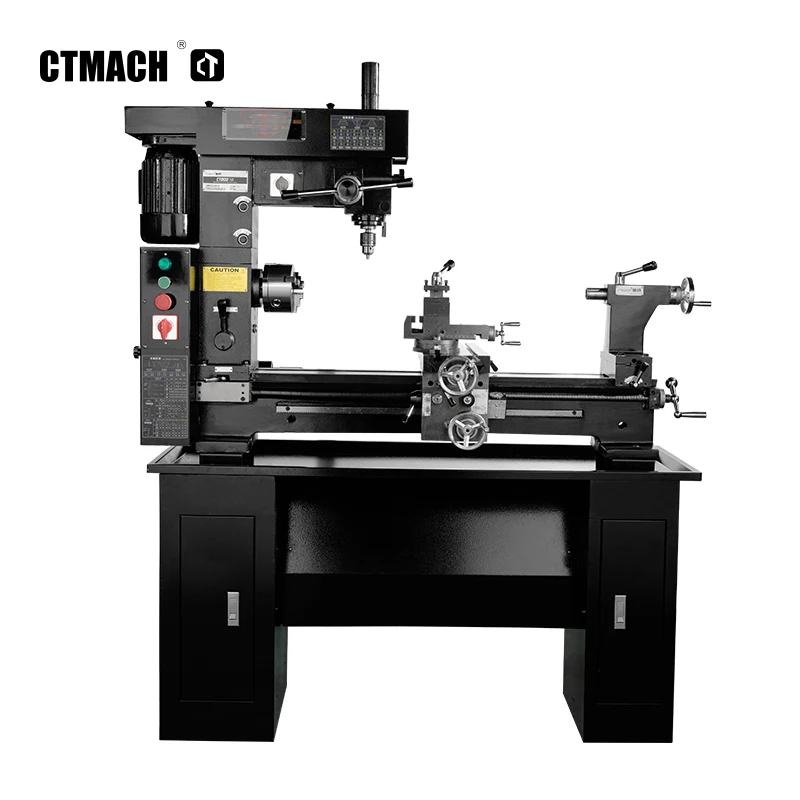

CT500/CT800 Multifunctional Machine

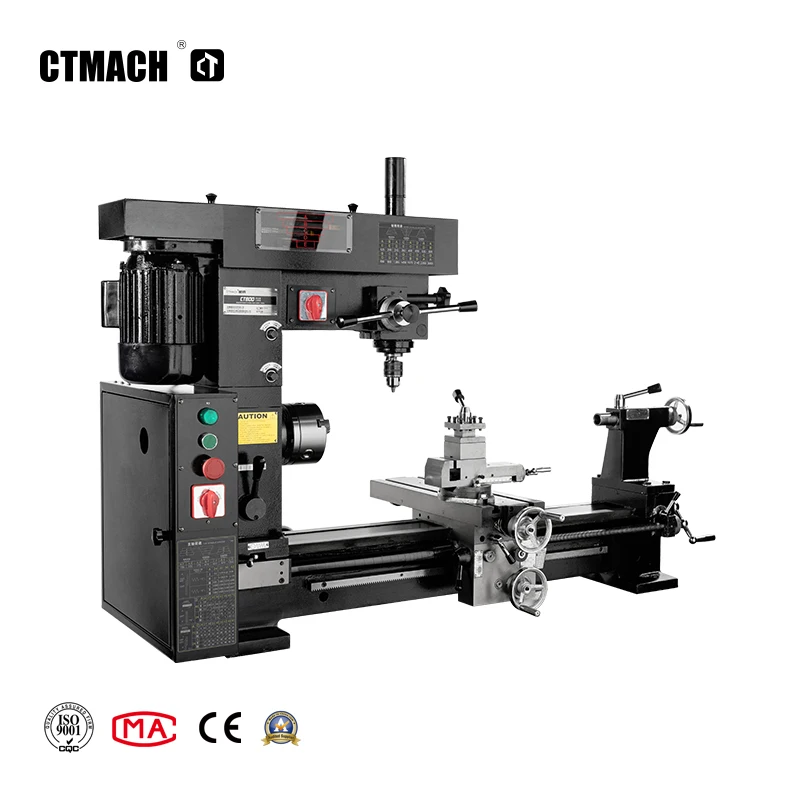

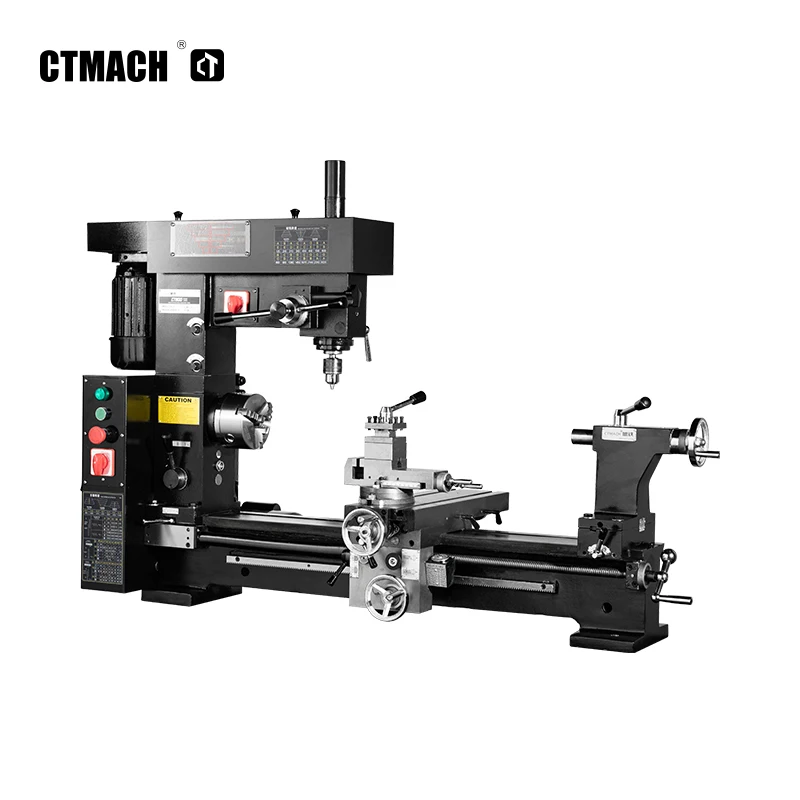

The CT500/CT800 Combo Lathe/Mill

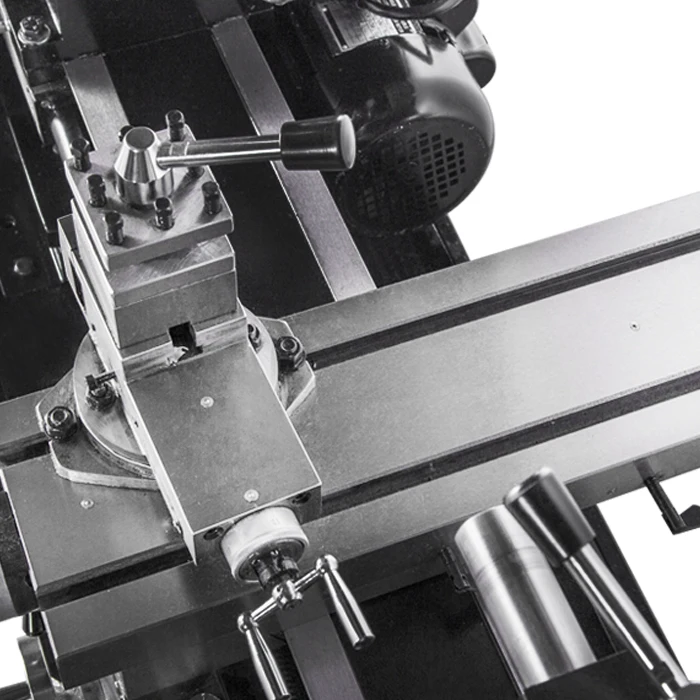

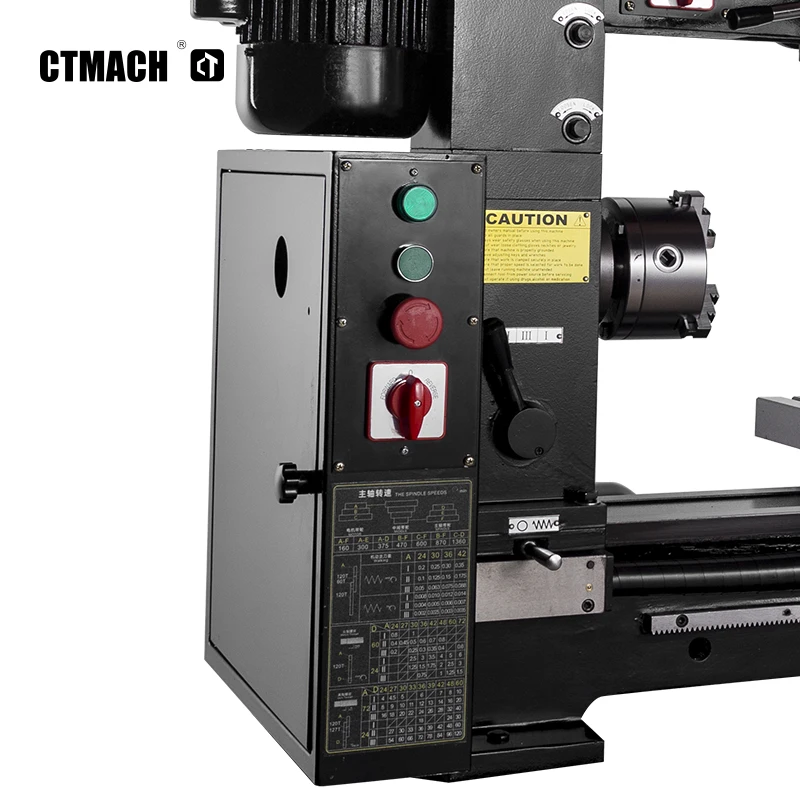

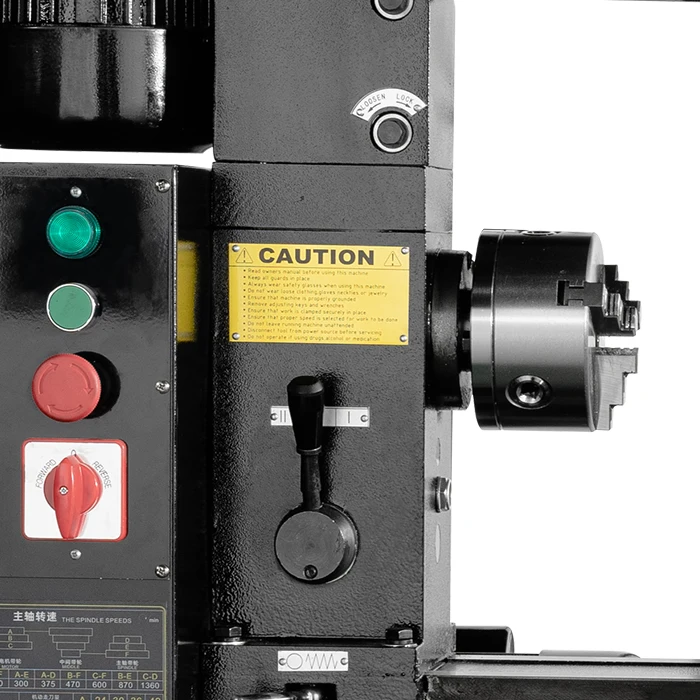

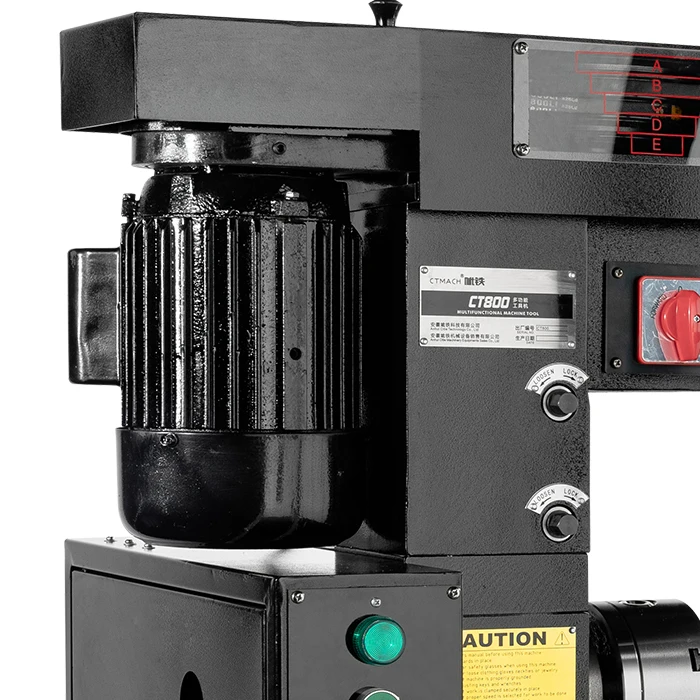

With great features like a magnetic controller and a forward/reverse switch, hardened and ground bedways, two motors for extra power and a 4-way turret tool post makes this a real do-it-all machine.
Cuts inch and metric threads with ease .
With great features like a magnetic controller and a forward/reverse switch, hardened and ground bedways, two motors for extra power and a 4-way turret tool post makes this a real do-it-all machine.
Cuts inch and metric threads with ease .
PRODUCT SPECIFICATIONS
SIMILAR PRODUCTS | CT500 | CT800 | ||||||
TURNING | ||||||||
Swing Over Bed | 420mm | |||||||
Swing Over Cross Slid | 150mm | |||||||
Distance Between Centers | 500mm | 800mm | ||||||
Spindle Taper | MT4 | |||||||
Spindle Bore | 28mm | |||||||
Tailstock Sleeve Travel | 70mm | |||||||
Tailstock Taper | MT3 | |||||||
Large Carriage Travel | 440mm | 740mm | ||||||
Middle Carriage Travel | 200mm | |||||||
Longitudinal Feeds (Grade) | 0.05-0.35mm/r (12) | |||||||
Metric Thread (Grade) | 0.7-6mm | |||||||
Inch Thread (Grade) | 4-120 T.P.I | |||||||
Spindle Speeds (Grade) | 160-1360RPM (7) | |||||||
Motor Power | 0.75KW | |||||||

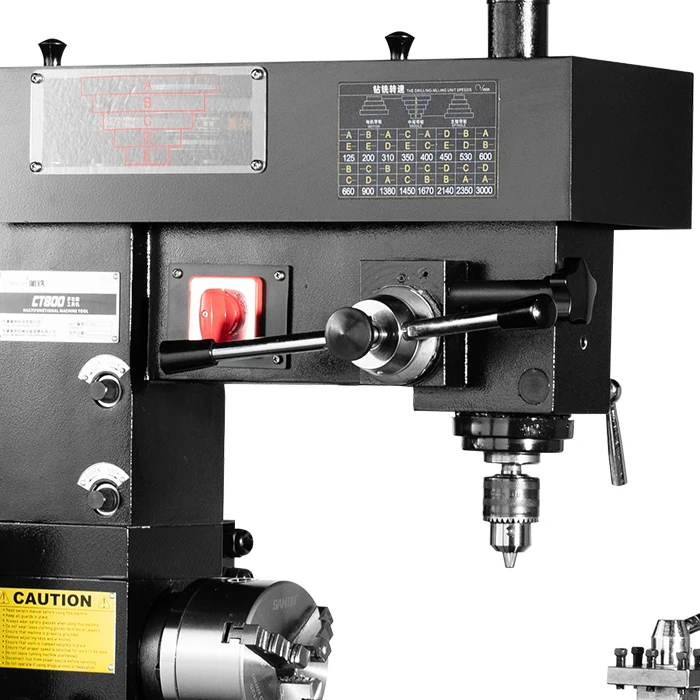

DRILLING AND MILLING | ||||||||
Max. Drilling Diamter | 25mm | |||||||
Max. Face Milling Capacity | 80mm | |||||||
Max. Vertical Milling Capacity | 16mm | |||||||
Worktable Size | 475*160mm | |||||||
Spindle Taper | MT3 | |||||||
Spindle Travel | 110mm | |||||||
Distance from Spindle Axis to Column Guide Rail | 285mm | |||||||
Distance From Spindle End to Table | 306mm | |||||||
Spindle Speeds (Grade) | 125-3000RPM (16) | |||||||
Motor Power | 0.75KW | |||||||
OTHER | ||||||||
N.W./G.W. | 245kg/285kg | 275kg/325kg | ||||||
Overall Dimensions | 1100*650*965mm | 1400*650*965mm | ||||||
FEATURES AT A GLANCE

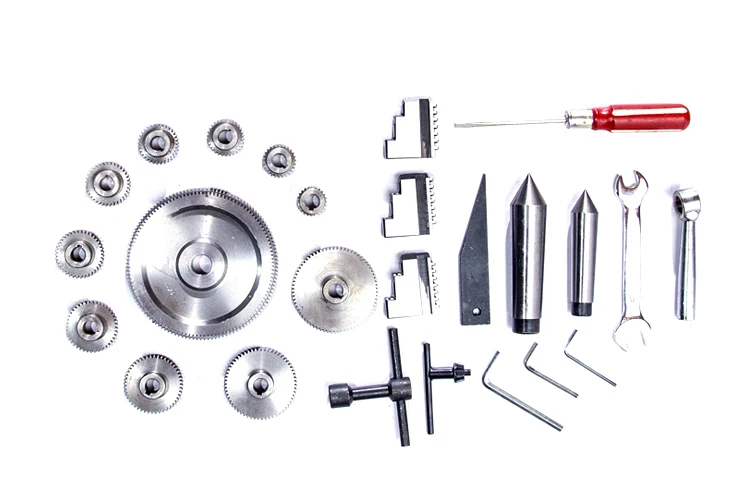

Product Acessories
SALES AND SERVICE NETWORK
Products are exported to more than 30 countries and regions in the world
EU CE standard, safe and reliable
ISO9001 quality system certification
Company Profile
SIMILAR PRODUCTS
CT400
CT2520
CT3325
FAQ
Q.What are your normal lead times?
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are theterms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of theproducts?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is
"to provide customers better quality, better price,and better service".
"to provide customers better quality, better price,and better service".
