Single Head 12 15 Needles tajima Hoop High Speed Touch Screen Computerized Hat Logo or T Shirt Flat 3D Embroidery Machine
- Category: Embroidery Machines >>>
- Supplier: Shenzhen Fuja Machinery Co. Ltd.
Share on (1600569705915):
Product Overview
Description
Specification
EMBROIDERY MACHINE FJ-1501CS
Head And Needles | Single Head, 12/15 needles | ||||||
Embroidery Area | Y350mm * X500mm (Y400mm * X600mm by 1501HC) | ||||||
Application | Flat embroidery/caps/garments/shoes/belts/socks/phone case/pillow/gloves jeans/t-shirts/bags car seat cushions/mousepad/ towel/headband,etc.. | ||||||

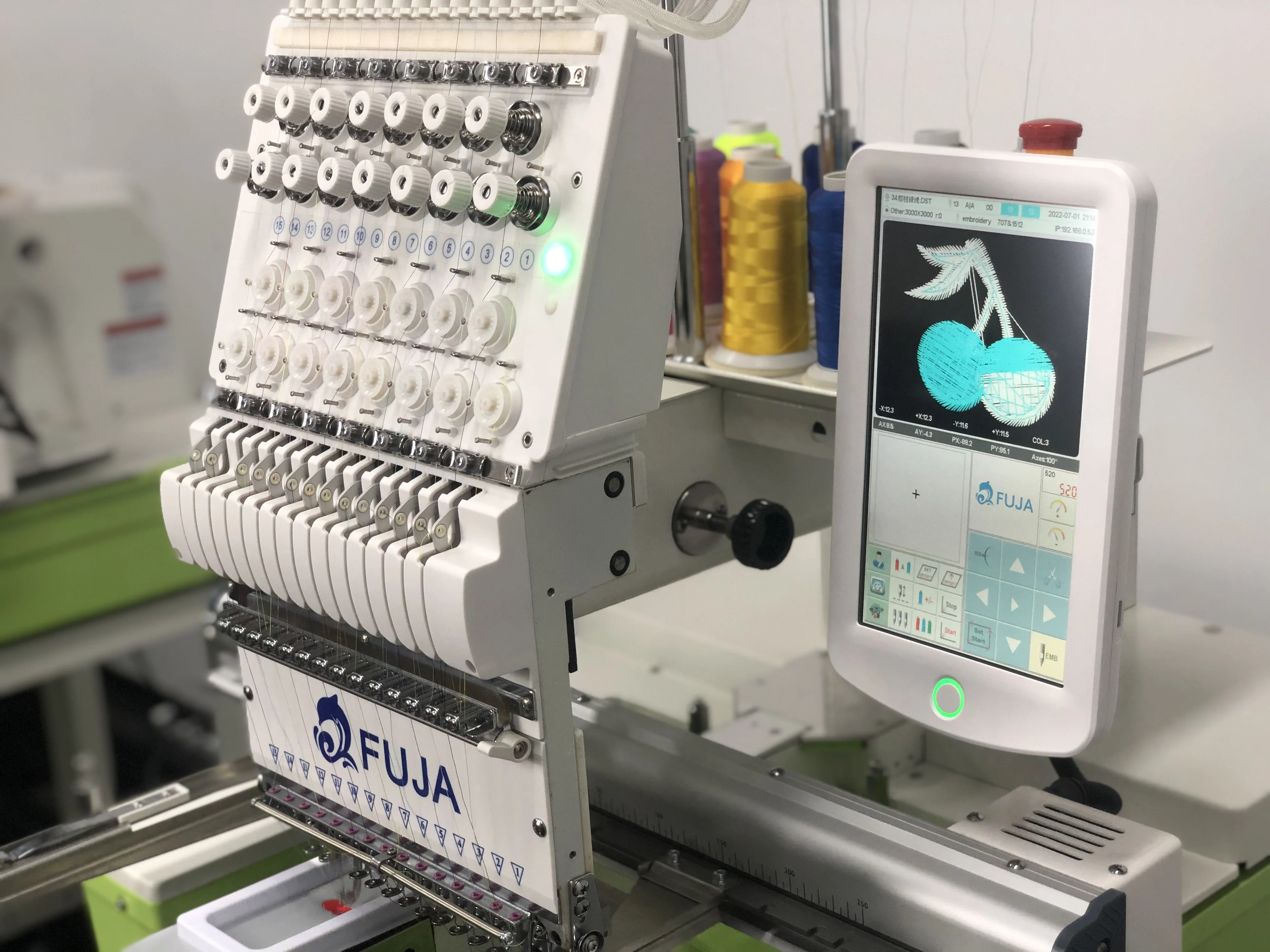

Computer | User-friendly, 10 inch high definition true color touch screen with USB port | ||||||
Maximum Speed | 1200 RPM | ||||||
OPS Languages | 日本/English/español/Français/Italiano/Deutsch/Русский/中文/한국인/عربي/Türk/ Tiếng Việt、... totaly 16 languages supported | ||||||
Design Formats | DST, DSB etc. format; Online lettering with 10 kinds of popular fonts | ||||||
Memory Capacity | 100 million stitches, stitch range:0.1mm~12.7mm | ||||||
Auto Functions | Auto thread trimmer, auto color change, auto thread break detection | ||||||
More Functions | Trace with laser, save start point, 28 bulit-in font libraries | ||||||
Power Supply | AC100~240V, 50~60Hz apdaptable, DC36 safe voltage output | ||||||
Standard Accessories | Extanded table, frame, bodding winder, cap rings(2 sets), 270° cap driver(1 set), cap station(1 set), FUJA tool kit, 16GB U Disk | ||||||
Hoops Included | Round hoops( 9cm, 12cm ,15cm,20cm) 2pcs/per head; Square hoops(29cm*29cm)2 pcs Oval hoops(54cm*36cm)1 pc | ||||||
Optional Devices | Sequins/Cording/Beads/Peals/Laser Cutting/Thermal Cutting/Boring Device | ||||||
FOR PROFESSIONAL EMBROIDER
The FUJA 1501CS Commercial 12/15 Needle Embroidery Machine is perfect for the professional embroiderer.
This industrial-grade machine can handle even intricate designs quickly and efficiently.
333
FUJA embroidery machine passed rigorous testing in European laboratories,the needles ,whole head ,motors are made of the best in Japan,and the machines are designed in European R&D team.
In China, FUJA choosed a professional and mature team in the industry for assembly,IPQC,Packing,etc.
MAIN PARTS
1.Thread guide system
2.Tension base
3.Operation panel box
4.Color change motor
5.Thread holding motor
6.Jump motor
7.Needle bar case
8.Z-spec. frame
9.Needle plate
10.Stand
11.Leveling adjuster
12.Thread stand stud
13.X-axis motor
14.Main shaft motor
15.Y-axis motor
16.ATH motor
17.USB port
18.LAN port
19.Serial port
20.Power supply connector
21.Oil-drain hole
STANDARD CONFIGURATION
FUJA HOOP STATION (1 set)
effectively fixing the position of the hat without shifting. The whole set of Cap Embroidery Frames contains 3 parts: cap station,
cap hoop*2 and cap driver.
cap hoop*2 and cap driver.
FUJA CAP RING (2 sets)
Designed for women's hand strength characteristics, pay more attention to safety performance and ease of use，FUJA has its own cap ring------more safe and easy.

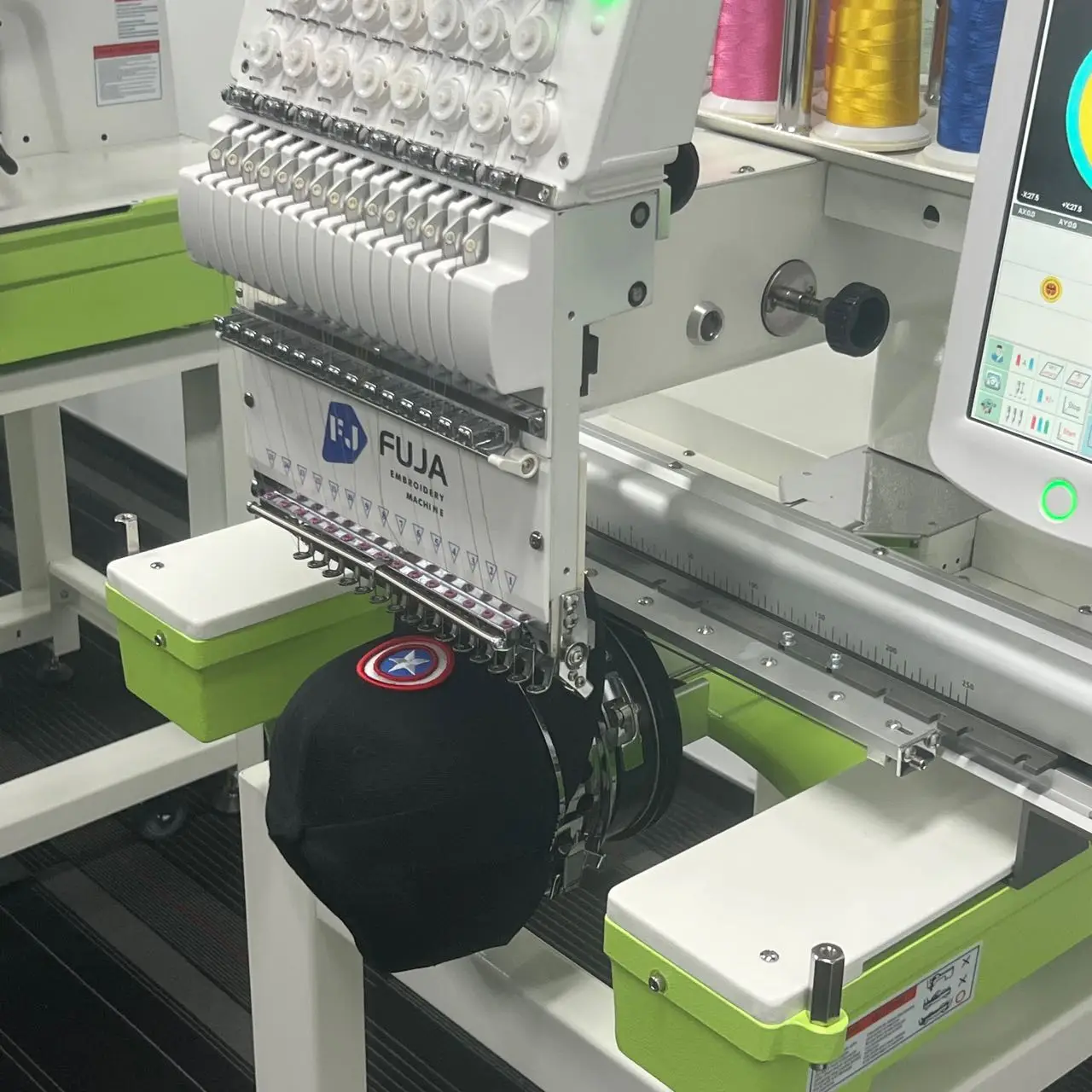

270° CAP DRIVER (1 set)
Wide Angle Computerized 270 Degree hat Frame Driver not only for FUJA embroidery machines but also for Tajima/Happy/Brother embroidery machines seamlessly compatible
Mighty Bright Embroidery (1 set bulit-in)
* Powerful LED casts brilliant white light Illuminates difficult to see threads, dark fabrics, and matching seams.
* Adjustable 5.5” bendable neck holds the light in place
Automatic bobbin winder ( 1 set )
*The electric winder can be installed on the table, which is very convenient.
*When you need to complete large projects quickly, this automatic winding machine can save a lot of time.
*The electric winder can be installed on the table, which is very convenient.
*When you need to complete large projects quickly, this automatic winding machine can save a lot of time.
Sash Frame (1 set)
reduce vibrations and increase machine stabilization. you can embroider highly detailed designs on large and heavy items at high speeds without compromising speed and efficiency
reduce vibrations and increase machine stabilization. you can embroider highly detailed designs on large and heavy items at high speeds without compromising speed and efficiency
FUJA CAP RING
FUJA has the latest and highest standards in the industry for accessories of cap rings and cap driver. FUJA embroidery machines are fully compatible with TAJIMA's cap rings such as TAJIMA - (GENERIC) 270 WIDE CAP FRAME (DOUBLE BAND).
Designed for women's hand strength characteristics, pay more attention to safety performance and ease of use，FUJA has its own cap ring------more safe and easy.
FUJA CAP STATION
FUJA has cap frames to fit all major name branded machines including:Tajima, Melco, Toyota, Barudan Advantage, ZSK, Meistergram,
Happy, Highland, Inbro, SWF, Podigi,etc.
FUJA also has its own designed cap station with high-standard quality and ease of use.
Happy, Highland, Inbro, SWF, Podigi,etc.
FUJA also has its own designed cap station with high-standard quality and ease of use.
MAGNETIC FLAT FRAME HOOPS
FUJA Mighty Hoop is a new magnetic hoop that makes hooping very easy. There is no need to adjust the outer ring as the hoop holds
the garment with magnetic force and automatically adjusts for different thicknesss,
the garment with magnetic force and automatically adjusts for different thicknesss,
It also reduces the stress on your wrists and hands because it wants to pull itself together. Even for thick garments, there is very little pressure needed to apply the hoop.
Hoop burn is greatly reduced because of the way the hoop holds the fabric. Unlike clamps, Mighty Hoops are designed to work with
the HoopMaster for easy accurate hooping.
WORKS WELL ON DIFFICULT MATERIALS
Ordinary embroidery machines can easily lose stability when embroidering on leather, PU materials and other relatively thick and other difficult fabrics.
In this regard.FUJA specially developed and improved.For many professional users can obviously feel that FUJA machines are very cost-effective and understands users compared with those big brand machines.
POWERFUL OPTIONAL SHOES FRAME
The adjustable shoe frame is different than any other clamping system available.
The frame’s shape is designed with all shoe types in mind – the arm clamps are independent of each other which helps with the varying thicknesses & padding along the side of the shoe.
In addition to having independent clamps, the frame allows for width adjustment to work with the various shoe styles.
8-In-1 DEVICE OPTIONAL
Suitable for cap/hat embroidery ,flatembroidery, t-shirt embroidery, garment embroidery ,shoe embroidery, bag embroidery,logo embroidery.sequin embroidery,taping embroidery ,cording embroidery,towel embroidery,bead embroidery,rhinestone broidery,mixed embroidery.
With the FUJA 8-in-1 hoop Kit, your dreams to embroider on various types of difficult products have come true.
It will enhance your embroidering experiences.
FUJA 8-in-1 hoop set allows you to accomplish those very difficult embroidering challenges such as shirt pockets, socks, cap backs, bags, shirt sleeves, collar tips, gloves, cuffs of sleeves, ribbons, CD cases, etc
POWER SMART EMBROIDERY CAD SUPPORTED
SmartEmbCad Optional
you will definitely be satisfied with the features of this software. These features include flexible digitization
capabilities, easy creation and editing of pattern designs, and simple addition and creation of your own text.
capabilities, easy creation and editing of pattern designs, and simple addition and creation of your own text.
Embroider on belts, sashes, collars, and more | |
Blanket Frames | |
Designed to clamp fabric with magnetic force automatically | |
In the 8-In-1 device | |
Master Bracket | In the 8-In-1 device |
Sleeve EBM Frame | |
Ribbon / Tape Hoop | for band widths between 15mm and 35mm |
SOME EMBROIDERY CASES
About Us
About FUJA OEM/ODM Machines can be customized as requirement in FUJA.
FUJA MACHINERY production base had supply ODM/OEM Service for many international name brands.
FUJA ROPE STITCH EMBROIDERY
FOR PRO USER
FUJA SEQUIN EMBROIDERY SAMPLE
FRENCH STYLE CASE
FUJA TAPE -COILING EBM DEVICE
FOR DUBAI CASE
