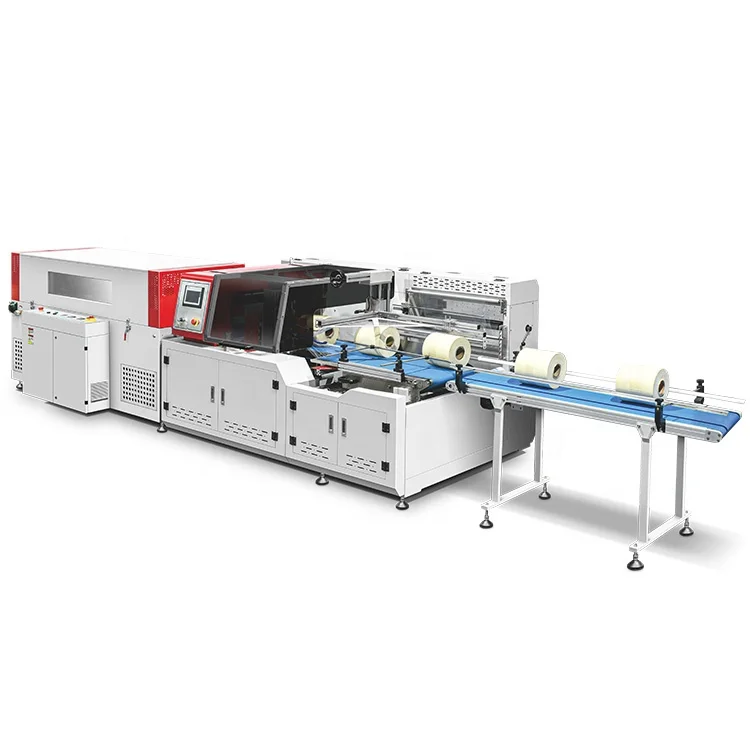

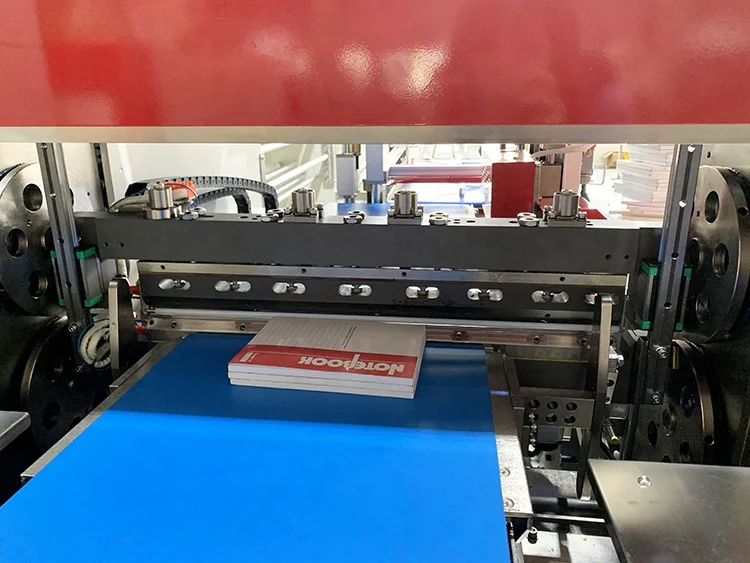

Automatic side seal heat shrink film tunnel book packing machine shrink wrapping machine

Product Overview

Description

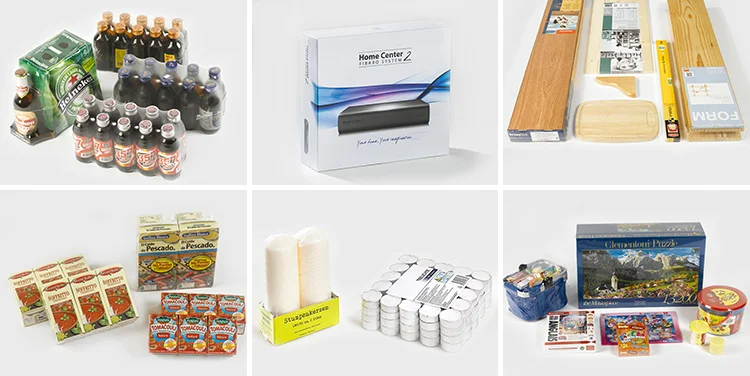

High speed shrink packing for longer products such as flooring boards, paper rolls, etc.

1. This machine can pack long products. there is no limit of product length because of side sealing system.

2. Special durable alloyed sealing knife with anti-stick teflon coats makes sealing strong and has better performance of heat conduction.

3. Side sealing line can be adjusted in the center of product or other desired position.

4. Film perforating wheels can be adjusted or removed easily.

5. Only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes. packing length can be detected by the sensor automatically.

6. Operate easily and conveniently by moveable control panel.

7. Adopt siemens plc and colorful touch screen, omron temperature controller, timer, relay, switch, and sensor.

8. A pair of photoelectric switch in vertical for thin products.

9. Optional sensor for transparent products.

MODEL	RG-400
Sealing Type	High Speed Continuous Sealing
Installed Power	380V/50-60HZ/3Phase
Packing Capacity	Max. 70 Packs per Minute (Depends on Product Size)
Sealing Height	170MM
Packing Width	350MM
Conveyor Speed	Variable, 30M/Min
Film Thickness	12-30 Micron (Minimum-Maximum)
Packing Size	Width + Height < 450MM
Film Type	Center Folded POF/ PE Film
Max Film Roll Size	530MM (Width) X 280MM (Outer Diameter)
Power Consumption	3 KW
Working Height	780-850 MM
Air Pressure	0.5MPA (5 BAR)
Sealing Knife	Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
Operating Panel	Siemens Colorful Touch Screen, PLC.
Machine Material	Carbon Steel

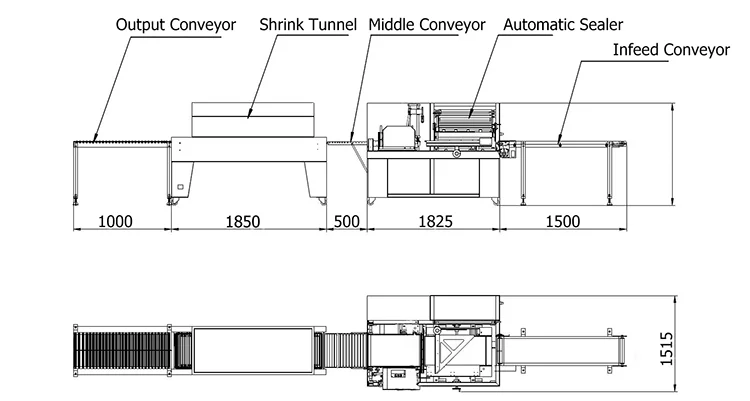

Sealing Machine Dimensions	1825 X 1515 X 1350 MM
Shrink Tunnel
Power Supply	380V/50-60HZ/3Phase
Oven Size	1500MM (L), Entrance 500(W) X 300(H) MM
Conveyor Speed	Variable, 40 M/Min
Conveyor	Chains with Rotating Silicon Coated Rods
Rated Power Consumption	Max. 16 KW
Working Height	780 - 850 MM
Machine Material	Carbon Steel
Tunnel Machine Dimensions	1850 X 1095 X 1325 MM
Weight (Net/ Gross)	1100KGS/ 1180KGS (For Reference Only, Including Sealer and Tunnel)

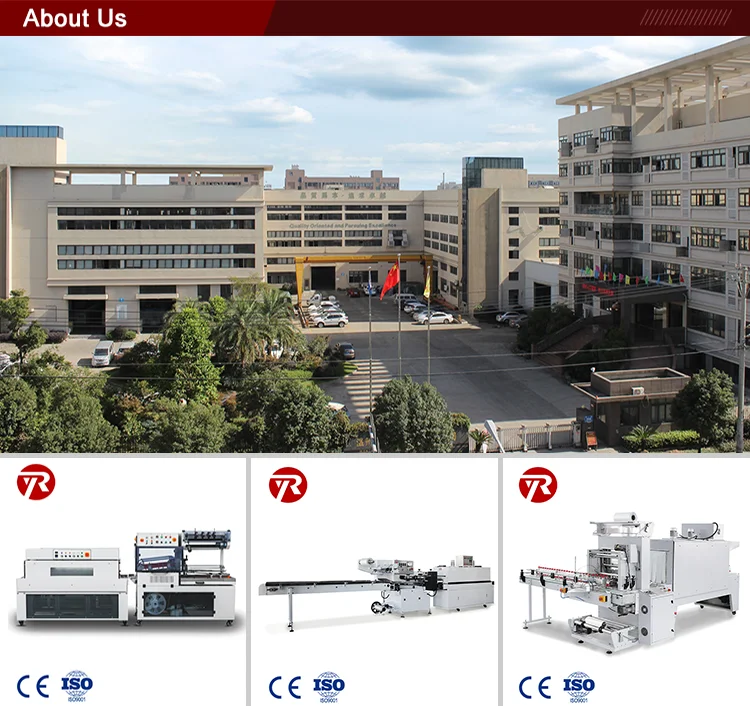

Ruiyuan is a technology-based enterprise, a professional manufacturer of automatic heat shrink packing machinery. In shrink wrapping industry, we have always been a pioneer in the improvements, always targeted high-quality packaging machines without compromise in quality.

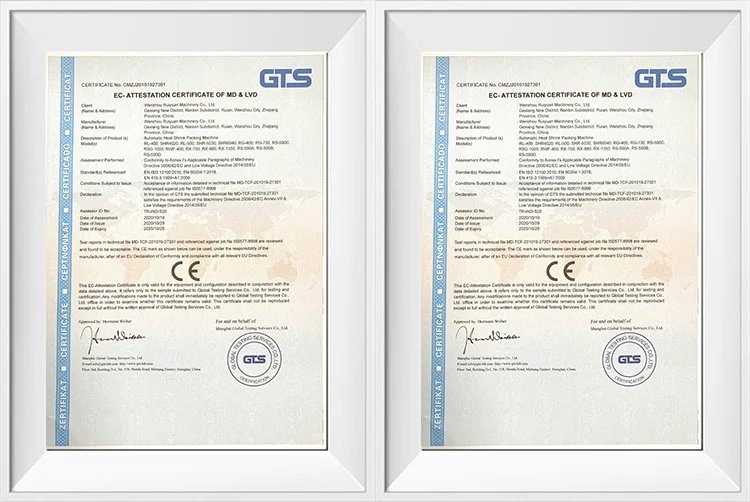

Our ISO and CE certified shrink packing equipment including automatic L sealer, automatic continuous side sealer, automatic horizontal flow sealer and automatic sleeve sealer, shrink tunnel, etc.

Besides the complete shrink wrapping systems, we also produces customized projects on infeed and discharge automation such as products package grouping, automatic feeding, rotating and labeling etc. No matter where you are we have a suitable shrink packaging solution for your products!
