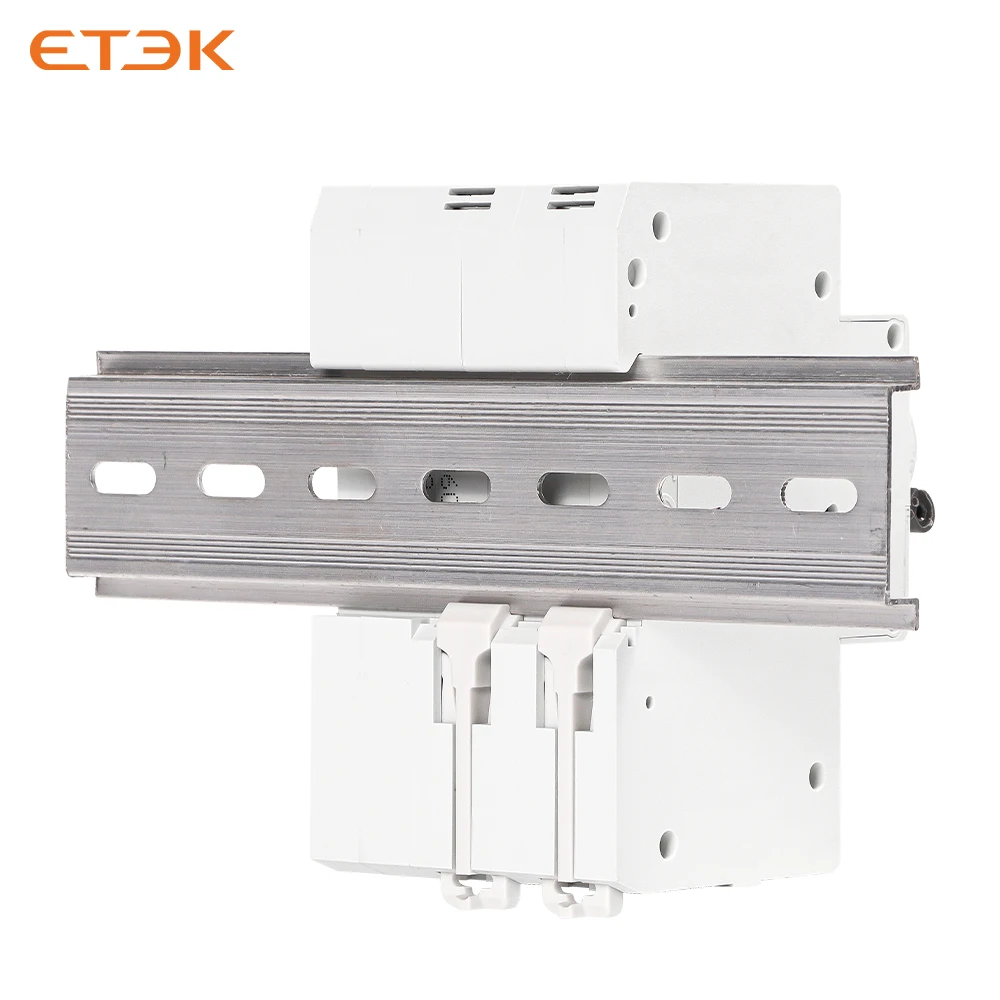

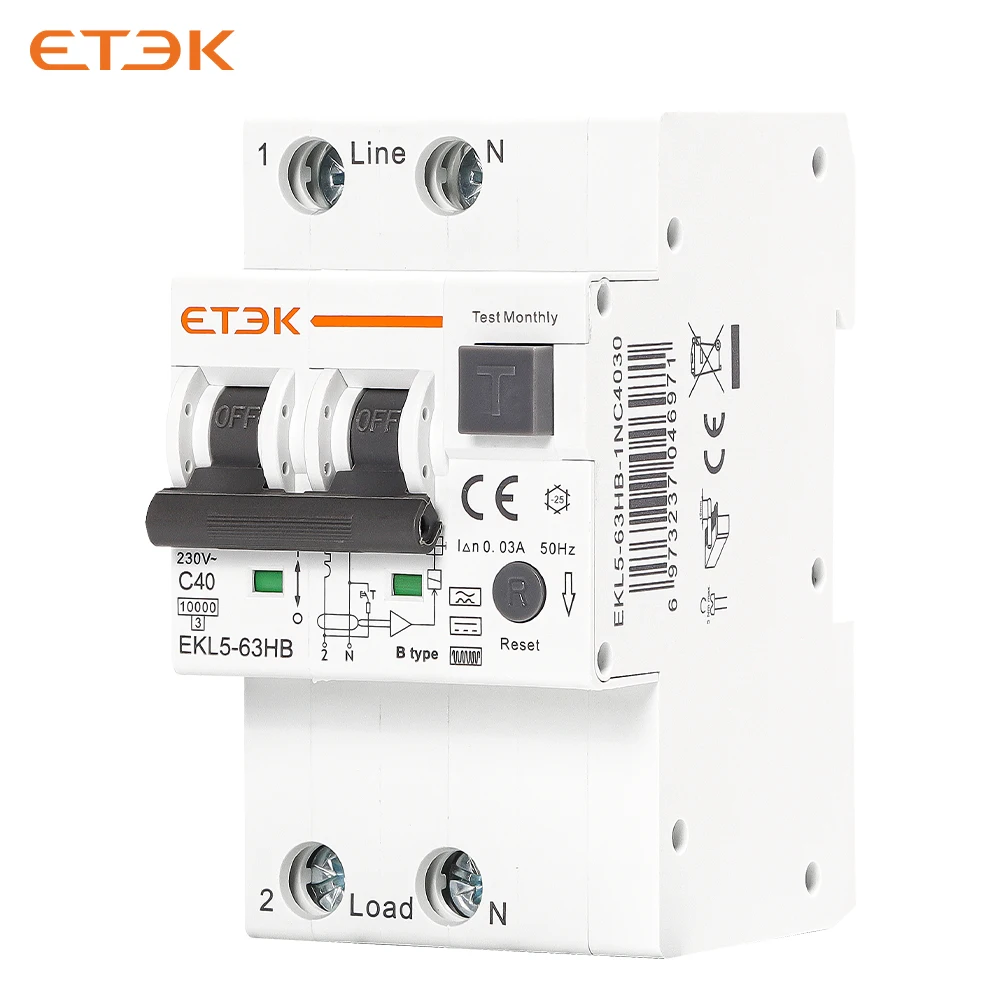

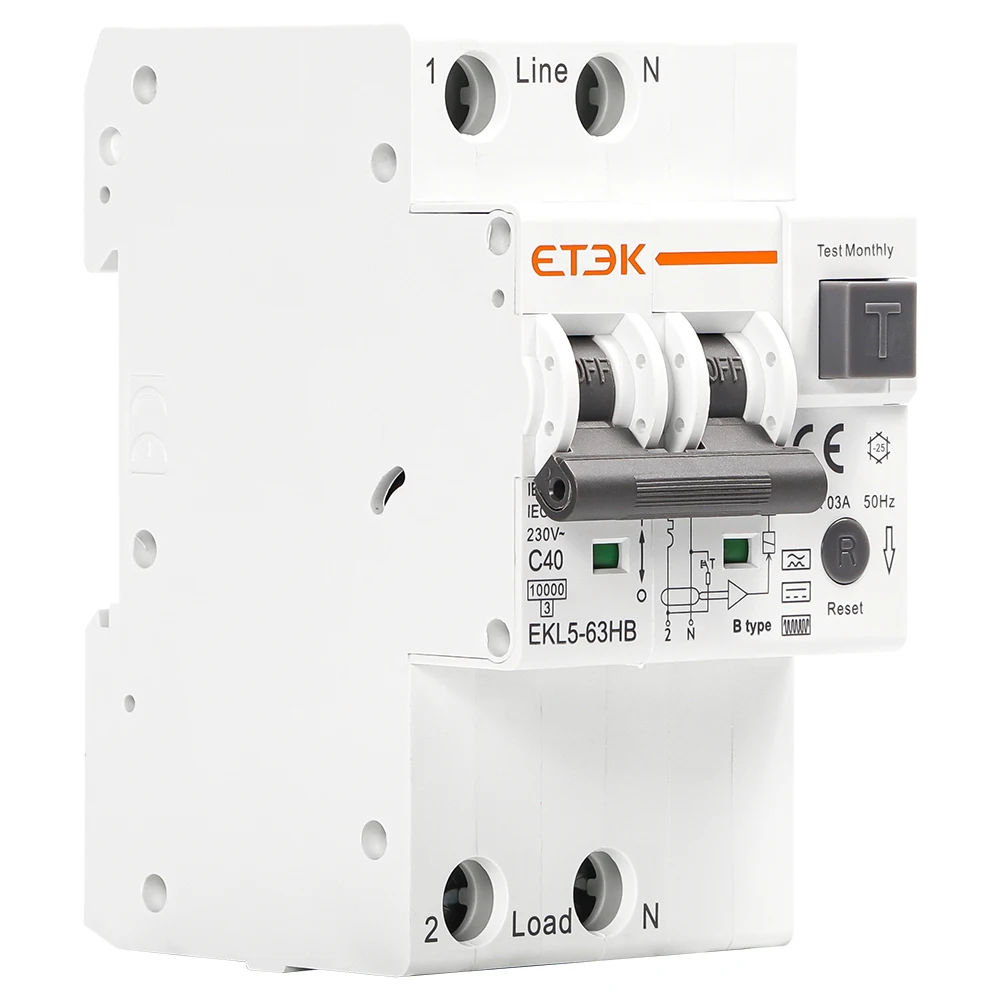

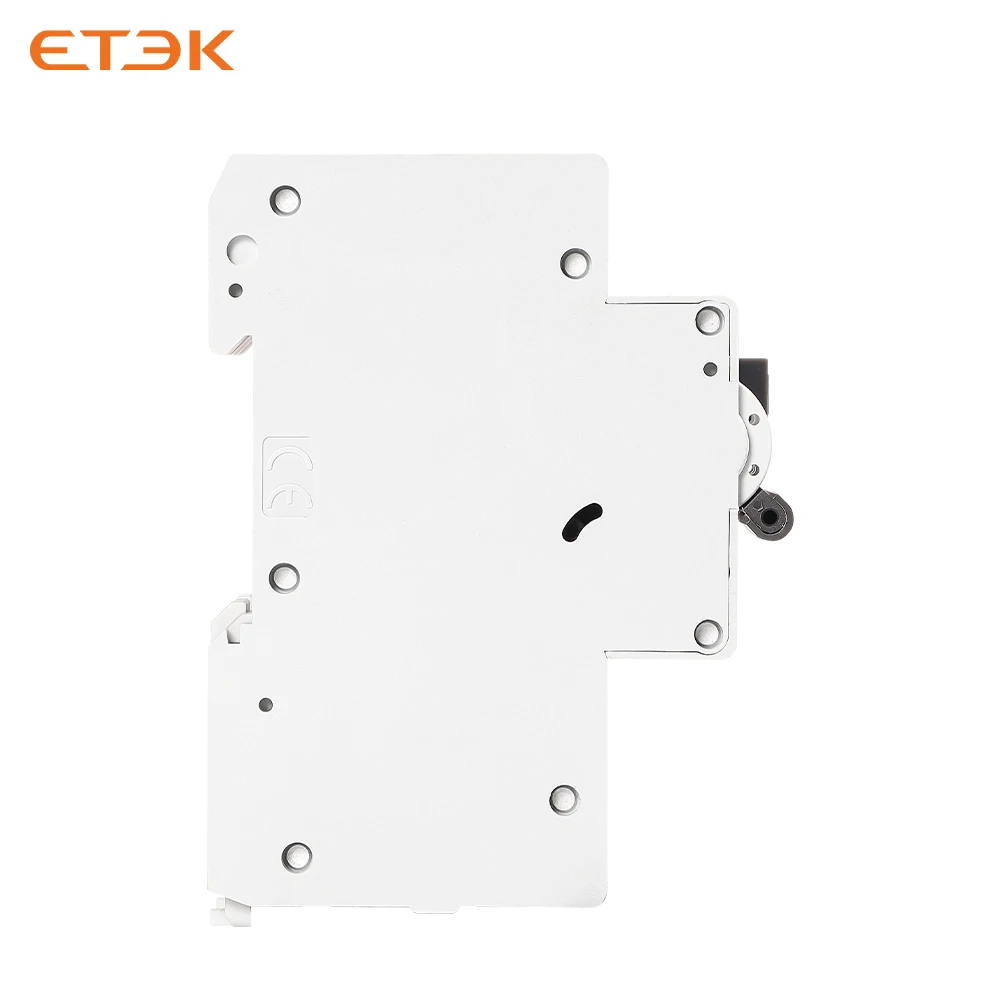

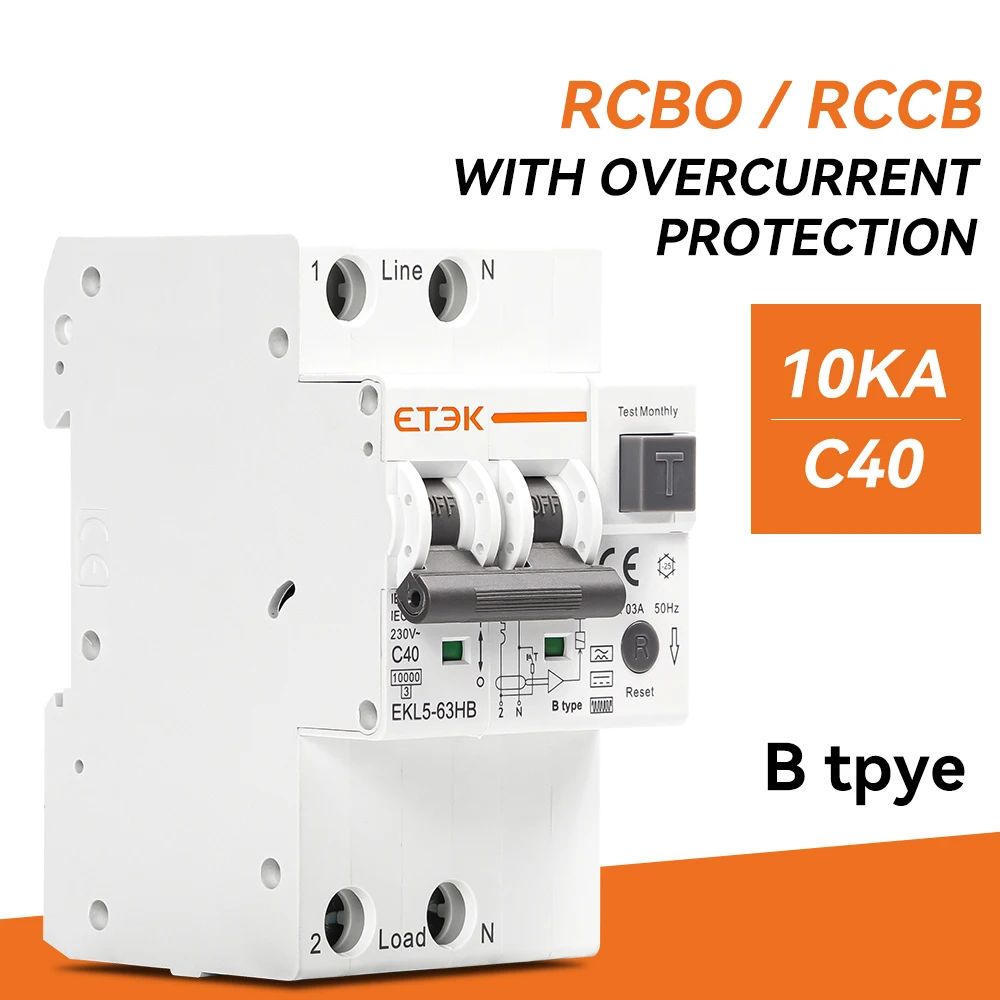

ETEK Type B RCBO 2p 40a 30mA Tripping Curve C 1P N RCBO
- Category: Circuit Breakers >>>
- Supplier: Zhejiang Etek Electrical Technology Co. Ltd.
Share on (1600569738365):
Product Overview
Description
RCBOs type B grant protection to persons and machineries in presence of DC current and high frequency AC fault current. Among the several types of RCBOs, type B provides the utmost level of protection.
1.Residual current sensitivity – UNIVERSAL
• AC pure sinus residual current, 50/60Hz
• A sinus and pulsating direct current, 50/60Hz
• B: AC + A + smooth direct current + high frequency (1kHz)
2.Standards
IEC/EN 61009-1 Basic standards for RCBOs AC and A type
IEC/EN 62423 additional requirements for type B
3.Typical applications
• Fault protection (protection against indirect contact of live parts)
• Additional protection (protection in case of direct contact of live parts, I∆n≤30mA)
• Fire Protection (for locations exposed to fire hazard, I∆n≤300mA)
4.Which are vulnerable to smooth DC residual currents?
• Photovoltaic systems, AC side.
• Charging stations for electric vehicles.
• Variable speed machine tools.
• UPS, computer data centers.
• Elevator controls.
• Cranes of all kinds.
• Electronic equipment on construction sites.
• Test set-ups in laboratories.
• General installations where DC smooth direct residual currents can be expected.
EKL5HB-63 B-type RCBO maximum current can reach 63 amps, and three leakage current options of 30mA, 100mA and 300mA are available to meet the needs of different scenarios.
1.Residual current sensitivity – UNIVERSAL
• AC pure sinus residual current, 50/60Hz
• A sinus and pulsating direct current, 50/60Hz
• B: AC + A + smooth direct current + high frequency (1kHz)
2.Standards
IEC/EN 61009-1 Basic standards for RCBOs AC and A type
IEC/EN 62423 additional requirements for type B
3.Typical applications
• Fault protection (protection against indirect contact of live parts)
• Additional protection (protection in case of direct contact of live parts, I∆n≤30mA)
• Fire Protection (for locations exposed to fire hazard, I∆n≤300mA)
4.Which are vulnerable to smooth DC residual currents?
• Photovoltaic systems, AC side.
• Charging stations for electric vehicles.
• Variable speed machine tools.
• UPS, computer data centers.
• Elevator controls.
• Cranes of all kinds.
• Electronic equipment on construction sites.
• Test set-ups in laboratories.
• General installations where DC smooth direct residual currents can be expected.
EKL5HB-63 B-type RCBO maximum current can reach 63 amps, and three leakage current options of 30mA, 100mA and 300mA are available to meet the needs of different scenarios.
Product Description
Company Profile
FAQ
1. Who are you?
ETEK Electric is a professional manufacturing company dedicated to the research and development, production and sales of low-voltage electrical appliances. The company was established in 2011 and is located in Wenzhou City, Zhejiang Province.
2.What can i buy from you?
MCB, RCCB, RCBO, MCCB, AC contactor, SPD, Electric vehicle charging equipment, etc.
5. What services can you provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, Express Delivery；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, Money Gram, PayPal, Western Union, Cash;
Language Spoken: English, Chinese
ETEK Electric is a professional manufacturing company dedicated to the research and development, production and sales of low-voltage electrical appliances. The company was established in 2011 and is located in Wenzhou City, Zhejiang Province.
2.What can i buy from you?
MCB, RCCB, RCBO, MCCB, AC contactor, SPD, Electric vehicle charging equipment, etc.
3.How can i ensure good quality?
ETEK Electric has a series of certifications and ISO9001 quality management system certifications, as well as TUV, CE, SAA, ESV, CB and some international CNAS certification laboratory certificates, so the products meet the standards of the International Electrotechnical Commission.
4.How to guarantee the delivery time of production?
Before starting the order, we will confirm the delivery date with the clients, when production is halfway through that will
update the production status to clients again. (Unless it is a cause of force majeure, such as an epidemic, a natural disaster)
Before starting the order, we will confirm the delivery date with the clients, when production is halfway through that will
update the production status to clients again. (Unless it is a cause of force majeure, such as an epidemic, a natural disaster)
5. What services can you provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, Express Delivery；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, Money Gram, PayPal, Western Union, Cash;
Language Spoken: English, Chinese
