Industrial Switching Power Supply Ac To Dc 48v 20A ~150A Short Circuit Overload Modular Protection Telecom Rectifier
Industrial Switching Power Supply Ac To Dc 48v 20A ~150A Short Circuit Overload Modular Protection Telecom Rectifier
Industrial Switching Power Supply Ac To Dc 48v 20A ~150A Short Circuit Overload Modular Protection Telecom Rectifier

Industrial Switching Power Supply Ac To Dc 48v 20A ~150A Short Circuit Overload Modular Protection Telecom Rectifier

Share on (1600569742964):


Price:$378.00 - $428.00

Quantity:


Product Overview

Description



Products Description


Embedded DC Power System is widely deployed in the Telecom/Industrial environment today. The system can be composed of one or more rectifier modules and monitoring modules. The power of the rectifier system can vary, depending on the number of rectifier modules. The system consists of power distribution units, rectifier modules) and monitoring modules. Configuration can be customized


Product name:
Switching Power Supply Ac To Dc Bridge Rectifier 48v 20amp Smps Pawar Saply Rectifier System
Rectifier System
48v smps
ac to dc bridge rectifier

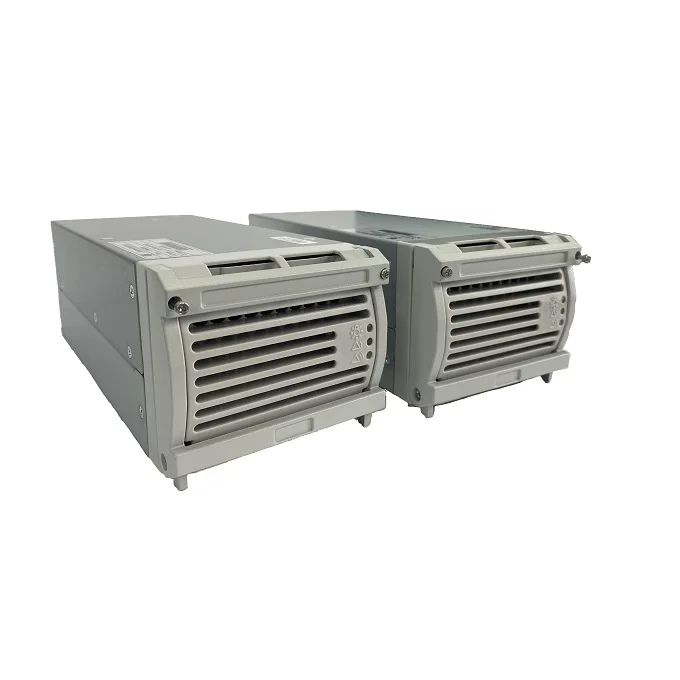

Rectifier Module
BR241800 1PCS
Efficiency
93.2%
Power Capacity(Max)
1800W
Input Current
8.18A
Input Protection (Recom)
10.2A

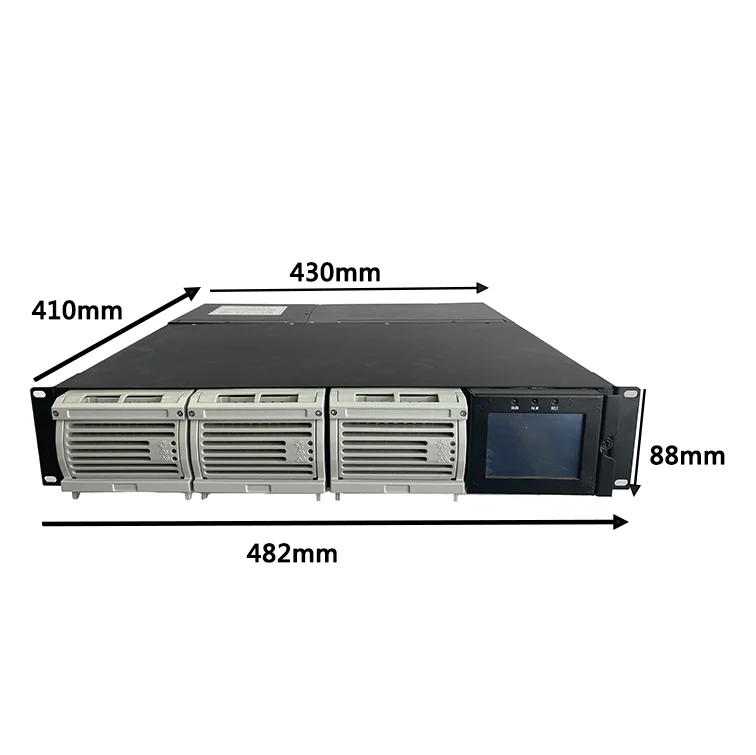

Height
88mm(2RU)
Width
482mm(19 Inch)
Depth
410mm
Weight
15KG Appro.
Classification
IP21






Product Parameter


Rectifier Technical Parameter：
* This part can design with your application parameter: modules configuration, circuit breaker installation, monitor display. Order whole DC power system cabinet also available.


Rectifier Module
Input Amps@Full load 110/220V
Output Current
Output Voltage
Weight
BR483000
10.9/ 13.2
50A, adjustable 1~50A
- 53.5Vdc, adjustable -43~ - 58Vdc
2.3kgs
Model
Configuration

Size(W*D*H)
Weight
BWT220/48- 50AS
Single phase, 3000W@220V, 1200W@110V, 50 amp output
1 BR483000 module, monitor, BLVD, + busbar, 3 DC rail-mount terminal, 1 Battery rail-mount terminal, SNMP
482mm*410m m*88mm
15kgs
BWT220/48- 100AS
Single phase, 6000W@220V, 2400W@110V, 100 amp output
2 BR483000 module, monitor, BLVD, + busbar, 3 DC rail-mount terminal, 1 battery rail-mount terminal, SNMP


482mm*410m m*88mm
17.5kgs
BWT220/48- 150AS
Single phase,9000W@220V, 3600W@110V, 150 amp output 3 BR483000 module, monitor, BLVD, LLVD, + busbar, 3 DC rail-mount terminal, 1
battery rail-mount terminal , SNMP
482mm*410m m*88mm
20kgs


AC INPUT
DC OUTPUT
AC Con-fig.
220Vac (L+N+PE)
Output Voltage
42-58VDC
53.5Vdc nom.
Input Voltage Range
90Vac-290Vac
Output Current(Max)
330A
Frequency
45-65Hz
Equ- charge(V)
56.4V(42-58Vdc adjustable);
THDi
＜5%@ full load
＜10% @half load
Rated input & Output Voltage
Float voltage(V)
53.5V(42-58Vdc adjustable);
Mains Connection
Terminals
Voltage Regulation
≤±1%
Current Sharing
≤±5%
PF
0.99@220VAC/300A, ≥0.98@220VAC/150A;
Ripple voltage
≤200mV<0-20mHZ>
Output Accuracy(V)）
≤0.6%
Load Connection
3 Group （Bus-bar）
Battery Connection
1 Groupsinergird.co.id (Bus-bar)
BLVD
Yes
Shunt
Yes


Customize Range:
Regard as HF Switching Power Supply / rectifier. we can customize are as following
1. Input:：220VAC +/-15%, 50/60HZ
Input:：110VAC +/-15%, 50/60HZ

2. Output：24VDC, 10A/20A/30A/40A/50A/60A/120A/180A/240A/300A
Output：48VDC, 10A/15A/20A/25A/30A/50A/60A/100A/150A/200A
Output：110VDC, 20A/30A/40A/60A/80A/100A/120A/140A/200A/300A
Output：125VDC, 20A/30A/40A/60A/80A/100A/120A/140A/200A/300A
Output：220VDC, 10A/20A/30A/40A/60A/70A/100A/120A/150A


Monitor Control Parameter：


Digital Input
6 DI
LCD display
Input/output voltage、Frequency、output current、Environment、Rate
Local Interface
Display, Menu Structure Key Pads, LED
Power status
City power、Output、Under voltage、overload voltage
Remote Monitor
TCP/IP,Rs485,SNMP (Optional),6 alarm Relays
Operating Temp.
-40 to +55°C (-40 to +131°F)
Battery Mid-Point
B-V2 /B-V1
Storage temp
-40 to +70°C (-40 to +158°F)
User
4 Group
Humidity
5% to 95% RH non-condensing
intelligent Wake management
Yes
MTBF
> 10,0000 hours (Ambience : 25°C)
Battery Temp. Sensor
Yes
Historical Alarm Records
Up to 1000 Units
Temperature compensation
Yes
Altitude（M）
≤3000m,more than, Rise every 100m, 1% derated.
Battery Self-Test
Yes

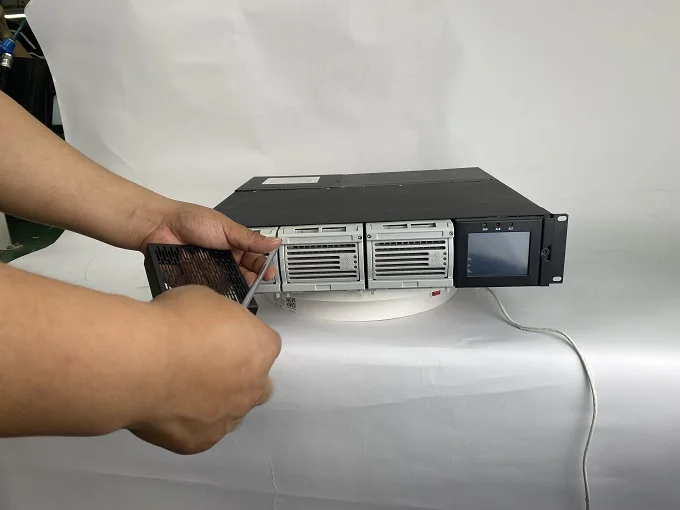

Details Images

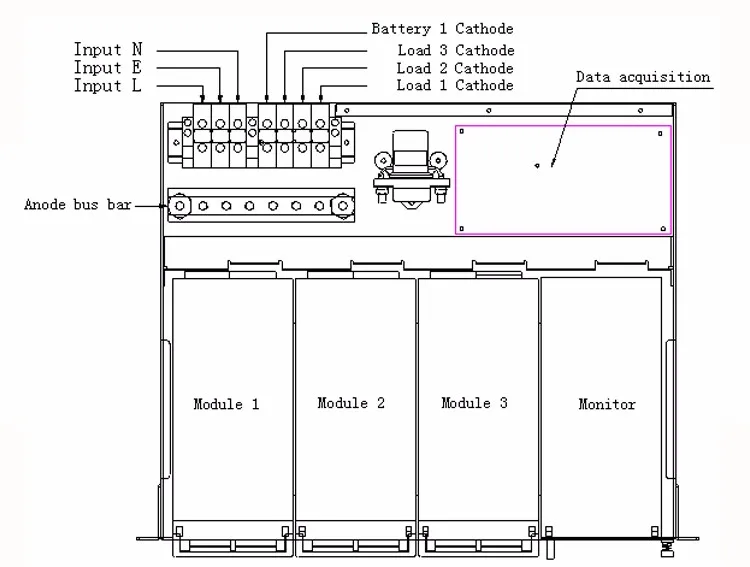

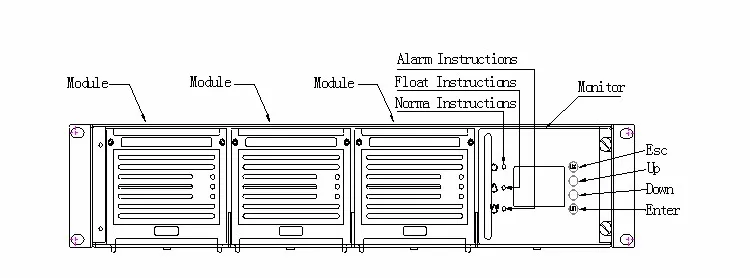

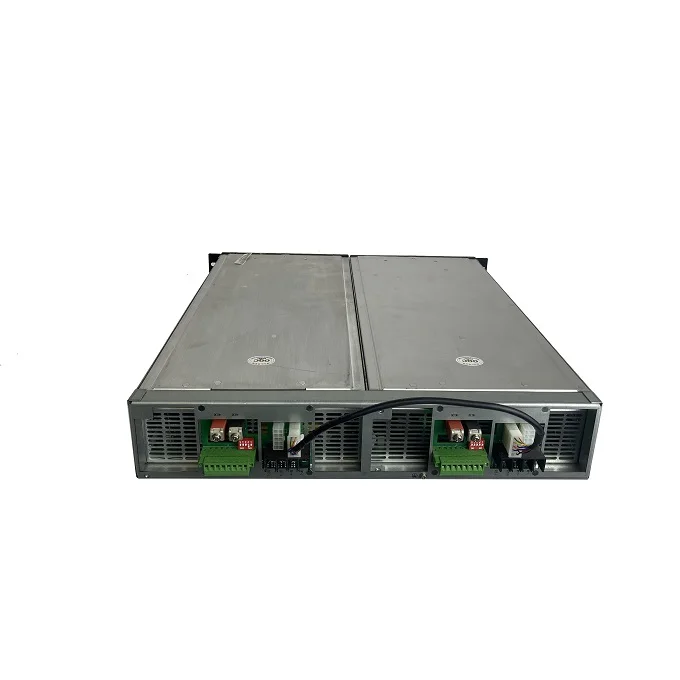

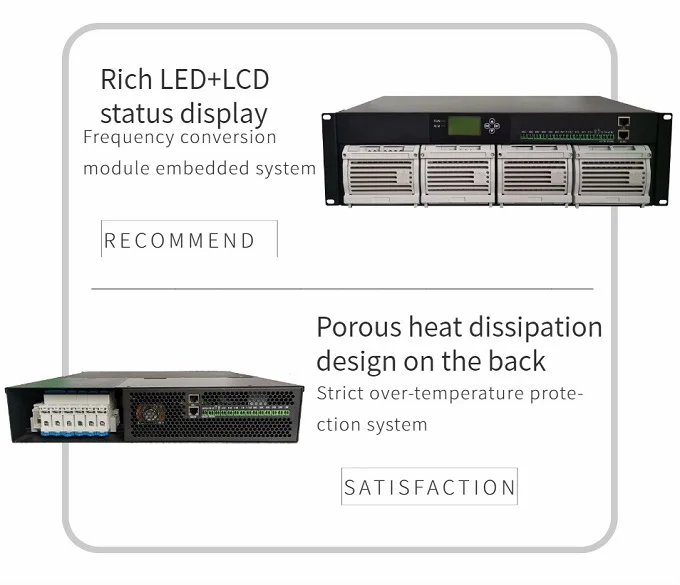

Appearance of AC/DC Distribution Frame：




Application of the AC/DC Distribution：










Applications Case

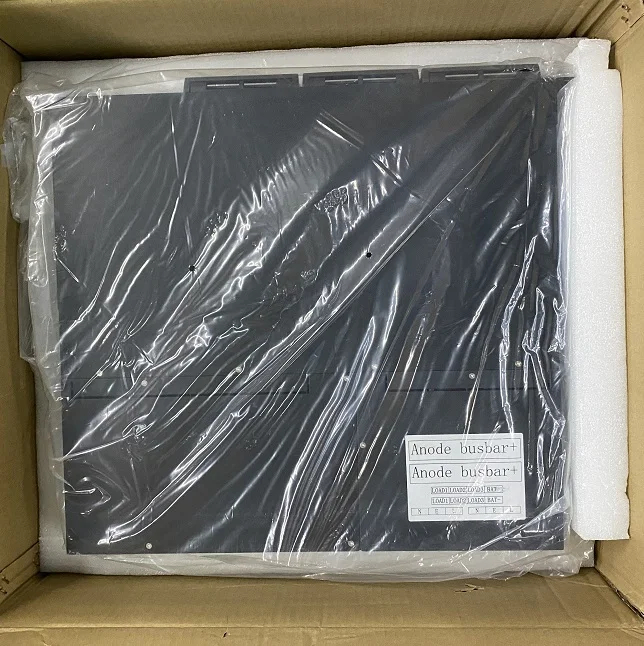

Product packaging






Company Profile






FAQ


Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
