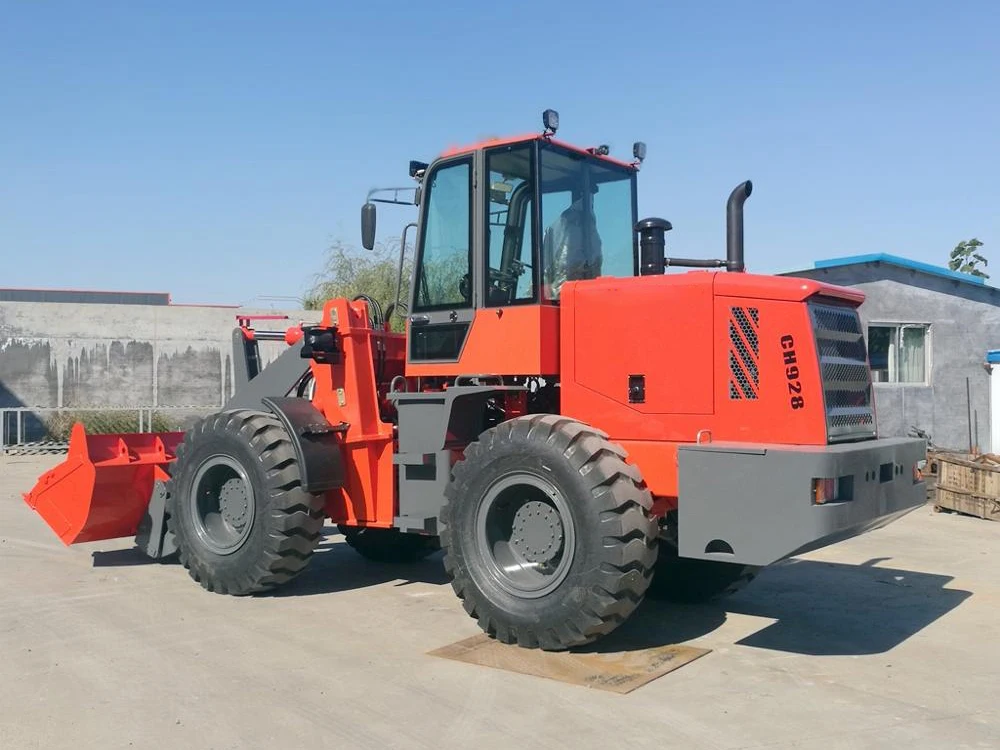

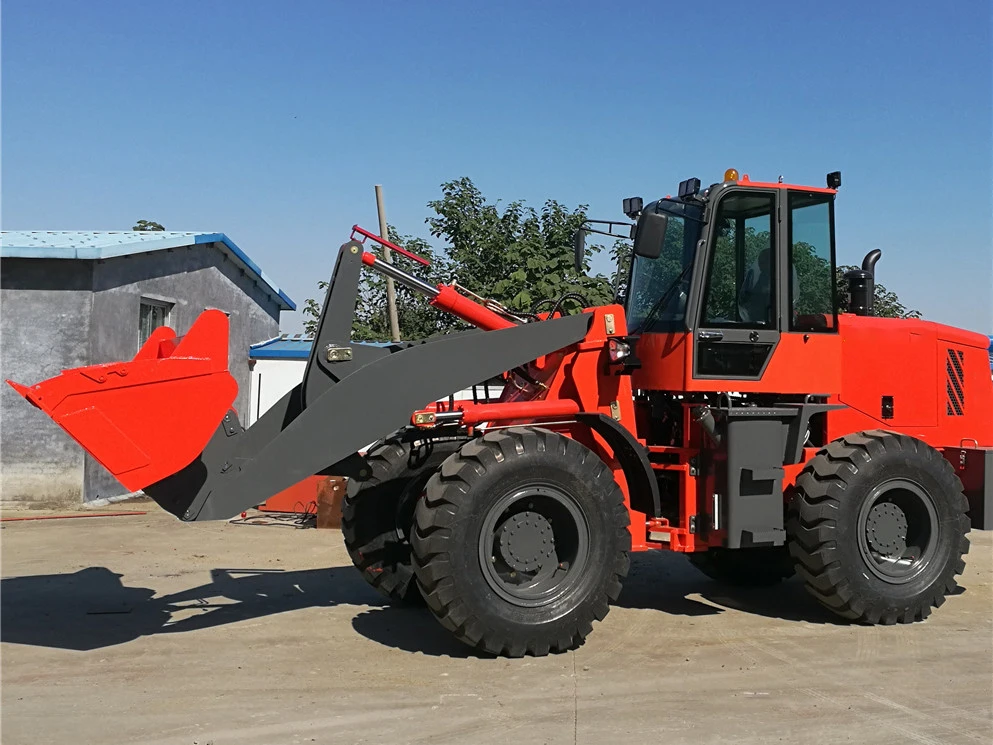

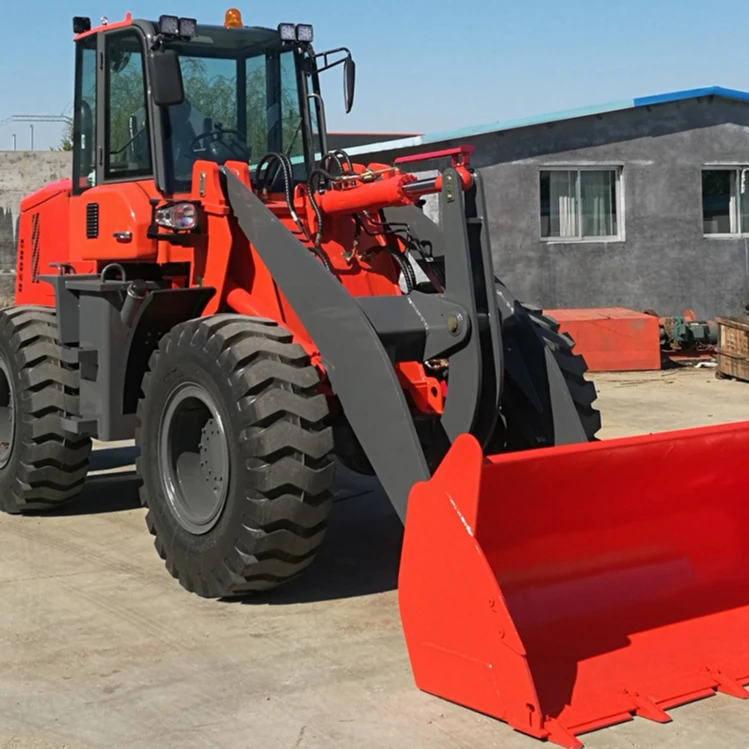

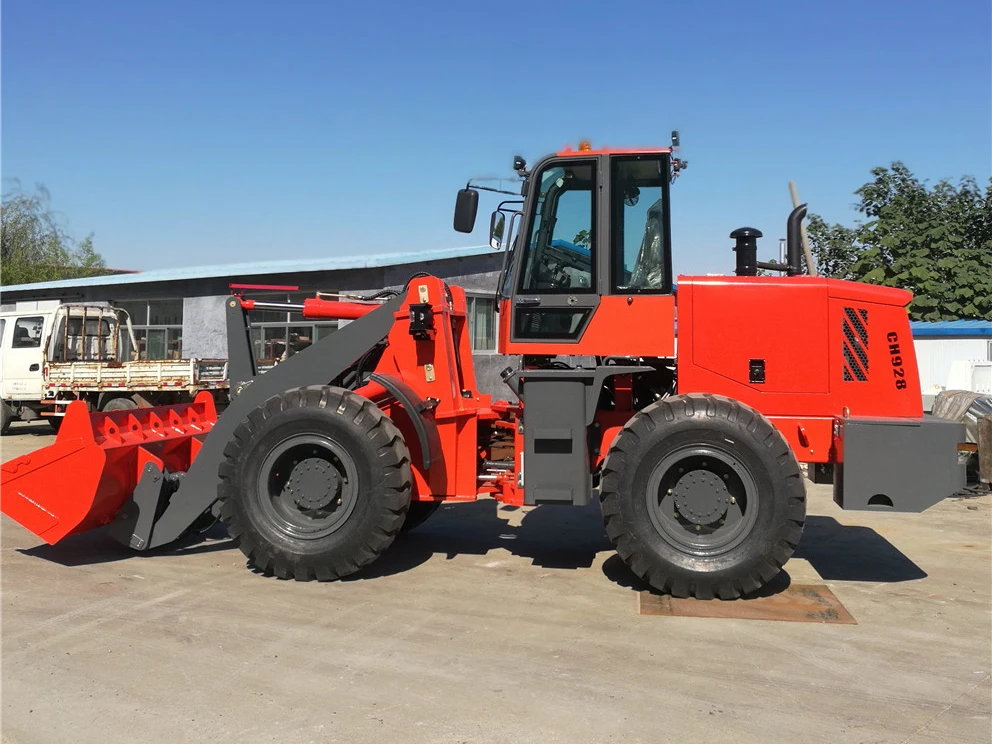

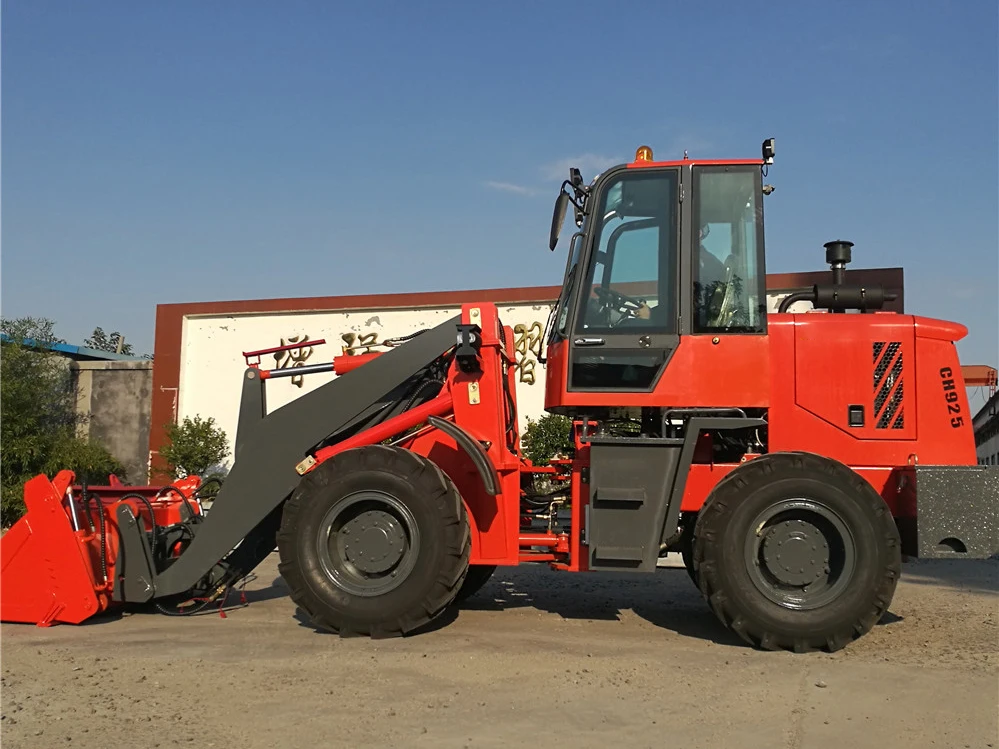

2.5 Ton Wheel Loaders Front End Loader CH925 Wheel Loader Cheapest Model China

Share on:

Price:$9,000.00 - $12,000.00
Price in USD:Details


Product Overview


1.High Reliability
Upgraded & enhanced front & back frames
Optimized H-series bucket
Enhanced front axle of the H-Series
Enhanced brake caliper
Fully optimized layout of pipes
Waterproof connectors
Improved painting process

2.High Efficiency and Energy Conservation
Patented dual-pump confluence and diffluence technology
Standard models provide the highest dumping height
Small turning radius
Biggest traction under combinatory operating conditions
Green, turbocharged, intercooled engine
New energies like LNG/CNG Patented proportional differential

Complete safety signs
Neutral start protection for safer operation
Optional ROPS/FOPS cab
Flame retardant materials and EU-certified glass are in the cab, offering higher safety
Newly added rear wiper

4.Comfortable Operation
Low-noise design for the machine
Ergonomics design of cab
Large field view in the H-series cab
Electronic oil level indicator comes as standard
Optional models with adjustable directions

5.Convenient Maintenance
Centralized lubricating grease inlet for easier adding butter
Central electrical control box for easier servicing
Wide-opening hood for easier servicing & maintenance of engine
Convertible fuel tank
Particular toolbox design
Optimized servicing marks

Product name
Rated load
2500 kg
Total operating weight
5800 kg
Rated Bucket Capacity
1.5 m³
Dumping Height
3500 mm
Overall Dimensions (L*W*H )
6200*2100*3000 mm
Engine Model
YUCHAI 4105 Trubo
Rated Power
85 KW
Type:In-line,Water-cooled, Four-stroke, Direct injection, four cylinder
Gear Box
Counter shift power shift
Torque Converter
Gear Shift
Model of Axle
Big Hub Reduction Axle
Type Specification
Front Tyre Pressure
0.3 Mpa
Rear Tyre Pressure
0.28 Mpa
