Оборудование для рыбоводства Ras, кислородный конус из стекловолокна
- Category: >>>
- Supplier: Guangzhou Baifeng Environmental Protection Technology Co. Ltd.
Share on (1600569755000):
Product Overview
Description
Test Drive This Product
Still not sure? We offer free product samples for many of our products.
No strings attached. We believe in our products and we
think you will too, once you give them a try.
Get A FREE Sample >>>
No strings attached. We believe in our products and we
think you will too, once you give them a try.
Get A FREE Sample >>>
Products Information
Description:
Oxygen cone is a special oxygenation device specially used for high-density circulating aquaculture. It is a special pressure vessel whose main function is to increase the pressure to force the gas to overcome the surface tension of water and passively dissolve under the condition that the gas and liquid are fully mixed. Therefore, the oxygen cone should be used together with booster pump, ejector and other equipment. The gas source adopts oxygen generator or oxygen cylinder (oxygen purity is greater than 90%)

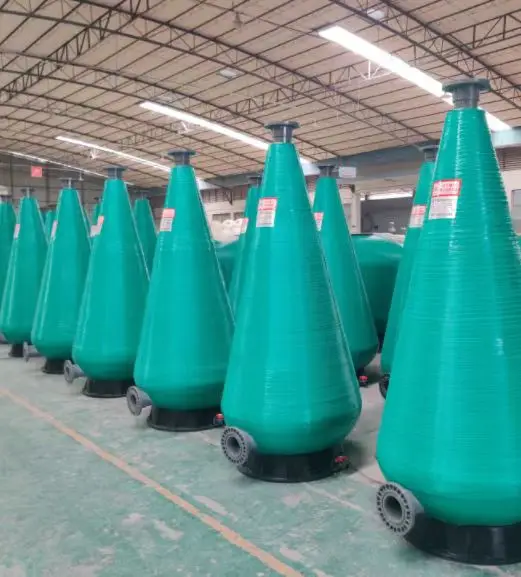

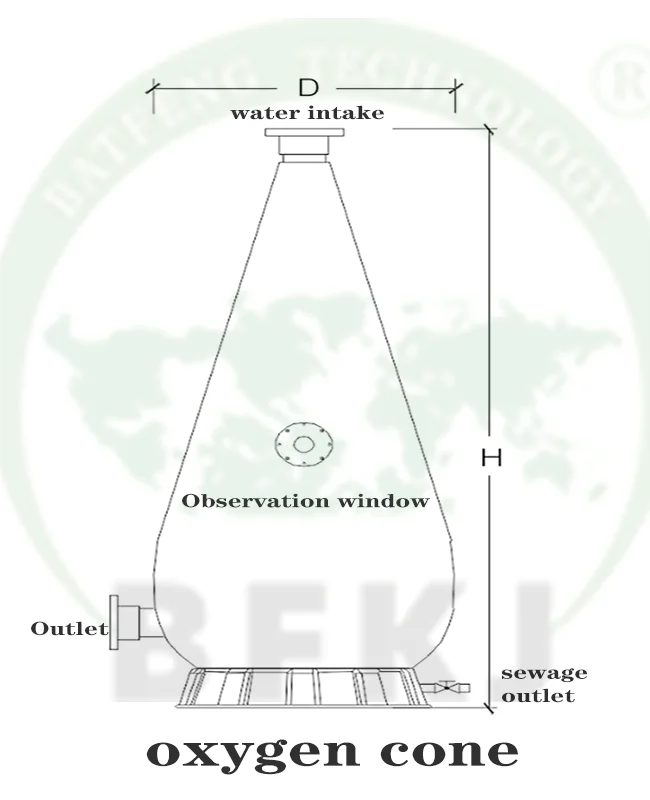

The oxygen cone is made of FRP (high-strength glass fiber composite resin) by melting and winding. As a whole, it presents a pyramidal structure with a small upper and a large lower. The inlet and outlet water are connected by PVC flanges. There are sewage outlets and observation windows at the bottom.
Model | Size | Interface size | Flow（Q/H） | Packing size（mm） |
FZ4010 | φ400x1050 | 2"/63mm | 6 | 450x450x1100 |
FZ5012 | φ500x1200 | 2"/63mm | 10 | 550x550x1250 |
FZ6015 | φ600x1520 | 2"/63mm | 15 | 650x650x1600 |
FZ7017 | φ700x1700 | 3"/90mm | 25 | 750x750x1830 |
FZ8019 | φ800x1900 | 3"/90mm | 30 | 850x850x2050 |
FZ8523 | φ850x2250 | 3"/90mm | 30 | 900x950x2230 |
FZ9021 | φ900x2100 | 4"/110mm | 35 | 950x950x2230 |
FZ1025 | φ1000x2500 | 4"/110mm | 60 | 1050x1050x2620 |
FZ1027 | φ1000x2720 | 4"/110mm | 60 | 1050x1050x2850 |
FZ1127 | φ1100x2700 | 5"/140mm | 110 | 1150x1150x2800 |
FZ1230 | φ1200x3000 | 5"/140mm | 140 | 1250x1250x2820 |
Scope of application:
Large-scale industrial aquaculture farms, seawater nursery farms, large-scale aquatic temporary breeding bases, aquariums, aquariums, etc.
Large-scale industrial aquaculture farms, seawater nursery farms, large-scale aquatic temporary breeding bases, aquariums, aquariums, etc.
Features & Advantages:
◎ High performance and durable，With high oxygen utilization rate (>90%).
◎ Serialized prodcuts for various customer needs (20 ~160 m3/hour).
◎ Specializeddesign for high density farming(>50kg/m3).
◎ Serialized prodcuts for various customer needs (20 ~160 m3/hour).
◎ Specializeddesign for high density farming(>50kg/m3).

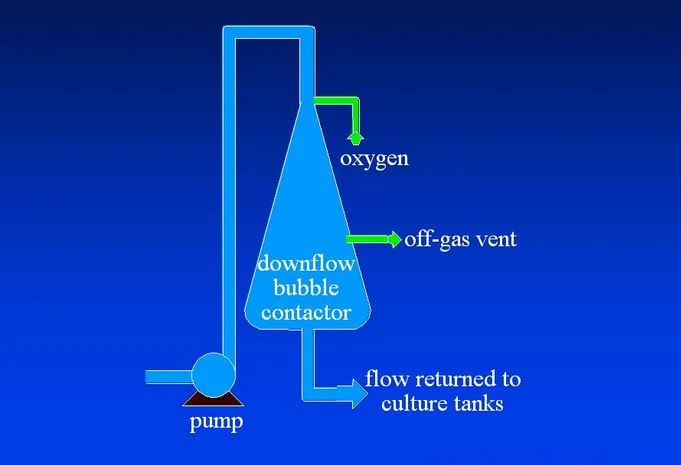

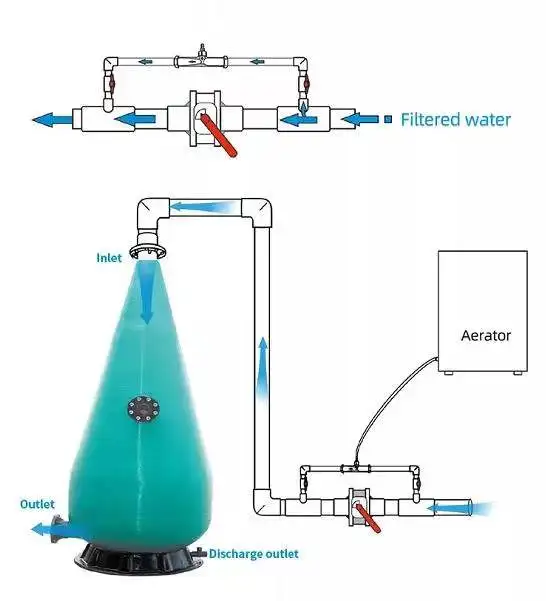

Flow chart

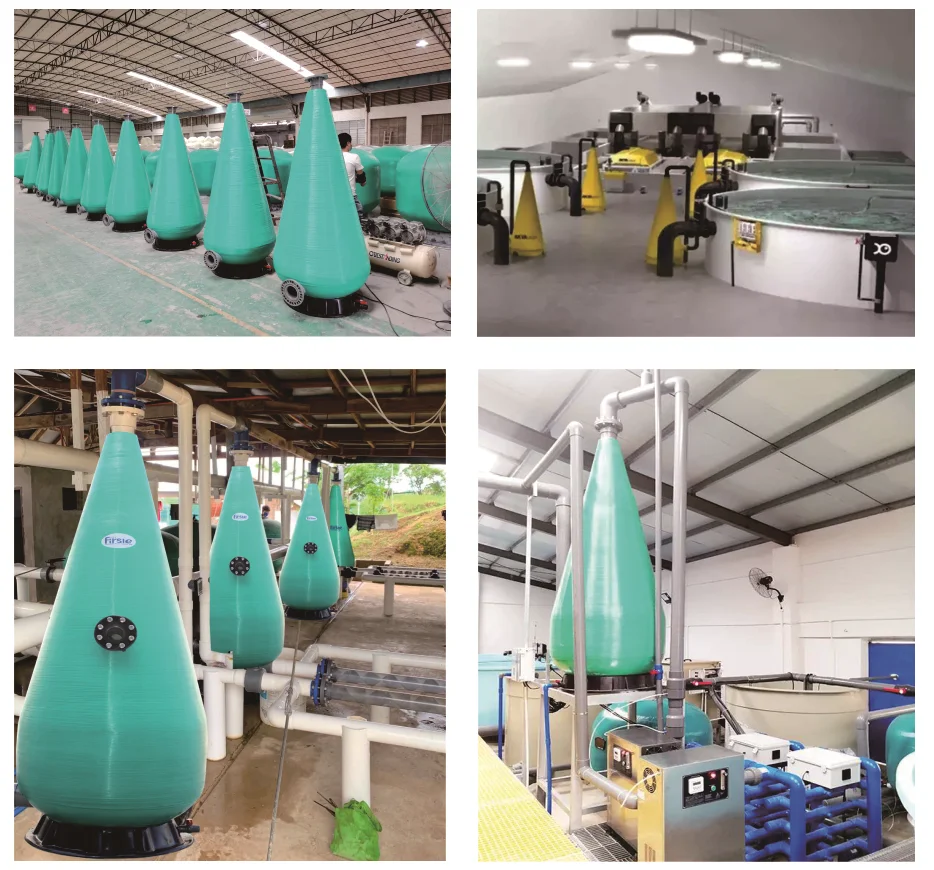

Feedback graph
Company Profile
Package
FAQ
Q: Are you manufacturer or trader?
A: We’re professional manufacturer focus on ozone equipment, located in TianHe District,
Guangzhou City, China. Welcome to visit us.
Q: What’s the warranty?
A: Warranty is 12 months, life time technical support. If any quality problem occur during this period,which due to our
responsibility, we’ll take care of it, or send more new spare parts to replace.
Q: What’ the MOQ?
A: One piece each model.
Q: Can I buy a sample for test purpose, then if it’s ok, I’ll buy more?
A: Yes, you can.
Q: Can we print our logo and have our own package ?
A: Yes, you can, OEM&ODM orders are acceptable.
Q: Is there any discount?
A: Of course, more quantities, more discount.
Q: Can I get a catalog?
A: Yes, you can download on our website.
Q: How is the quality?
A: All the materials used for our products are strictly chosen by QA, finishings are checked carefully by QC. Every machine will be strictly tested and aged for several days before delivery.
A: We’re professional manufacturer focus on ozone equipment, located in TianHe District,
Guangzhou City, China. Welcome to visit us.
Q: What’s the warranty?
A: Warranty is 12 months, life time technical support. If any quality problem occur during this period,which due to our
responsibility, we’ll take care of it, or send more new spare parts to replace.
Q: What’ the MOQ?
A: One piece each model.
Q: Can I buy a sample for test purpose, then if it’s ok, I’ll buy more?
A: Yes, you can.
Q: Can we print our logo and have our own package ?
A: Yes, you can, OEM&ODM orders are acceptable.
Q: Is there any discount?
A: Of course, more quantities, more discount.
Q: Can I get a catalog?
A: Yes, you can download on our website.
Q: How is the quality?
A: All the materials used for our products are strictly chosen by QA, finishings are checked carefully by QC. Every machine will be strictly tested and aged for several days before delivery.
