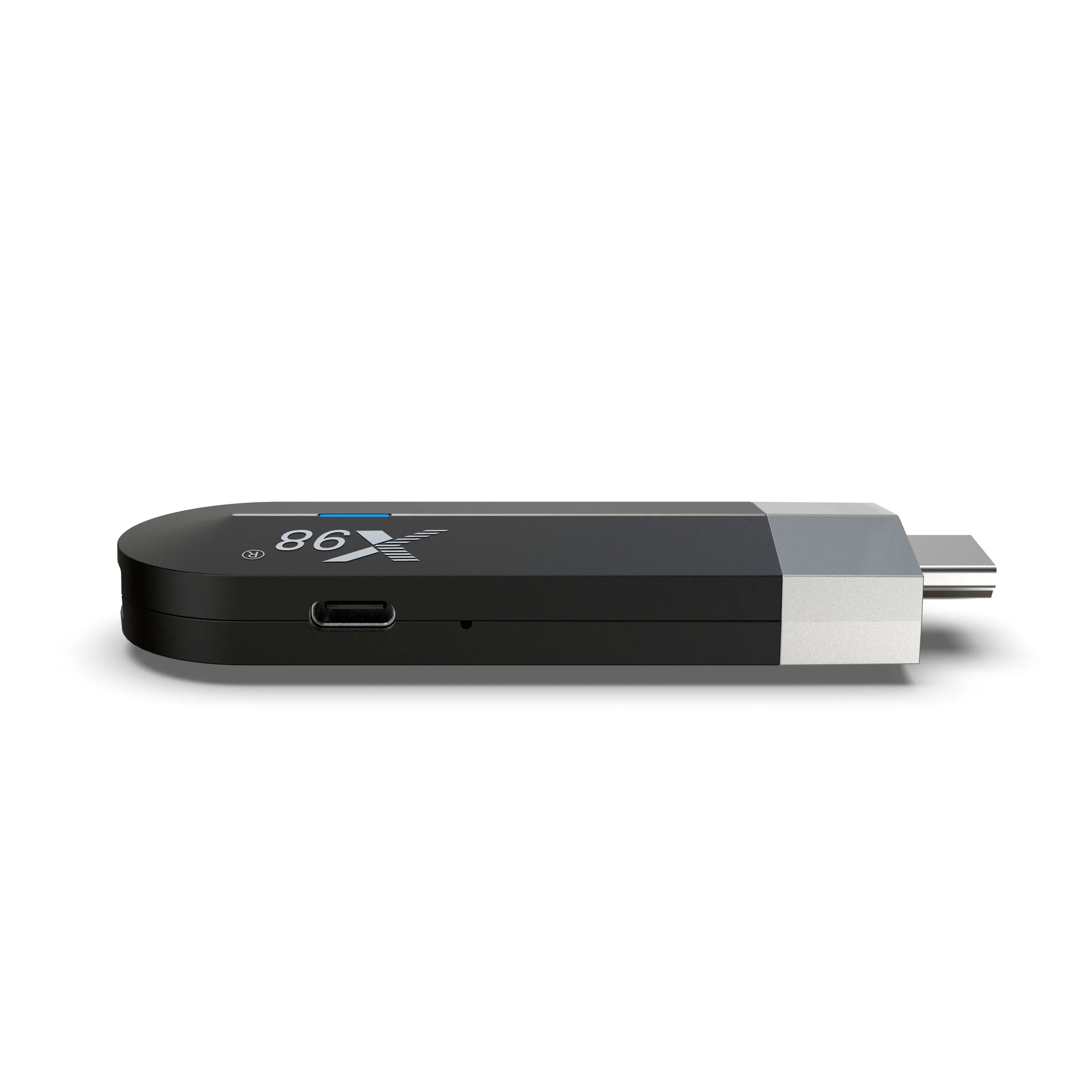

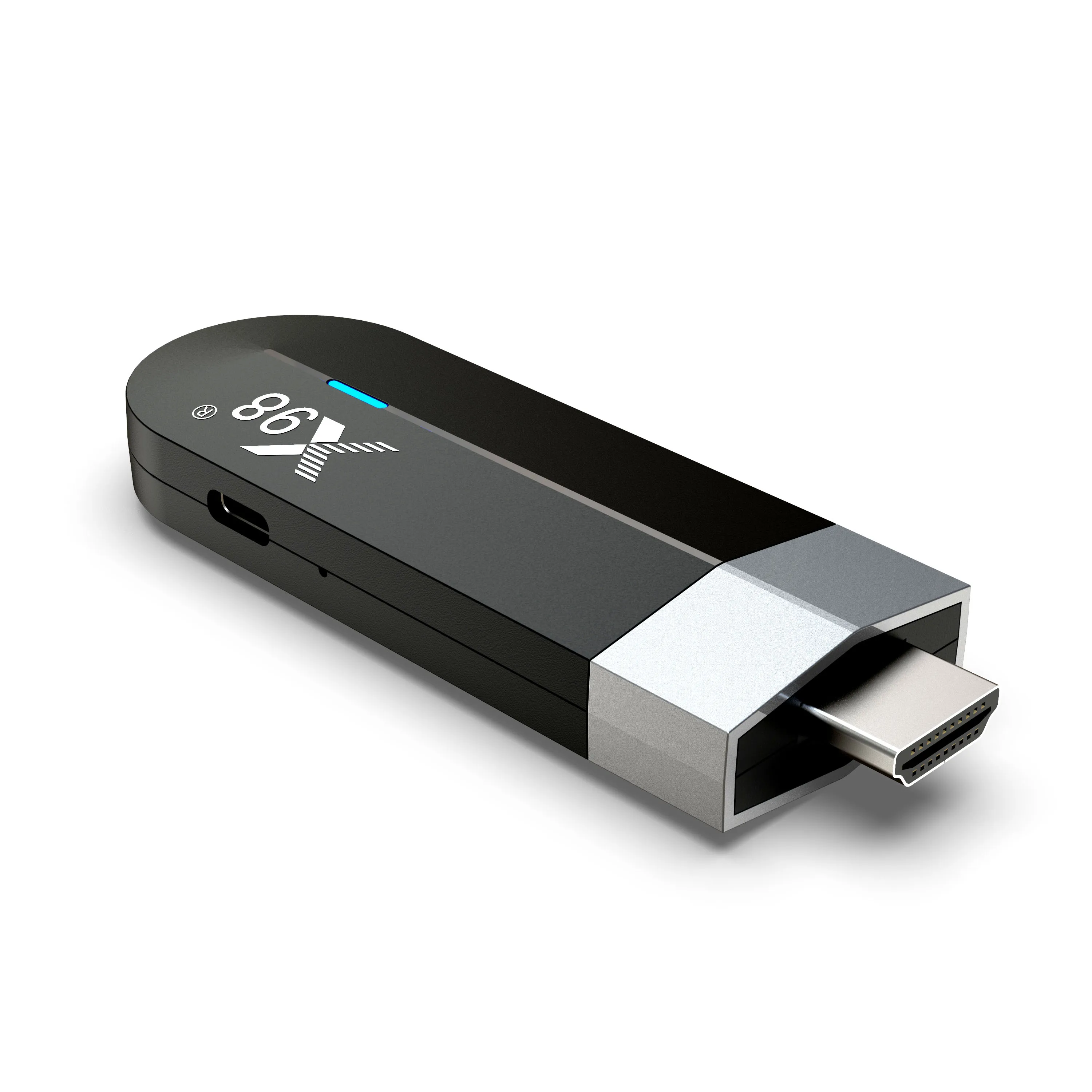

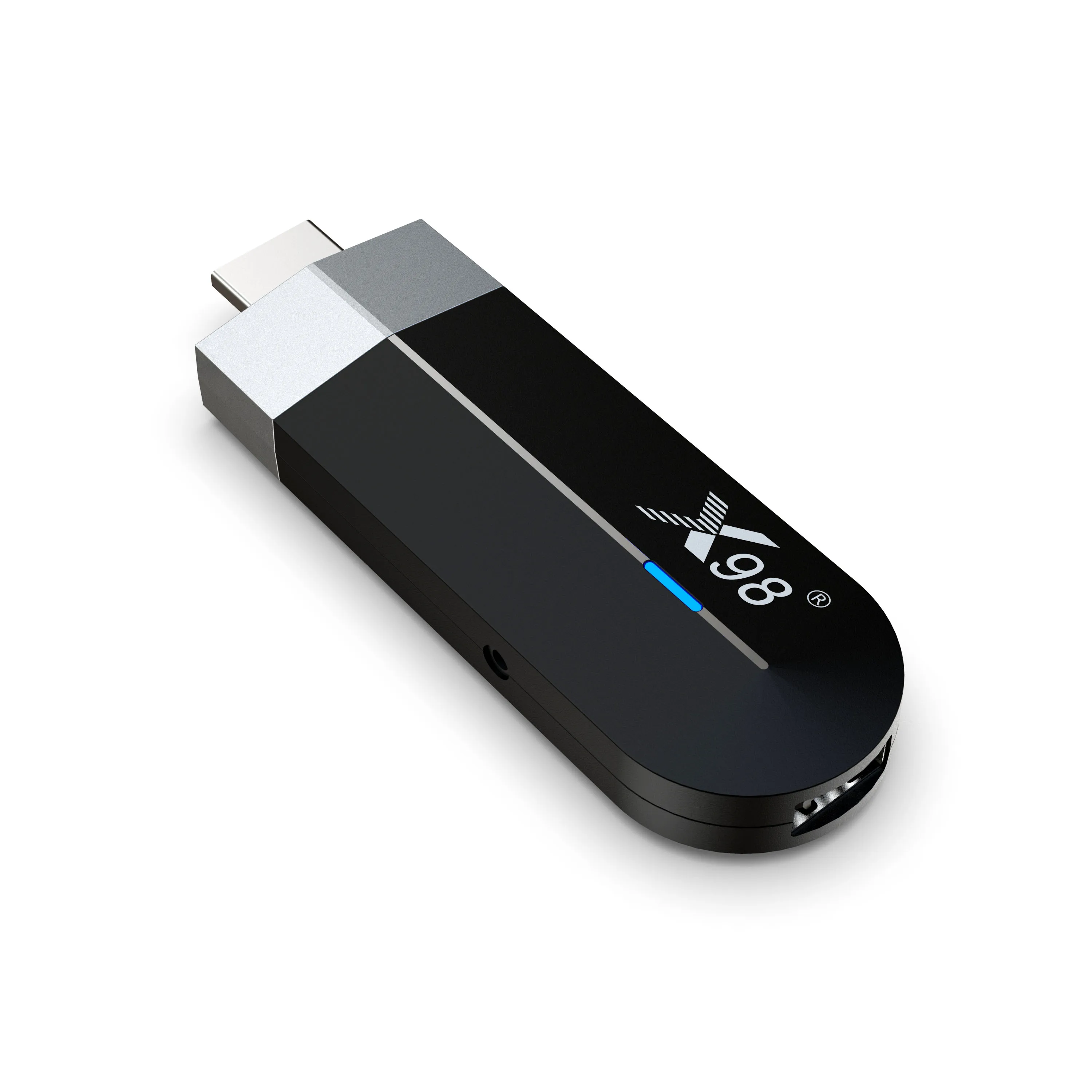

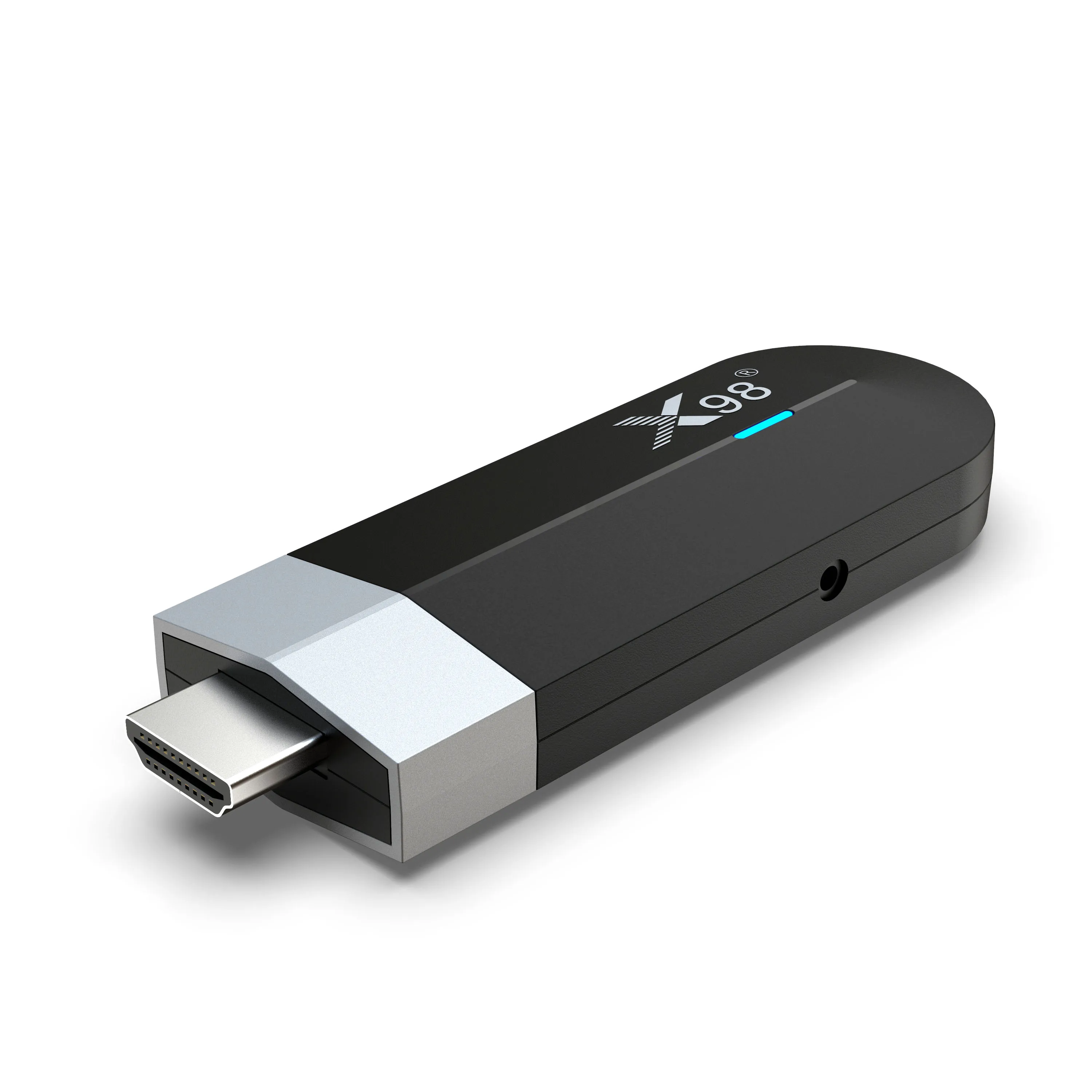

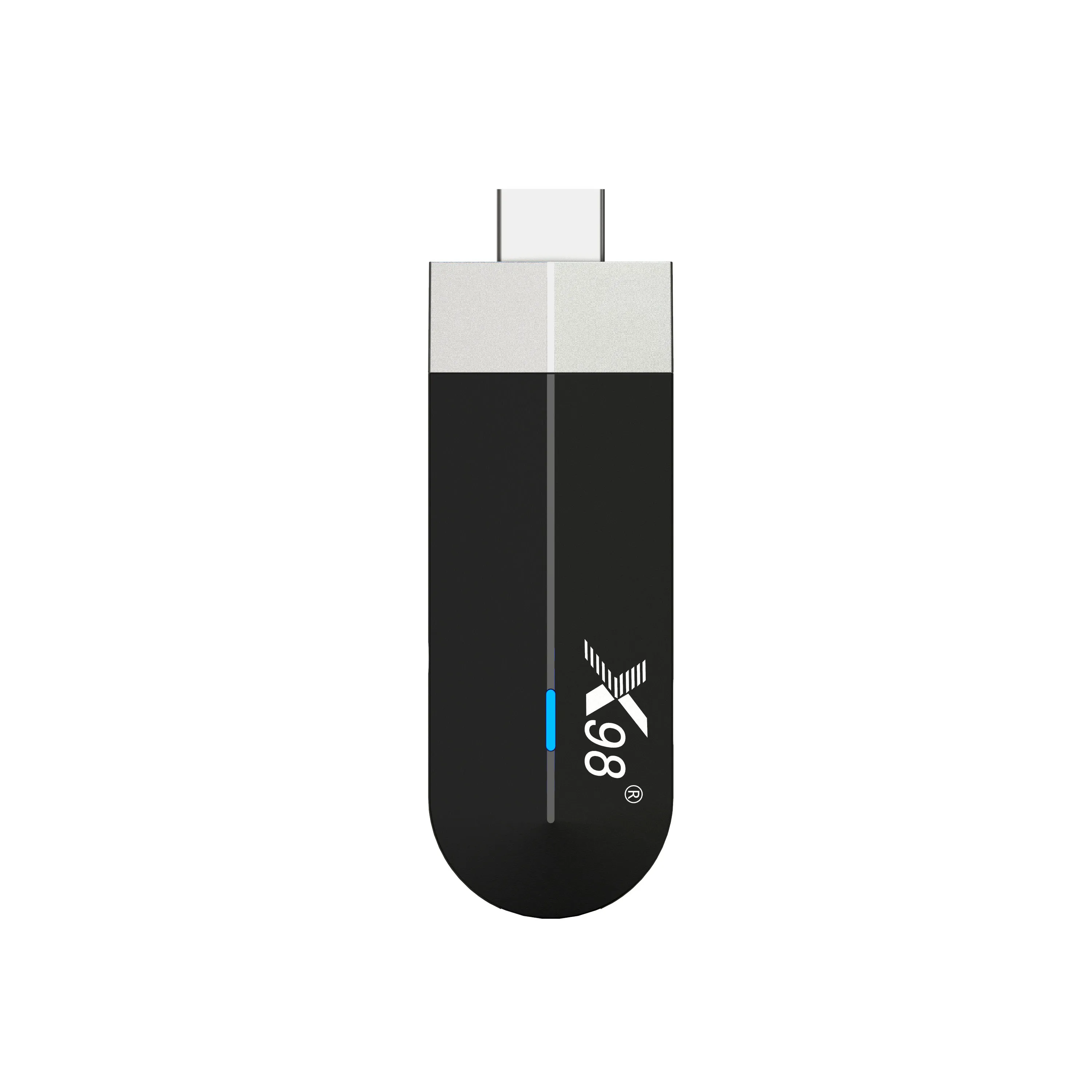

Newest X98s500 Tv Stick S905y4 2.4g/5ghz Wifi Ram 2gb Rom 16gb Tv Box Android 11 4k Set Top Box
- Category: >>>
- Supplier: Shenzhen Quweilai Technology Company Limited
Share on (1600569759550):
Product Overview
Description
Product Description
Product Model | X98S500 | Project Status | M.P | |||||
A-media ID/Mainboard model | ||||||||
Basic parameters | ||||||||
CPU | Chipset | S905Y4 | ||||||
Architecture | Quad Core ARM Cortex A35 | |||||||
GPU | Chipset | Mali-G31 MP2 | ||||||
Architecture | OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1 support | |||||||
RAM | Capacity | 2GB (1/2/4GB Optional) | ||||||
ROM | Capacity | 16GB (8/16/32GB Optional) | ||||||
External storage | USB Storage Devices | Supported | ||||||
Software | ||||||||
Operating system | OS Version | Android 11 | ||||||
Language | Multi-Language | |||||||
Multimedia | Video | Video Decoder: | ||||||
AV1 MP-10@L5.1 up to 4Kx2K@60fps | ||||||||
VP9 Profile-2 up to 4Kx2K@60fps | ||||||||
H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps | ||||||||
H.264 AVC HP@L5.1 up to 4Kx2K@30fps | ||||||||
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | ||||||||
WMV/VC-1 SP/MP/AP up to 1080P@60fps | ||||||||
AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps | ||||||||
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | ||||||||
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | ||||||||
Supports JPEG thumbnail, scaling, rotation and transition effects | ||||||||
Multiple language and multiple format sub-title video support | ||||||||
Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats | ||||||||
Audio | Supports MP3, AAC, WMA, RM, FLAC | |||||||
Image | HD JPEG、BMP、GIF、PNG、TIF | |||||||
Network service | ||||||||
Wi-Fi | Type | Option:IEEE 802.11 a/b/g/n/ac | ||||||
Frequency | Option:2.4G &5G | |||||||
Antenna Type | Inside antennas | |||||||
BT | BT | BT4.X+ | ||||||
Interface | ||||||||
Charge | DC connector | TYPE-C IN(5V/2A) | ||||||
Video output | HDMI | 4K*2K UHD Output, HDMI 2.1 | ||||||
IR Remote | Infrared remote control extension | 2.5mm Headphone plug | ||||||
USB port | USB host | USB 2.0 | ||||||
Appearance | ||||||||
Body Material | ABS | |||||||
Color | black | |||||||
Size | 98x33x15mm | |||||||
Weight | 0.0335Kg | |||||||
Cerifications(For Unit) | ||||||||
Standard | CE | / | ||||||
RoHS | / | |||||||
Others | Optional | / | ||||||
Package contents | Shipping Info | |||||||
User manual | *1 | Gift Box Dimension(mm) | 150x100x55mm | |||||
Gift Box | *1 | Carton Size(mm) | 570x315x167mm | |||||
Remote control | *1 | Qty Per Carton(pcs) | 30PCS | |||||
HDMI external cable | *1 | Gift Box.G.W(gs) | 0.2273Kg | |||||
Power adapter | *1 | Export carton (G.W.)(kgs) | 7.8Kg | |||||
Details Images
What B2GO TV Box Can Do?
Production Process
Manufacturing Technique
> boot logo
> boot animation
> pre-install apk
> boot APK
> customize UI launcher
> customize setting
> ota update
> logo printing on tv box
> logo printing on remote
> customize package box
> customize user manual
> case design
> pabc layout
> accessories customize
Company Introduction
B2GO’s full suite of hardware and software customization services solutions based on Allwinner, Rockchip, Realtek, qualcomm & Allwinner socs supports;
The customer’s design process, from the earliest development stages to successful mass production.
The customer’s design process, from the earliest development stages to successful mass production.
• RK3318 • RK3328
• RK3228A • RK3229
• RK3368 • RK3228
• RK3399 • RK3399 Pro
• S912 • S905X
• S905X2 • S905X3
• S905D • S905L
• T966 • SS805
• H3 • H6
• H603
• RTD1295 • RTD1296
• RTD1295 • RTD1296
Packing and Shipping
Express Shipment
Fast Shipping Time(3-5days)
Door to Door Service
Wide Area Coverage
Ocean Shipment
Cheapest
Volume Unlimited
Air Shipment
Door to Port Service
Delivery time around 5-7 days
