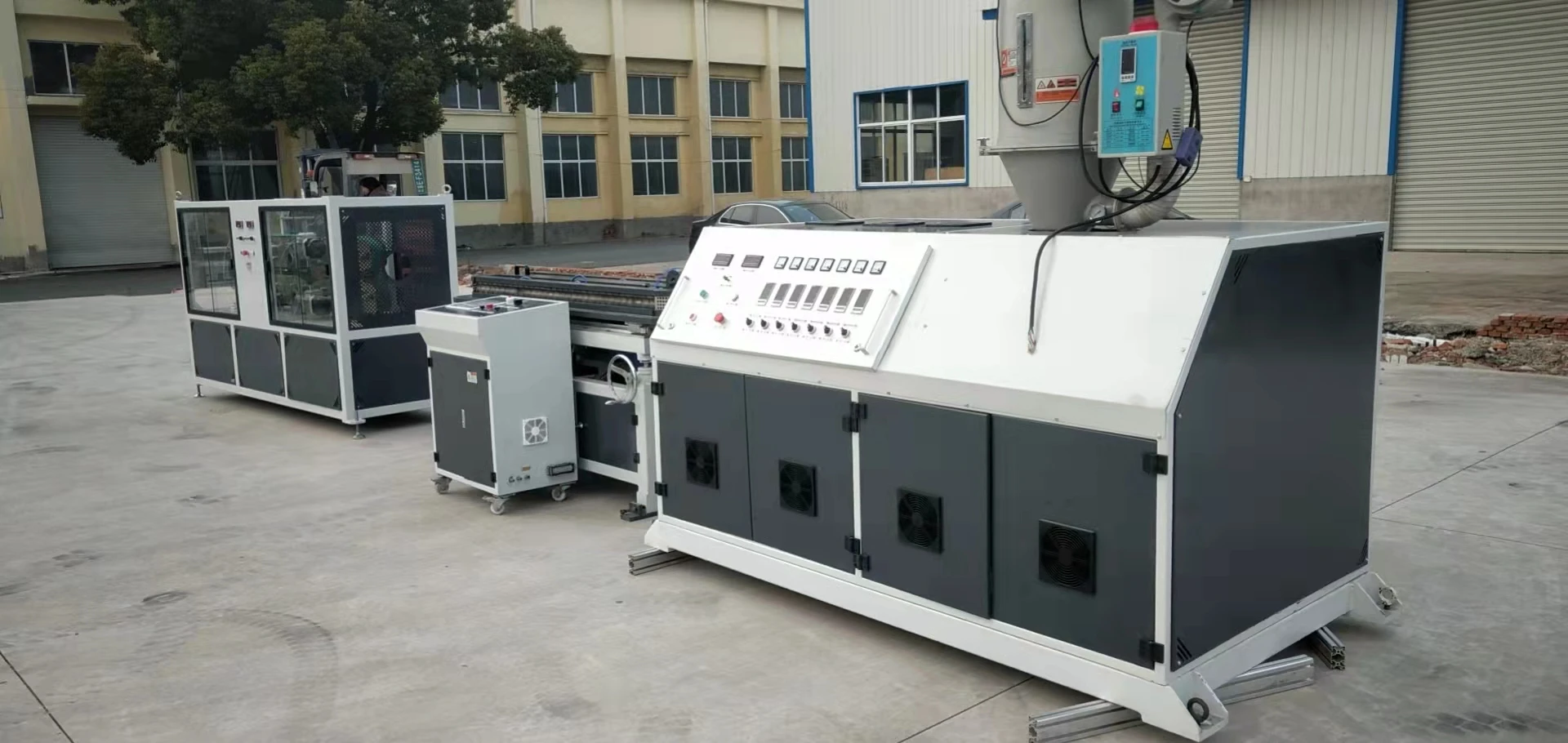

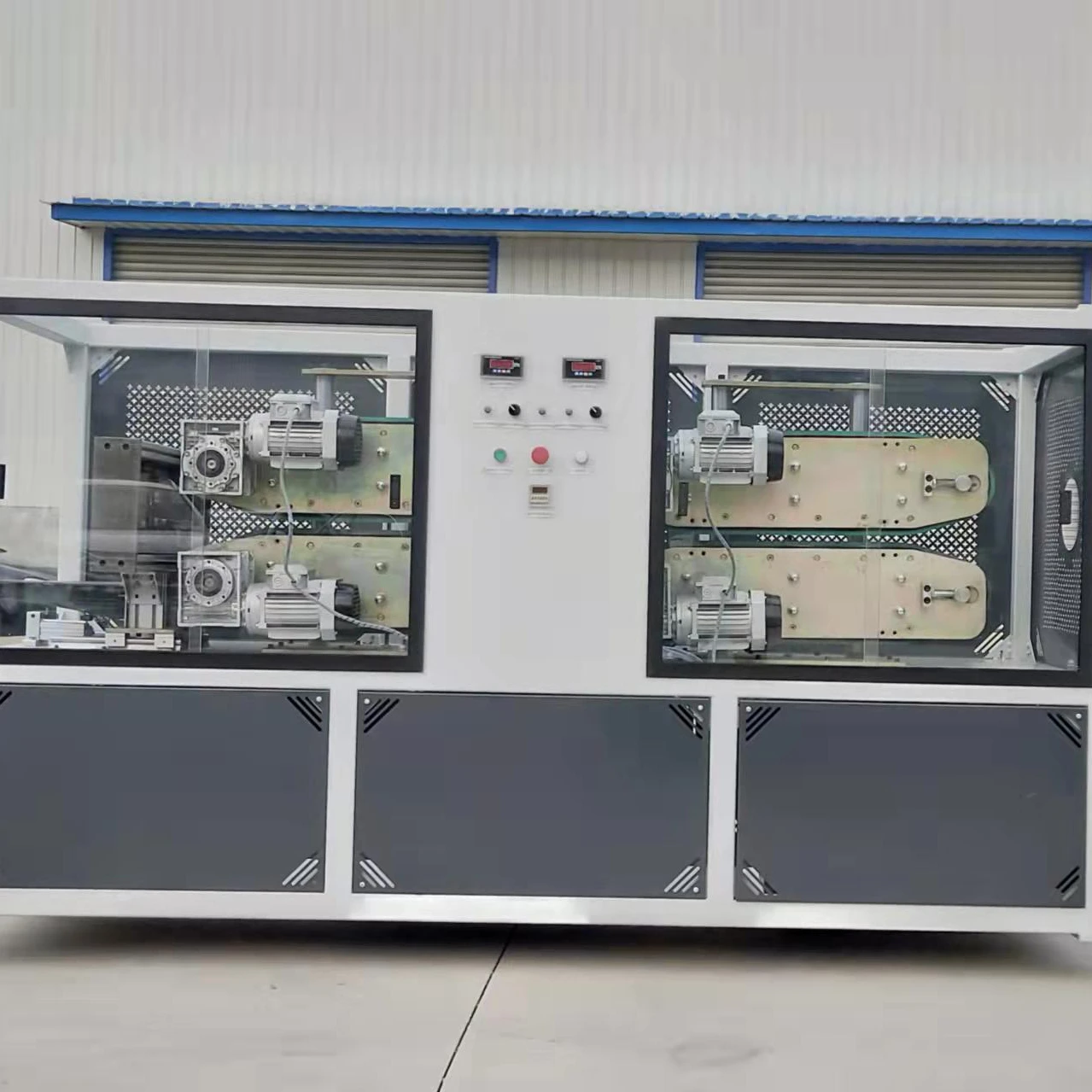

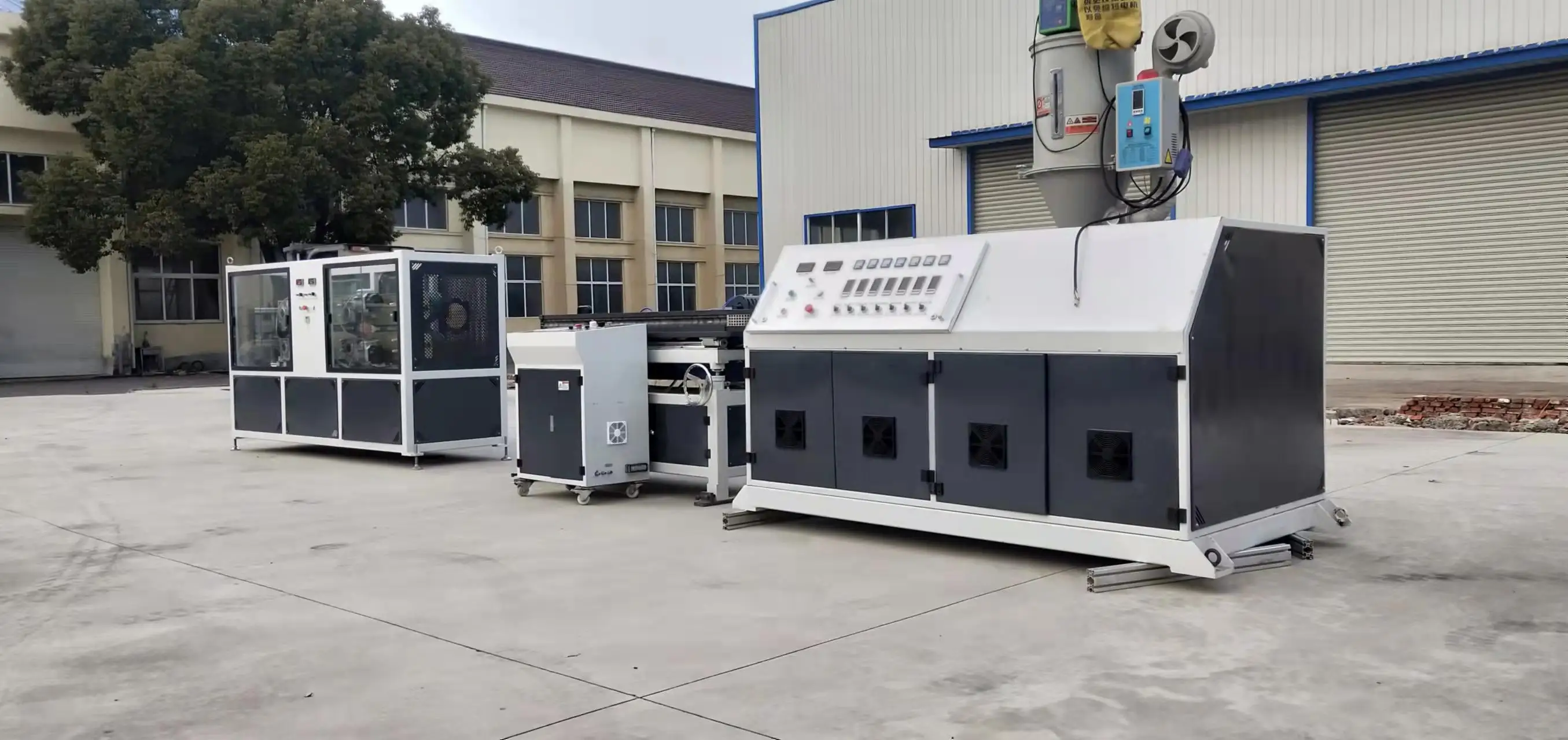

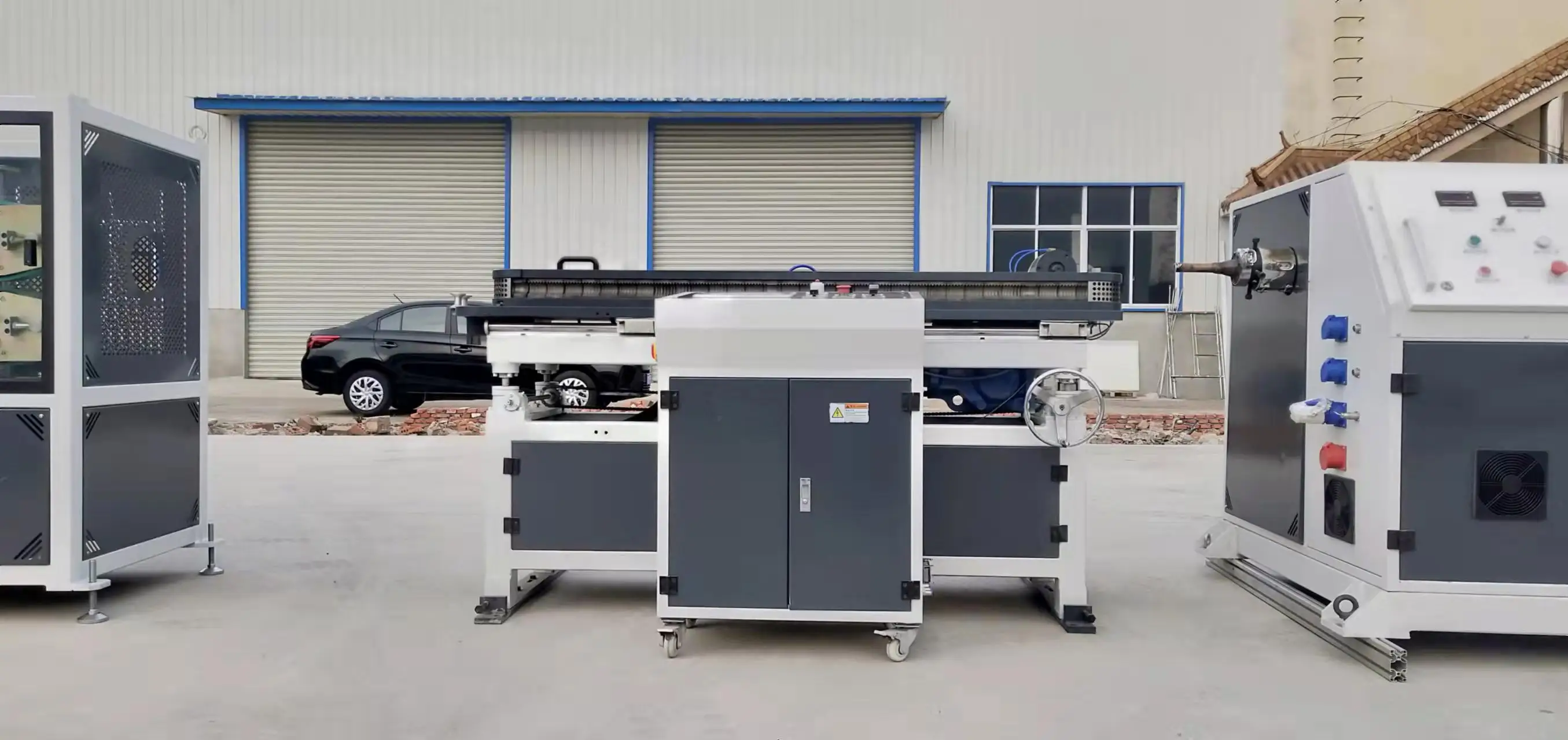

PVC/PE/PP corrugated tube production line,Cooling method is air cooling or water cooling

Product Overview

Description

PE,PP single corrugated pipe production line

Description of PVC corrugated pipe machine:

This plastic corrugated pipe line equips with high quality machines in the whole line.

With good equipments, the plastic corrugated pipe line can produce pipes stable and fast. Also all these machines share a ling service life which reduces buyer's cost.

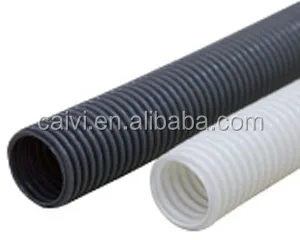

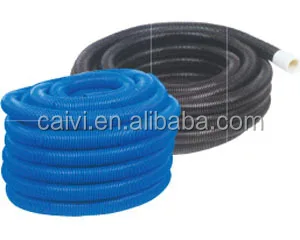

Molding corrugation pipe with smooth inside and outside surface, and even ripple at one time by corresponding die.

Used as wire and cable passing pipe, washing machine drain pipe, dust collector pipe and ventiduct.



Process Flow of PVC corrugated pipe machine:

Raw material+master batches→mixing → vacuum feeding → material dryness → single screw extruder → extrusion mould → corrugated forming machine → meter measure → double winder → finished product inspecting&packing



Technical parameters of PVC corrugated pipe machine:

Model	Screw diameter (mm)	L/D	Pipe range (mm)	Capacity (kg/h)	Main motor Power (km)	Total power (kw)	Line length (m)
BW-PE50	50	30:1	8-50	50	22	50	12
BW-PE75	65	30:1	16-75	100	37	80	16

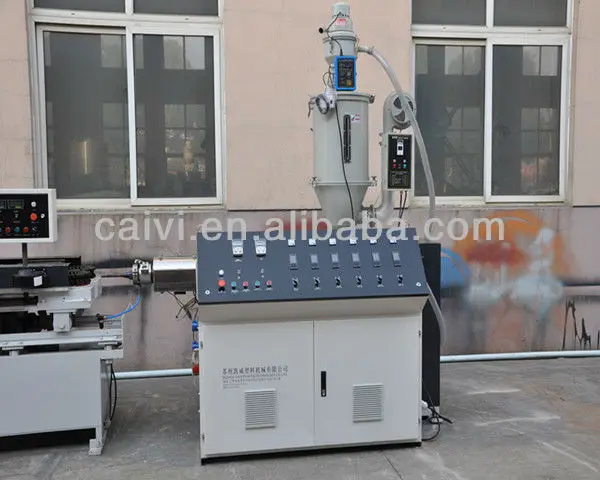

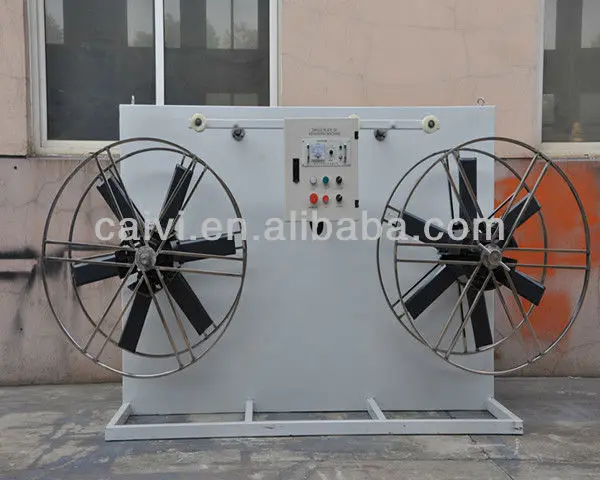

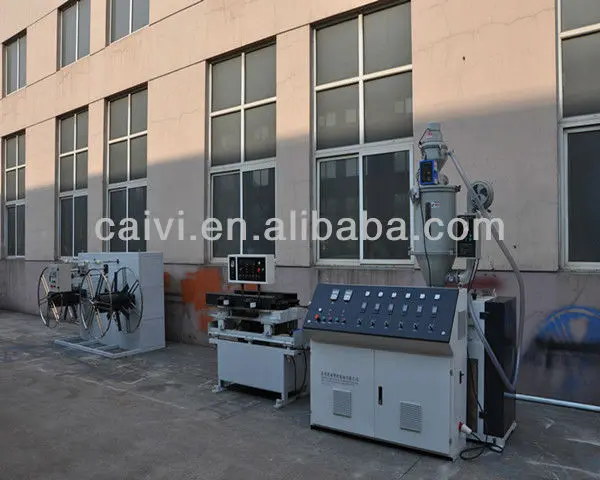

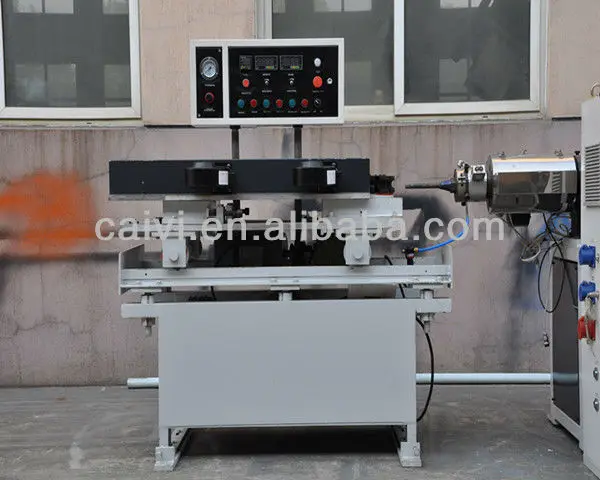

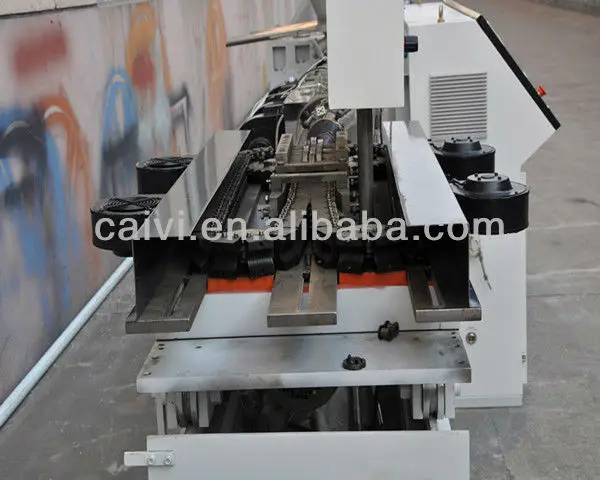

Pictures of PP corrugated pipe machine:























Exhibition show:

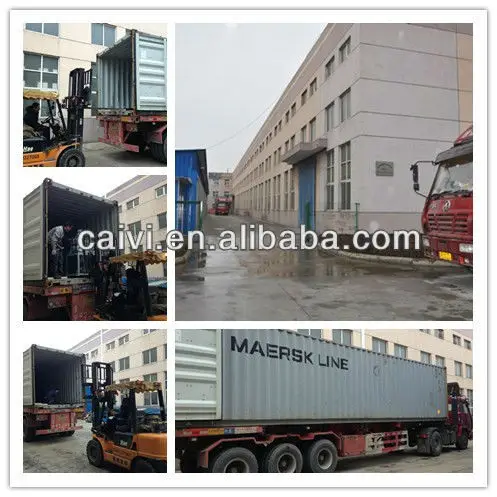

Shipping show:





If  you want more information about PVC corrugated pipe machine,

please contact us, thanks!

Our company is near Shanghai, about 130km. Welcome to our factory anytime!

Whatsapp:86-13222233923
