Intelligent Large Capacity Refrigerated clinical laboratory centrifuge blood bank use centrifuge DL8M 12L

Product Overview

Description

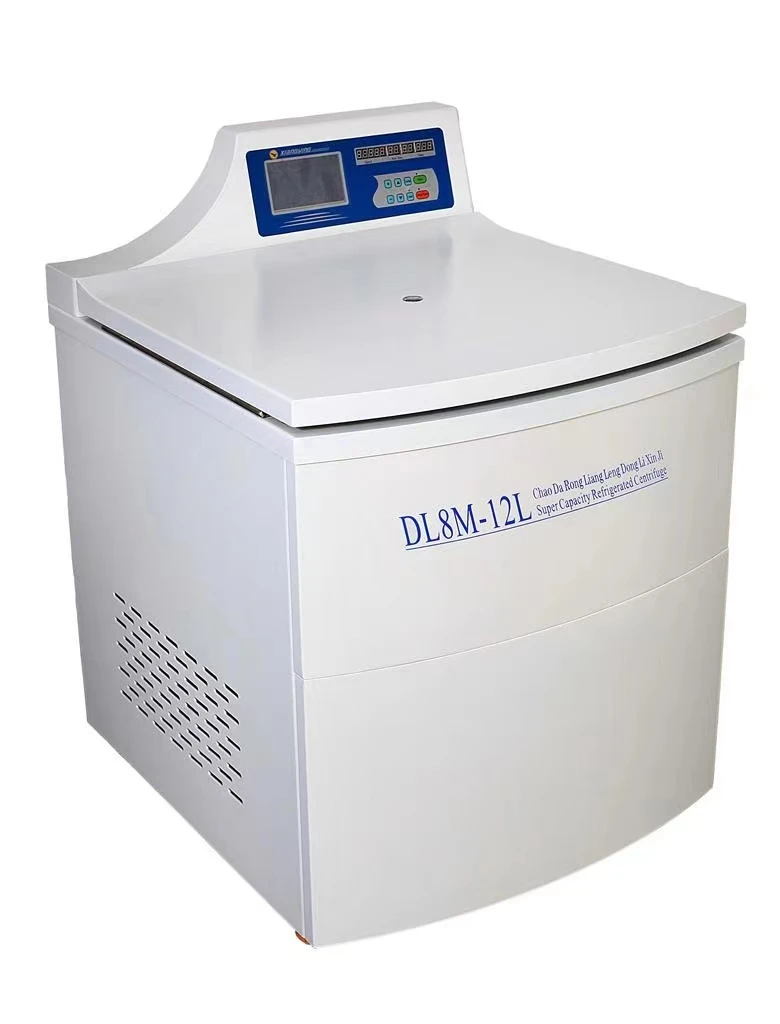

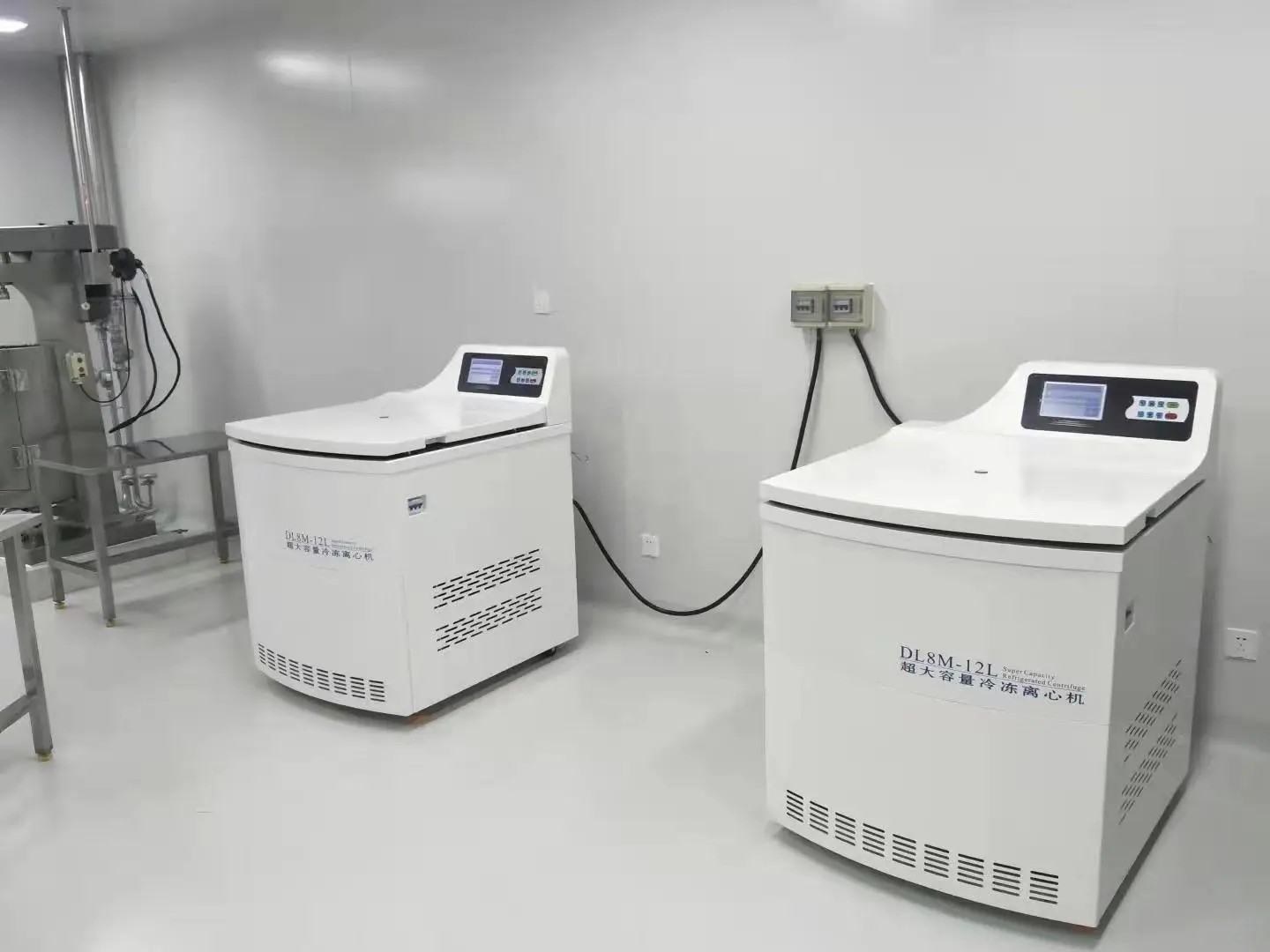

Intelligent Large Capacity Refrigerated centrifuge DL8M-12L

DL8M-12LCompact refrigerated floor standing centrifuge is specially designed for universal use in blood banks, clinical laboratories, serology investigations, molecular biology, serum separation, pharmaceutical applications, where repeatability, precision and reliability of speed, time, temperature, acceleration and deceleration are significant factors in obtaining perfect separation of distinct blood fractions.



Feature

1. Large color touch screen display, both shows the set parameters and operation parameters. An easy-going operator interface with a standard English operating software, user can operate freely.

2. Automatic open and close door lid, with backup power in case of emergency power off.

3. All stainless steel internal and external structure, corrosion resistance and durable.

4. Use the big Brand Compressor system and R404a Environmentally friendly refrigerant, with the accurate temperature control system.

5. With 35 operational programs can be designed, saved and used. Users can set 9 programs for daily operation use.

6. With the self-diagnositc system and protection for imbalance, over-speed and over-

temperature. Both automatic electronic lock and mechanical lock to ensure safety.

7. Acc/Dec 10 rates from 0~9 grade; Display speed of riseand fall curve, integral curve and temperature curve.

8. Equipped with USB port, program can be upgraded at any time.

9. 6-level vibration absorption system, not afraid of uninterrupted operation.



Technical parameters

Model	DL8M-12L	Max Speed	8000r/min
Max RCF	15200xg	Max Capacity	6×24000ml
Speed Accuracy	±10r/min	Timer Range	0-99h 59 min
Temperature Range	-20~+40℃	control&drive	microprocessor control
Acc/dec Rate	0-9(Grade)	Program Store	35
Motor Power	4KW	Refrigerator Power	2.2KW
Noise	≤60dB(A)	Power Supply	AC220V 50Hz 15A
Weight(Without Rotor)	500kg	Dimensions	960×880×100mm(L×W×H)
Refrigeration System	Big Brand High-performance Compressor CFC-free Refrigeration System
