ZXHN H3601 for ZTE AX1800 Dual Band 802.11ax mesh Wi Fi AP/Extender Router
ZXHN H3601 for ZTE AX1800 Dual-Band 802.11ax mesh Wi-Fi AP/Extender Router
ZXHN H3601 for ZTE AX1800 Dual-Band 802.11ax mesh Wi-Fi AP/Extender Router
ZXHN H3601 for ZTE AX1800 Dual-Band 802.11ax mesh Wi-Fi AP/Extender Router
ZXHN H3601 for ZTE AX1800 Dual-Band 802.11ax mesh Wi-Fi AP/Extender Router
ZXHN H3601 for ZTE AX1800 Dual-Band 802.11ax mesh Wi-Fi AP/Extender Router
ZXHN H3601 for ZTE AX1800 Dual-Band 802.11ax mesh Wi-Fi AP/Extender Router

ZXHN H3601 for ZTE AX1800 Dual Band 802.11ax mesh Wi Fi AP/Extender Router

Share on (1600569815669):


Price:$26.50 - $27.50

Quantity:


Product Overview

Description



Products Description


ZXHN H3601 is a gigabit dual-band Wi-Fi 6 mesh AP/extender with sleek styling that blends perfectly with the home.
ZXHN H3601 complies with the EasyMesh standard to provide whole home Wi-Fi coverage. With its ultra-high Wi-Fi speed and optimized QoS, this device brings you the ultimate Wi-Fi experience.


Specification


item
value
Max. LAN Data Rate
1750Mbps
With Modem Function
NO
Standards And Protocols
Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac, Wi-Fi 802.11a, Wi-Fi 802.11ax
Wi-Fi Supported Frequency
2.4G & 5G
Supports WDS
Yes
Supports WPS
Yes
Wi-Fi Transmission Standard
802.11b
Wired Transfer Rate
10/100/1000Mbps
2.4G Wi-Fi Transmission Rate
300 Mbps
Encryption Type
WPA2, WPA3, WPA
Private Mold
Yes
Products Status
New
Type
Wireless
Application
Home
Function
Voip, FireWall, QoS, VPN
LAN Ports
3
WAN Ports
1
Place of Origin
China
Guangdong
5G Wi-Fi Transmission Rate
1733Mbps
Product name
Wifi 6 Router
Network
5G/4G/3G/2G
Keywords
High Speed 5G Wifi Router
Antenna
4*5dbi External Antennas
Wireless Speed
2.4GHz 600Mbps + 5GHz 1200Mbps
Interface
4 LAN /1 WAN
Support
WPA/WPA2
WIFI
802.11 A/b/g/n/ac/ax


Details Images

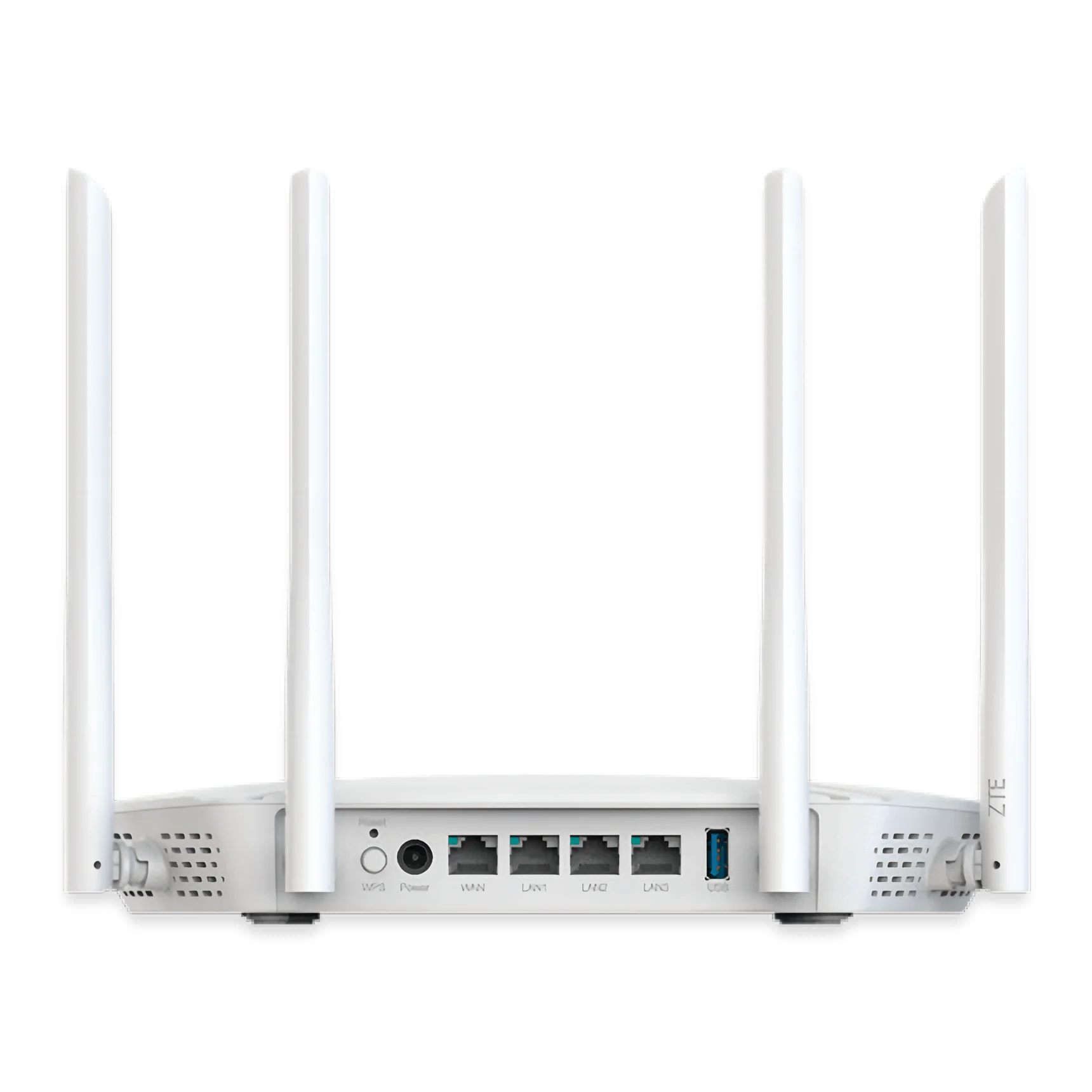

Interfaces
WAN:
1xGE RJ-45 port
LAN:
•3xGE RJ-45 ports
•2x2 802.11b/g/n/ax Wi-Fi @ 2.4GHz
2x2 802.11a/n/ac/ax Wi-Fi @ 5GHz
•1xUSB 2.0 port
Buttons
• WPS
• Reset
LED
• Status (red and green)
Antennas
• Internal antennas
Wi-Fi
•Manual/auto radio channel selection
• Transmit power adjustable
• Beamforming for the 5GHz band
• Open system/shared key authentication
• WPA/WPA2/WPA3 security
• Four broadcast/hidden SSIDs on each band
Multiple APs
•EasyMesh compliance
• Star and daisy-chain networking
• Auto configuration, Plug & Play
• Band steering
• Smart roaming
• Self-healing backhaul
Networking
• IPv4/IPv6 dual-stack
• Port mapping/DMZ
• UPnP IGD with NAT traversal capability
• Static routing/dynamic routing
• Dynamic DNS relay
• DHCP client/server
• IGMP and MLD snooping/proxy
QoS
•Flexible packet classification
• 802.1p and DSCP remarking
• Up to eight queues
• SP/DWRR/SP+DWRR
• Priority based queue scheduling
• Wi-Fi Multimedia (WMM)
Security
• Stateful Packet Inspection (SPI) firewall
• Denial of Service (DoS) protection
• Multi-VPN pass-through (L2TP/PPTP/IPSec)
• MAC/IP/URL filtering
• Service based access control
Management
• TR-069 remote management
• Web GUI based management
• Local built-in diagnostic function
• Logs and statistics
• Remote upgrade via HTTPS
Power Supply
• 12V DC, 1.5A
Physical
• Net weight: 440g
• Dimensions : 246 x 163 x 39mm
Environmental
• Operating temperature: 0oC - 40°C (23°F - 113°F)
• Humidity: 5% - 95% (non-condensing)
Certification
• CE certification
• Wi-Fi 6 certification


Company Profile


Shenzhen Zexing Zhiyun Technology Co., Ltd. was founded in 2018. Following the rapid expansion of the world's Internet industry, the company is committed to building a reliable and good network for the world, and continues to grow and grow into a leading network equipment provider in China. Technological innovation is the soul of Zexing Zhiyun. The company has a R&D team of nearly 100 people, and has established dual R&D bases in Shenzhen and Chengdu, with a production center of more than 500 people.
The company's products cover: home wireless, commercial wireless, switches, access terminals, PLC power grids, etc., with more than 20 product series. Their common features are: strong performance, stable signal, easy deployment, easy installation, high quality and low price. Zexing is based in China, serves the world, and extends its tentacles to every corner of the world. The company has set up branches in Beijing and Chengdu, and has set up multiple offices in various places. It has established offices in the United States, Brazil, Australia, Russia, India, Indonesia, South Africa and other countries, and established cooperative relations with many agents around the world. Tenda products are exported to more than 10 countries and regions around the world. As of the fourth quarter of 2021, the total sales volume of Tenda products has exceeded 50 million units.




Exhibition




Certifications




Manufacturing Technique






FAQ


1. who are we?
We are based in Guangdong, China, start from 2018,sell to Domestic Market(30.00%),Southeast Asia(20.00%),South America(10.00%),Eastern Europe(10.00%),Africa(10.00%),Mid East(10.00%),South Asia(10.00%). There are total about 51-100 people in our office.Our product shipments are at 50K per month。

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
XPON,DSL,CPE,ROUTER,MODEM

4. why should you buy from us not from other suppliers?
We have many years of experience in optical modem, router design and R&D. The R&D team has about 50 people, all of whom are senior engineers for many years.We cooperate with many big customers at home and abroad, such as ZTE, Huawei, China Telecom, sagem, D-LINKD, etc.

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
