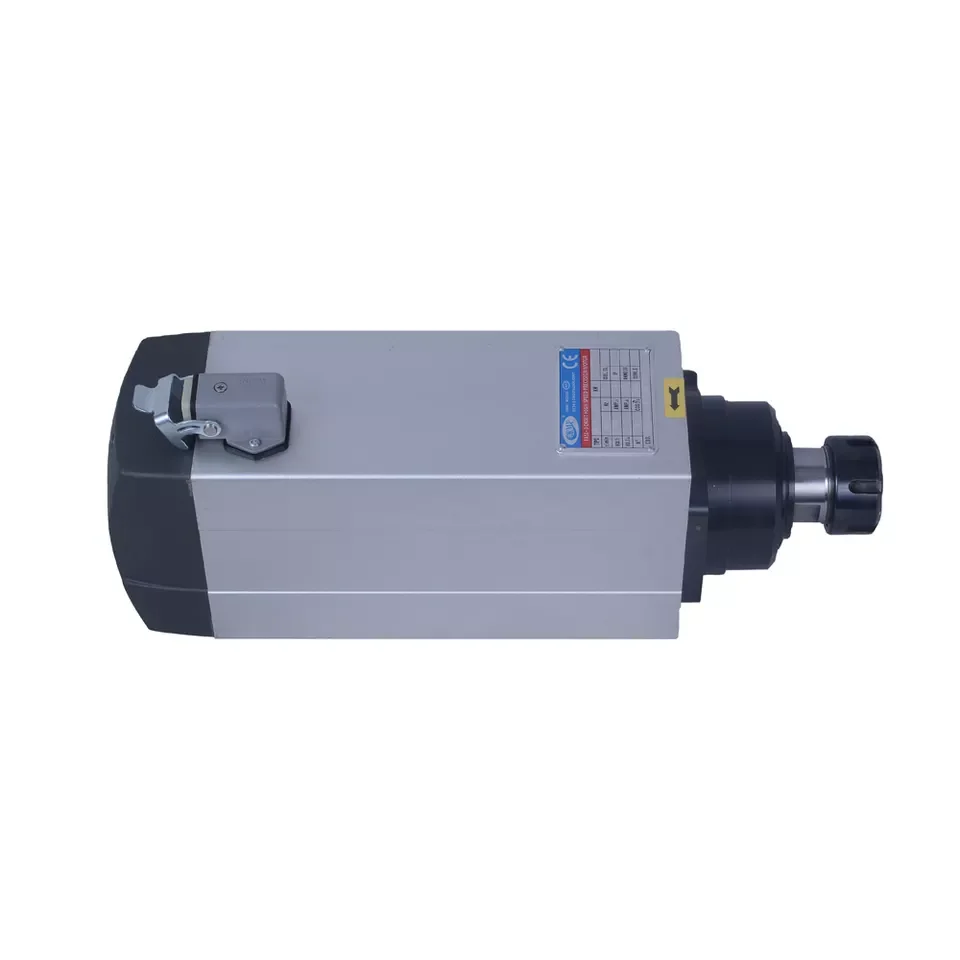

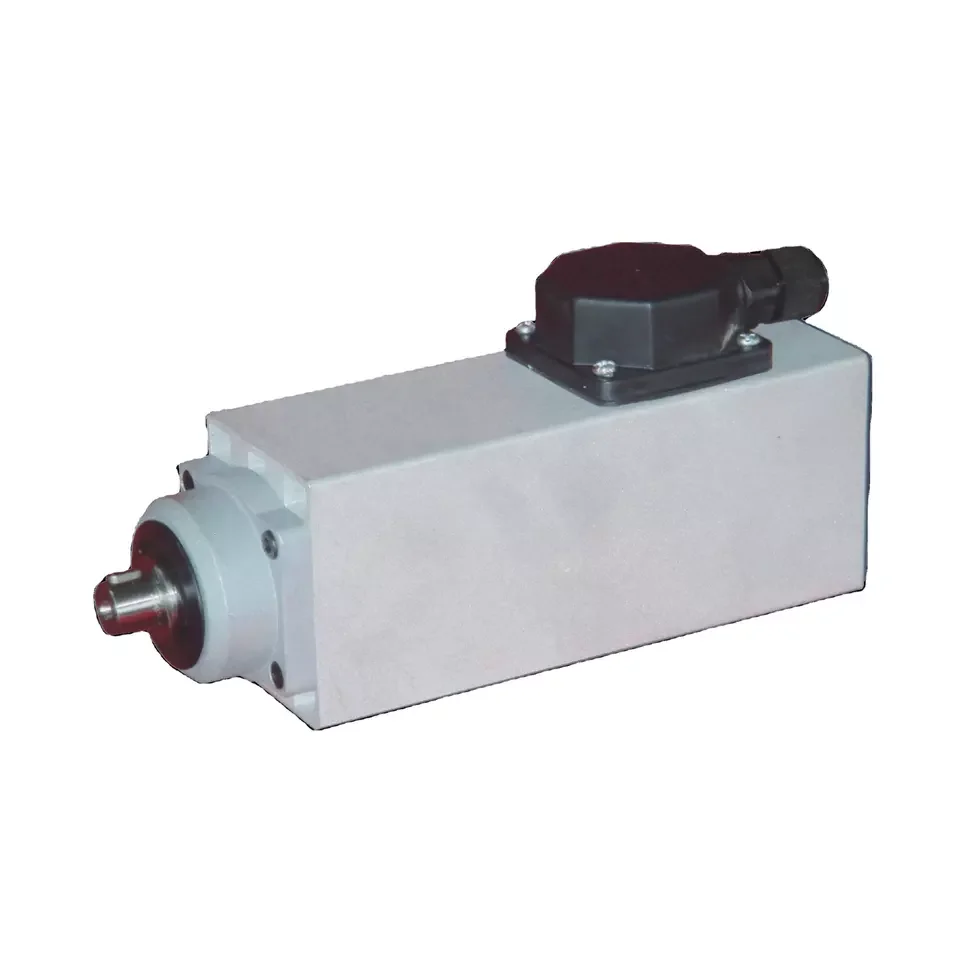

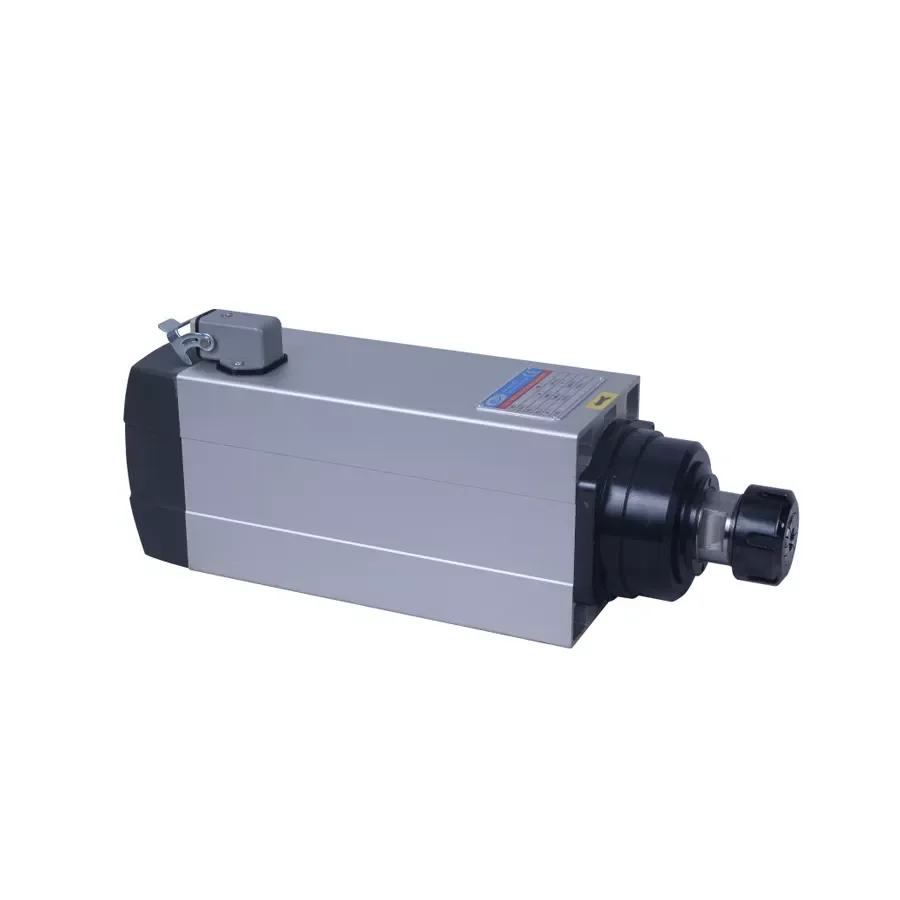

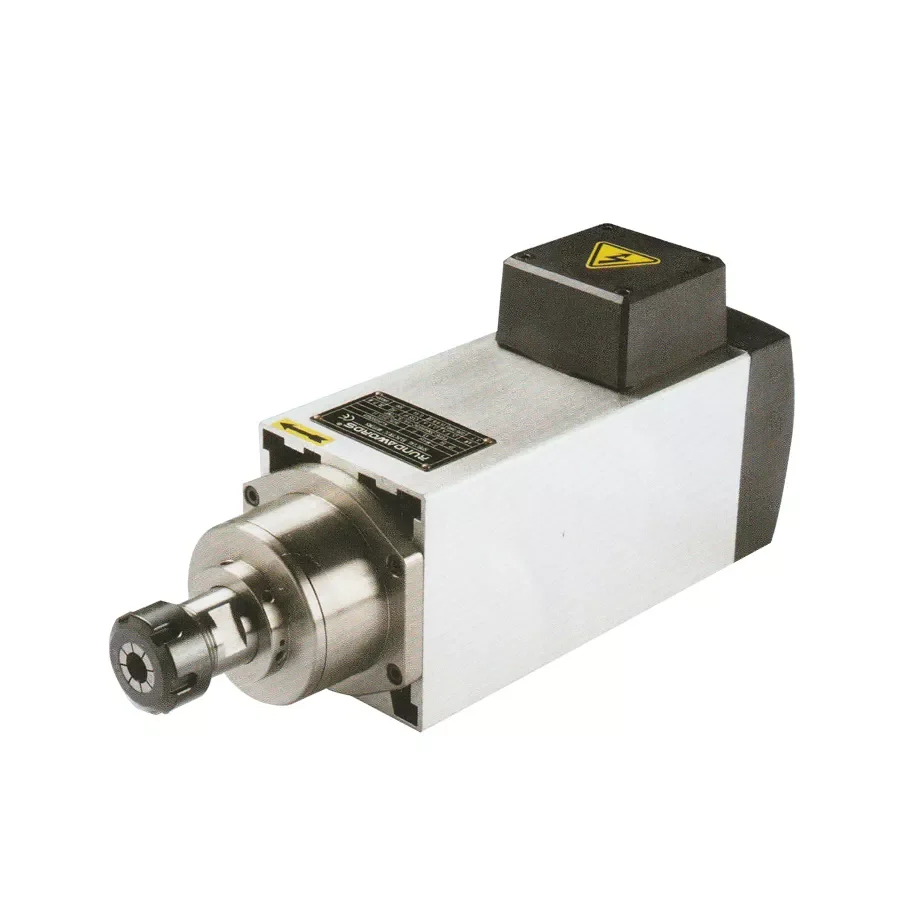

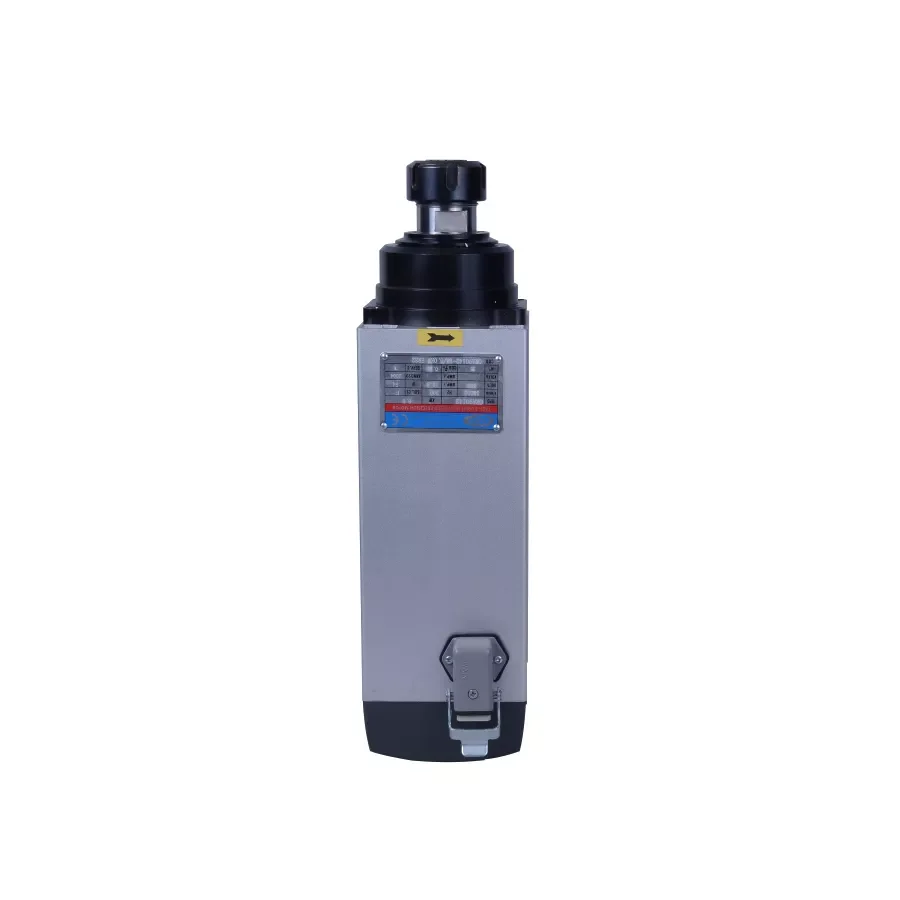

SM3500 2.2kw high torque cnc router spindle motor ac dc motor
- Category: >>>
- Supplier: Seimec Motor Co. Ltd.
Share on (1600569821257):
Product Overview
Description
Product Specification
Standard configuration
Distribution: two special spanners + dynamic balance nut + high precision chuck

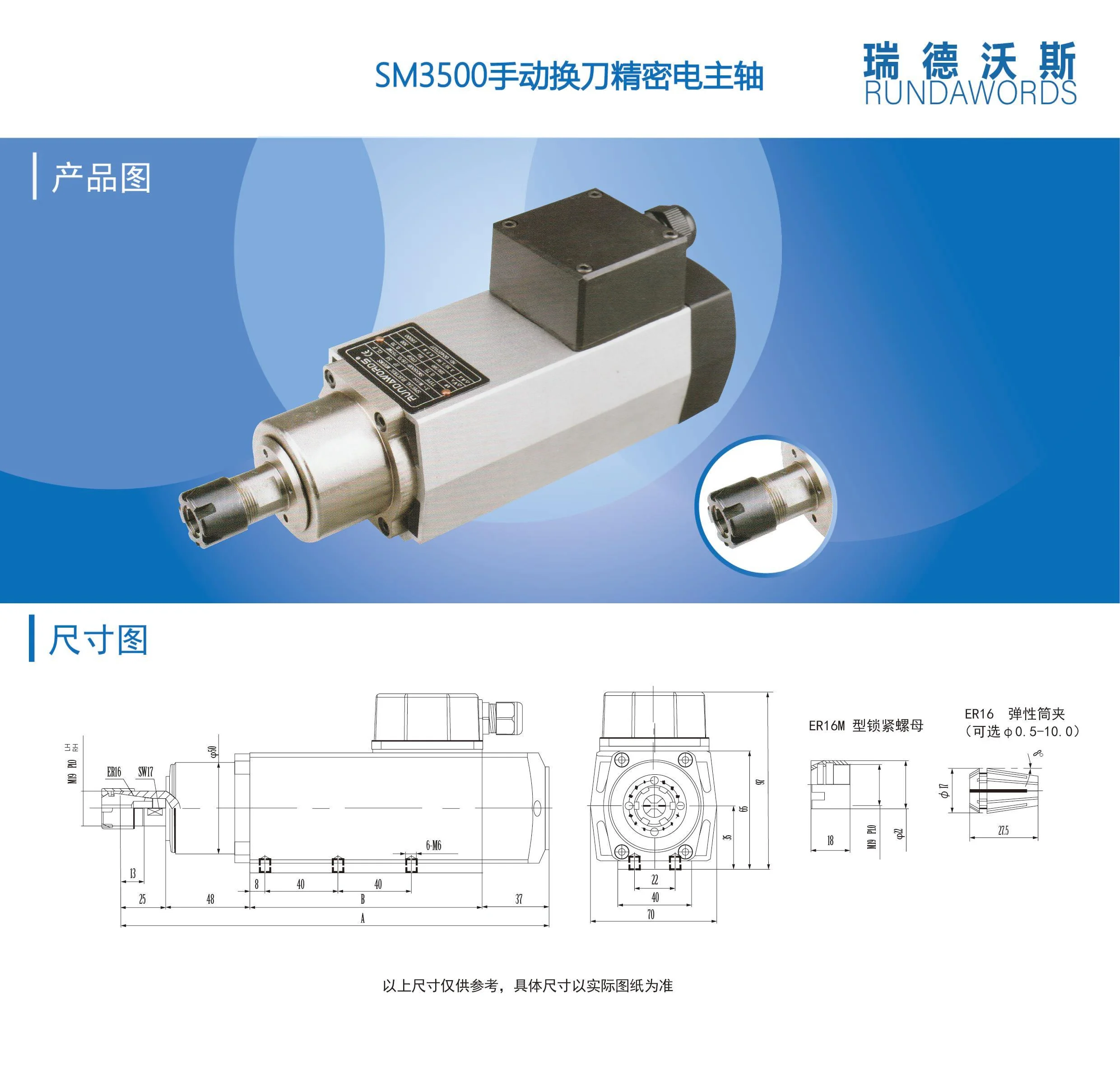

Drawing parameters
TYPE | KW | V | HZ | R.P.M | A | COSψ | A 【mm】 | B 【mm】 |
SM3500A-12/0.25TMP | 0.25 | 220/380 | 150 | 9000 | 1.56/0.90 | 0.65 | 235 | 127 |
SM3500A-18/0.37TMP | 0.37 | 220/380 | 200 | 12000 | 2.01/1.06 | 0.68 | 235 | 127 |
SM3500A-24/0.55TMP | 0.55 | 220/380 | 400 | 24000 | 2.94/1.70 | 0.69 | 235 | 127 |
SM3500B-09/0.55TMP | 0.55 | 220/380 | 150 | 9000 | 2.94/1.70 | 0.69 | 253 | 145 |
SM3500B-12/0.75TMP | 0.75 | 220/380 | 200 | 12000 | 3.35/1.90 | 0.70 | 253 | 145 |
SM3500B-18/0.75TMP | 0.75 | 220/380 | 300 | 18000 | 3.35/1.90 | 0.70 | 253 | 145 |
SM3500B-24/0.75TMP | 0.75 | 220/380 | 400 | 24000 | 3.35/1.90 | 0.70 | 253 | 145 |
