High Performance Forged Piston for VW EA888 Gen 3
- Category: >>>
- Supplier: Shanghai Hentch Imp & Exp Co. Ltd.
Share on (1600569825431):
Product Overview
Description

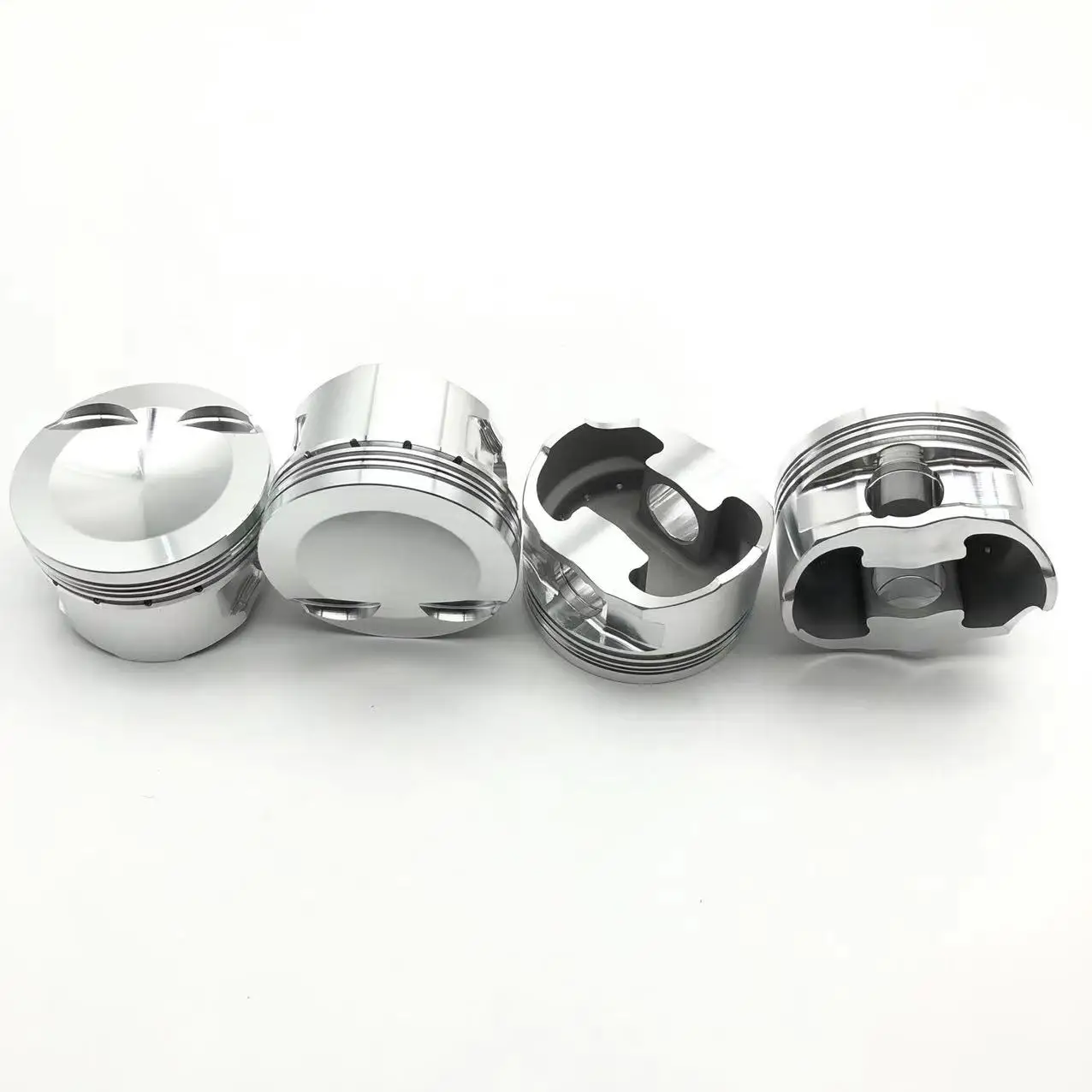

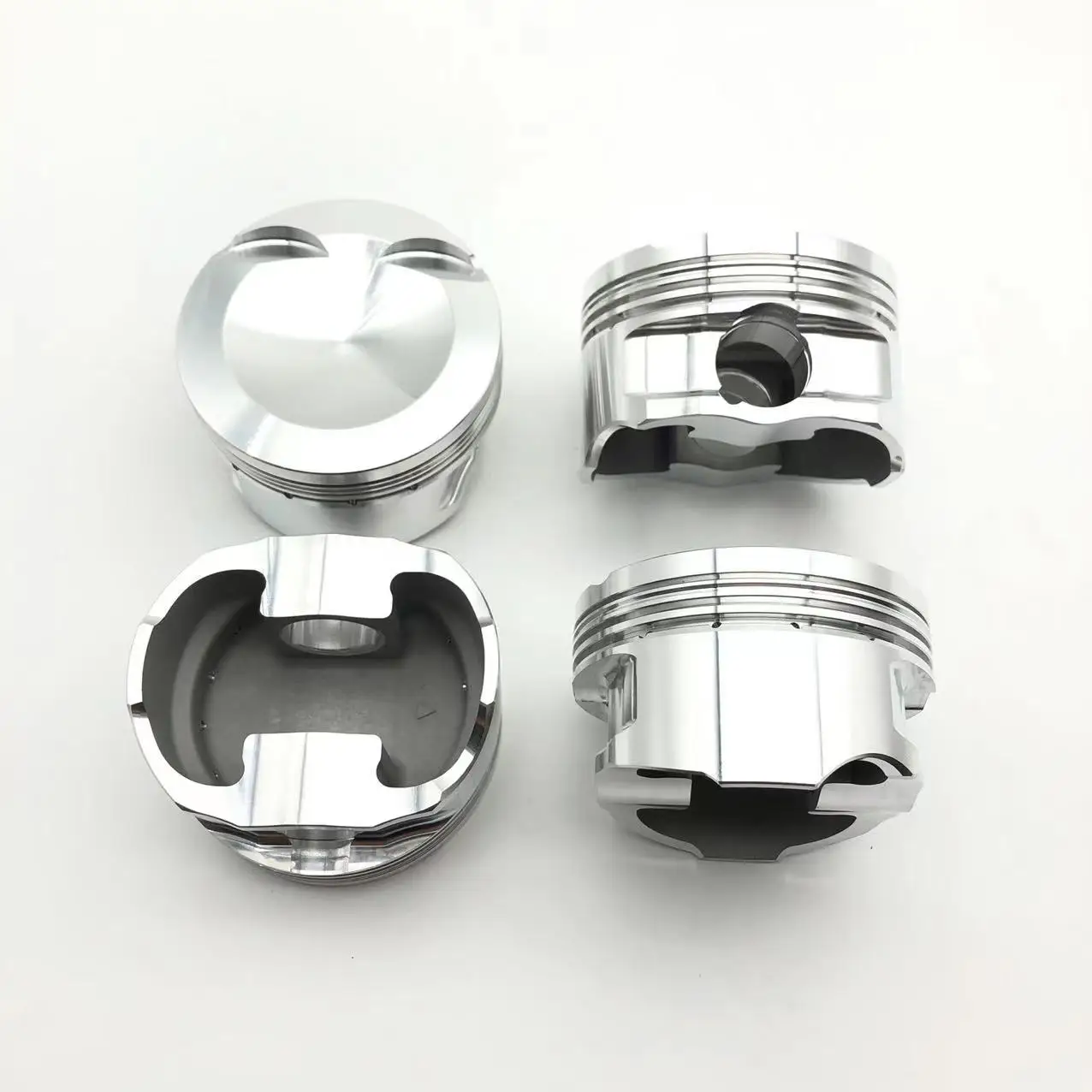

4 pcs Forged Pistons with pins and rings For VW AUDI EA888 GEN 3

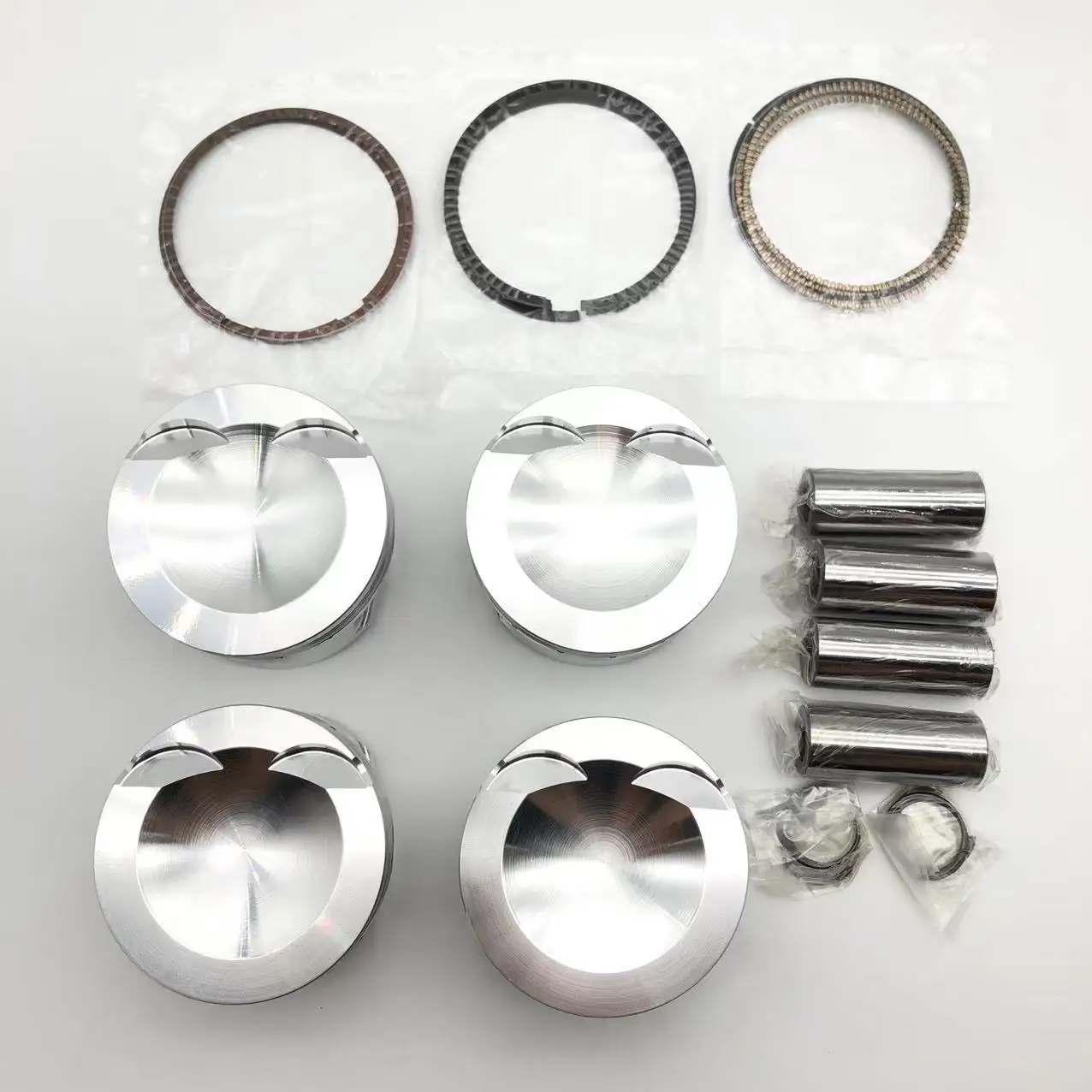

Contains:
- Piston x 4 pieces
- Piston pin x 4 pieces
- Pin lock x 8 pices
- Piston ring x 4 cylinders
Piston Material:
4032 alloy, better than 2618 alloy, lower noise, higher tensile strength, lower thermal expansion coefficient.
High precision, 0.001 mm tolerance for pin hole, 0.005 mm tolerance for diameter, clearance between cylinder to skirt is 0.04-0.06 mm.
Rings Made in Taiwan: RIK brand
FITMENT:
Specifications | |
Part Number: | HQ-VW-011 |
Make: | VW/AUDI |
Engine(s): | EA888 GEN3 |
Model(s): | VOLKSWAGEN: 2.0T BETTLE: 2012-2016 CC: 2-12-2017 EOS: 2012-2016 GOLF: 2012-2013 JETTA: 2011-2013 TIGUAN: 2012-2018 AUDI: 2.0T A3: 2012-2013 A4: 2012-2015 A5: 2012-2017 A6: 2012-2014 Q3: 2015 Q5: 2-12-2017
|
Year(s): | |
Piston Material: | 4032 Alloy |
Rod Material: | 4340 Alloy |
Bore Size: | 82.5mm/3.248' |
Compression Ratio: | 9.5:1/9.3:1 |
Compression Height: | 29.6mm/1.165'' |
Pin Size: | 23mm |
Overall Height:50 | mm |
Ring Size: | 1.2+1.5+2.0mm |
Rod Length: | |
Gram Weight: | 302g |
Notes: |
