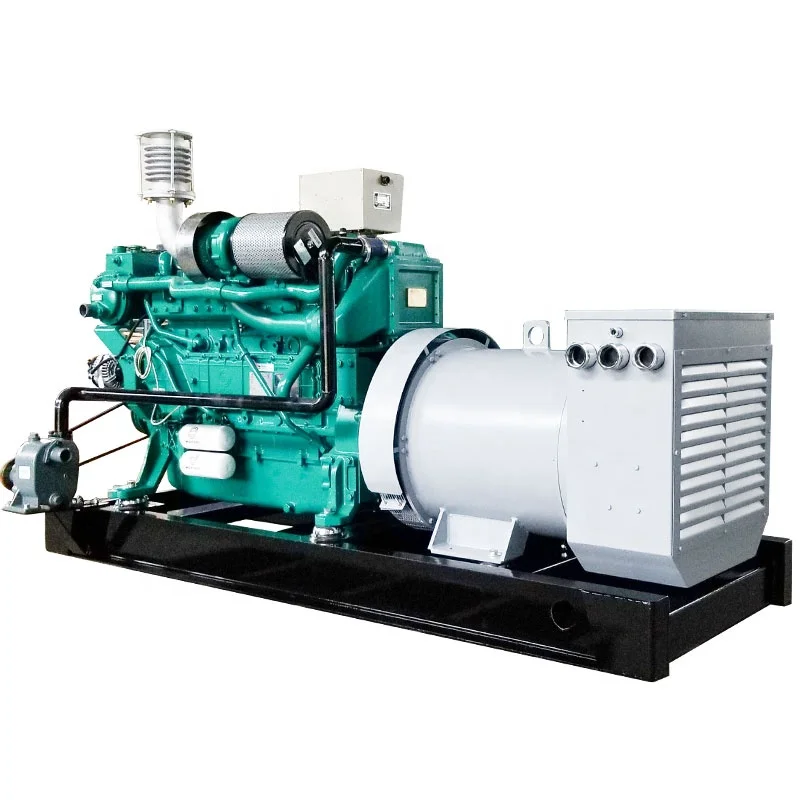

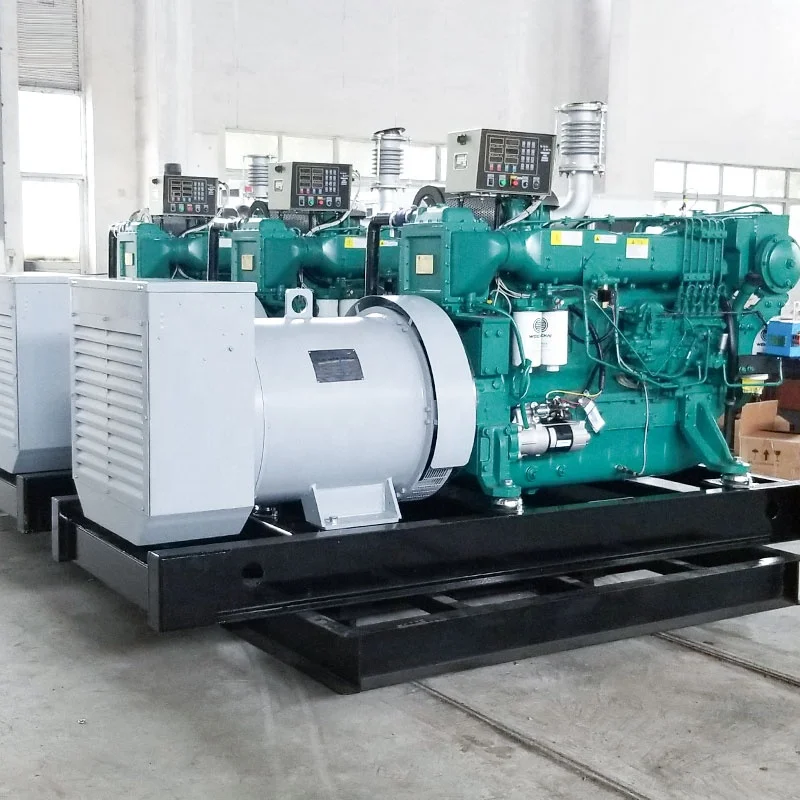

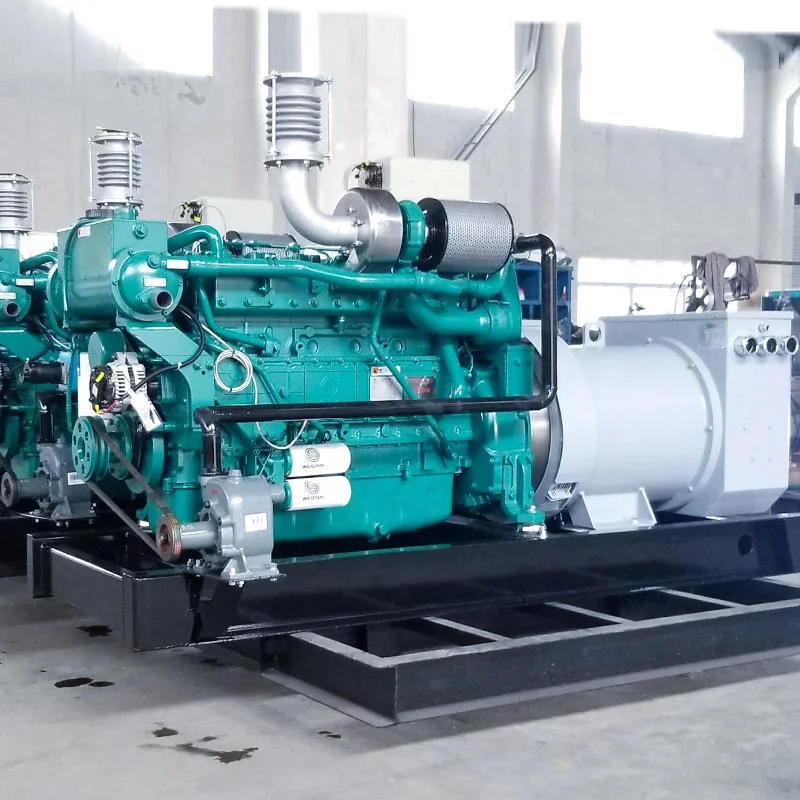

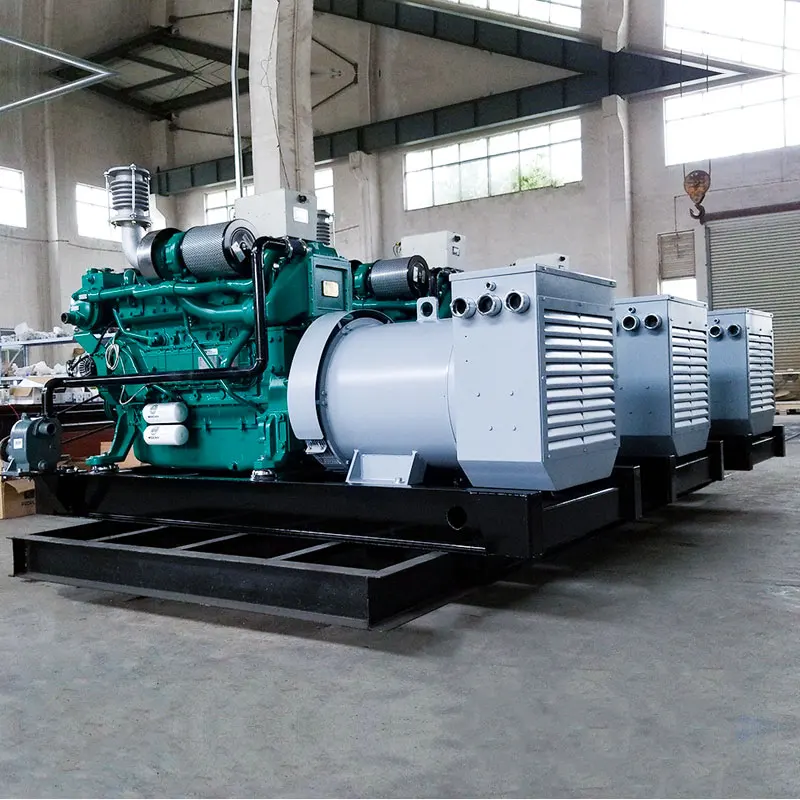

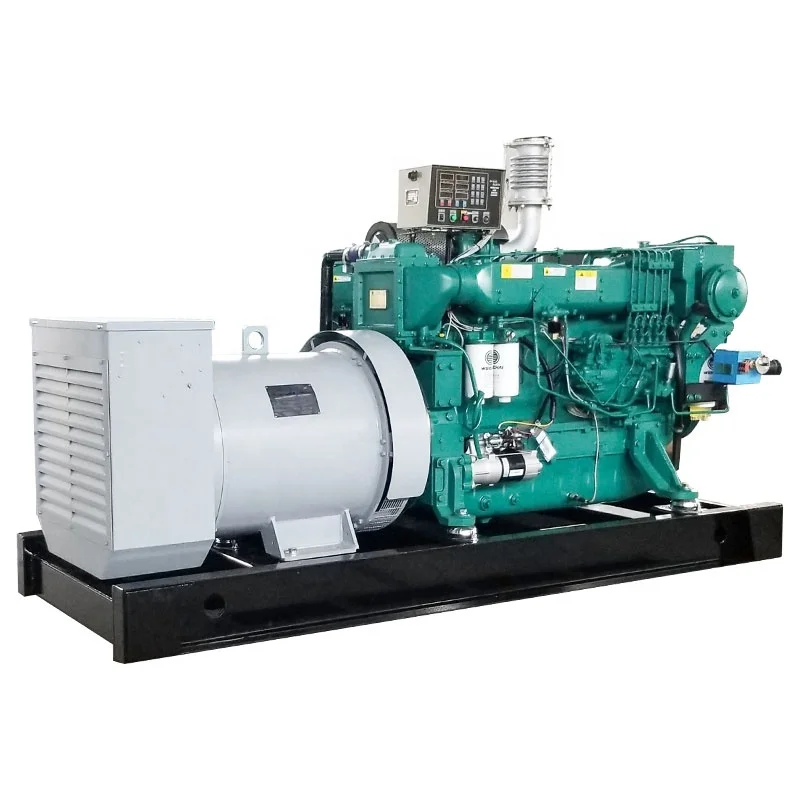

New CCS certificate 150kw marine diesel generator with Weichai engine WP10CD200E200

Product Overview

Description

50HZ prime power 150KW marine diesel generator set with WeiChai engine WP10CD200E200.

Technical Specification

Model	Voltage	HZ	P.F (COS)	Standby power	Prime power	Net Weight
WP-CCFJ150JW	400V/230V	50	0.8	165 KW	150 KW	1550 kg

Prime power

This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.

Standby power

This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.

General features:

n Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

n 24V DC start motor;

n Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;

n Equipped with industrial silencer and flexible exhaust hose;

n Designed to Comply with ISO8528/GB2820;

n Powered by Weichai engine, Stamford alternator and DeepSea/ComAp/SmartGen control panel

Parts Description

Control panel: DeepSea/ComAp/SmartGen Relay brand: Siemens APT Connect: Engine+Alternator-Terminal-Control panel Key+Emergency stop+Light: Famous brand, perfect quality

Engine Spec

Engine model	WP10CD200E200
Engine manufacturer	Weichai
Number of Cylinders	6 Cylinders in line
Cycle	4 stroke
Aspiration	Turbocharged
Bore×Stroke	126mm x 135mm
Displacement	10.2 L
Coolant Capacity for engine	6 L
Prime Power	182 KW
Standby Power	200 KW
Steady speed droop	≤1%
Voltage	400V
Lube Capacity	30 L
Fuel Consumption	210 g/kw.h
Starter Motor	DC24V,
Alternator	DC24V

Alternator Spec

Alternator model	UCM274H
Prime power	150 KW
Frequency/speed	50HZ/1500RPM
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23
Phase	Three Phase

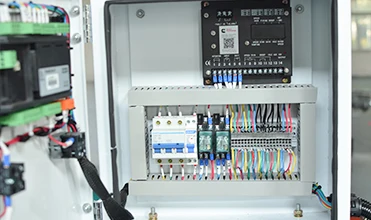

Control Panel

Model	SmartGen/ComAp/Deepsea
The control module gives digital readouts of:	Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run.
The control module has indicators for failure information:	Over speed / under speed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure
Automatic shutdown occurs under:	Low engine oil pressure; High engine water temperature; Over speed/ under speed; Failure to start after three attempts

Standard Accessories

Standard Accessories	Open type	Silent type
Sound-proof & Weather-proof Canopy	N/A	√
Daily base fuel tank. 8 hours capacity	N/A	√
Single-bearing generator again drops	√	√
Intelligent LED display control panel	√	√
Speed governor	√	√
Cooling water tank	√	√
High-efficient silencer.	√	√
Exhaust elbow	√	√
Storage battery	√	√
Steel base-frame against vibration	√	√
Soft pipe for fuel and handle for lube going-out	√	√
Operation& Maintenance manual.	√	√



About us

Jiangsu Wellpower generator Co.,Ltd has passed ISO9001-2008 and CE.

Wellpower generator company mainly produces and sells Diesel Generators, inland diesel generators from 3-3000KVA, marine power emergent diesel generators from 12-500KW, and kinds of imported diesel generators, movable power station, sound-proof, multi-pieces connection, remote monitoring, generators with ATS, and gas generators. We persostently insist in high  standard of product quality and lay on strict requirements on it, according to the policy of real price for survival and good quality for development.

Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to cantact us.
