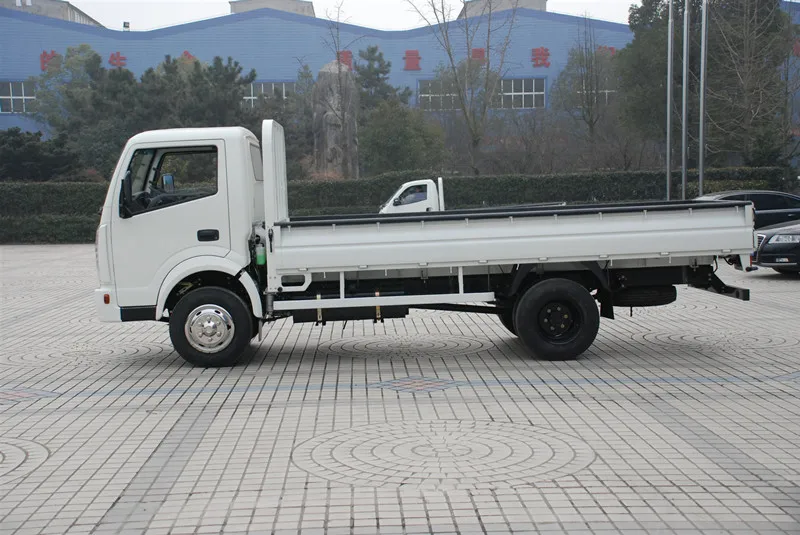

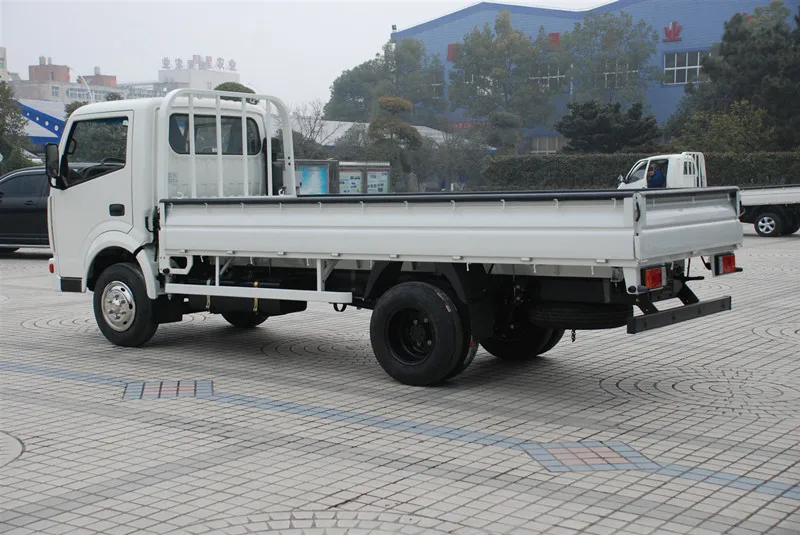

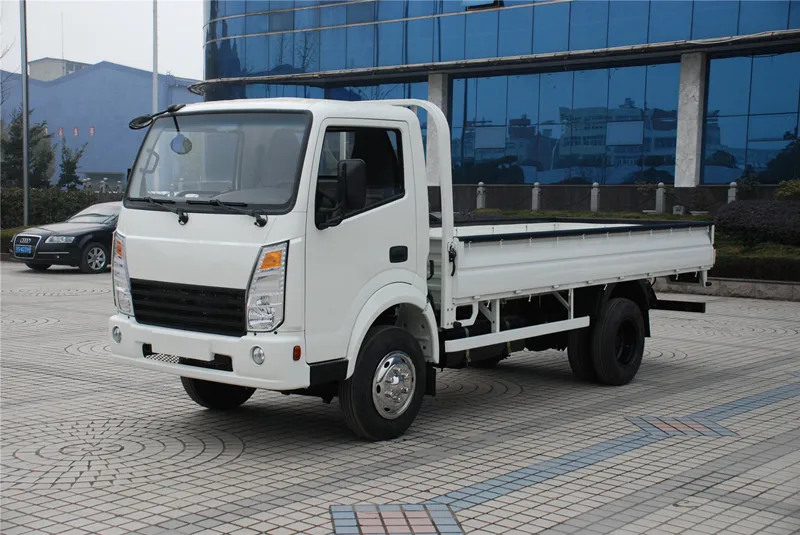

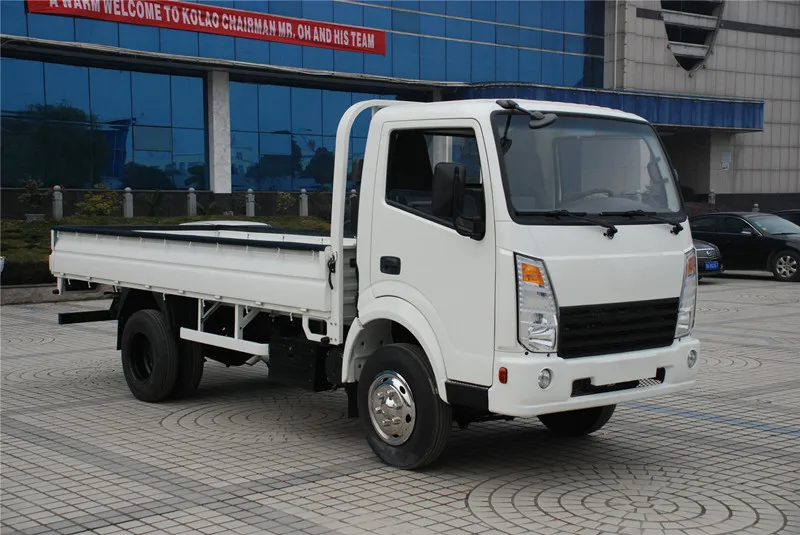

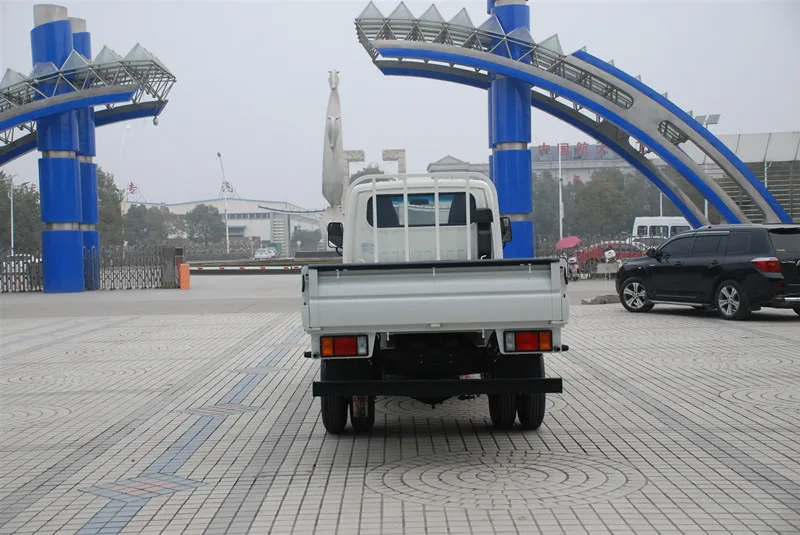

China Factory Directly 5000 kg Light Commercial Vehicle Delivery Trucks for City Transportation / Bare Chassis is available
- Category: >>>
- Supplier: Hubei Qixing Truck Cabin Manufacturing Limited Company
Share on (1600570162999):
Product Overview
Description
Product Overview
5 Ton Light Truck QX1037
FEATURES AT A GLANCE
ATTACTIVE DESIGN
SAFETY FRAME
SIMPLE CONTROL
SPACIOUS CABIN
PRODUCT SPECIFICATIONS
Specification Model No. | QX1037(Single cab) LHD | ||
Dimension & Weight | Overall dimension (L*W*H) (mm) | 6100*1800*2220 | |
Wheelbase (mm) | 3,200 | ||
F/R Tread (mm) | 1520/1395 | ||
Cargo dimension (L*W*H) (mm) | 4310*1710*400 | ||
Ground Clearance (mm) | 170 | ||
G.V.W. (kg) | 5,100 | ||
Curb weight(kg) | 2,520 | ||
Rated Payload(kg) | 2,580 | ||
Minimum turning diameter (mm) | ≤14 | ||
Power train | Emission standard | Euro II | |
Engine | Isuzu | ||
Transmission | 5 Speed Manual | ||
Fuel System | Injection Pump | ||
Fuel tank capacity | 85 | ||
Maximum Speed | 110 | ||
Chassis | Rear Axle Gear Ratio | 6.167 | |
Brake Type | Front Drum | ||
Rear Drum | |||
Steering Type | Hydraulic Power recirculating ball | ||
Front Tyre | 6.50R16LT-14PR | ||
Rear tyre | 6.50R16LT-14PR | ||
Spare tyre | 1 | ||
