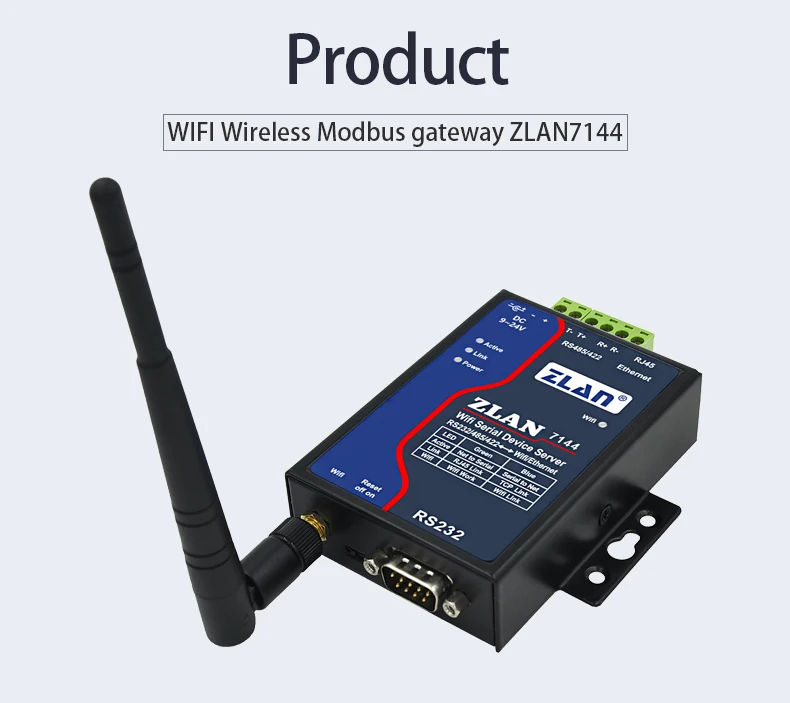

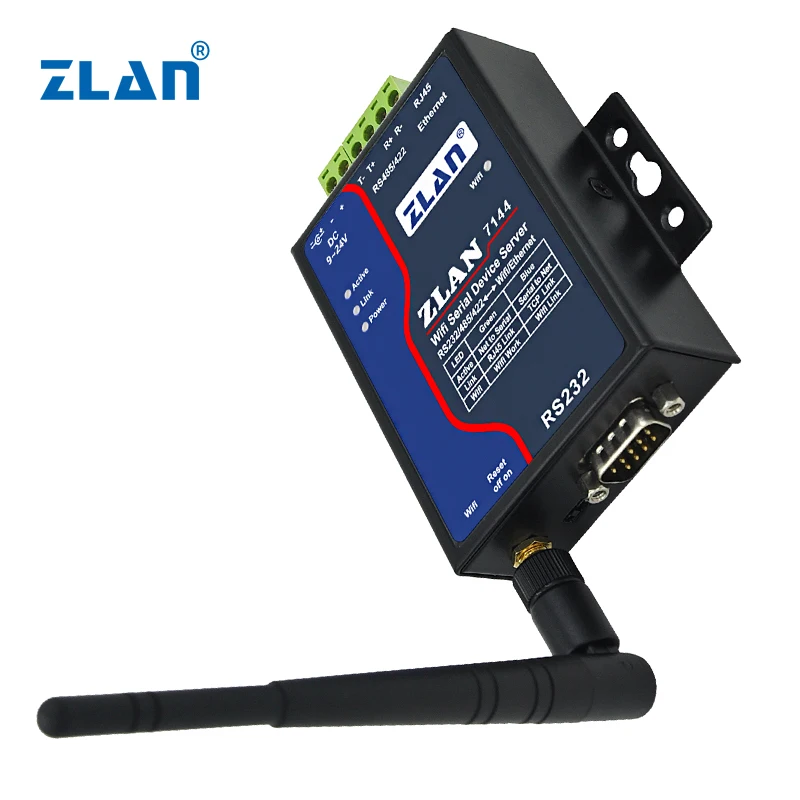

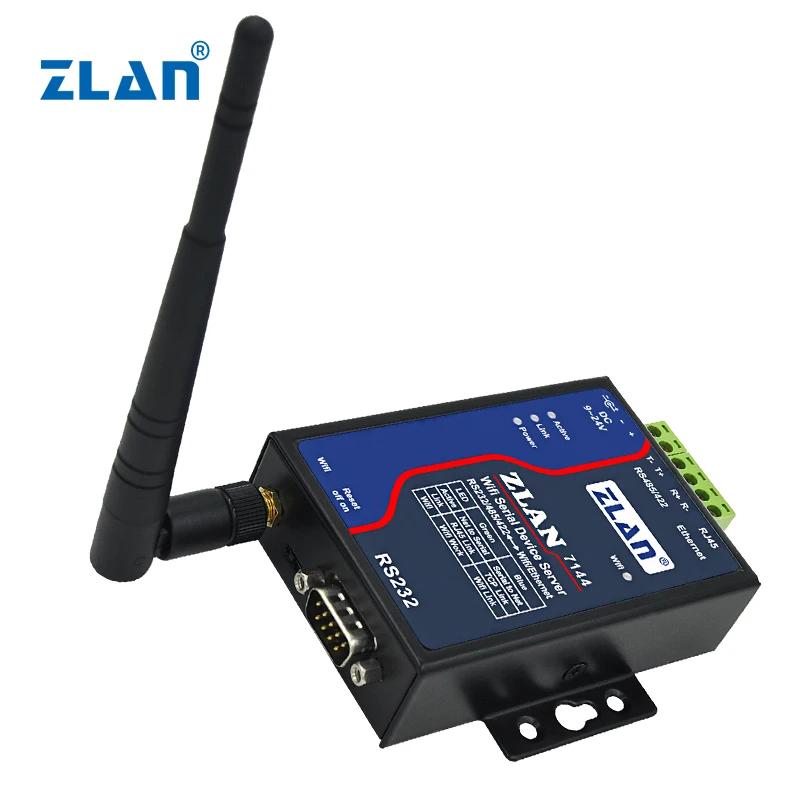

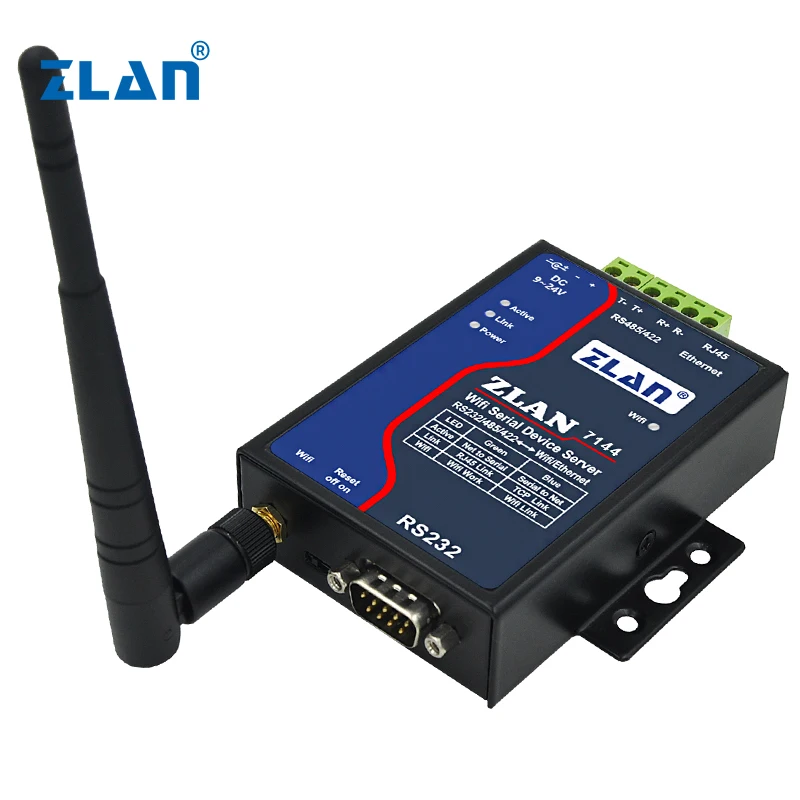

ZLAN7144 high speed serial port RS232 RS485 RS422 to Wifi converter
- Category: >>>
- Supplier: Shanghai ZLAN Information Technology Co. Ltd.
Share on (1600570208950):
Product Overview
Description

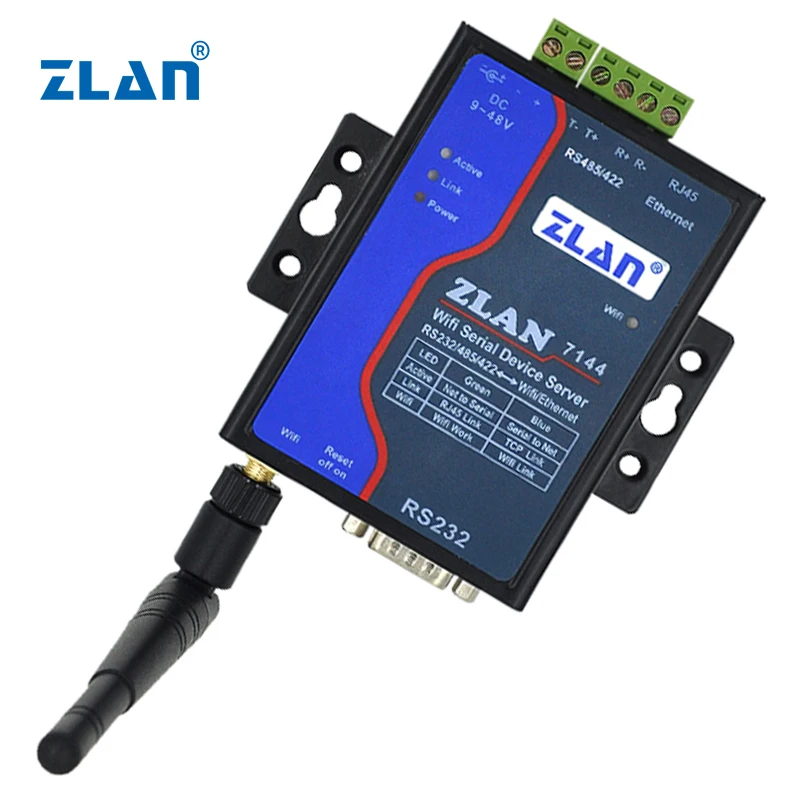

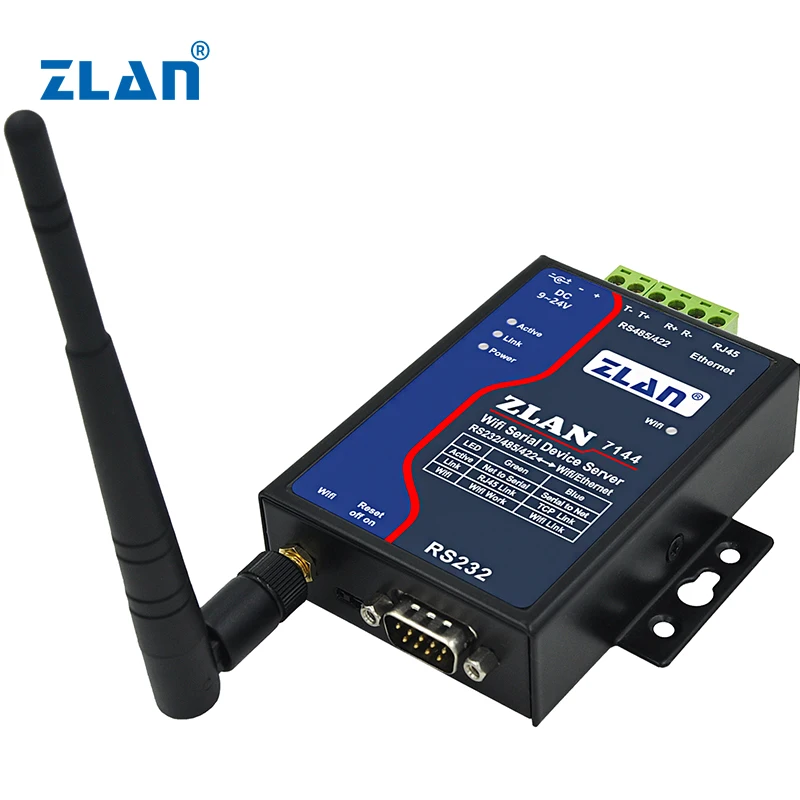

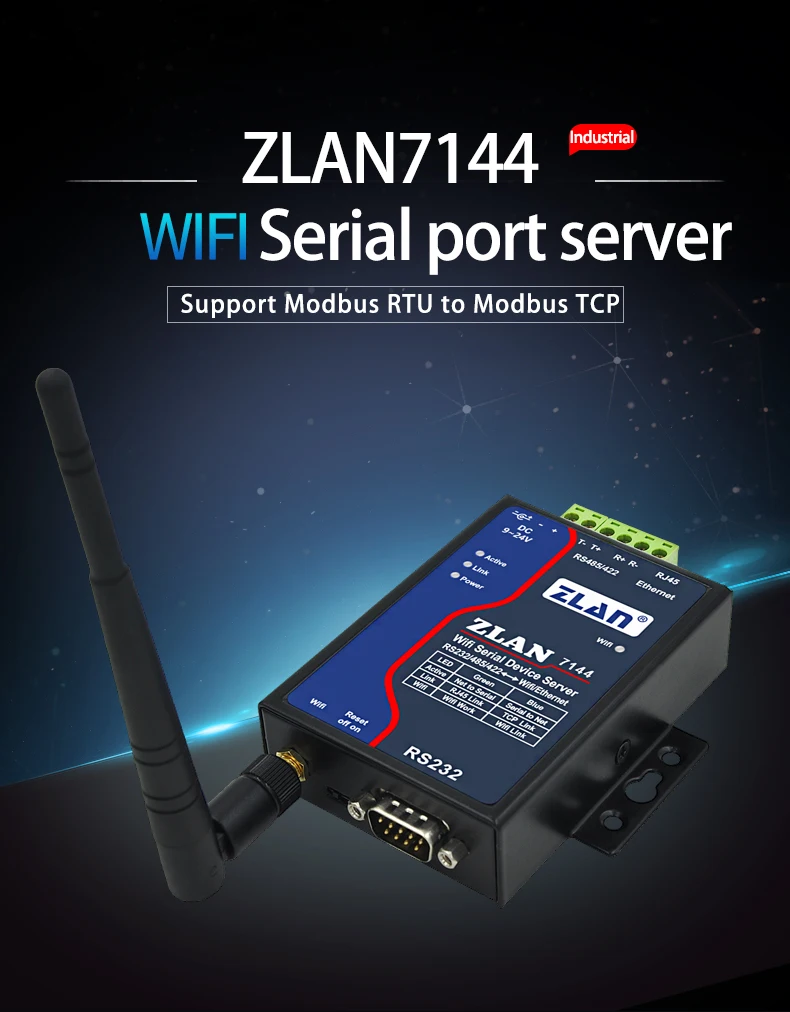

ZLAN7144 high speed serial port RS232 RS485 RS422 to Wifi converter
Product Description

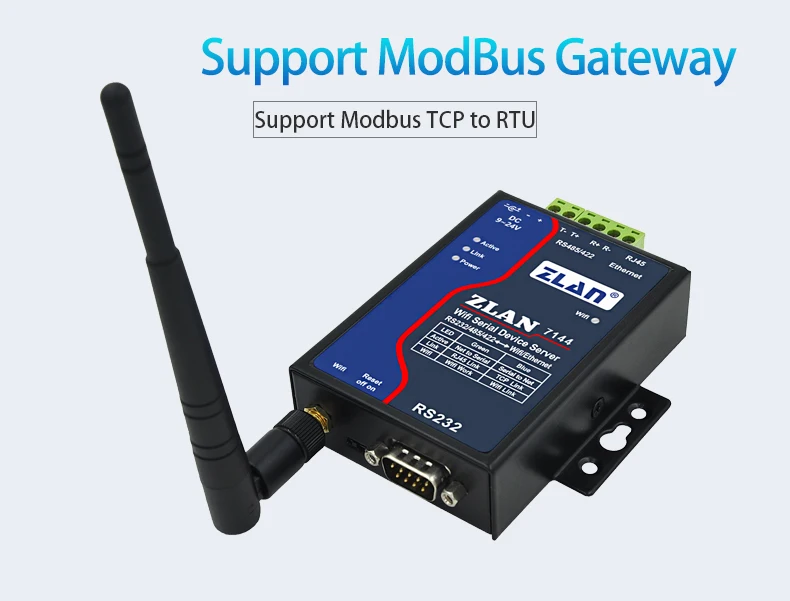

ZLAN 7144 is Modbus TCP to Modbus RTU version.
The high quality power supply design in 9~48V wide voltage provides better industrial environment adaptability; Can be equipped with installation guide accessories.

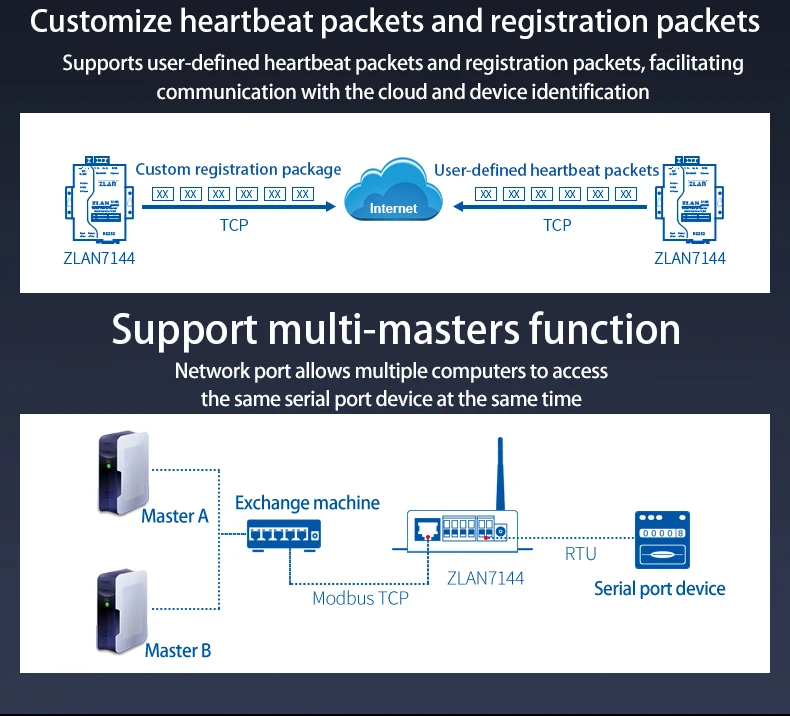

The ZLAN7144 not only have the function of RS232/RS485/RS422 to WIFI TCP/IP, and integrated the function of Modbus TCP gateway, can easily achieve the Modbus RTU protocol converting to Modbus TCP WIFI protocol.

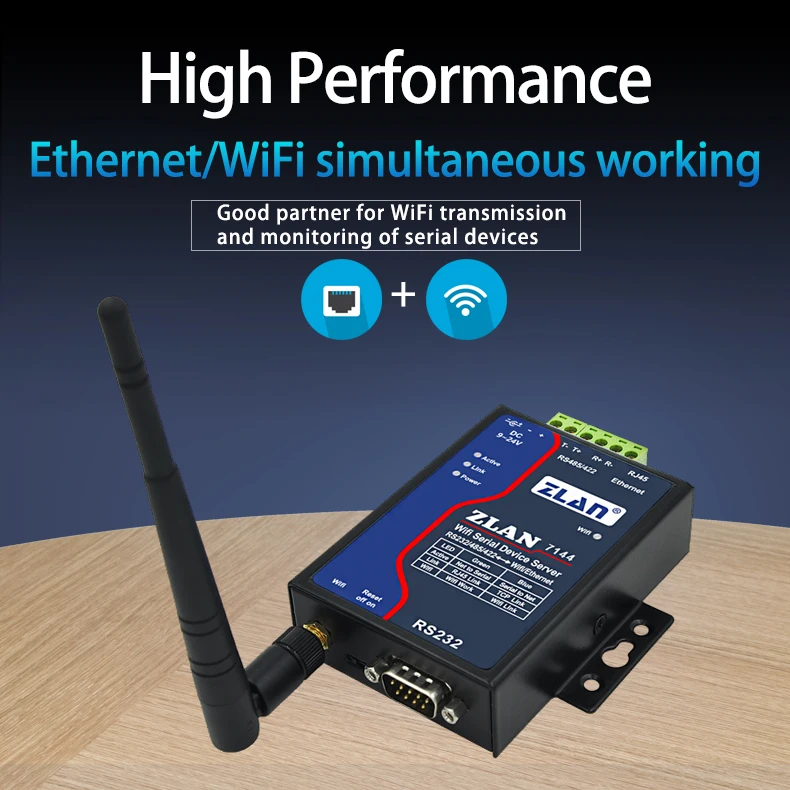

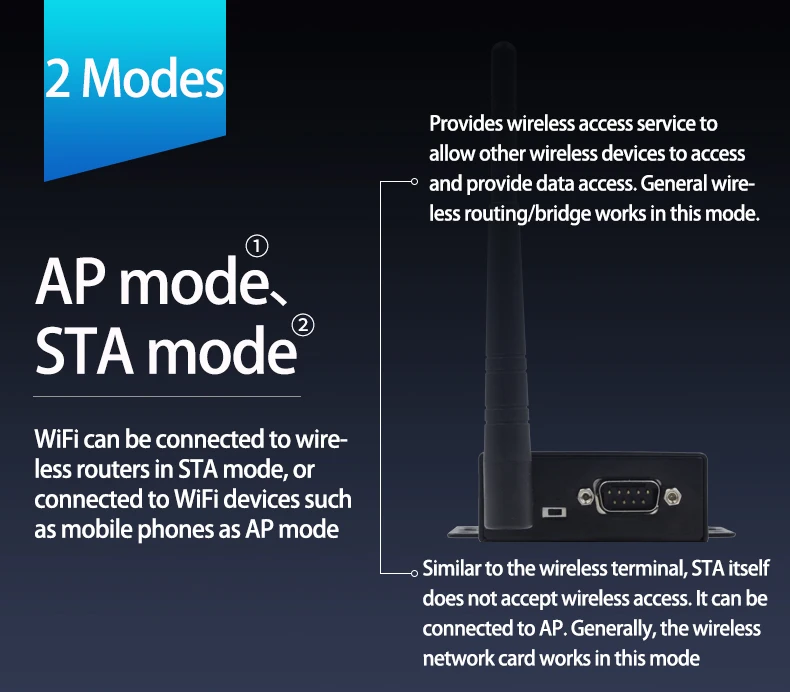

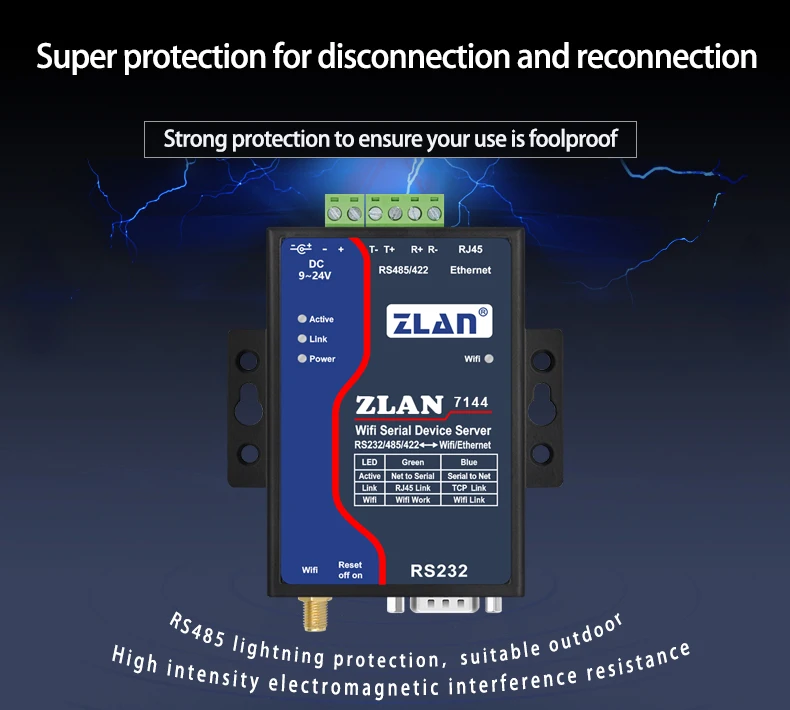

The serial device server can easily make serial device connected WIFI network, implement the wireless network upgrade of the serial device. RS232 interface support full duplex, uninterrupted communication. RS485 is embedded 485 lightning protection. The Wifi supports STA mode to connect to the wireless router, or as AP mode which mobile phones and other wifi devices can connect to.
Product Summary

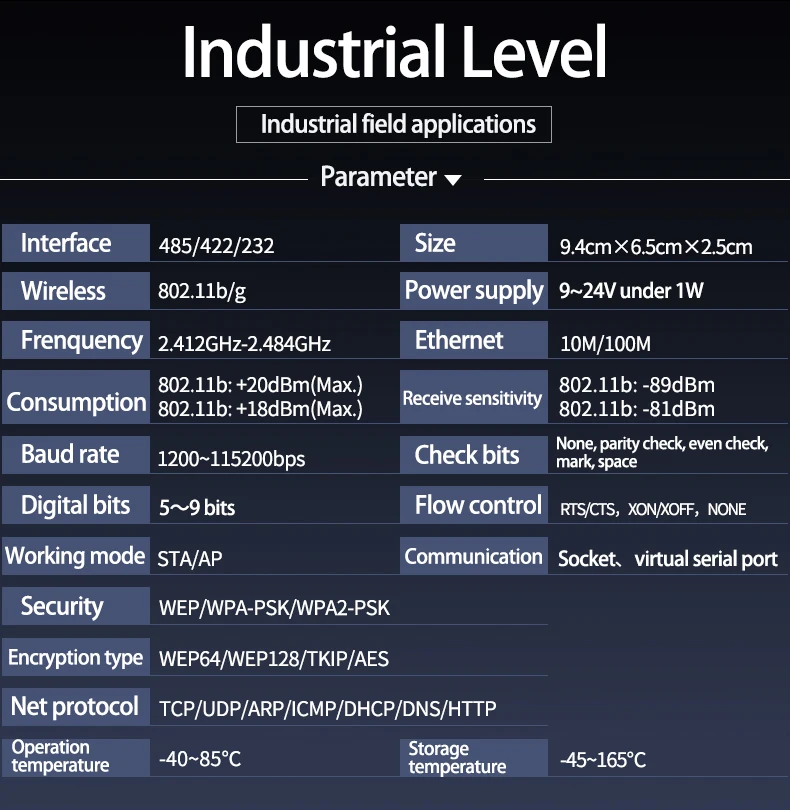

Technical Parameter
Figure | |||

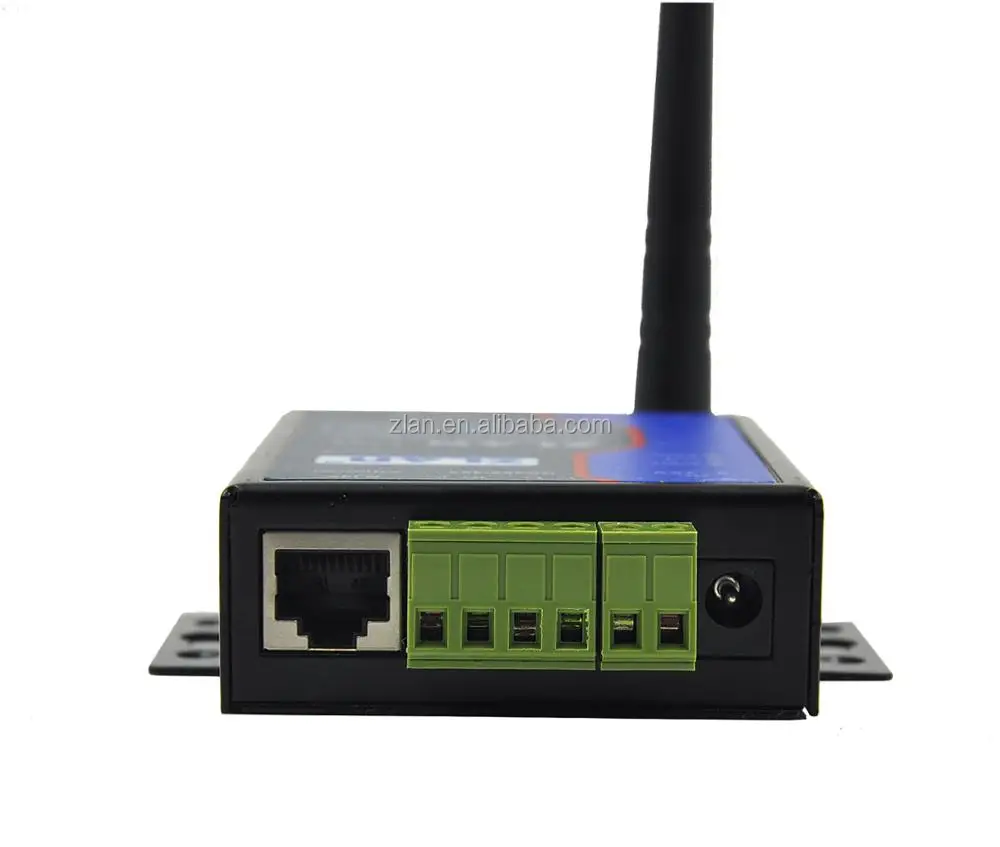

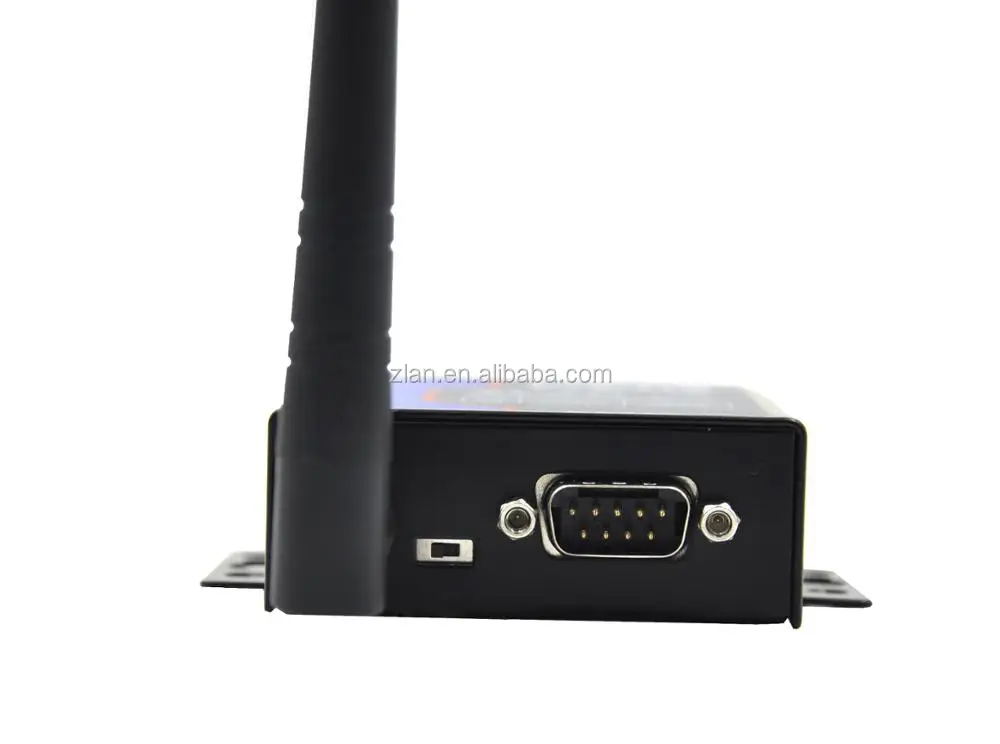

Interface: | 485: Terminal; 232; DB9; 422: Terminal | ||

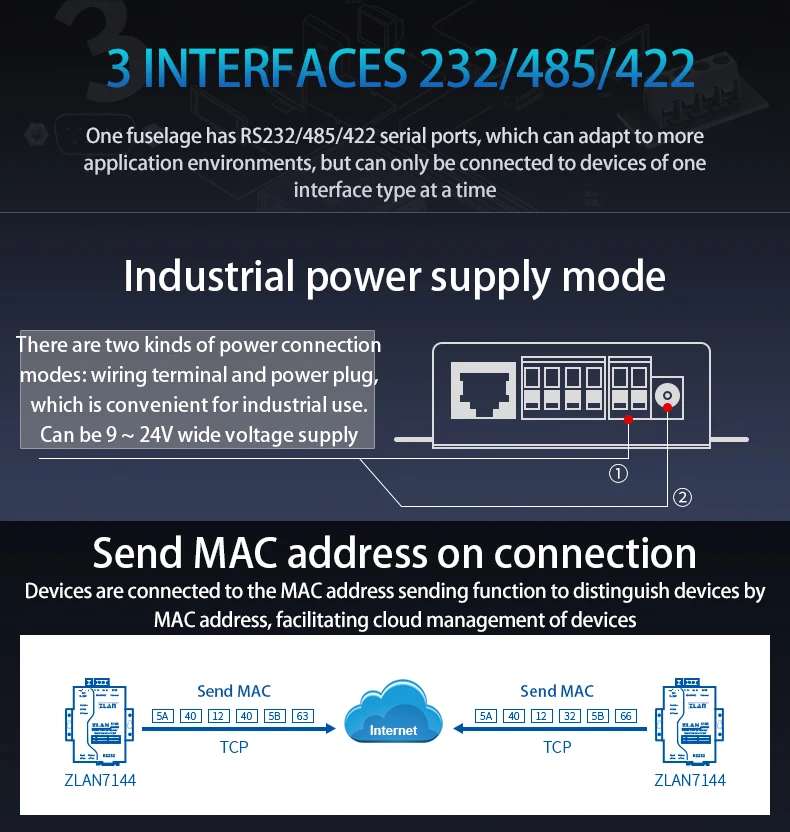

Power Supply: | Inside positive outside negative, standard outlet; Two lines terminal | ||
Size: | L x W x H =9.4cm×6.5cm×2.5cm | ||
Communicate Interface | |||
Wifi | 802.11b/g | ||
Serial | RS232/485/422×1: RXD, TXD, GND, CTS, RTS | ||
Serial Parameters | |||
Baud rate: | 1200~115200bps | Parity: | None, Odd, Even, Mark, Space |
Data size: | 5~9 | Flow control: | RTS/CTS, XON/XOFF, NONE |

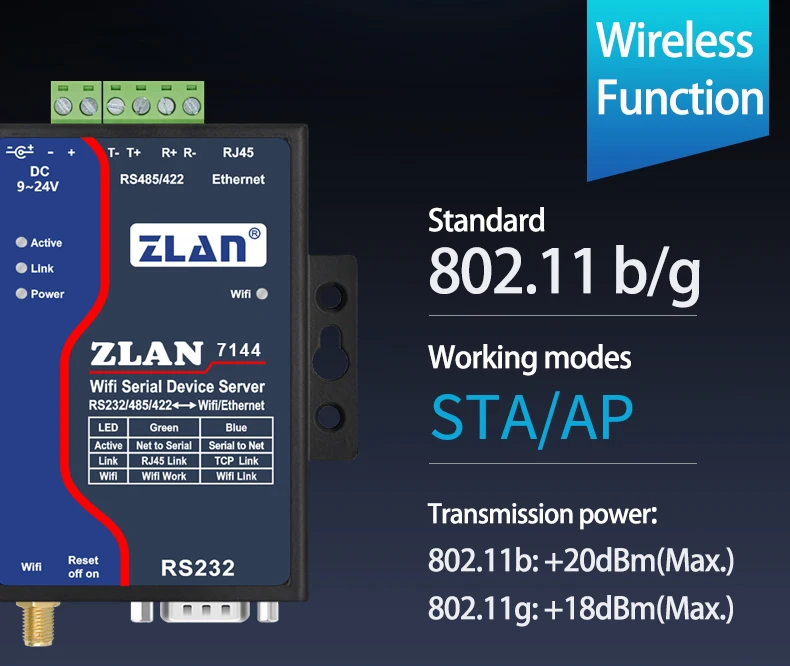

WLAN | |||
WLAN Standard: | 802.11 b/g | ||
Frequency Range | 2.412GHz-2.484GHz | ||
Transmit Power | 802.11b: +20dBm(Max.); 802.11g: +18dBm(Max.); | ||
Receiving Sensitivity | 802.11b: -89dBm; 802.11g: -81dBm; | ||
Antenna Choice | External: external antenna | ||
Hardware | |||
Ethernet | 10M/100M | ||
Power | 9~24V, <1W | ||
Work Temperature | -40~85℃ | ||
Storage Temperature | -45~125℃ | ||
Software | |||
WLAN Work Mode | STA/AP | ||
Security Mechanism | WEP/WPA-PSK/WPA2-PSK | ||
Encryption Type | WEP64/WEP128/TKIP/AES | ||
Protocol | TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP | ||

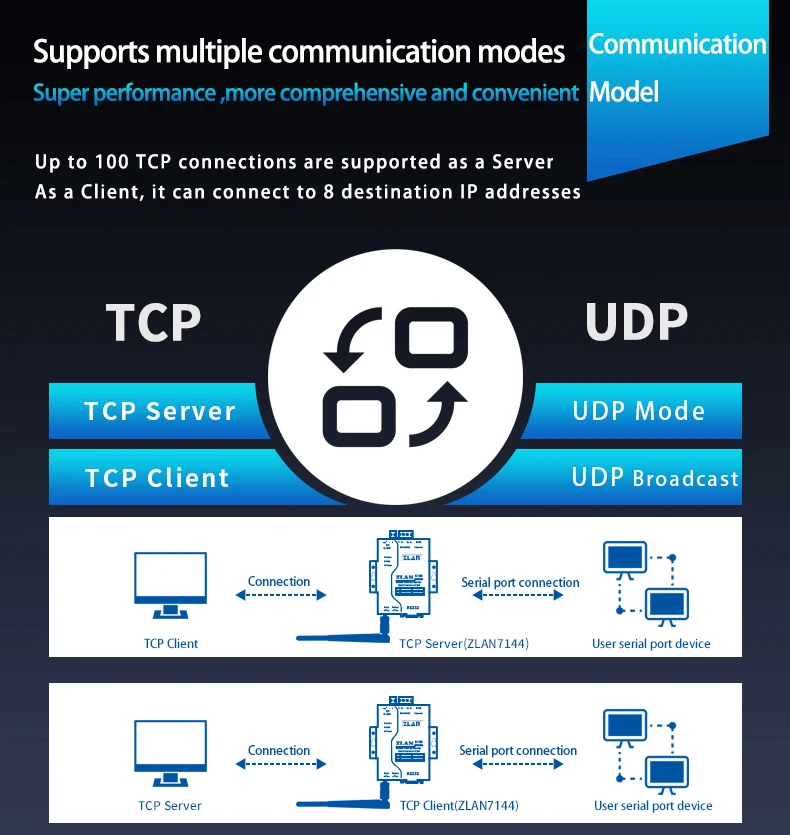

Net communication method: | Socket, virtual serial port | ||
User Configuration | Web Server, Windows configuration tool ZLVircom | ||
Environment | |||
Running temperature: | -40~85℃ | ||
Storage temp: | -45~165℃ | ||
Humidity: | 5~95%RH | ||
