MIRAN Core Separated Displacement Measuring LVDT Sensor

Share on (1600570211439):


Price:

Quantity:


Product Overview

Description






Company Information


 .jpgcetification

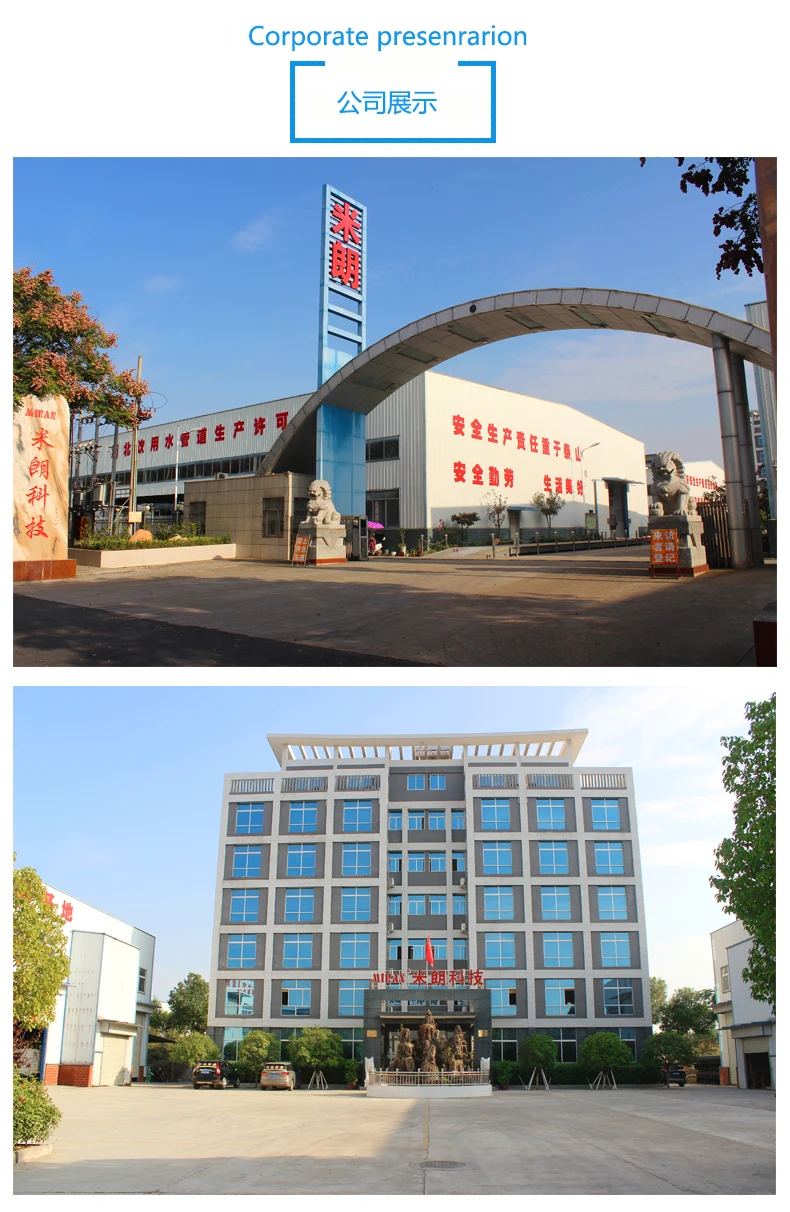

MIRAN Technology Co.,Ltd Miran Technology Co., Ltd. is the largest Linear Position Sensor manufacturer in China.Since 2003 we have been developed and produced Linear Position Sensor(brand:MIRAN,LinecSKI,WANSUNG),Wire Rope Potentiometer,Magnetostrictive Liquid Level Sensor,Angle Sensor,Lubricating Pump(Oil/Grease/Butter),LVDT,Eddy Current Sensor, and many other motion control products to support many different industries.As a leading manufacturer in China,our factory is approved by ISO9001:2008, and all our products have CE, CCC,Rohs certificates.Our Principles: Quality First, Credit First, Customer First.Our Advantages 1. Strong capability in Research&Design.We spend million dollars every year for developing new tech and new products. 2. Promise high quality after strict tests. Every product will go through vibration test, low and high temperature test,electromagnetic interference regulatory test,endurance test, and explosion proof test. 3. Strong production capacity. We have factories both in Shenzhen and Hubei Province, and also a lot of in-stock products in warehouses. We can meet large demands from our customers, and deliver the orders on time. 4. Excellent sales & after-sales service. We are headquartered in Shenzhen, and have branches all over China. We guarantee life-long for all products.We can offer you the competitive perfect products.We also support to put your logo on the products if you need.Hope we can build up the long-term and harmonious business relationship!








Product Description

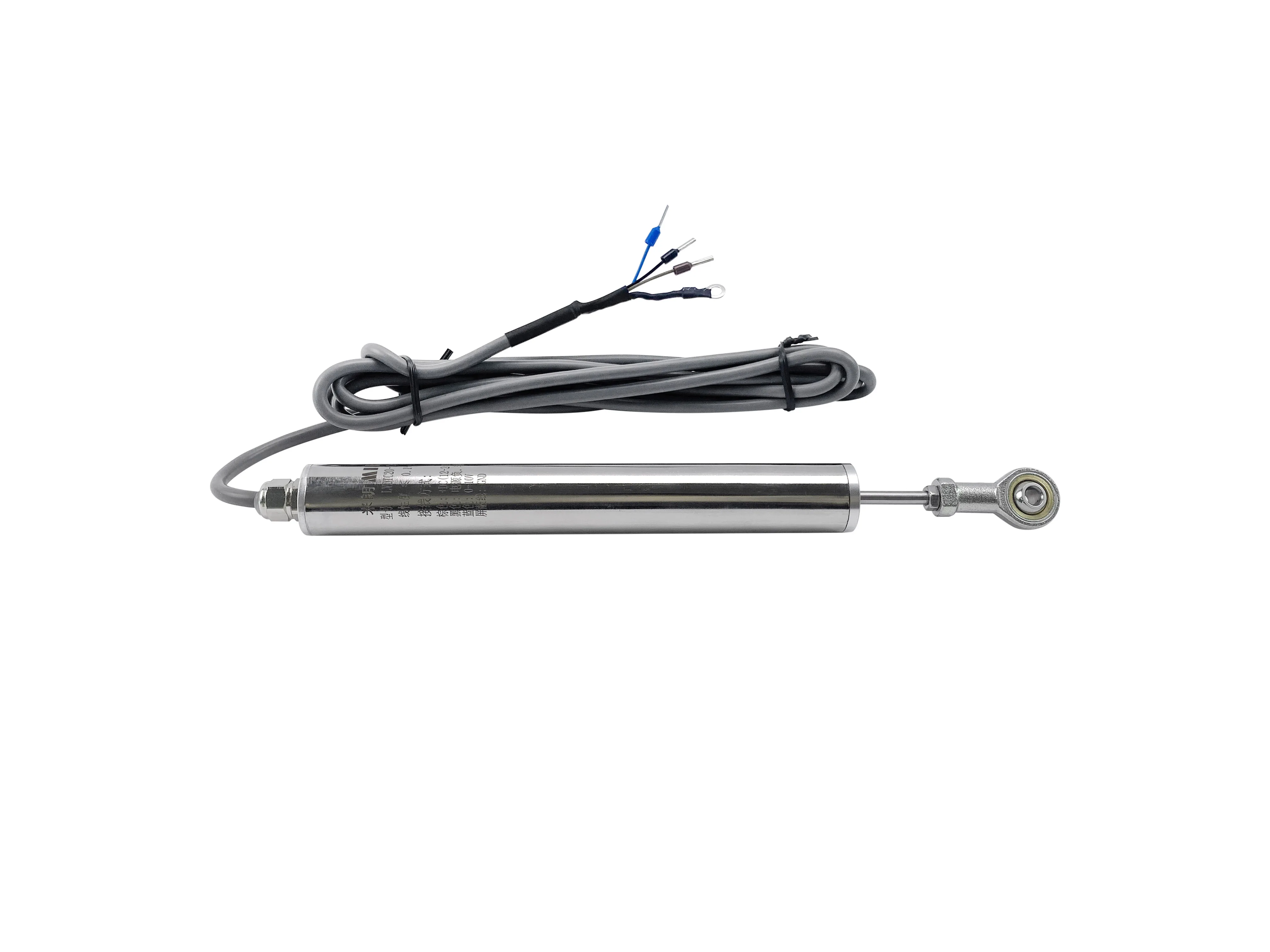

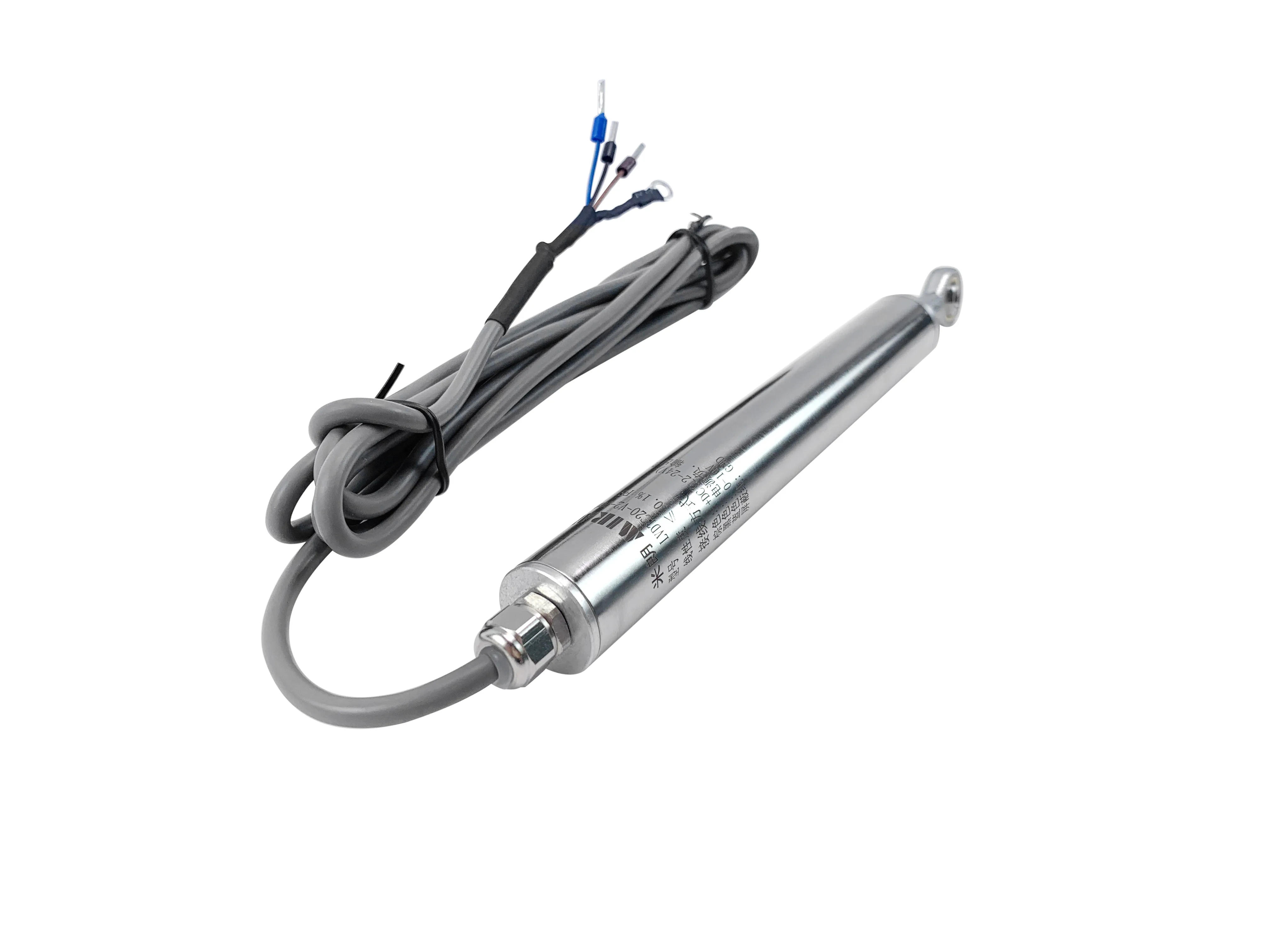

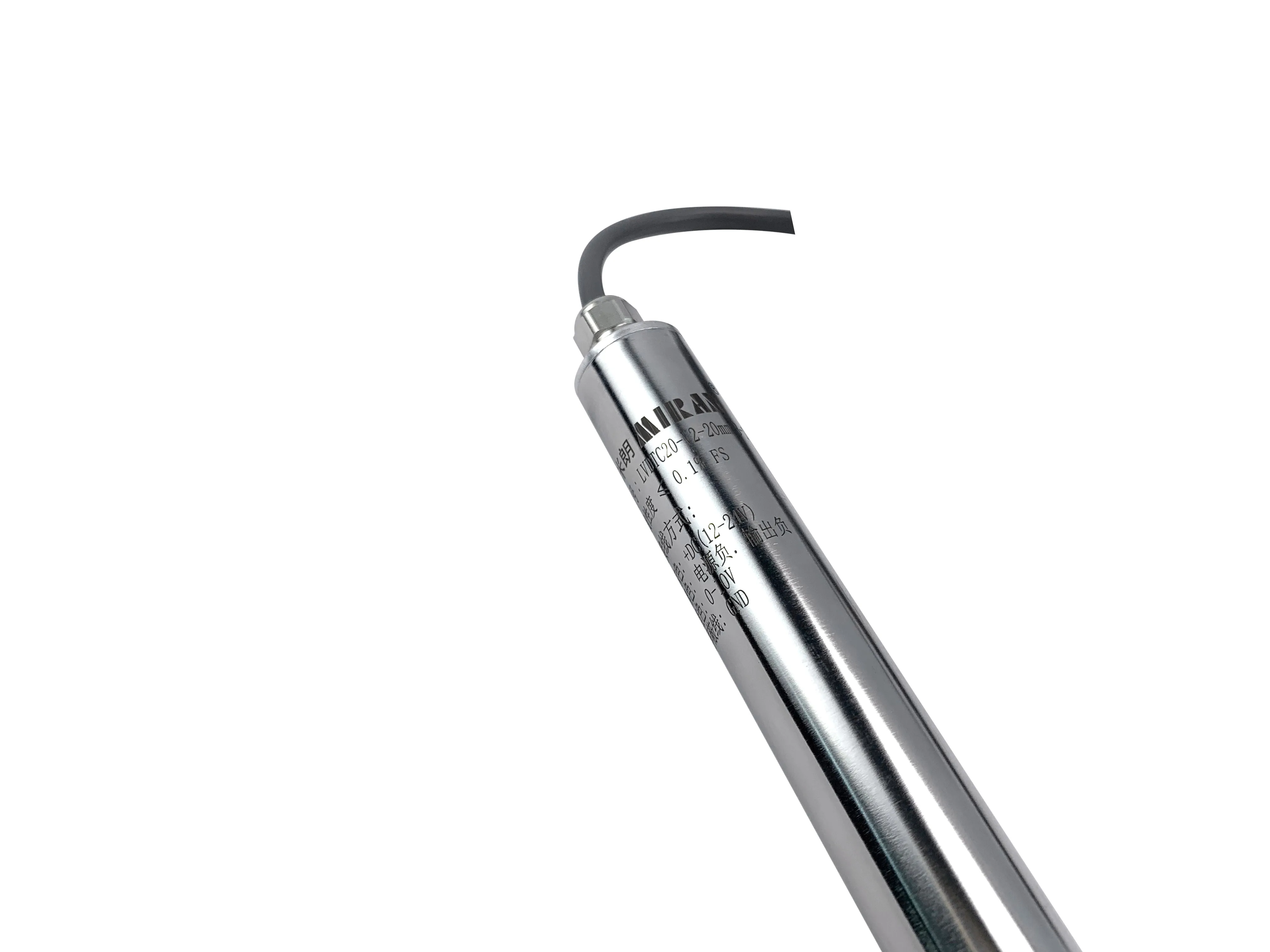

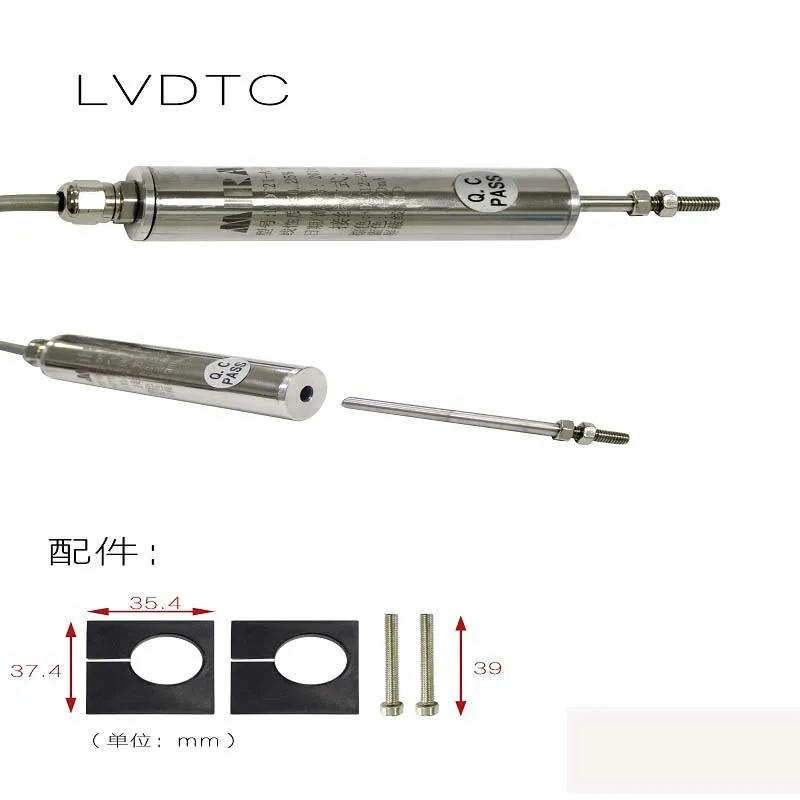

 LVDTC20-V2-20MM (1).jpgLVDTC20-V2-20MM (2).jpgLVDTC20-V2-20MM (3).jpgLVDTC20-V2-20MM (4).jpg







Features:




1. Outer diameterΦ20mm ,SS 304 shell, separate core type
2. Operated from single-ended DC supply, built-in excellent signal transmitter
3. Three wires voltage output 0-5V or 0-10V, two wires current output 4-20mA
4. Measuring range from 0mm to 500mm, high rersolution, excellent repeatability
5. Contactless operation, long use life







Applications





LVDTs have been widely used in applications such as power turbines, hydraulics, automation, aircraft, satellites, nuclear reactors, and many others. These are common applications:

1. Machine tool and tool positioning

2. Hydraulic cylinder positioning

3. Cement industry

4. Deck shift detection

5. Valve position detection and control

6. Metro tunnel engineering protection











Specification

























































stroke length


2.5mm, 5mm, 10mm, 15mm, 25mm, 50mm, 100mm, 250mm, 500mm


output signal



0~5V




0~10V




4~20mA




Rs485



power supply


9~28V DC


15~28V DC


15~28V DC


9~12V DC


working current


≤12mA


4~20mA



linearity


±0.25%, ±0.5%


±0.25%, ±0.1%


repeatability


≤0.01% FS


resolution


≤0.1um (max)


16bits


working temperature


-25℃~+85℃


temperature coeffocient


Zero≤0.01%F.S/℃


Sensitivity≤0.025%F.S/℃







Our Services







Pre-sale servie:





* Inquiry and consulting support.
* Sample testing support.
* Factory visit










After-Sales Service.





* Training to instal and use.


* Quick response to technical problems;
