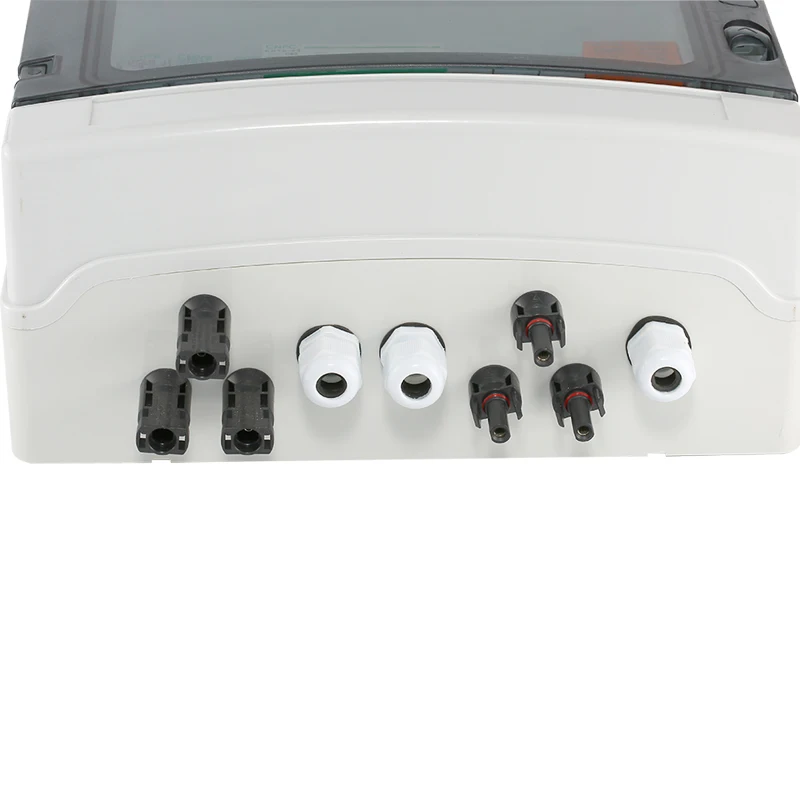

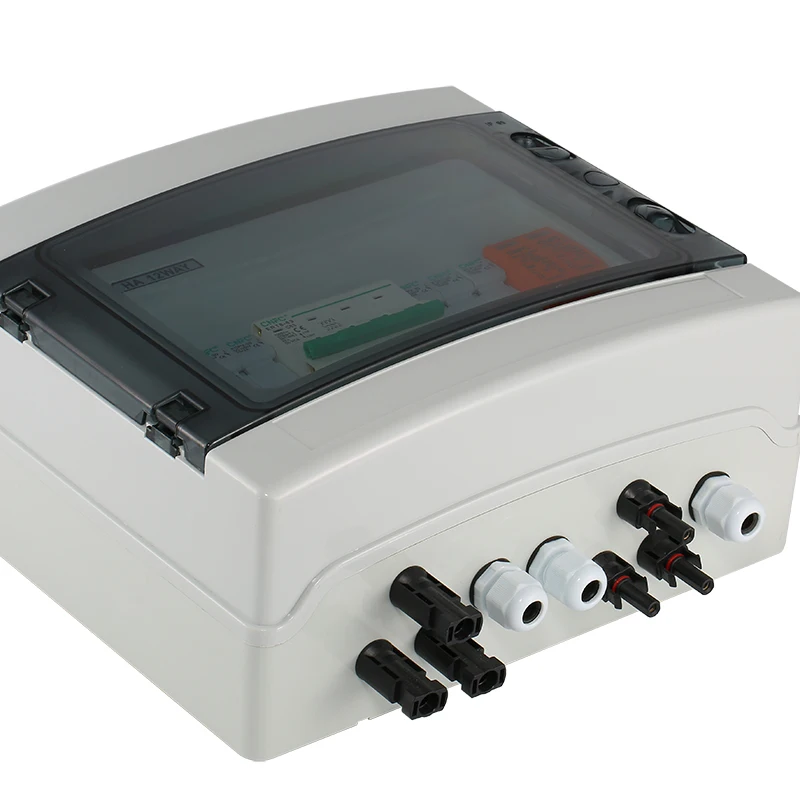

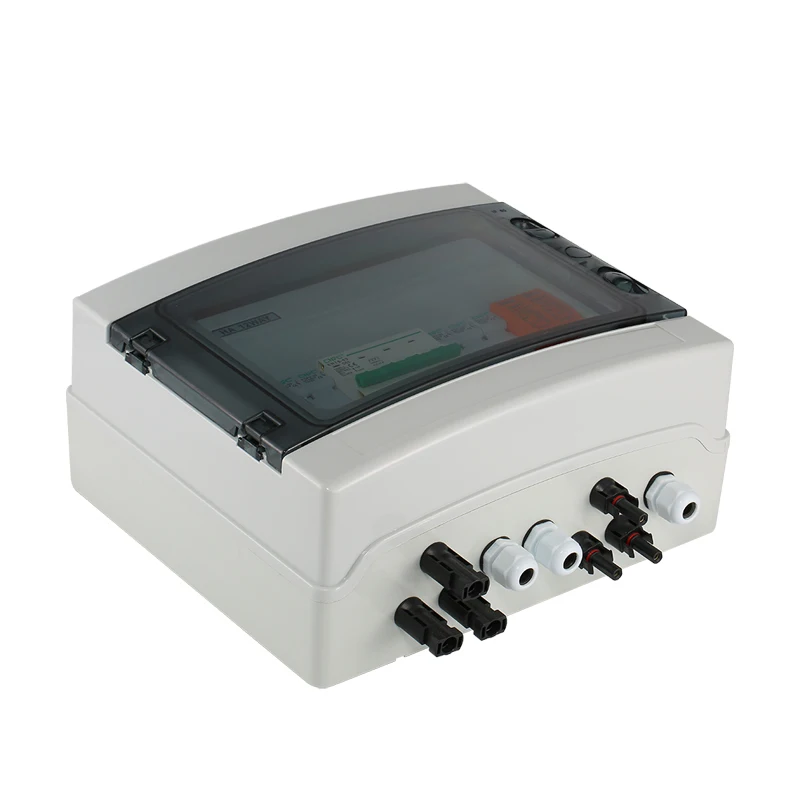

IP65 DC комбайнер Топ 10 в Китае для PV 6 струн для фотоэлектрической системы
- Category: >>>
- Supplier: Wenzhou Aoca Electronic Co. Ltd.
Share on (1600570221922):
Product Overview
Description
Product Description
Specification
Name | SHLX-PV4/1 | ||
System maximum dc voltage | 500 | 1000 | |
Maximum input current for each string | 15A | ||
Maximum input strings | 4 | ||
Maximum output switch current | 50A/63A | ||
Number of inverter MPPT | 1 | ||
Number of Output strings | 1 | ||
Category of test | ‖ grade protection | ||
Nominal discharge current | 20ka | ||
Maximum discharge current | 40KA | ||
Voltage protection level | 2.8kv | 3.8kv | |
Maximum continuous operating voltage Uc | 630V | 1050A | |
Poles | 2P | 3P | |
Structure characteristic | Plug-push module | ||
Protection grade | IP65 | ||
Output switch | DC isolation switch(standard)/DC circuit | ||
DC MC4/DC FUSE/DC Surge Protector | Standard | ||
Monitoring module/Preventing diode | Optional | ||
Installation method | Wall mounting type | ||
Operating Temperature | -25℃--+55℃ | ||
Elevation of temperature | 2km | ||
Width*High*Depth | 300*260*140 | ||
APPLICATION
