  • OEM/ODM Factory FTP Cat6 Ethernet Wire Indoor 24AWG CCA/BC Conductor Cat6 Lan Cable
OEM/ODM Factory FTP Cat6 Ethernet Wire Indoor 24AWG CCA/BC Conductor Cat6 Lan Cable
OEM/ODM Factory FTP Cat6 Ethernet Wire Indoor 24AWG CCA/BC Conductor Cat6 Lan Cable
OEM/ODM Factory FTP Cat6 Ethernet Wire Indoor 24AWG CCA/BC Conductor Cat6 Lan Cable
OEM/ODM Factory FTP Cat6 Ethernet Wire Indoor 24AWG CCA/BC Conductor Cat6 Lan Cable
OEM/ODM Factory FTP Cat6 Ethernet Wire Indoor 24AWG CCA/BC Conductor Cat6 Lan Cable
OEM/ODM Factory FTP Cat6 Ethernet Wire Indoor 24AWG CCA/BC Conductor Cat6 Lan Cable
OEM/ODM Factory FTP Cat6 Ethernet Wire Indoor 24AWG CCA/BC Conductor Cat6 Lan Cable

OEM/ODM Factory FTP Cat6 Ethernet Wire Indoor 24AWG CCA/BC Conductor Cat6 Lan Cable

Share on (1600570229512):


Price:$9.50 - $10.00

Quantity:


Product Overview

Description



Product Description




Specification


item
value
Model Number
Indoor Cat6 Lan Cable
Place of Origin
ZHE
Brand Name
SAFELECTRON
Number of Conductors
4
Conductor
Inner Conductor
Conductor Material
CCA/BC
Dielectric Material
HDPE
Wrapping
Polyester Wrapping Tape
Drain Wire
0.5mmCCA/Copper
Shield
AL Foil
Rip Cord
Nylon Wire
Jacket color
Blue Color
Jacket Material
PVC+PE


Packing & Delivery

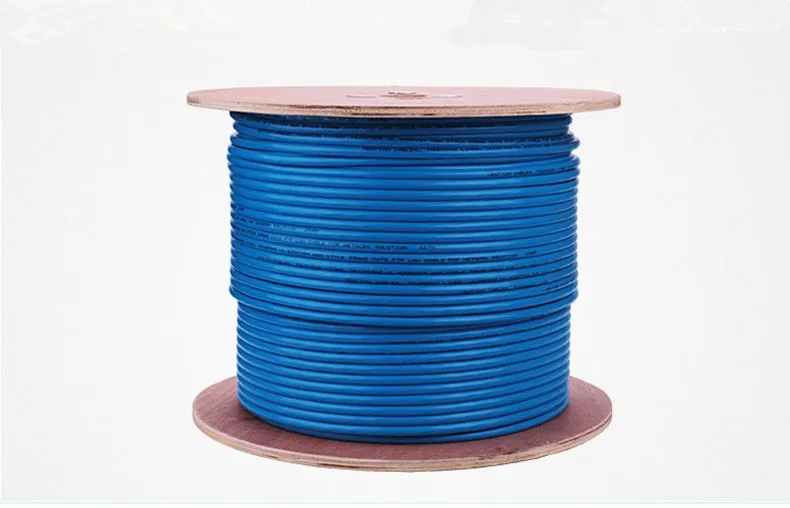

305m/reel
2 pieces/ Carton


Company Profile






OEM/ODM Factory FTP Cat6 Ethernet Wire Indoor 24AWG CCA/BC Conductor Cat6 Lan Cable

* Product Detail

Features:
High-Performance Data Cable
Suitable for High-Speed Data Applications, Fast Ethernet and 155Mbps TP-PMD/CDDI
Easily Identified Color-Striped Pairs
Foiled Twisted Pair (FTP) Cable
24AWG Solid Bare Copper Conductors
Exceeds TIA/EIA 568-C.2 specifications
Excellent Attenuation and Crosstalk Characteristics

Application:
100Base-TX/ 100Base-T/ 100VGAnyLAN/ 1000Base-T(GigabitEthernet)/ 1000Base-TX/ ATM

Compliant With
ANSI/TIA-568-C.2 5e Standard
ISO/IEC11801 Class D Level

Reference Standards
IEC60332-1, IEC60332-3-24, EN50399

OEM/ODM Factory FTP Cat6 Ethernet Wire Indoor 24AWG CCA/BC Conductor Cat6 Lan Cable

Testing Standards
ISO/IEC11801, ANSI/TIA-568-C.2

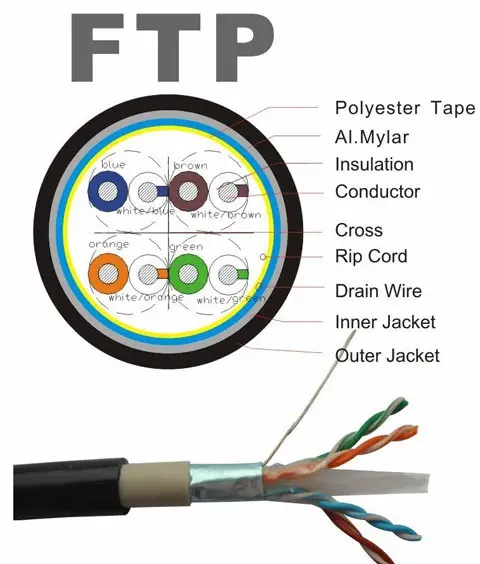

Conductor：23AWG Solid 4 Twisted Pair
Insulation: PE Ф1.02±0.02MM.Thickness: 0.25MM
Color of Insulation: Brown, Orange, Green, Blue, white/brown, white/orange, white/green, white/blue
Cabling:: Twisted Pair, Twisting Pitch: Blue/White Blue 9mm, Green/White Green11mm, Brown/White Brown13mm, Orange/White Orange
15mm. Stranding Length: 100±10mm
Filling Material：Rip Cord
Jacket: PVC Ф6.2±0.1MM. Thickness: 0.6MM, Blue
Standard: IEC60332-1, IEC60332-3-24, EN50399
Temperature for working: -20℃ ~ +50℃

OEM/ODM Factory FTP Cat6 Ethernet Wire Indoor 24AWG CCA/BC Conductor Cat6 Lan Cable

We are a professional manufacturer of CCTV cable, security cable, alarm cable, networking cable cat5e, cat6, cat5e outdoor, cat5e with messenger, cat5e+2cpower, cat5e+rg59, speaker cable, coaxial cable, telephone cable, optic fiber, HDMI cable, USB cable and UL cable.

Cable range includes SYV75-2, SYV75-3, SYV75-4, SYV75-5; RG59, RG59 Siamese cable, rg59+2c power, rg59 with power, bnc+dc cable, RG58, RG6, RG11, RG8, RG174, RG213, RG214; alarm cable, fire alarm cable, UTP cat5e, FTP cat5e, cat 6 network cable, USB cable, VGA cable, HDMI cable, DVI cable, audio cable, telephone wire and power cable and UL2464 cable.

Security accessories and equipment include UTP twisted pair transmission video balun and all kinds of BNC, RCA connectors.

Our company develops and produces high quality security equipment and various types of cables to meet market demands.

We have passed CCC certificate, ISO9001:2008 quality management system, CE certificate, RoHS certificate and FCC certificate.

Safelectron's mission is helping customers to achieve their greatest value through our quality products and services. We sincerely hope Safelectron can become your preferred and premium business partner.


FAQ


1. who are we?
We are based in Guangdong, China, start from 2013,sell to Africa(15.00%),Southeast Asia(15.00%),Eastern Europe(15.00%),Mid East(15.00%),South Asia(5.00%),Southern Europe(5.00%),South America(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Oceania(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
CCTV CABLE,COAXIAL CABLE,UTP CAT5E,ALARM CABLE,SPEAKER CABLE

4. why should you buy from us not from other suppliers?
SAFELECTRON (SHENZHEN) CO.,LTD. is a professional manufacturer of CCTV cable,Alarm cable, Networking Cable,Cat5e,Cat6, Speaker Cable, Coaxial cable,RG59,RG6,RG174,RG213,RG8,Telephone cable,Optic Fiber,HDMI Cable,USB cable,UL cable.BNC connector,video Balun

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic,Russian,Italian
