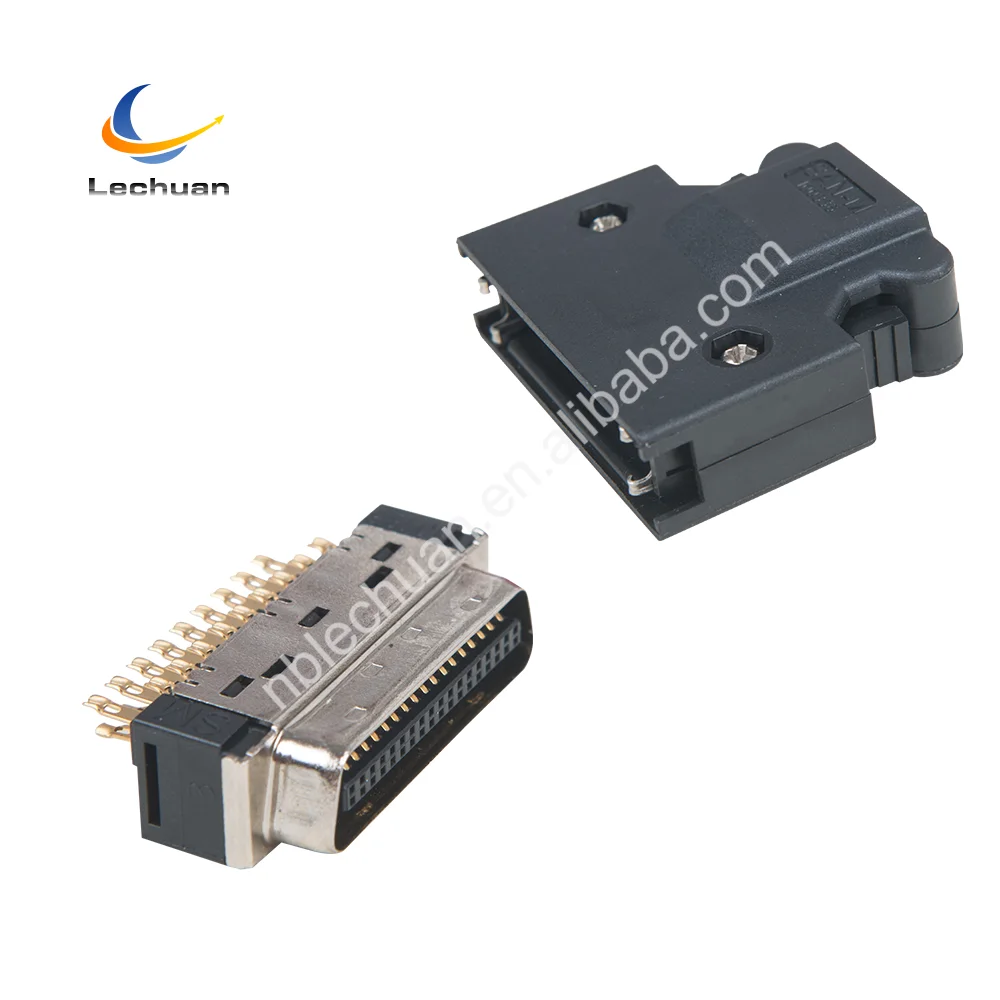

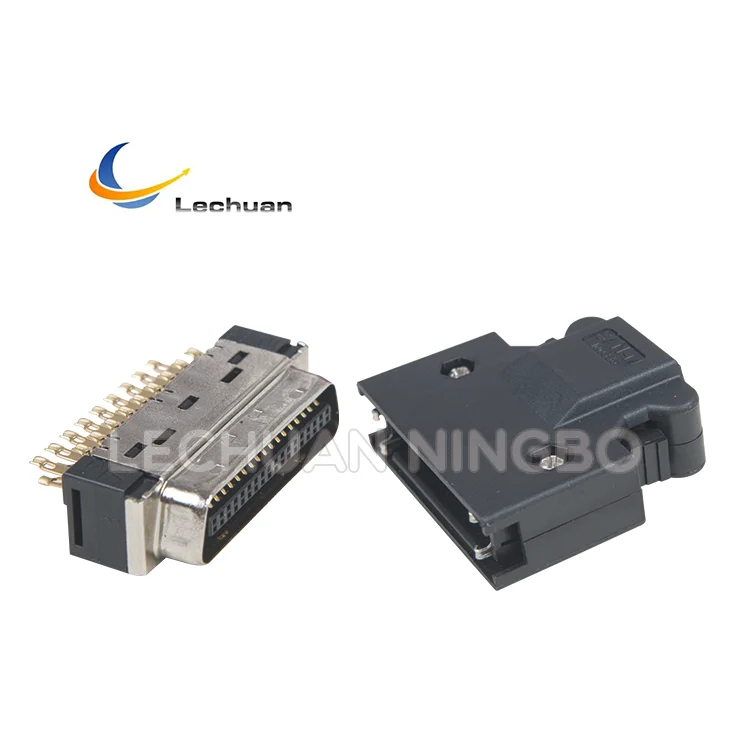

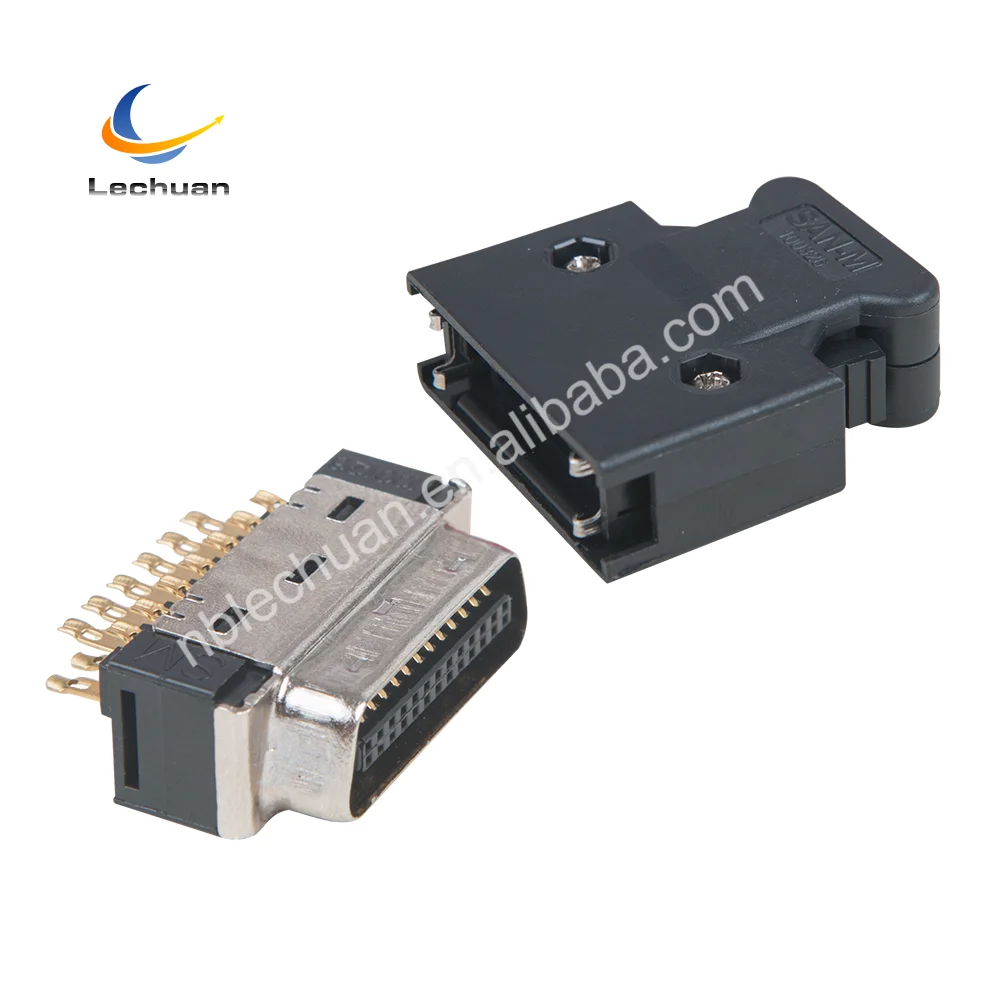

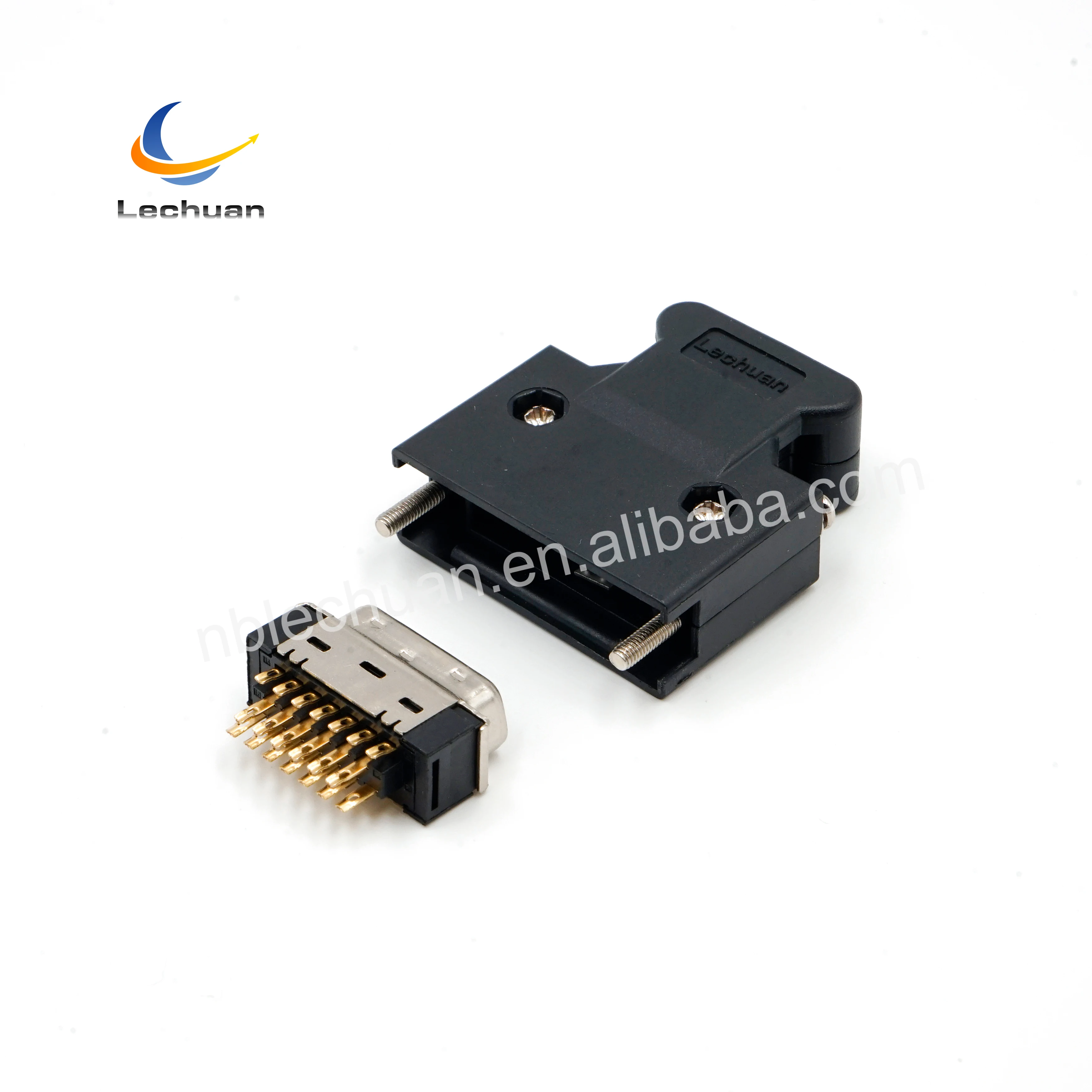

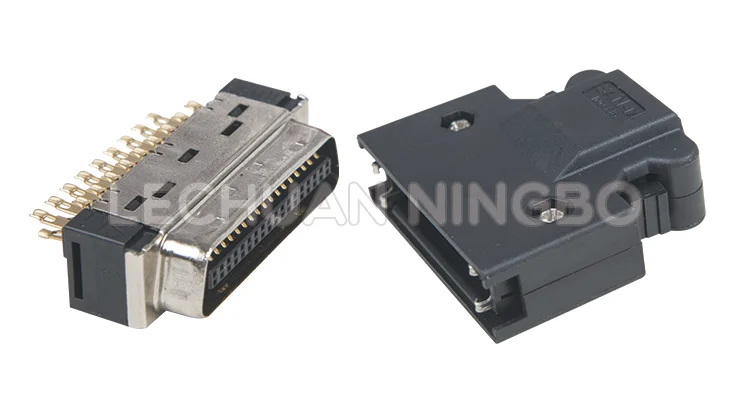

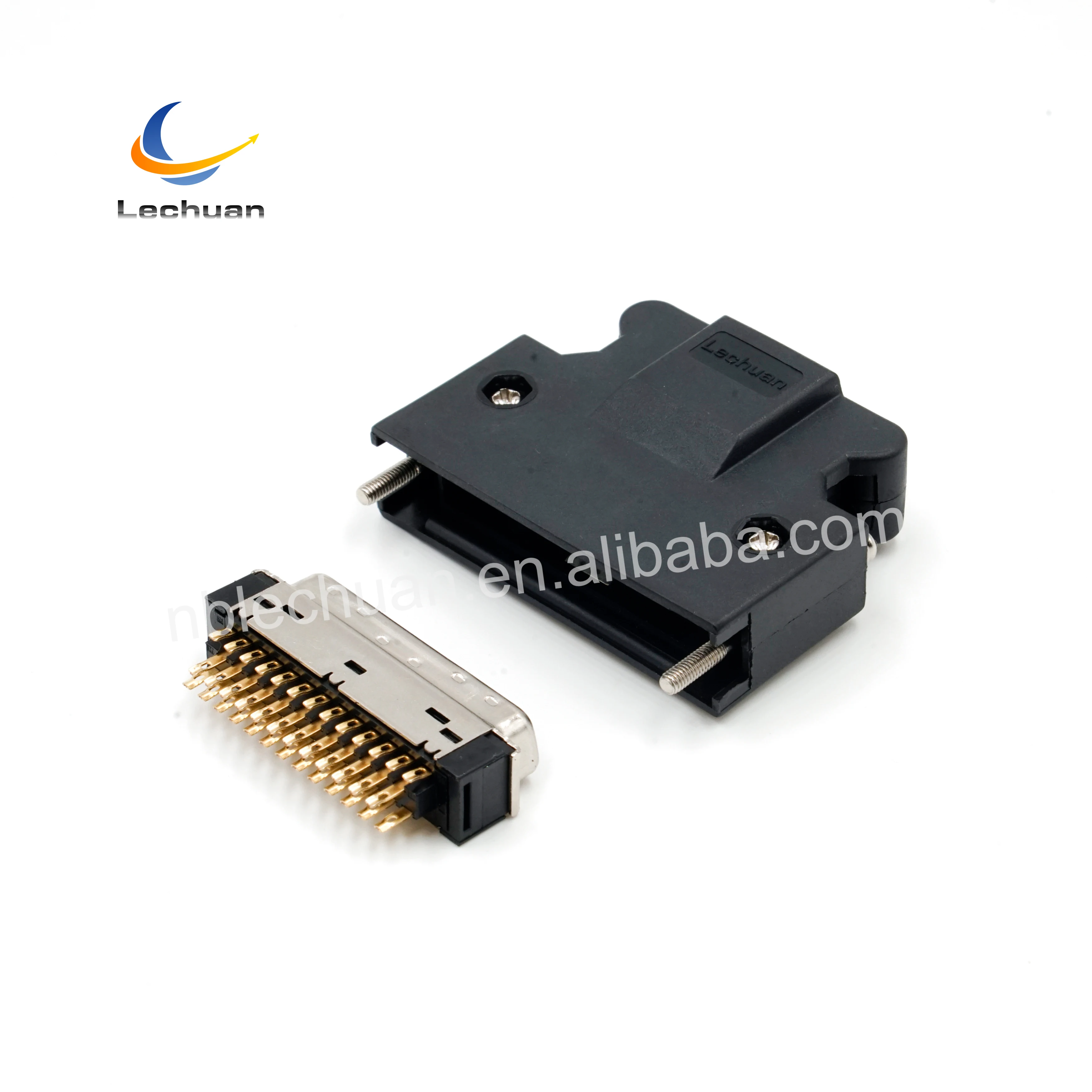

10320 52a0 008 3m mdr 20pin connector servo connector scsi 50 ide connector
- Category: >>>
- Supplier: Cixi Lechuan Import And Export Co. Ltd.
Share on (1600570234176):
Product Overview
Description
Material | Housing : PBT,UL94V-0,Black |
Cable Clamp： Spcc，Tin plating over Nickel | |
Contact Plating：Phosphor Bronze,T=0.3，Gold plating over Nickel | |
Body：PBT,UL94V-0,Black | |
Metal Housing:Spcc, Nickle plating | |
Ground Plate：Iron/Nickle | |
Fastener：Glass Reinforced Polyester(PBT) | |
Electrical Characteristic | Mark： Logo and Part Number |
Wire Accomadation：24,26,28&30AWG | |
Contact Resistance:30MΩmax ,at DC 100mA | |
Insulator Resistance:500MΩmin ,at 500V DC | |
Withstanding Voltage: 500V AC/rm 50Hz for 1 minute | |
Current Rating: 1 Amp AC/DC | |
Environment | Operating Temperature:-55℃～+105℃ |
Soldering Temperature:235℃max for 6sec.max |
