Экструдер для корма для домашних животных, полностью производственная линия, машина для производства корма для собак
- Category: >>>
- Supplier: Jinan MT Machinery & Equipment Co. Ltd.
Share on (1600570237614):
Product Overview
Description

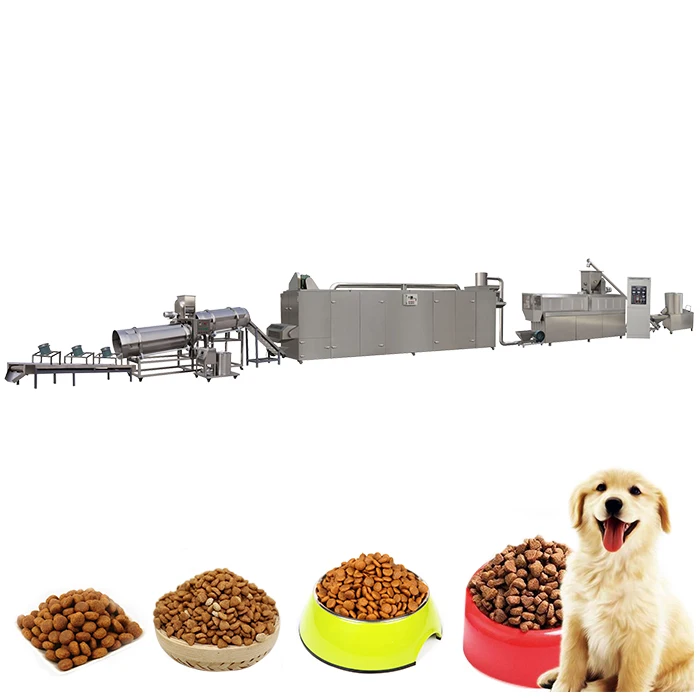

Best Single screw extruder Dog /cat food extrusion machines pet food machines with ovens
Product Description
Pet food production line is plant or animal material intended for consumption by dogs or other canines.
The pet food is close to the human beings food in the fine level, the health index and the ingredients, some of them request more highly than human beings. In extruder, the ingredients are cookedunder intense heat and pressure as it moves toward the open end of the extruder where ingredients pass through a shaping die and knife. Dog food is dried in a multi-pass dryer until its moisture content is low enough to make it shelf stable. Dog food may pass through a coating drum where animal fat and vitamins are appliedonto dog food.
NO. | Name | Brief introduction |
1 | Raw material | Corn flour; soya flakes meal;animal bone powder,fish powder; etc. |
2 | Shape | up to customer's demand |
3 | Processing flow | Mixing system; Extrusion system; Drying system; Flavoring system; Packing System |
4 | Equipment involved | Mixer; Screw elevator; Double screw extruder; Air conveyor; Dryer; Flavoring system;Packing machine |
5 | Final products | Dog feed;Cat feed;Bird feed;Fish feed;etc. |
6 | Machine material | Stainless steel 201 or as customer’s request |
Product parameters
Model | MT-65 | MT-70 | MT-70C | MT-85 | MT-95 |
Voltage customized | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
main power | 22kw | 30kw | 45kw | 75kw | 110kw |
Dryer Fuel | gas | gas | gas | gas | gas |
Capacity | 100-150kg/h | 120-150kg/h | 150-250kg/h | 300-500kg/h | 800-1000kg/h |
Length | 23m | 26m | 30m | 45m | 55 |
Product Details

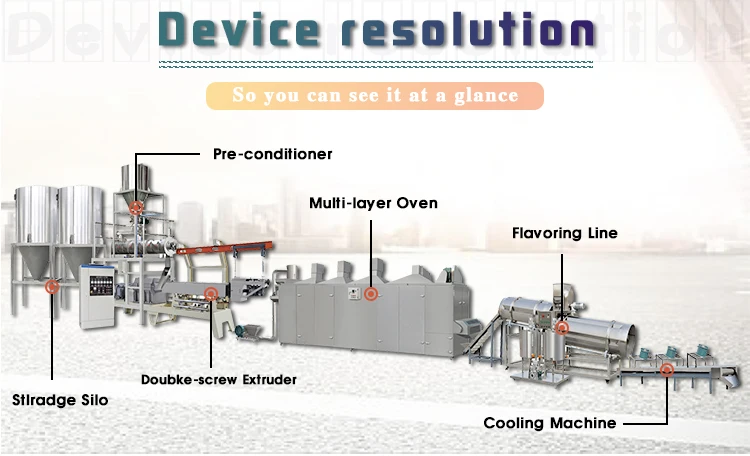

The line is working principle
1. Powder mixing machine: Choose different types of powder mixing machine according to the output of the production line. There are mainly three models for your choice.

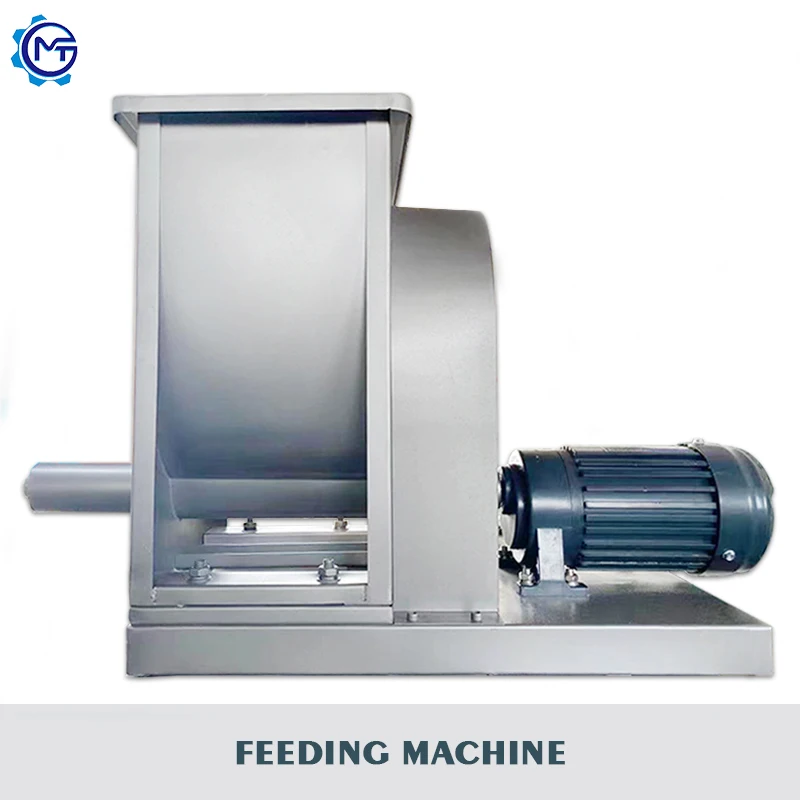

2. Conveyance machine: use the motor as the power screw conveying to ensure convenient and fast feeding.
3. Extruder machine: Choose different types of MT type puffing host according to the output of the production line. Corn meal, cereal meal, bone meal, meat meal, etc. can be used as raw materials, and the specific product shape The mold can be replaced.
4. Hoist: Feed the feed to the oven. The height of the hoist is determined according to the oven. An air conveyor can also be used.
5. Multi-layer oven: the oven is mostly electric oven, the temperature is between 0-200 degrees and the temperature is adjusted by the control cabinet, the inside is stainless steel double-layer mesh bag, the baking time can be adjusted according to the speed
6. Vibrating screen: Sieve to remove excess scraps.
7. Flavoring line: There are octagonal tube, cylinder, lifting single drum, double drum seasoning line, which is configured according to the output and the nature of the product.
1. Powder mixing machine: Choose different types of powder mixing machine according to the output of the production line. There are mainly three models for your choice.
2. Conveyance machine: use the motor as the power screw conveying to ensure convenient and fast feeding.
3. Extruder machine: Choose different types of MT type puffing host according to the output of the production line. Corn meal, cereal meal, bone meal, meat meal, etc. can be used as raw materials, and the specific product shape The mold can be replaced.
4. Hoist: Feed the feed to the oven. The height of the hoist is determined according to the oven. An air conveyor can also be used.
5. Multi-layer oven: the oven is mostly electric oven, the temperature is between 0-200 degrees and the temperature is adjusted by the control cabinet, the inside is stainless steel double-layer mesh bag, the baking time can be adjusted according to the speed
6. Vibrating screen: Sieve to remove excess scraps.
7. Flavoring line: There are octagonal tube, cylinder, lifting single drum, double drum seasoning line, which is configured according to the output and the nature of the product.

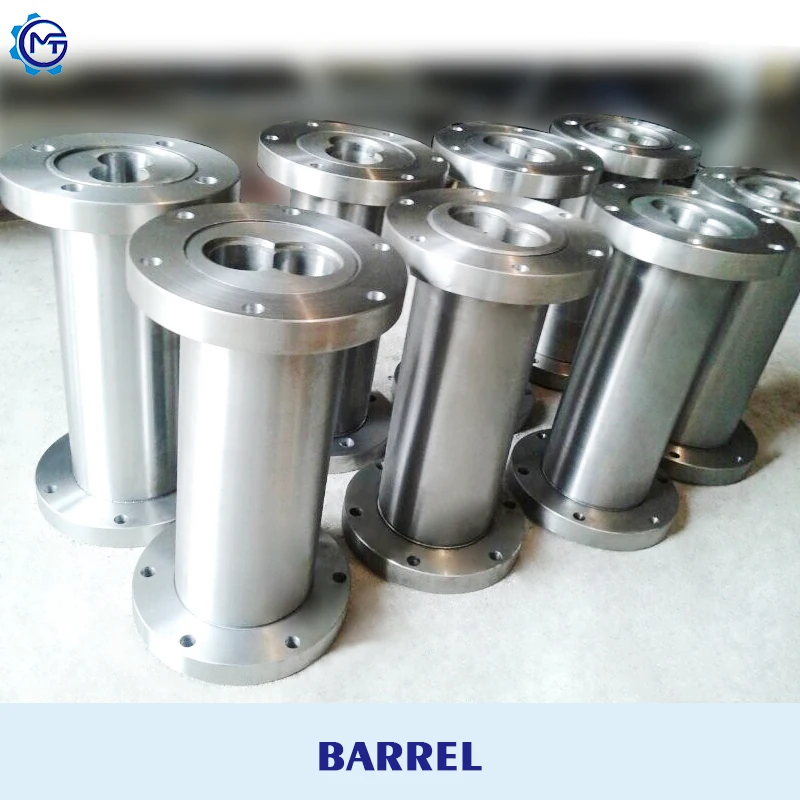

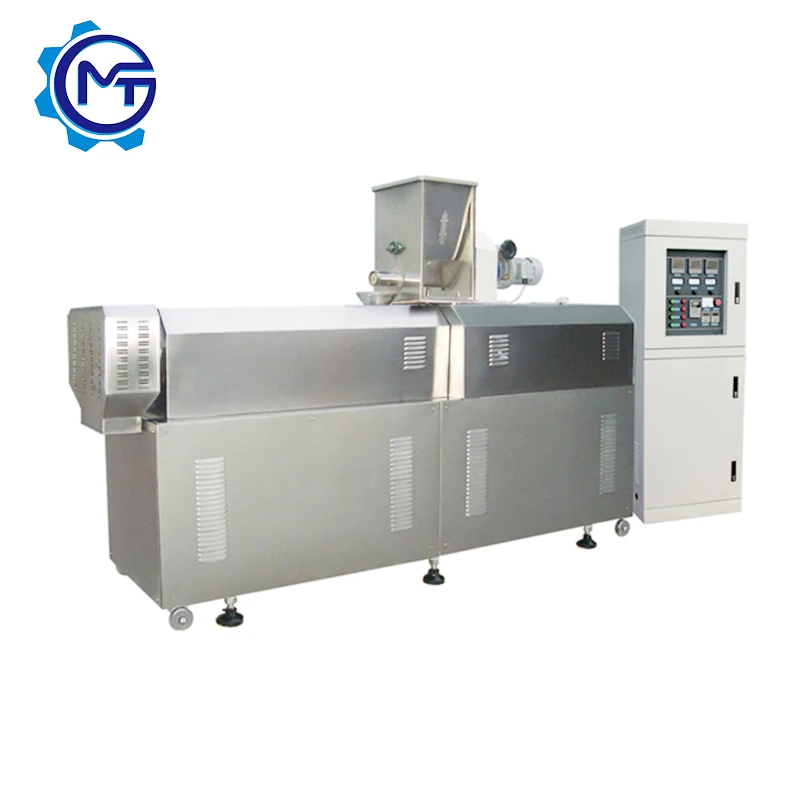

Double Screw Extruder Machine
By two co-rotating screws composed by sectional modules for the following functions: forward and backward transport, mixing,de-gassing, cooking and forming.The inside structure is made by painting steel, but all the parts touching with the raw material or products are made by stainless steel;The use of a continuous automatic process provides greater production outputs than offered by traditional systems, with savings in energy and reduced management cost.

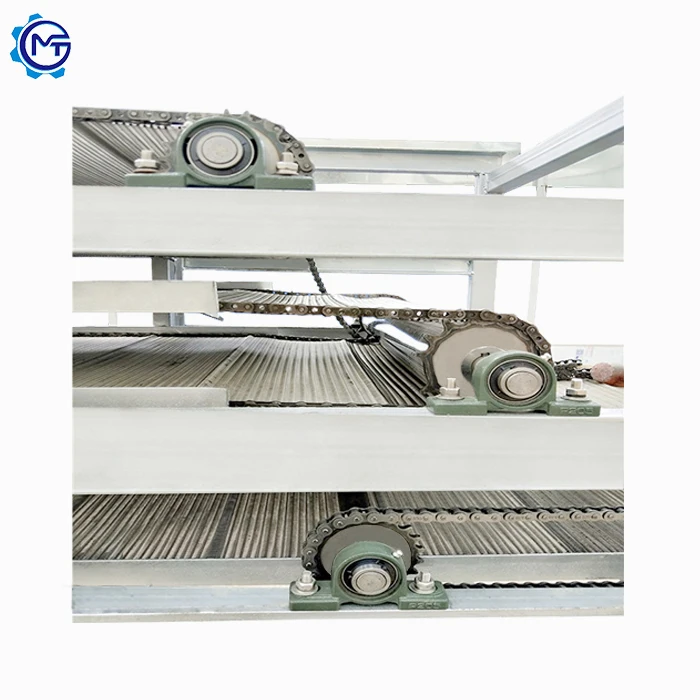

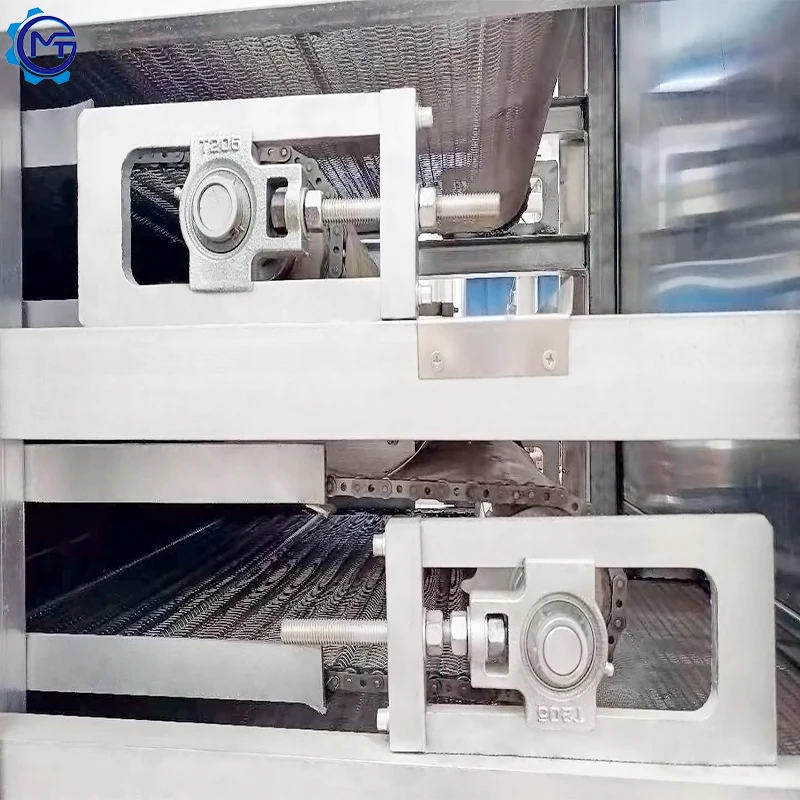

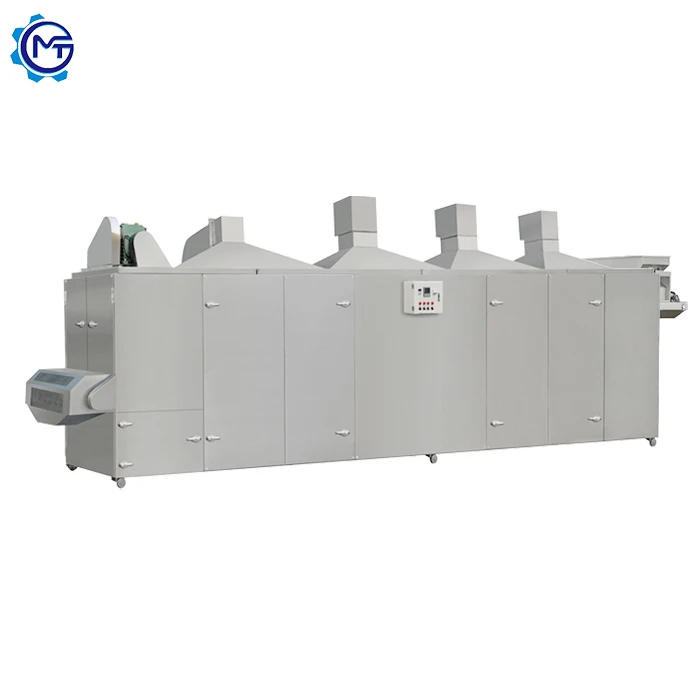

Multi-layer oven
The oven is mostly electric oven, the temperature is between 0-200 degrees and the temperature is adjusted by the control cabinet,the inside is stainless steel double-layer mesh bag, the baking time can be adjusted according to the speed.It is composed of oven the me, control cabinet all stainless steel.oven, compact structure, cover an area of small, dry area is large, small,small heat.

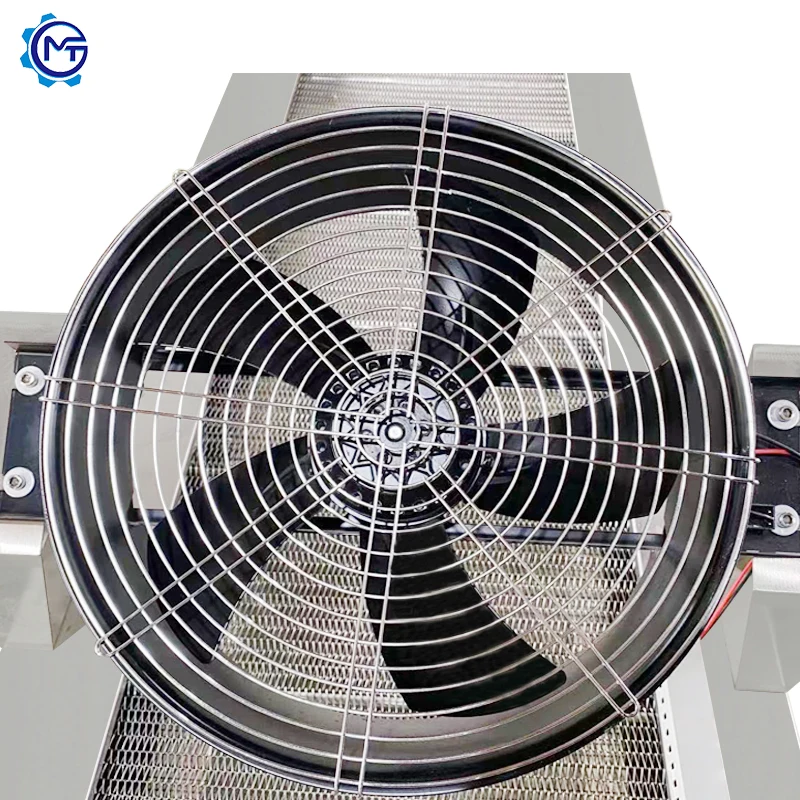

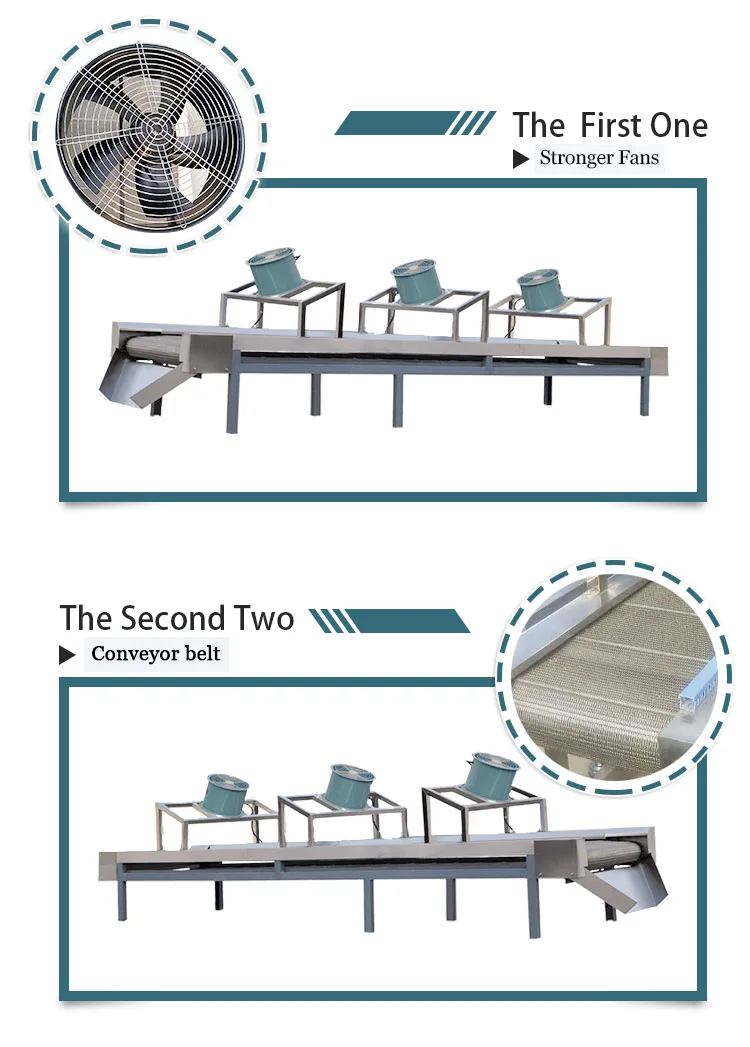

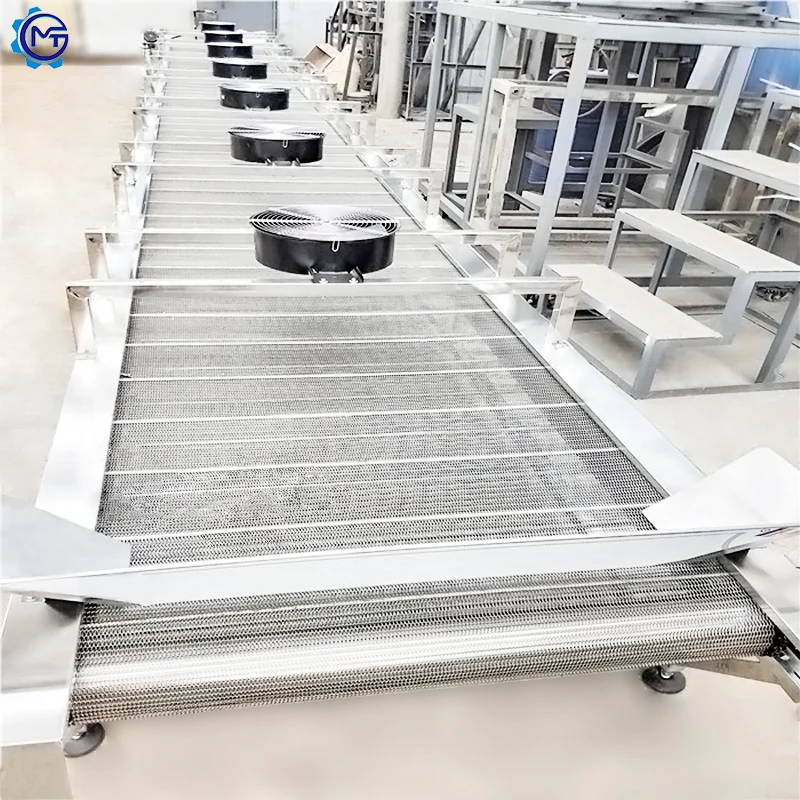

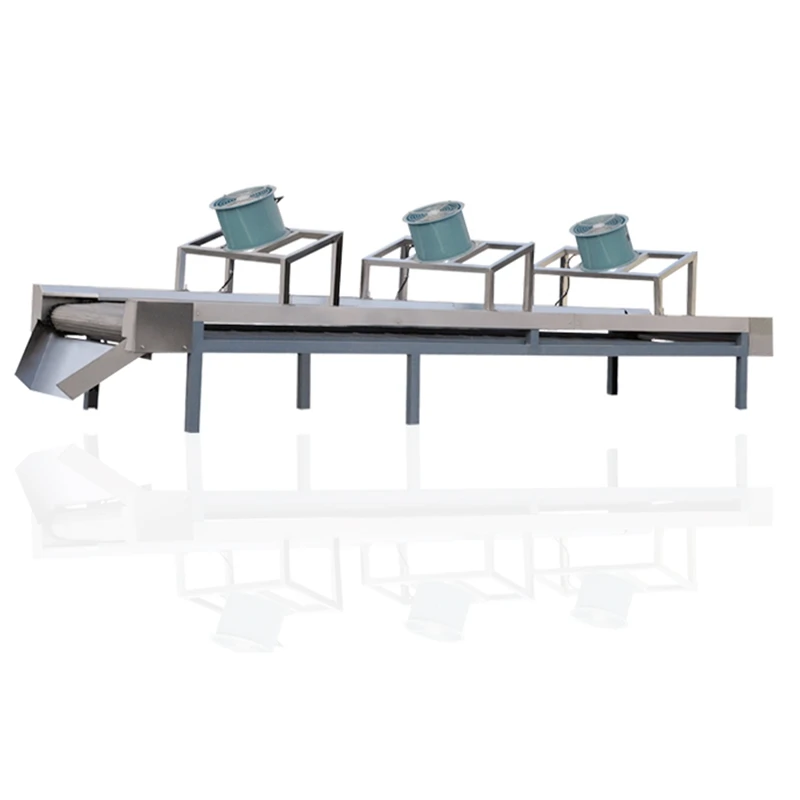

Cooling Machine
Technical Parameter: Power：0.77KW Dimension:6000 x 800 x 1000mm Out of the seasoning machine, surface must have a lot of oil, and the oven keypad for completely faded, 8 m mesh belt to reduce temperature of the material and make the oil content and have attractant is absorbed adequately and can reach the level of direct packaging.

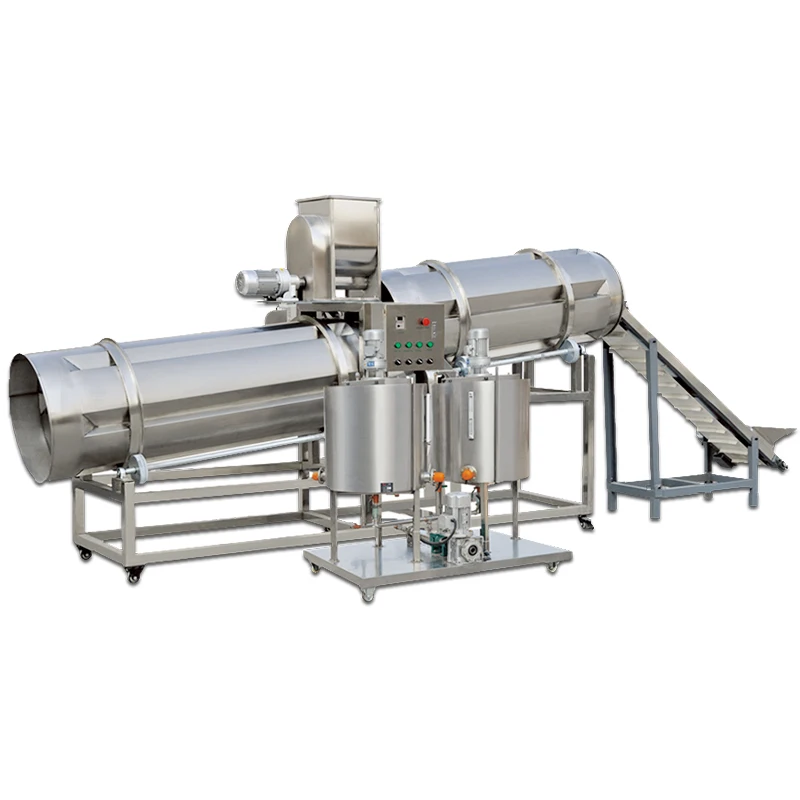

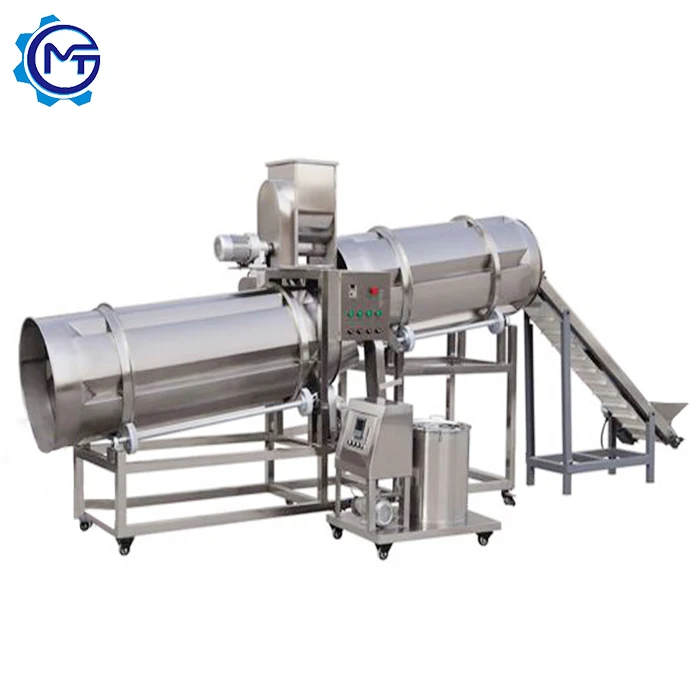

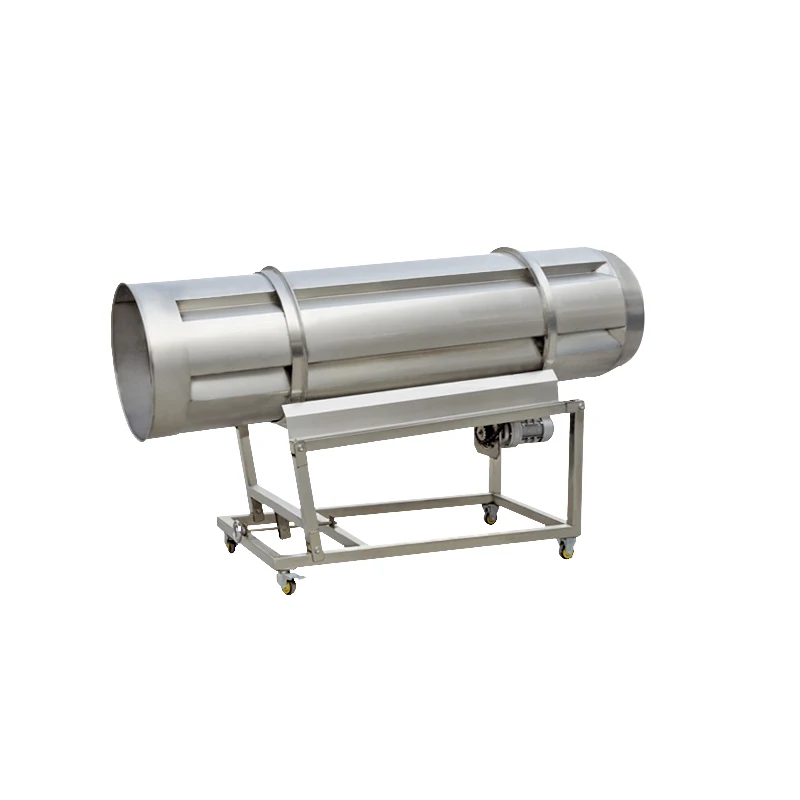

Seasoning line
It is used to spray the flavor powder and oil onto snacks evenly.Includes FOUR devices: Coating Drum, Oil Sprayer,Small Hoist and Flavor Sprayer.Stainless steel structure, especially the parts incontacting with the raw material or products;There are octagonal tube , cylinder, lifting single drum, double drum seasoning line, which is configured according to the output and the nature of the product.
Product show
Best Single screw extruder Dog /cat food extrusion machines pet food machines can do different kind of animal food feed,for example dog,cat,fish,brid and so on ,we just need change receipt and mould to come true,so its mutil-function processing line.

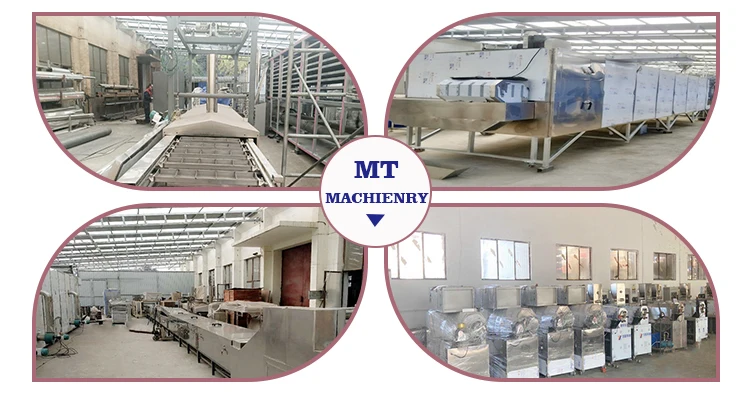

Company information
Jinan MT machinery & equipment Co,.Ltd is a professional engaged in the twin-screw and single-screw food expanding machinery enterprises, With our many years' research and study, machine have been widely used in many fields. We can also provide special designing machine. Free formula, local installation, workshop design, machine inspection service are provided, any need will be met if inquiries.
Our customer:
As a professional manufacturer, Jinan MT Co,. Ltd has exported Machines to more than 80 countries and regions , such as South Africa,India, Malaysia, Indonesia and so on. We hope to have long friendly business relationship with more customers.
As a professional manufacturer, Jinan MT Co,. Ltd has exported Machines to more than 80 countries and regions , such as South Africa,India, Malaysia, Indonesia and so on. We hope to have long friendly business relationship with more customers.
Certificate
We have got several certificates including CE ,Our company(MT Machinery Co., Ltd.'s has a comprehensive manufacturing program offering equipment and systems to customers in extruded snack food processing machinery and allied industries.
Packing & Delivery
Machines will be packed into wooden cases or wrapped by plastic film. Firstly, anti-rust oil is painted onto the machine, then wrap film and air bubble pad then to export non-fumigation wooden cases outside. Containers will be sent to our factory to load the machines and will be sealed before being sent out to make sure the safety of our machines.
Our Service
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free online debugging of equipment until everything is functional;
4. Free management of equipment long distance shipping from seller's factory to place by the buyer;
5. Free training of equipment maintenance and operating personally in the seller's factory;
6. Free new production techniques and formulas;
2. Free project planning and design services;
3. Free online debugging of equipment until everything is functional;
4. Free management of equipment long distance shipping from seller's factory to place by the buyer;
5. Free training of equipment maintenance and operating personally in the seller's factory;
6. Free new production techniques and formulas;
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Guarantee?
Within 12 months
Q:Contact Information?
Any question please contact us! Welcome to MT Machinery Co.,Ltd.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Guarantee?
Within 12 months
Q:Contact Information?
Any question please contact us! Welcome to MT Machinery Co.,Ltd.
