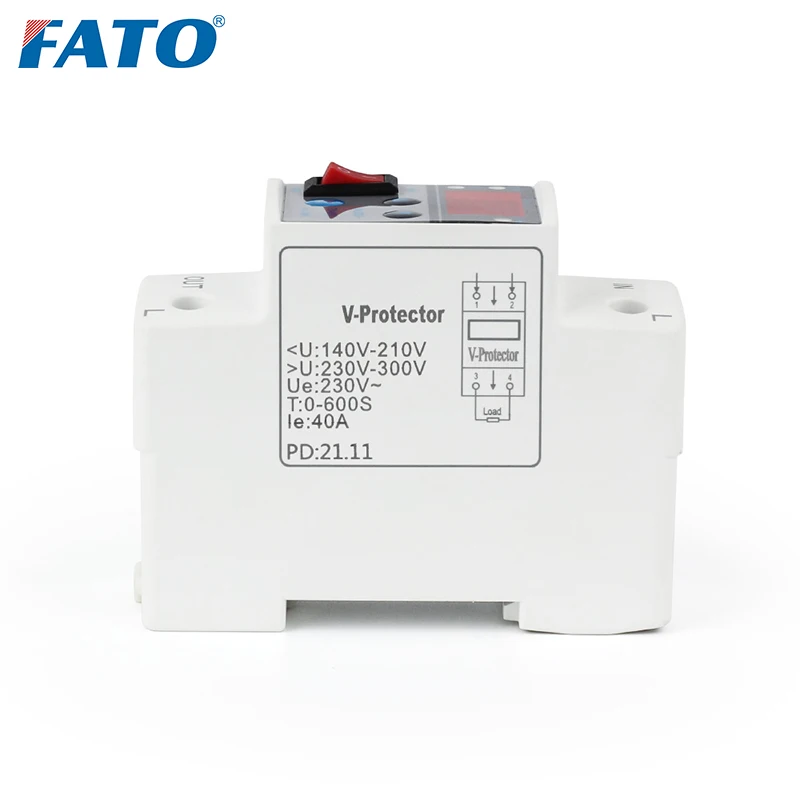

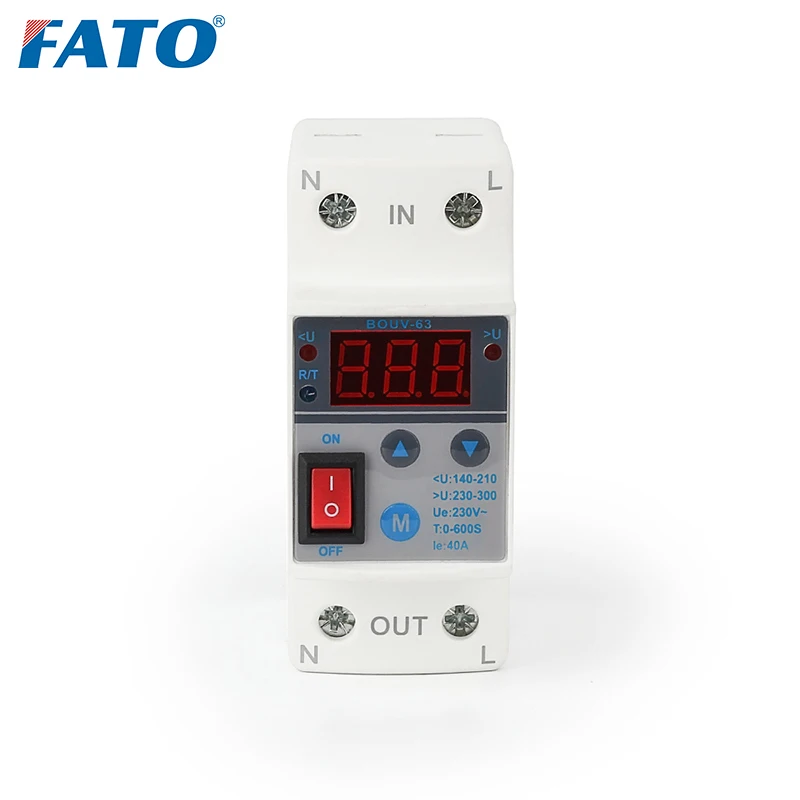

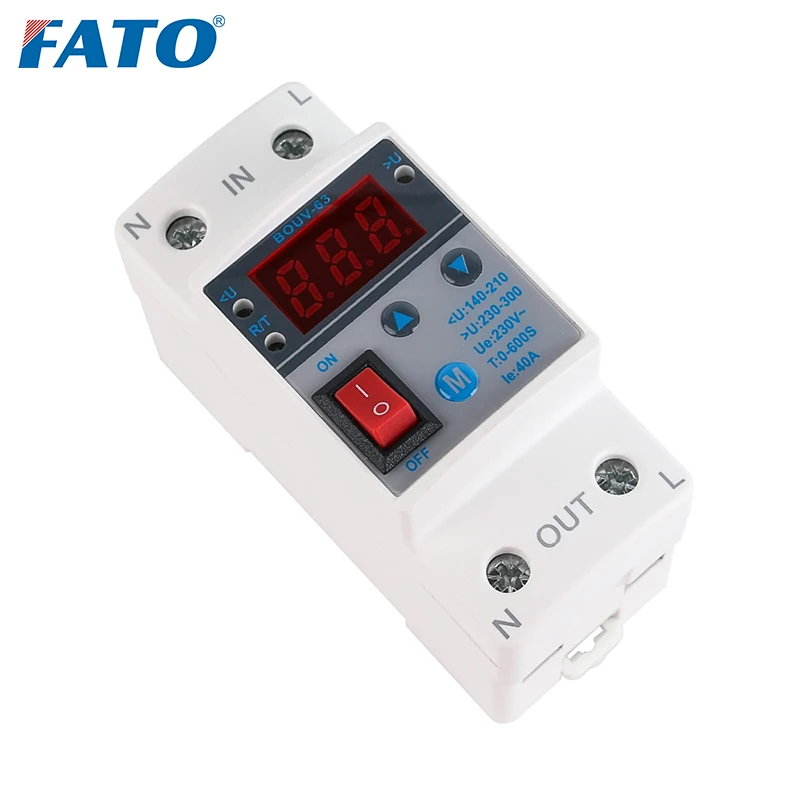

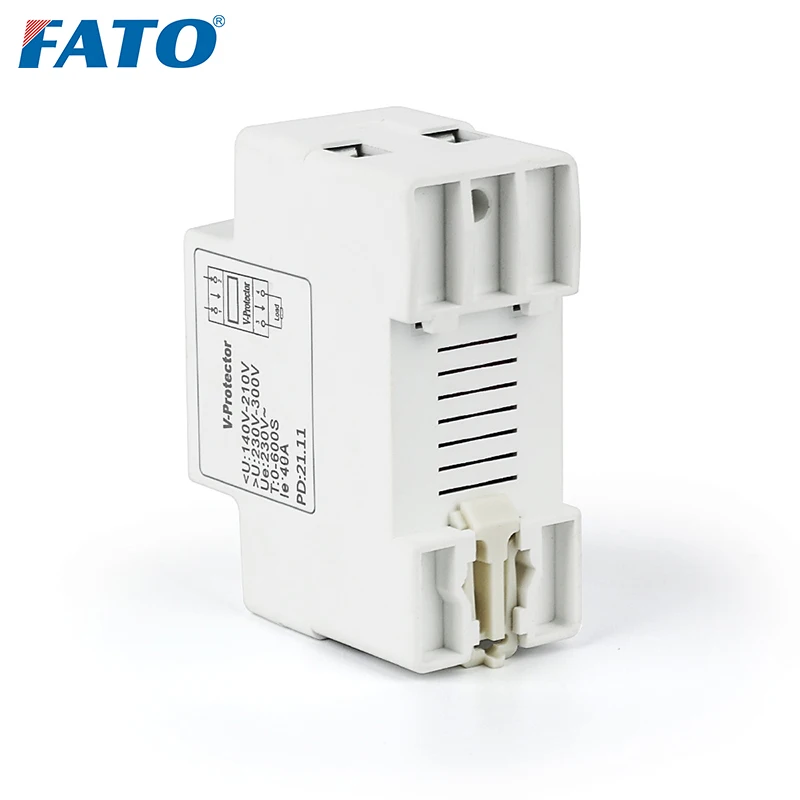

Fato Din Rail Digital Electric Voltage Protector Adjustable Over Under Voltage Protection 40A 230V

Product Overview

Description

Function:
1. Under voltage protection 210V-140V (adjustable)
2. Over voltage proteciton 230V-300V (adjustable)
3. Over current protection 1A-40A (adjustable)
4. Reconnect time (delay on time): 1s-300s (default: 5s)
5. Voltage meter
6. Ammeter
Rated voltage: 220V; Frequency: 50Hz/60HZ
Over current protection: 1A-40A (adjustable)
Under-voltage action switch-off value: 210V-145V (adjustable)
Over-voltage action switch-off value: 230V-300V (adjustable)
Reconnect time (delay on time): 1s-300s (default: 5s)
Error in real-time current, voltage : ≤5%







Microprocessor	import processing chip SSOP-32
Over current range	40A
Power delay time range	5s
Delayed recovery time range	1-300s
Operating voltage	AC 220V
Contact rating	40A

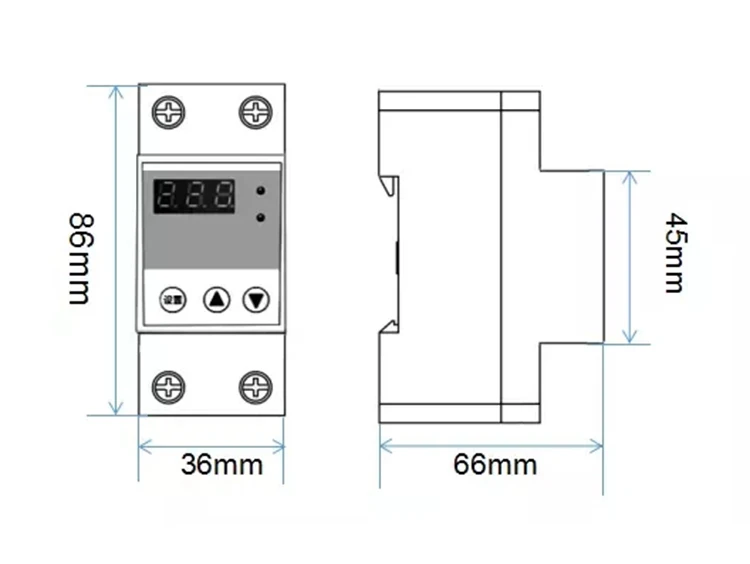

Dimension	81*36*60mm
Connection	Upper input &under output
Shell’s material	flame retardant nylon PA66
Rated current (A)	40A
Section area of conductor (mm²)	6 10 10 10











Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer a free sample depending on product types.



Q:Can you print our own logo?
A:Yes, we provide OEM/ODM services.



Q:How long is the quality guarantee?
A:18 months warranty,every products is inspected before they leave the factory.



Q: Do you have a catalog? Can you send me the catalog to see all your products?
A: Yes, we have e-catalog. Please contact us online or send us an e-mail to get it.



Q:How's the delivery?Because I really need them is urgently?
A: 5-10 days for inventory products and 7-20 days for customized products.



Q: What’s your main product?
A: Our main products include circuit breakers and transformers. We also have other low voltage apparatus as our minor products.



Q: What is your payment terms?
A: We accept T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight.



Q: Any certification of your company or product?
A:We have ISO 9001, CE, CB, SEMKO, SAA, TUV, CCC.
