Price:$52.00 - $55.00

Quantity:


Product Overview

Description



Product Description


1.Technical parameters:

Model:RD6006
Input voltage range: 6-70.00V

Output voltage range: 0-60.00V

Output current range: 0-6.000A

Output power range: 0-360.0W

Output voltage accuracy: ±(0.3%+3 digits)

Input voltage accuracy:±(1%+5 digits)

Output ripple typical: 100mV VPP

Constant voltage mode response time:

2ms（0.1A-5A load）

Constant voltage mode load adjustment rate :

±(0.1%+2 digits)

Constant current mode load adjustment rate:

±(0.1%+3 digits)

Screen brightness setting:
0-5 level total 6 levels

Weight(with package): 607g

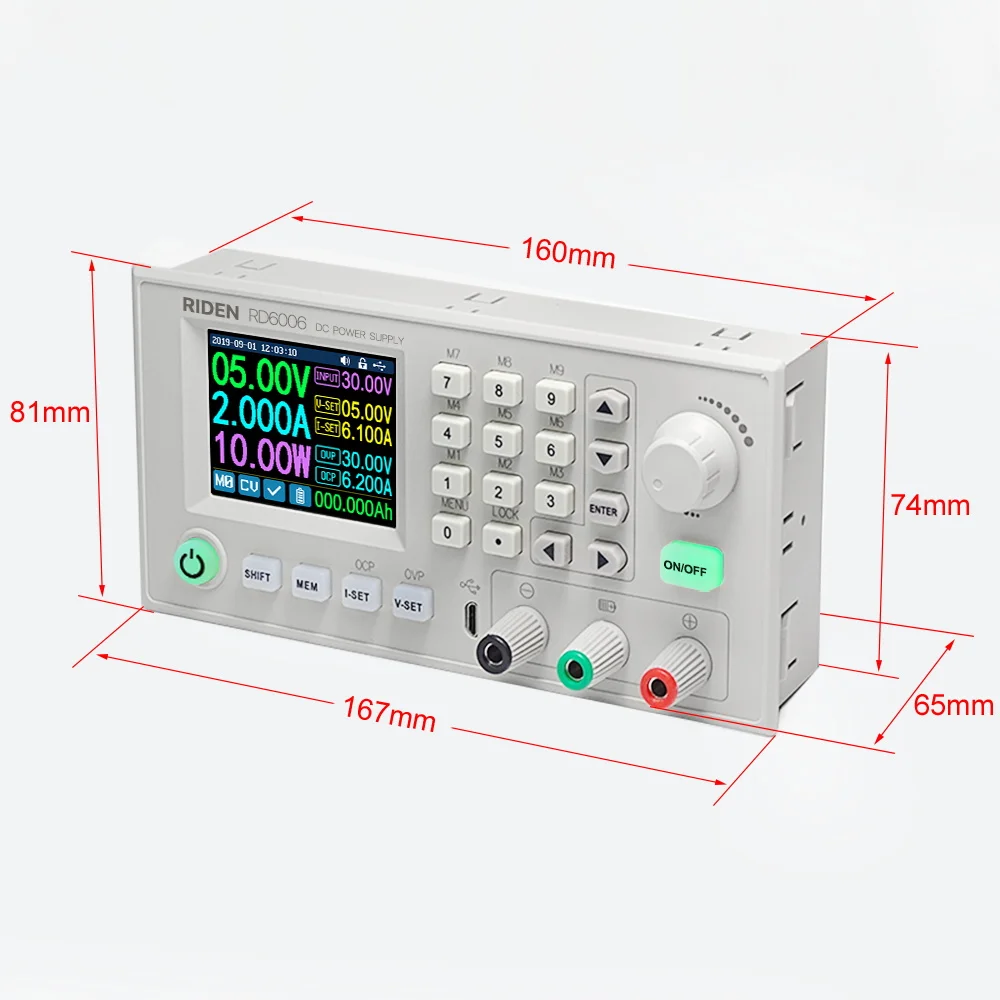

Product dimension:167*81*65mm


Display Screen:2.4 inch color LCD display

Input voltage measurement resolution: 0.01V
Output voltage measurement resolution: 0.01V
Current setting measurement resolution: 0.001A
Output current accuracy: ±(0.5%+5 digits)
Battery voltage measurement accuracy:
±(0.5%+3 digits)
Working temperature range:-10℃~40℃
External sensor Temperature detection range:
-10℃~100℃/0℉~200℉
External sensor Temperature detection accuracy:
± 3℃/ ± 6℉
Capacity measurement range:
0-9999.99Ah
Energy measurement range:
0-9999.99Wh
Capacity and energy statistical error: ±2％
Working mode: Buck mode
Voltage drop >1V and >10%


2.Detailed operating instructions, APP and PC software zipfile, refer to the URL:

https://drive.google.com/open?id=17V-JWHvqMF-NuWSznEiJ4RKrnn_Pkt5v


3.NOTE:

Note before buying:
1, RD6006 has two versions: RD6006 and RD6006-W,RD6006-W have WIFI board , RD6006 don't have . RD6006-W can use WIFI board to
connect APP and software, also use USB micro cable to connect PC solftware . RD6006 don't have WIFI board, only support PC
software by connecting with USB micro cable, no support APP.
2, for PC software, it only support win 7 and above for now. For APP, it only support android 5.0 and above. for APP and PC
software, please download first before buying , if you can download and install, you can make order, or else stop buying.

3.for APP and PC software, before buying, please download and install first, if it can't be install , stop buying. because some PC
language and phone system problem, it can't be install. so please check first before buying.



4.RELATED PRODUCT:

There are some models recommended





5.PRODUCT DESCRIBTION :




A: Power button
B: Second function button
C: Quick storage button
D: Current/Over current protection value setting
E: Voltage/Over voltage protection value setting
F: Micro USB interface
G: Power supply output negative electrode
Battery charging negative electrode
H: Battery charging positive electrode
I: Power supply output positive electrode
J: Output switch
K: encoder potentiometer/Cancel button
L: Direction button
M: Confirm button
N: keypad
O: Screen



Function description:
W: Time
AF: Protection status indication
X: Button tune
AG: Battery charging indication
Y: Button lock status
AH: Battery related information display area
Z: Communication interface
AM: Input voltage
AA: Actual output voltage
AL: Output voltage preset value
AB: Actual output current
AK: Output current preset value
AC: Output power
AJ: Over voltage protection value
AD: Current data group
AI: Over current protection value
AE: Constant voltage Constant current status
