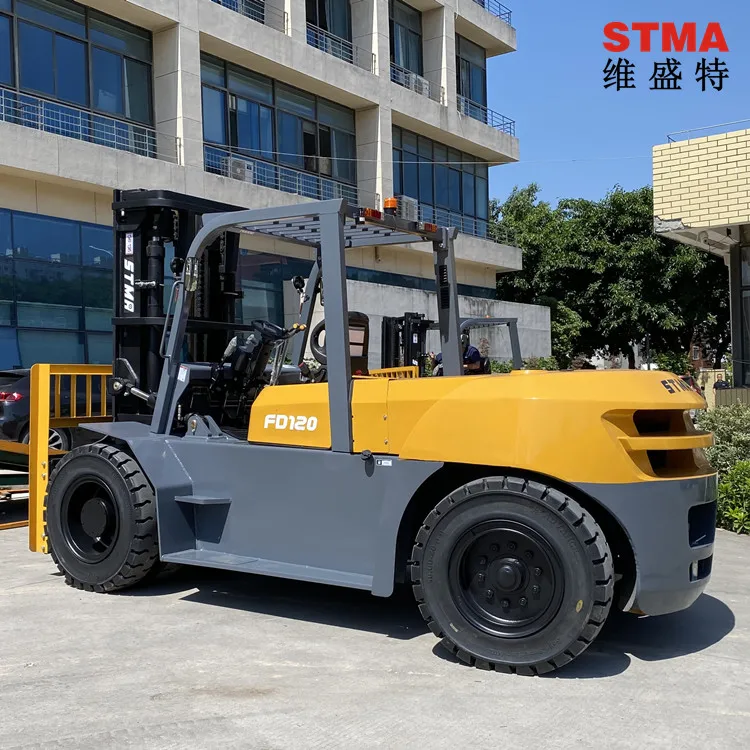

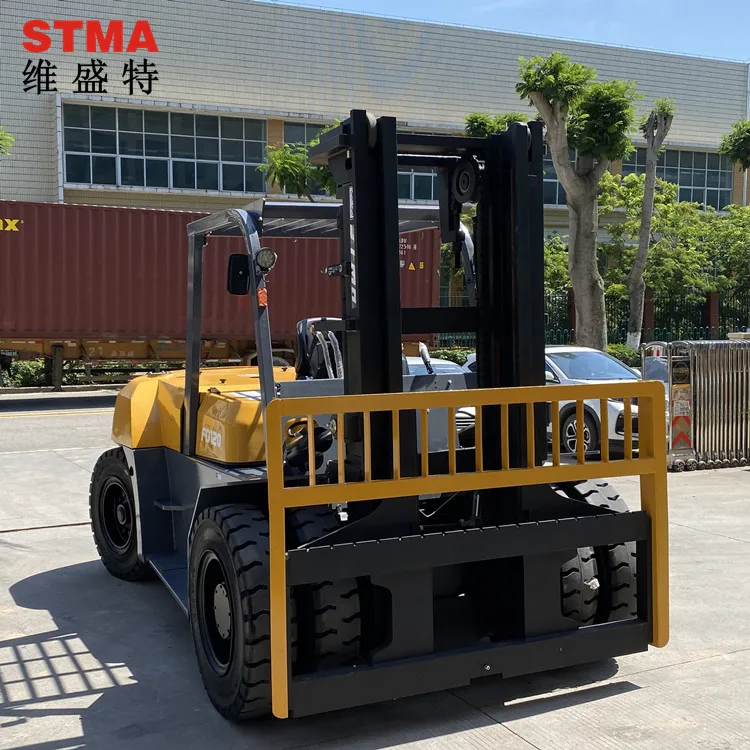

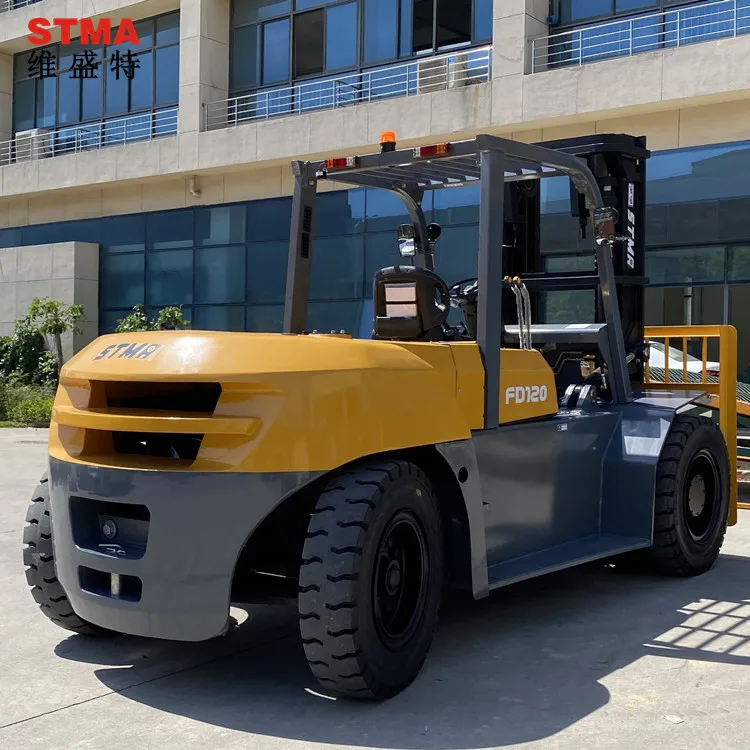

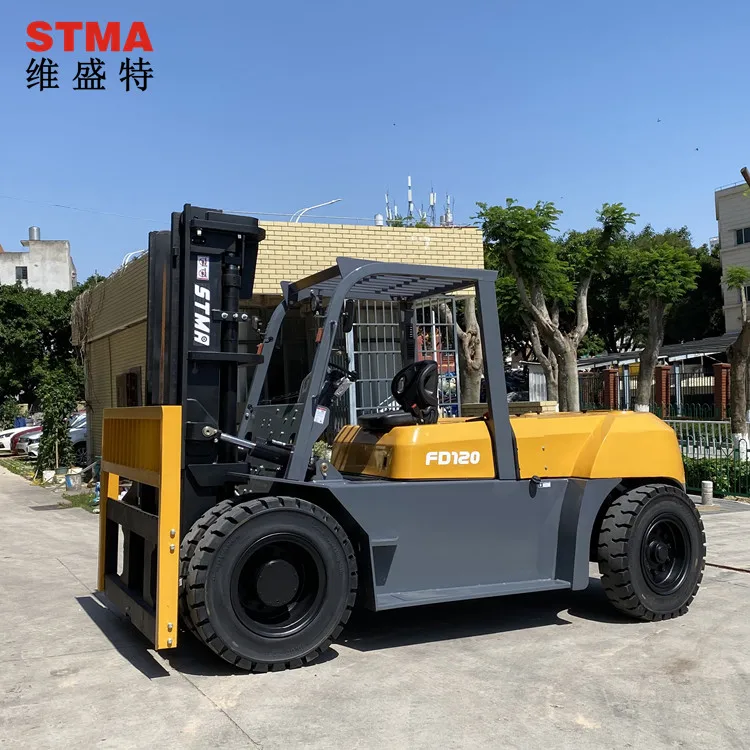

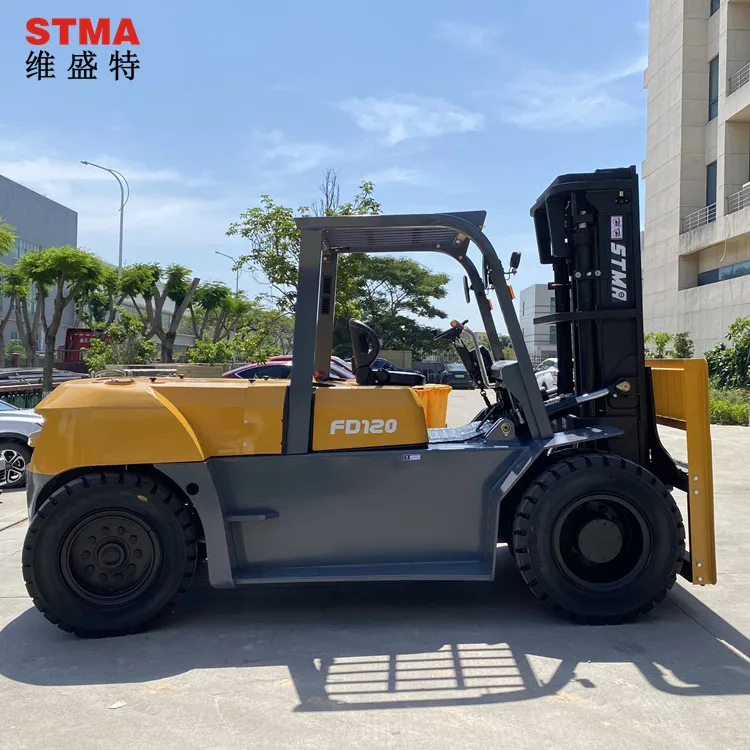

STMA brand diesel forklift 12 ton 12tn construction forklift with 2440mm fork length and Isuzu 6BG1 engine
STMA brand diesel forklift 12 ton 12tn construction forklift with 2440mm fork length and Isuzu 6BG1 engine
STMA brand diesel forklift 12 ton 12tn construction forklift with 2440mm fork length and Isuzu 6BG1 engine
STMA brand diesel forklift 12 ton 12tn construction forklift with 2440mm fork length and Isuzu 6BG1 engine
STMA brand diesel forklift 12 ton 12tn construction forklift with 2440mm fork length and Isuzu 6BG1 engine
STMA brand diesel forklift 12 ton 12tn construction forklift with 2440mm fork length and Isuzu 6BG1 engine
STMA brand diesel forklift 12 ton 12tn construction forklift with 2440mm fork length and Isuzu 6BG1 engine

STMA brand diesel forklift 12 ton 12tn construction forklift with 2440mm fork length and Isuzu 6BG1 engine

Share on (1600570244270):


Price:$35,355.00 - $35,555.00

Quantity:


Product Overview

Description



Product Description


STMA brand diesel forklift 12 ton 12tn construction forklift with 2440mm fork length and Isuzu 6BG1 engine


construction forklift

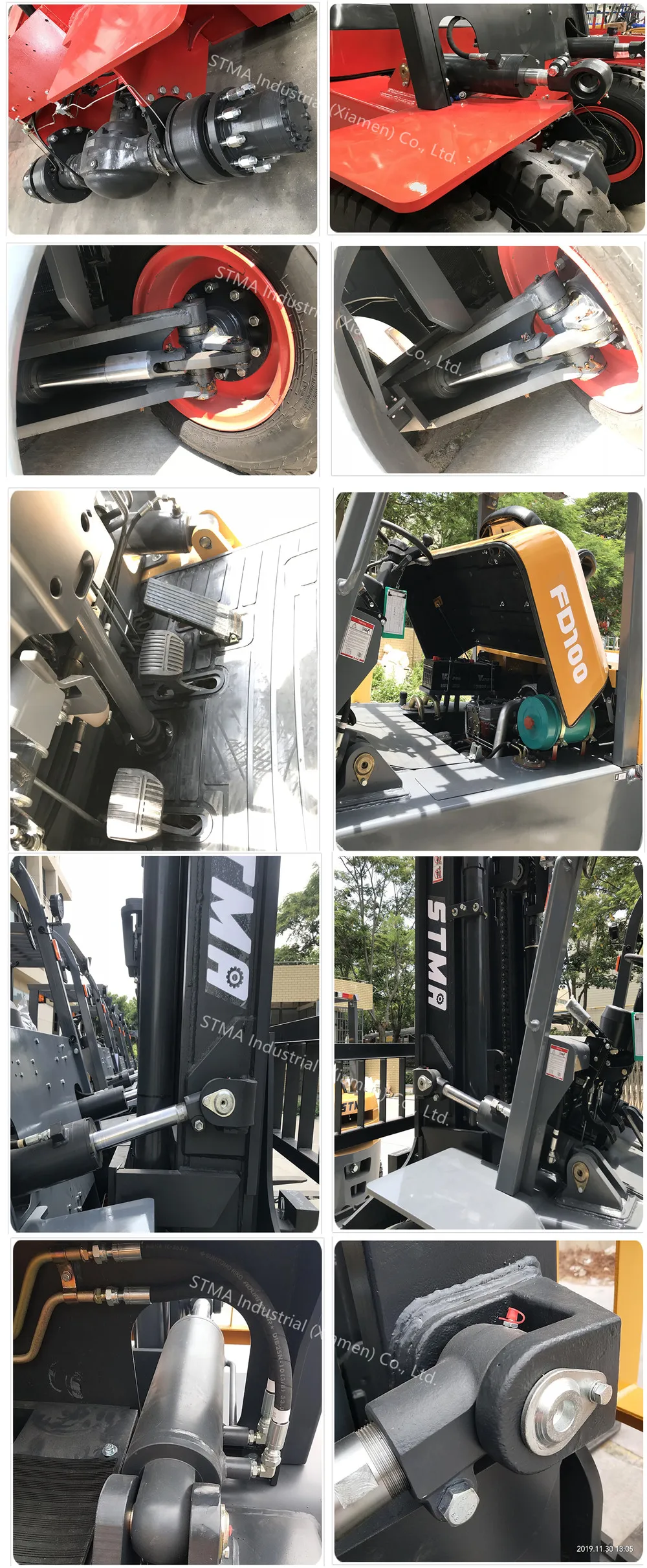

Detailed Image


Main features of diesel forklift 12 ton

1. With reversing radar, it is easy for the driver to operate.
2. The turning radius is small, and the steering is flexible and easy to operate.
3. All components are localized, cost-effective, and easy to maintain.
4. The lifting height is high enough, and the height can be designed according to customer requirements.
5. The cab is spacious and bright with a good view and air conditioning.
6. Equipped with a rear wheel lifter for easy tire change.
7. Optional four-wheel drive cross-country forklift, and optional four-disc brake system.
8. Non-slip, leak-proof patented devices.
9. The door frame is the exclusive frame of Geeld Machinery. More than ten years of improvement,suitable for a variety of high-intensity operations. Long life, durable and reliable.
10. Geeld Machinery Patent. The ultra-heavy front axle can carry up to 120 tons. It has various models and is suitable for the front axle of all large tonnage forklifts.
11. Using heavy truck-Steyr diesel engine, it has high power, low noise and low fuel consumption. Optional Yuchai, Cummins, Weichai, etc., according to user requests







SPECIFICATIONS FOR FORKLIFT 12 TON


Model
FD120
Power Type
Diesel
Rated Capacity
kg
12000
Load Centre
mm
600
Lift Height
mm
3000
Fork Size
L×W×T
mm
1520×170×80
Mast Tilt Angle
F/R
Deg
6°/12°
Front Overhang (Wheel center to fork face)
mm
770
Ground Clearance(Bottom of mast)
mm
250
Overall Dimension
Length to face of fork(Without fork)
mm
4700
Overall Width
mm
2200
Mast Lowered Height
mm
3100
Mast Extended Height(With backrest)
mm
4540
Overhead Guard Height
mm
2590
Turning Radius (outside)
mm
4450
Min. intersecting aisle
mm
4200
Speed
Travel (Full load)
km/h
25
Lifting(Full load)
mm/s
290
Max.Gradeability (No load/Full load)
%
20
Tire
Front
mm
9.00-20-14PR
Rear
mm
9.00-20-14PR
Wheelbase
mm
3200
Service weight
kg
15500
Battery
Voltage/Capacity
V/Ah
(12V/80Ah)x2

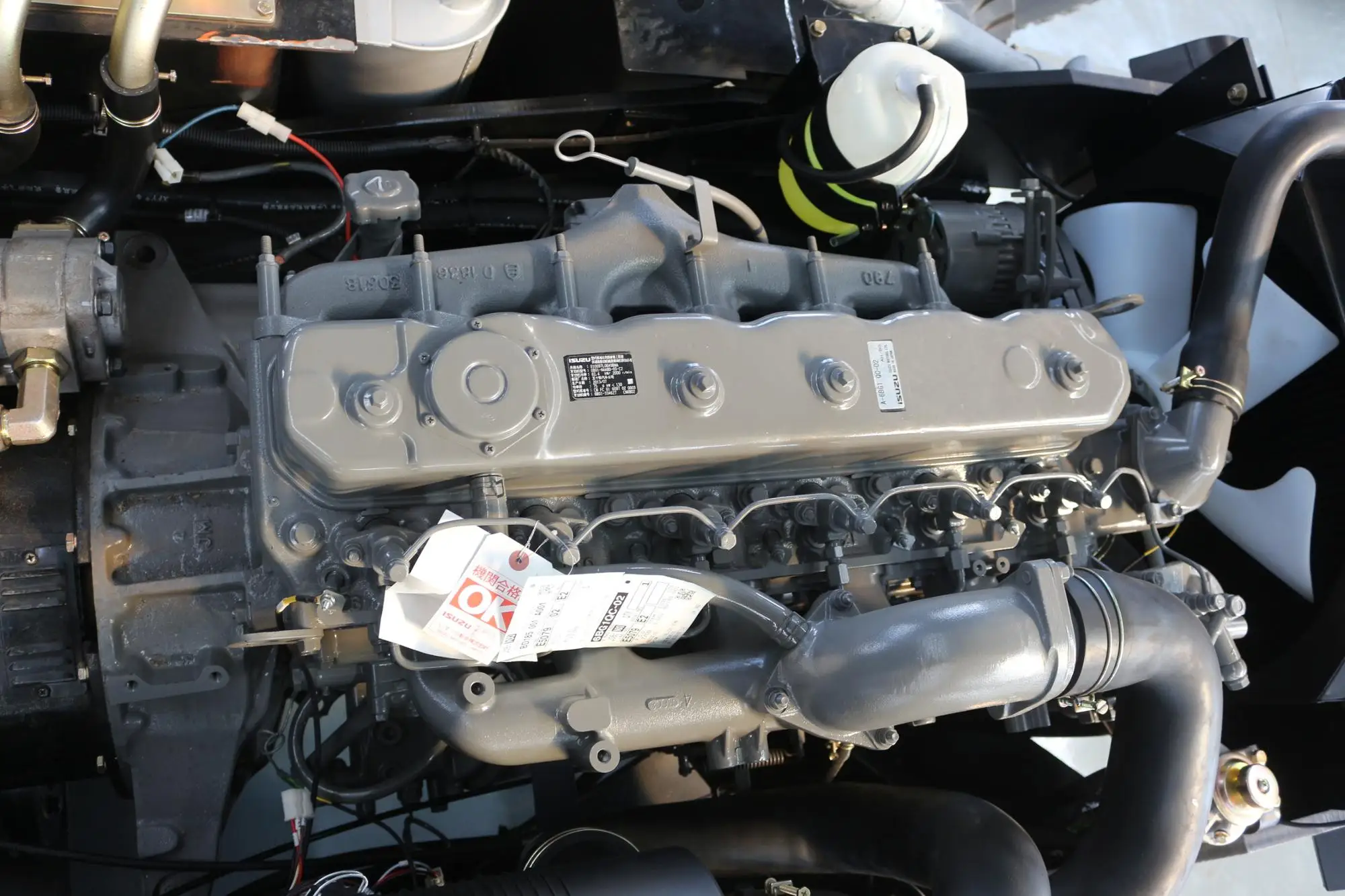

Engine
Model
6BT5.9-C130
Manufacture
Dongfeng DCEC
Rated output/r.p.m.
kw
97/2200
Rated torque/r.p.m.
N·m
560/1500
No.of Cylinder
6
Displacement
cc
5900
Fuel Tank Capacity
L
150
Transmission
Type
Powershift
Stage
FWD/RVS
2/2
