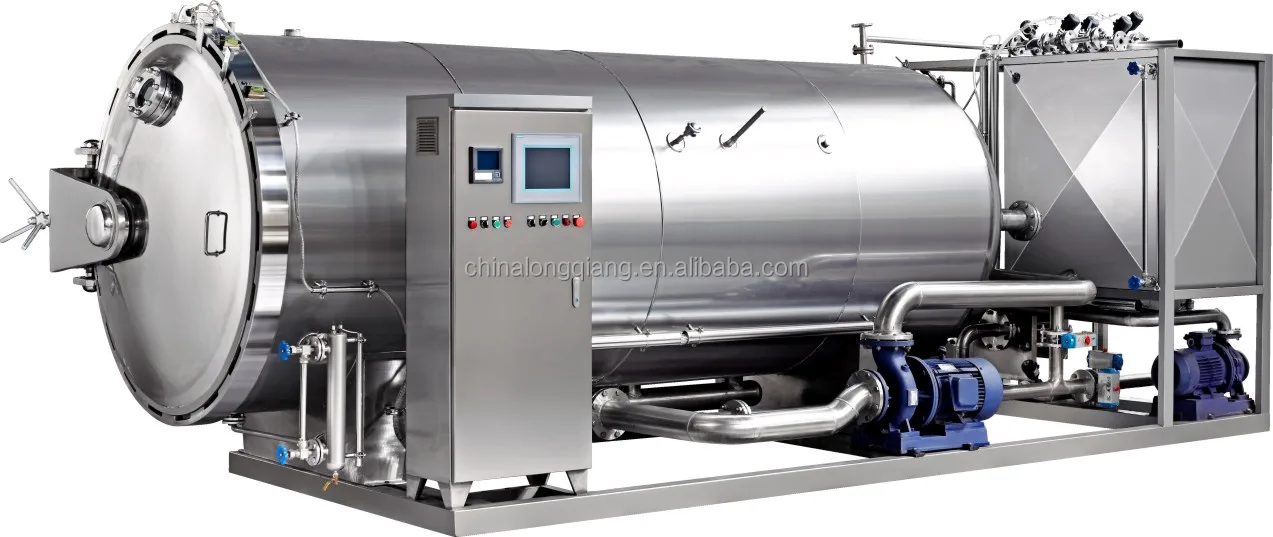

Small Scale Stainless Steel 304 retort machinery sea food equipment details autoclave kit water spray retort machine
- Category: >>>
- Supplier: Wenzhou Longqiang Machinery Tech. Co. Ltd.
Share on (1600570249191):
Product Overview
Description
Products Description
Products Description
EQUIPEMNT FEATURES
1. Direct heating & indirect cooling, cooling water and process water does not contact, which avoid the secondary pollution of the food. No water treatment chemicals, high temperature short time sterilization.
2. A small amount of process water cycle fast, and make the equipment reach the predetermined sterilization temperature quickly
3. Low noise, create quiet and comfortable working circumstance.
4. Perfect pressure control, pressure in the entire production process adjustment, to adapt to the change of internal pressure of product packaging, make the product packaging to meet minimum deformation degree, especially suitable for gas packing and two pieces of tin products.
2. A small amount of process water cycle fast, and make the equipment reach the predetermined sterilization temperature quickly
3. Low noise, create quiet and comfortable working circumstance.
4. Perfect pressure control, pressure in the entire production process adjustment, to adapt to the change of internal pressure of product packaging, make the product packaging to meet minimum deformation degree, especially suitable for gas packing and two pieces of tin products.
5. Process water preheating system can ensure that product which warm fill is continuous heating process
7. Stainless steel pot body surface by sand grinding processing, improve the surface hardness and corrosion resistance, especially corrosion resistance of cooling water to add chlorine.
8. To adopt stable advanced SIEMENS control system, to ensure that customers in the worldwide, can find the supply chain timely and reduce downtime.
9. The industry one of the few highly sophisticated equipment and strict production process in the worldwide, to ensure the quality of the whole class.
10. Steam sterilization function (optional)
11. Saving installation space, convenient operation, saves the manpower(simply operating directly with control cabinet)
12. Be suitable for beverages, food industry for mass production to feeling and discharge automatically when loading and unloading. It is more convenient in the future in the industry automatic equipment of unmanned workshop.
13. Up open/ side open (optional).

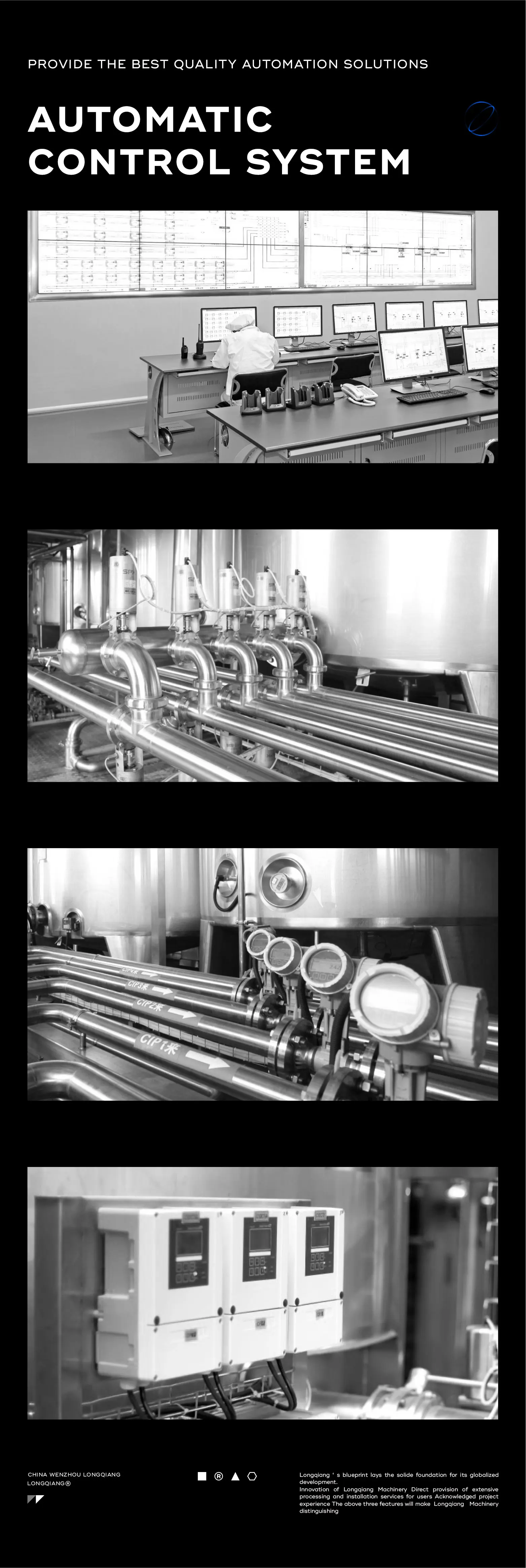

14. The entire sterilization process adopt PLC automatic linear control, tank thermal distribution of temperature control in the plus or minus 0.5℃, multi-stage heating, energy saving, equipped with F value measurement function (optional), can store 250 sterilization formula.
6. To use domestic flange and the top parts of the superior quality, head is made of one –tome cold press forming, and after aging, vibration when using won’t produce the deformation and stress.
7. Stainless steel pot body surface by sand grinding processing, improve the surface hardness and corrosion resistance, especially corrosion resistance of cooling water to add chlorine.
8. To adopt stable advanced SIEMENS control system, to ensure that customers in the worldwide, can find the supply chain timely and reduce downtime.
9. The industry one of the few highly sophisticated equipment and strict production process in the worldwide, to ensure the quality of the whole class.
10. Steam sterilization function (optional)
11. Saving installation space, convenient operation, saves the manpower(simply operating directly with control cabinet)
12. Be suitable for beverages, food industry for mass production to feeling and discharge automatically when loading and unloading. It is more convenient in the future in the industry automatic equipment of unmanned workshop.
13. Up open/ side open (optional).
14. The entire sterilization process adopt PLC automatic linear control, tank thermal distribution of temperature control in the plus or minus 0.5℃, multi-stage heating, energy saving, equipped with F value measurement function (optional), can store 250 sterilization formula.
Suitable for
Suitable for
A fully functional autoclave is applicable to all kinds of high temperature resistant packaging material.

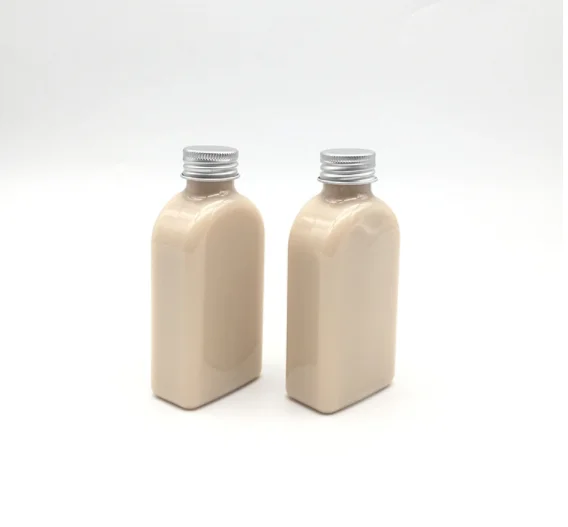

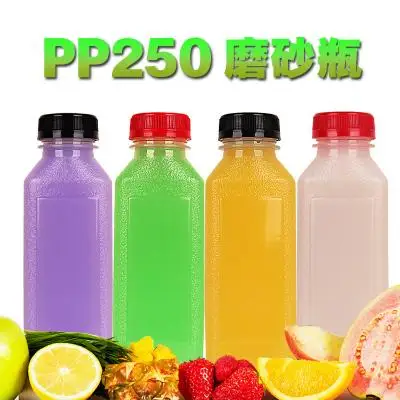

PP bottle
HDPE bottle

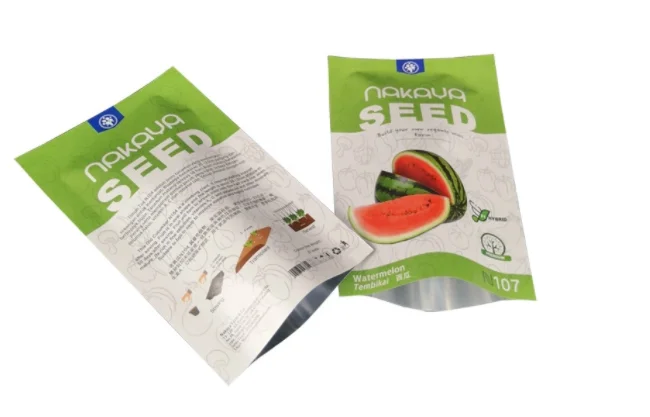

Aluminum foil bags
.

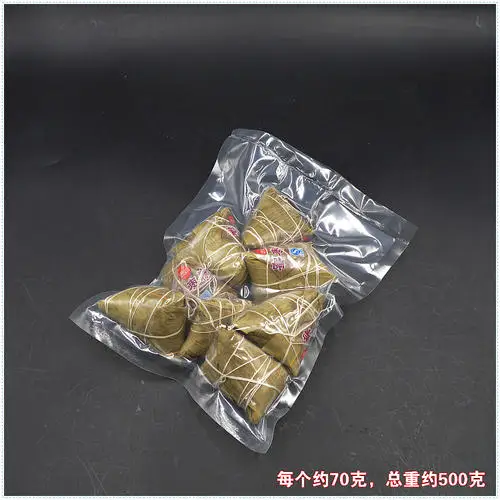

Vacuum bags or high temperature cooking bags
Tinplate cans

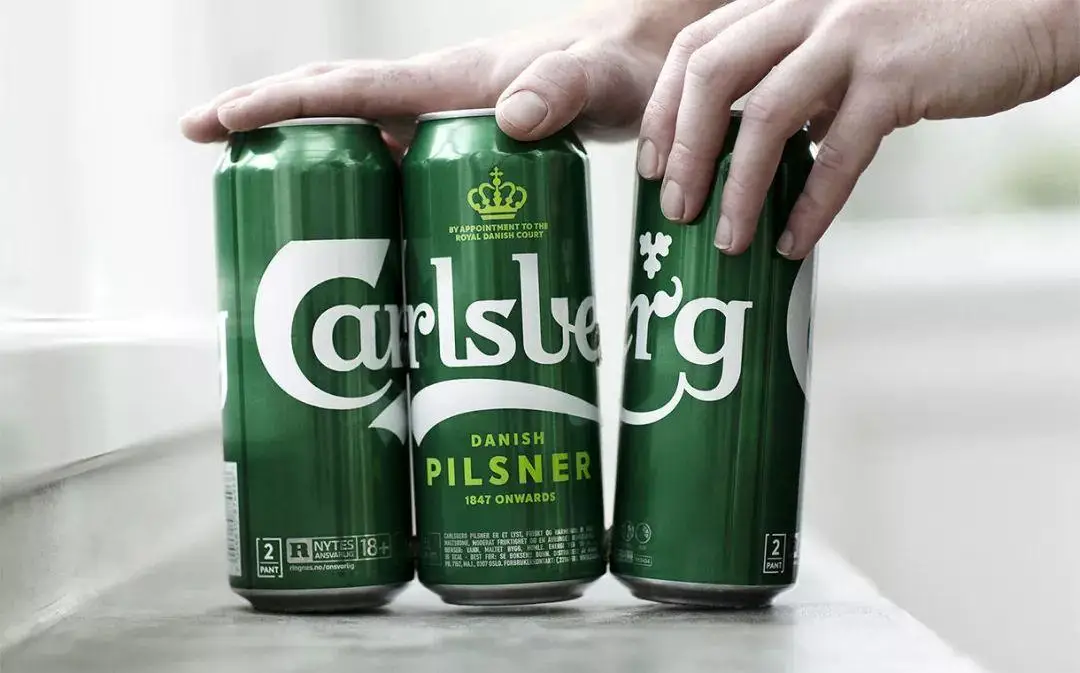

Aluminum cans
Product Paramenters
| Item | Unit | 500# | 1200# | 1300# | 1500# | 1600# | |||||
| Length | mm | 800 | 3000 | 3750 | 4000 | 3750 | 4000 | 4000 | 5000 | 6000 | 6000 |
| Overall Length | mm | 1300 | 5500 | 6250 | 6500 | 6250 | 6500 | 6500 | 7500 | 8500 | 8500 |
| Total Width | mm | 800 | 1600 | 1600 | 1600 | 1800 | 1800 | 2000 | 2000 | 2000 | 2200 |
| Total High | mm | 1000 | 1700 | 1700 | 1700 | 1800 | 1800 | 2000 | 2000 | 2000 | 2100 |
| Effective Volume | m³ | 0.1 | 2 | 2.52 | 2.69 | 3.03 | 3.24 | 4.16 | 5.2 | 6.2 | 7.26 |
| Food Basket | pcs | 2 | 3 | 4 | 4 | 4 | 4 | 4 | 5 | 6 | 6 |
| Steam Consumption | kg/batch | 80 | 200 | 250 | 270 | 300 | 300 | 360 | 430 | 530 | 630 |
| Equipment Power | kw | 3.7 | 15 | 16.5 | 16.5 | 18.5 | 24 | 24 | 26 | 27.5 | 27.5 |
| Design Temperature | 145°C | ||||||||||
| Test Pressure | 0.44MPA | ||||||||||
| Design Pressure | 0.35MPA | ||||||||||

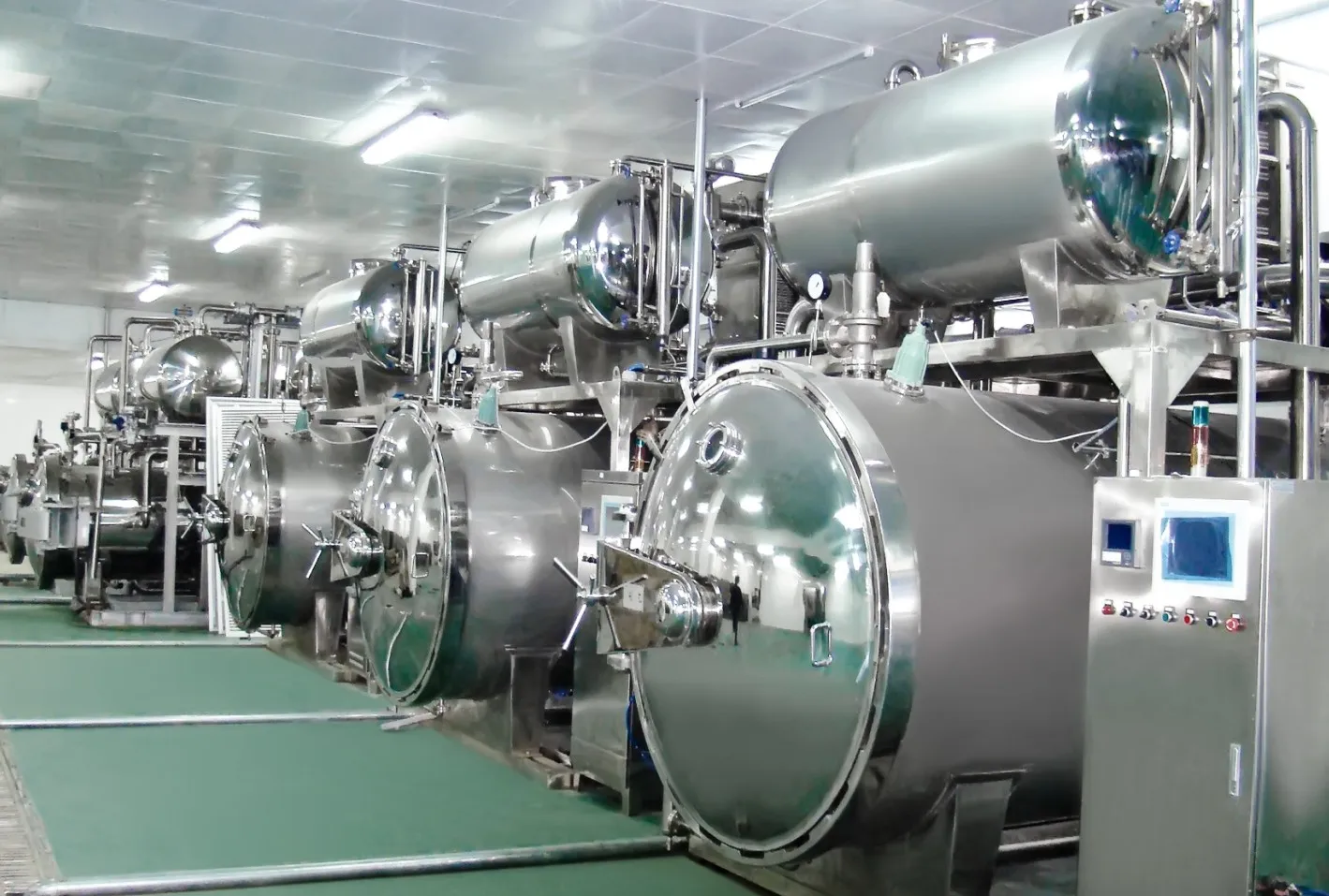

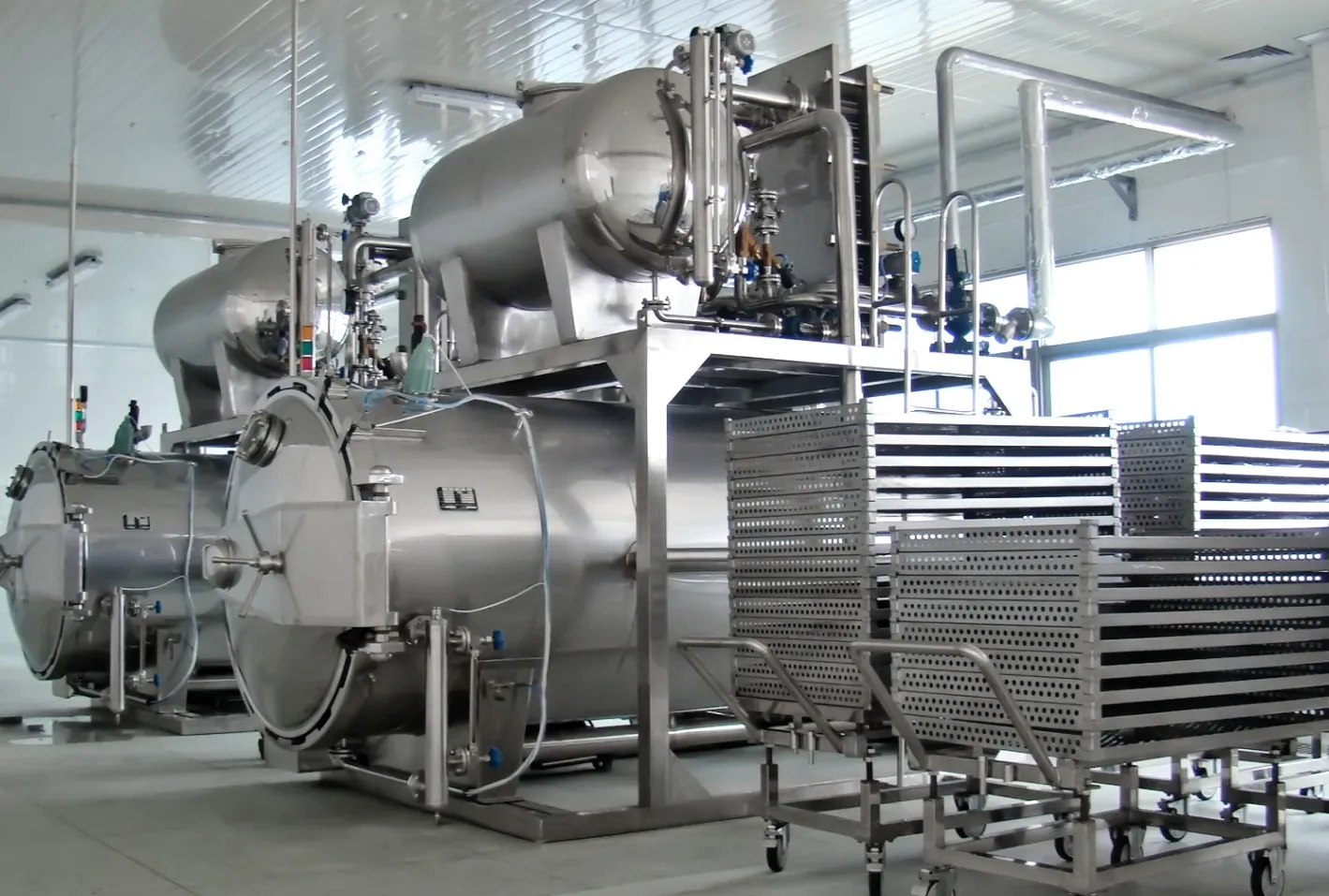

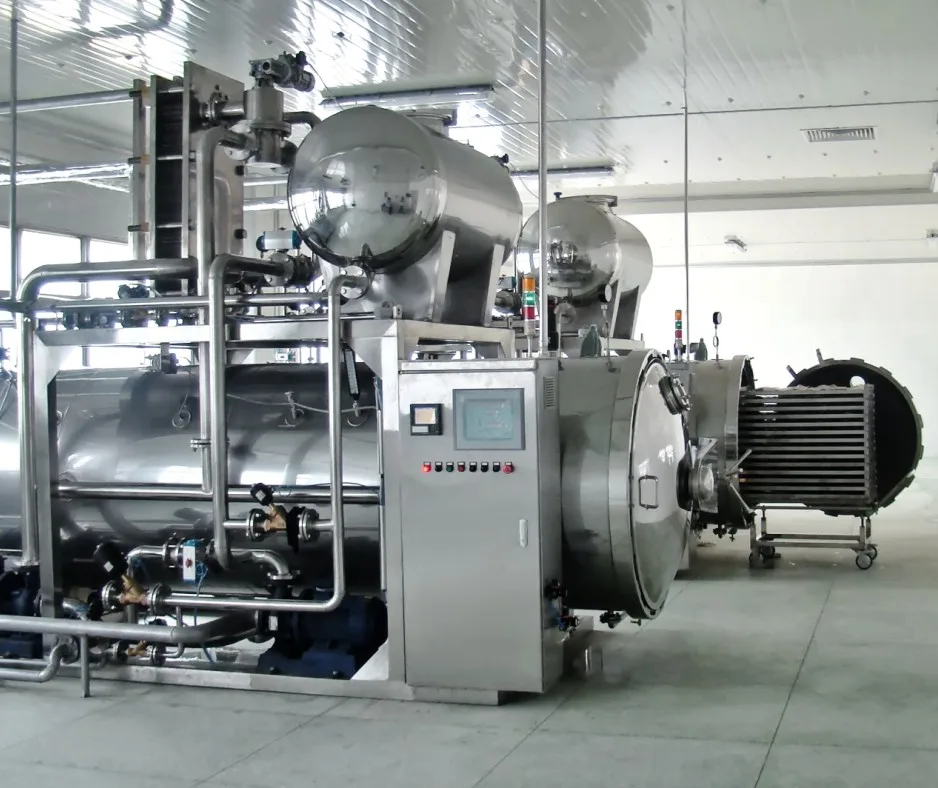

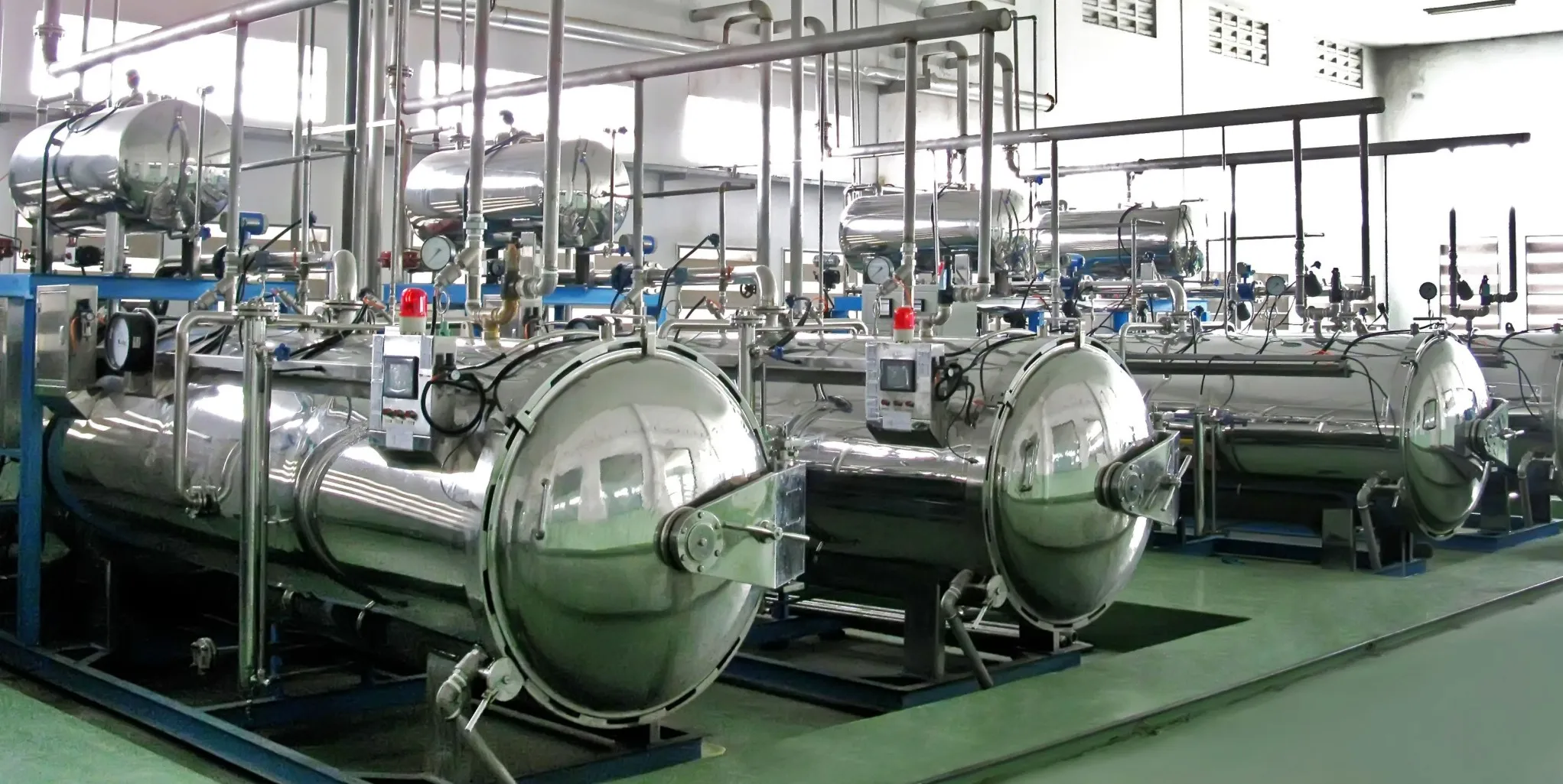

Project examples
Project examples
