RGB Backlit On Off Led Switch Programmable 8 Gang Switch Panel Waterproof
- Category: Auto Switches >>>
- Supplier: Shenzhen Nova Lighting Co. Ltd.
Share on (1600570256305):
Product Overview
Description
Business Partner
What Partners Are We Looking For?
Shenzhen Nova's business partners including agent, wholesaler, distributor, small business buyers! They sell our products online or offline (such as online store, auto parts store, repair shop, 4S shop, etc.).
We do not sell for personal private purpose.
What We Can Support You?
As a factory, we had built up our warehousing system in the United States and Australia since 2019! There are plenty of instock and inventory of switch panel power systems, LED light bars, LED light pods, light harness and accessories that we can offer 48-72 hours fast dispatch service and low minimum order requirement to all of our potential customers and regular customers.
No need to concerning about high MOQ for mass production, or waiting for long shipping time, or worrying about expensive shipping cost, we had already take good care of that.
Products Description
Why do you need a switch panel power system?
This switch panel power distribution system makes installing aftermarket lights so much easier! It offers a perfect solution to clean up all wiring harnesses through a single switch panel and compact size control box. This switch panel system allows you to connect and control 8 car auxiliary led lights or electronic devices once a time.
Fitment - 12 volt 24 volt
This complete package of power control system fits for all 12 or 24 volt vehicles, pickup, truck, powersports, utv, boat, marines, suv, etc. Available with flexible or fix mount brackets. For most of the cases, users can mount the it overhead the rear view mirror or overhead liner, onto the dashboard, nearby the steering wheel, or take the place of the factory ashtray, or in the car trunk bed, etc.
What's the most advantages of this switch panel?

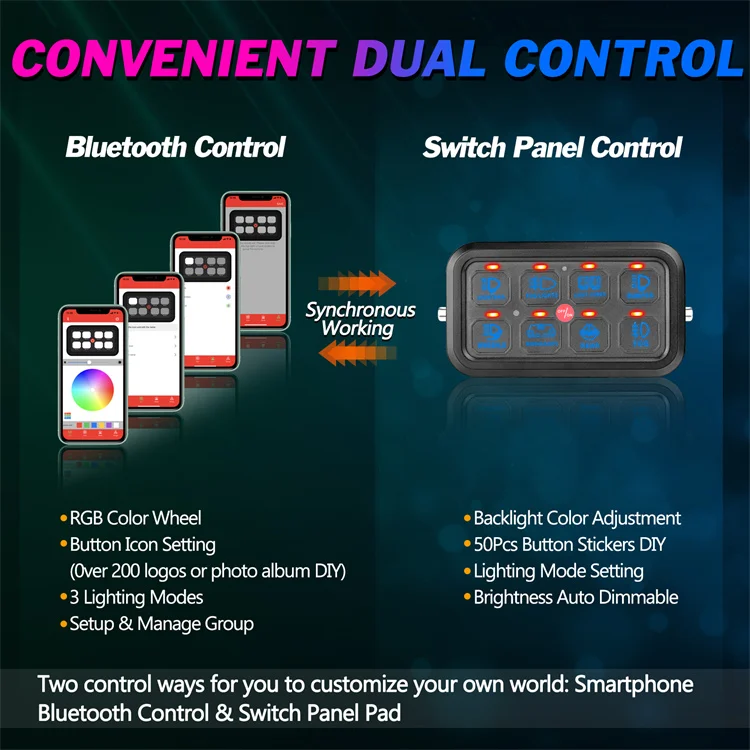

Comparing with those blue or green backlit switch panel boxs on the current market, the biggest advantages of this switch panel power system is programming and control via panel or smart phone, blue tooth interface. The app name is Switch Panel. Users can download it from phone app store directly. For example, if users connecting eight led lights to the switch panel, you can turn these lights on or off inside the cab where you mount the switch panel, or you can step outside the car, power the lights on or off in 10 meters away via a finger touch on your phone app.
What's the point of RGB programmable?
There are many options of 12v switch panels on the market, some of them are in fixed green or blue backlit with five different brightness options, some of them are designed with automatically dimmable function. But there are still some customers wants more backlit color choices rather than green or blue, where to get them? Now with our updated RGB programmable 8 gang switch panel power distribution system, we take good care of all your needs and concerns!
This switch panel's backlit color can be changed and modified via phone app or switch panel operation, there are 64 different backlit colors can be operated via the panel, and over 16 millions RGB colors via phone app operation to fulfill your needs.
As for the backlight brightness. Users can fix the brightness via phone app control. It's automatic dimmable. Which means the brighter the surrounding is, the brighter the back light brightness will be; and vice versa. In this case, users will never need to worry about too much brightness and eye attention during night driving.

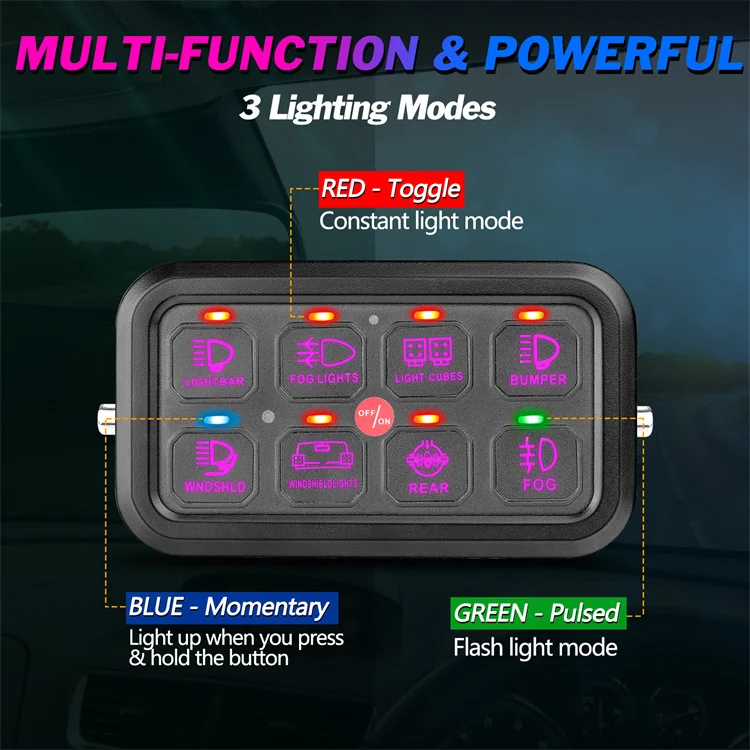

What's Toggle, Momentary, Pulsed light mode?
Accessory circuit 1-8 of the switch panel can be operated as Toggle, Momentary or Pulsed Mode. By default, the switch panel comes out of the box set for Toggle Mode.
Toggle Light Mode - Which means pressing the circuit or button once to power on the connecting LED light bar or LED light pods, and press it again to power it off.
Momentary Mode - The connected LED light will be lighted up each time you press the circuit or the button, and when you relax your finger the LED lights will be shut off. Exactly like the case of a horn use. Customers could use this function for warning signal or horn.
Pulsed Light Mode - This is when you press the button or the circuit on the panel, the connected LED light will be lighted up and keep flashing or strobing. Press down the circuit again to turn it off.
What's Group Function?
Generally speaking, when operating the switch panel, users need to press down each circuit or button to power on or off the connected LED lights or car electronic devices. For instance, if all 8 circuits are connected with LED lights, users need to do 8 times pressing to turn on or off the LED lights. But with this group function set up via phone app operation, things are different. User could make group No. 1 of all front mounted LED lightings from your vehicle, group No. 2 of all rear reverse backup mounted led lighting, and so forth, maximum 4 different groups. And when user press any circuits or buttons from group No. 1, all front mounted lights will be turned on or off at the same time. And vise verse for the rest 3 groups.

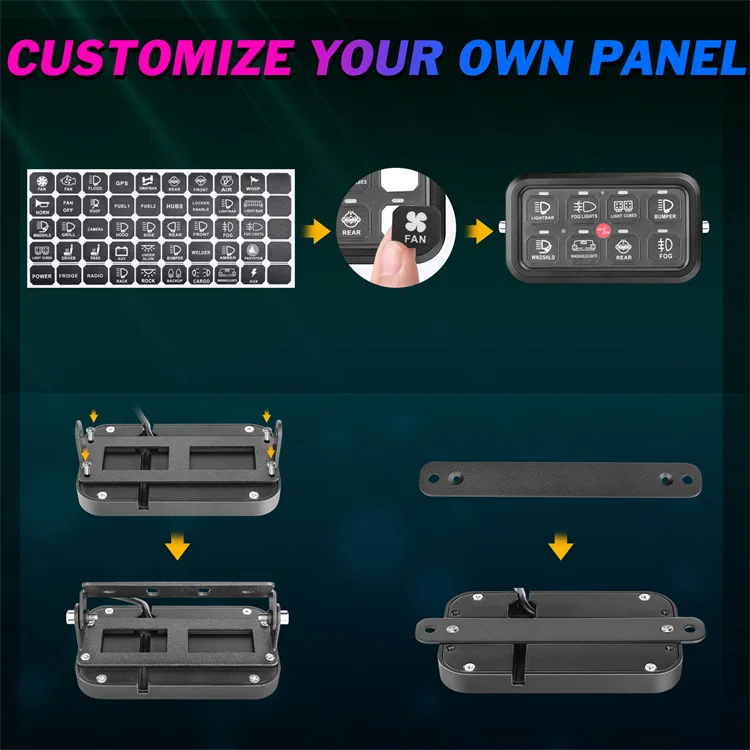

User Selectable Switch Legends
By default, there is a sheet of 50 stickers. 45 of them are printing with labels and icons, 5 of them are black and blank. Users could select the needed legends while installation, and stick the blank sticker on it if you are not going to use all 8 switches for the beginning, so the blank circuit will not shine your eyes and beging disrupted while driving.
Users could also DIY and name each circuit with personal images or pictures from your cell phone while operating the switch panel with the phone app control.

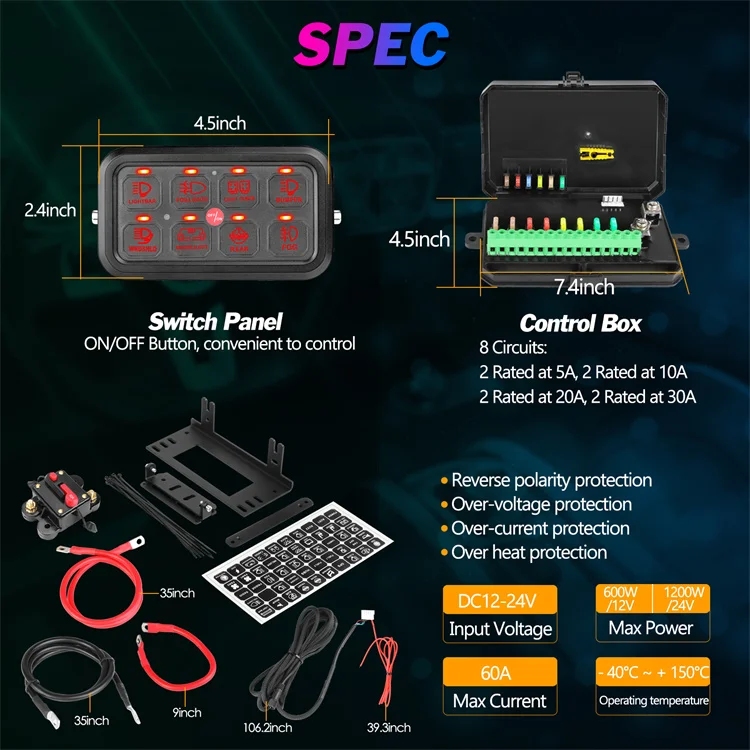

Switch Panel Specifications
Panel size: 4.5 x 2.5 x 0.5 inch
Panel material: ABS and aluminum
Switches: 8 in total
Panel cover: transparent and plastic
Control box size: 7.4 x 4.3 x 1.3 inch
Control box shell: Plastic material
Control box material: aluminum
Maximum input: 12 or 24 volt
Current and draw: 60 amps max
Output power: max 600 or 1200 watts
Reverse polarity protection, overload protection, overcurrent protection and thermal protection.
What's In the Box:
(1) Switch panel
(2) Switch panel mount brackets
(1) Control box
(1) Control box mount bracket
(1) Extension power harness 106 inch
(3) Power harnesses
(1) 60 Amps circuit breaker
(6) Back up auto fuses
50 Switch labels
Mount hardware and zip ties
Installation sheet
Check below product video to display how to use this RGB Backlit On Off Led Switch Programmable 8 Gang Switch Panel Waterproof
FAQ
Question: Is the switch button waterproof?
Answer: Yes, it is.
Question: How long is the wiring from the switch panel to the control box?
Answer: The extension power harness is 106 inch in length, or say 8 in feet.
Question: Can I get a more longer or extra wiring?
Answer: Yes, please send your demands to our sales rep..
Question: Where to connect the small red cable?
Answer: ACC or say ignition power, so it will not drain off your battery power.
Question: Is there a momentary option for such as horn?
Answer: Yes. Same as the Momentary Mode mentioned in above.
Question: Can I dim the bright led backlight?
Answer: Yes, the backlight brightness is automatic dimmable and can be modified via phone app operation.
Question: How many backlight colors are there?
Answer: Over 16 million RGB colors available for the backlit via phone app operation, and 64 backlit color choices if operating via the panel itself.
Question: How many amps can you run per switch?
Answer: 2 Rated at 5 amps, 2 at 10A, 2 at 20A, 2 at 30A.
Question: Can I switch the fuse of 30amps to the position of 5 amps circuit?
Answer: This is not recommended.
Question: How do you connect to the connectors numbered1-6?
Answer: The control box itself has the connection pieces already made on it, just slide your wire in and squash the connection pieces.
Question: Can I get more sticker or legend options?
Answer: Yes for customized needs, with MOQ requirements.
Question: Can I buy for my car used?
Answer: No. We do not sell for personal private use.
Question: How soon could you send the order out when I paid?
Answer: 48-72 Hours for in stock switch panels.
Question: Is your price without shipping cost?
Answer: Free shipping cost.
Question: Do you have a warehouse and inventory?
Answer: Yes, we have warehouse in the United States.
