ZXV 618 AC1200 DualBand Wi Fi Wireless ADSL/ VDSL Modem Router
ZXV 618 AC1200 DualBand Wi-Fi Wireless ADSL/ VDSL Modem Router
ZXV 618 AC1200 DualBand Wi-Fi Wireless ADSL/ VDSL Modem Router
ZXV 618 AC1200 DualBand Wi-Fi Wireless ADSL/ VDSL Modem Router
ZXV 618 AC1200 DualBand Wi-Fi Wireless ADSL/ VDSL Modem Router
ZXV 618 AC1200 DualBand Wi-Fi Wireless ADSL/ VDSL Modem Router
ZXV 618 AC1200 DualBand Wi-Fi Wireless ADSL/ VDSL Modem Router

ZXV 618 AC1200 DualBand Wi Fi Wireless ADSL/ VDSL Modem Router

Share on (1600570303732):


Price:$24.00 - $27.50

Quantity:


Product Overview

Description



Products Description

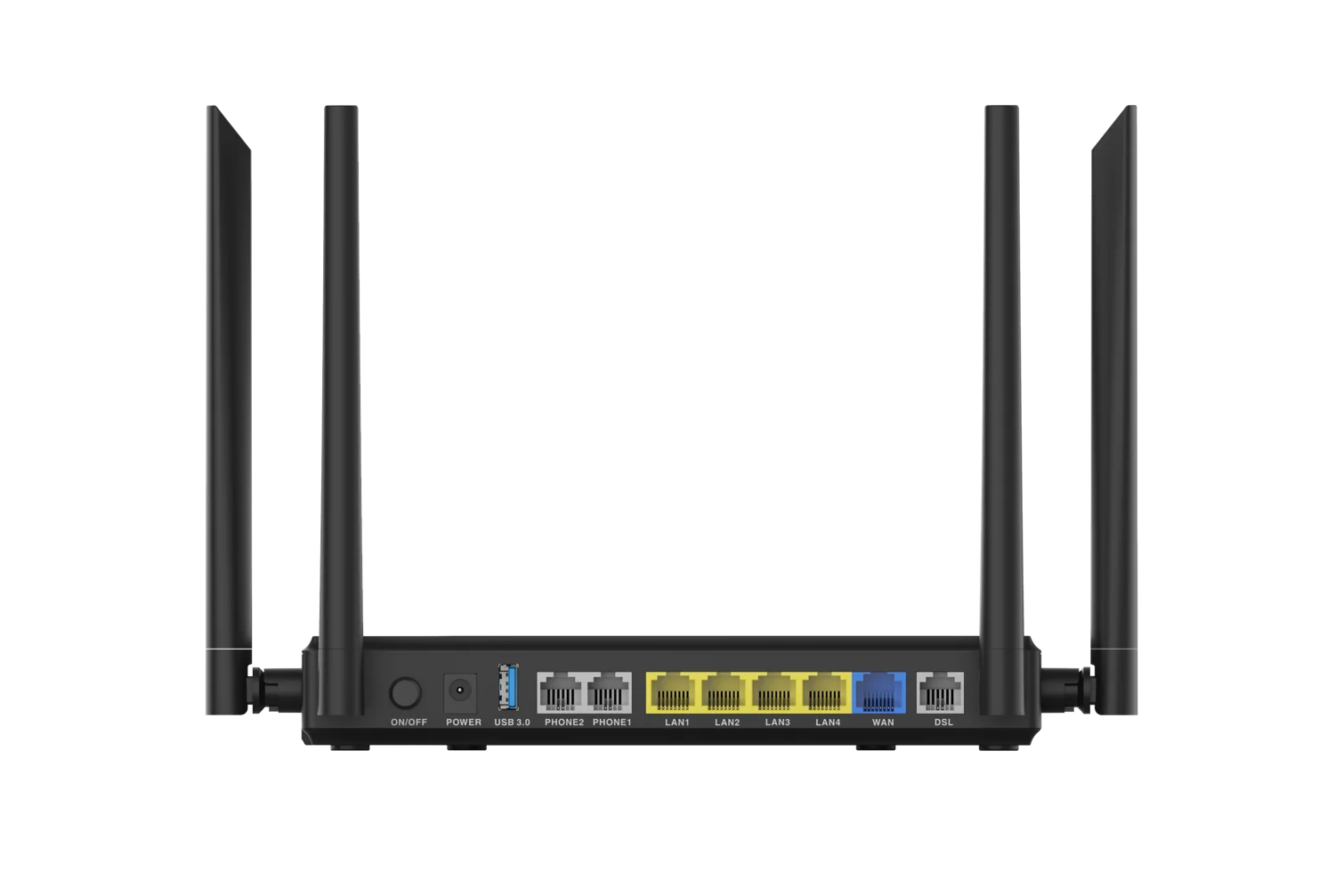

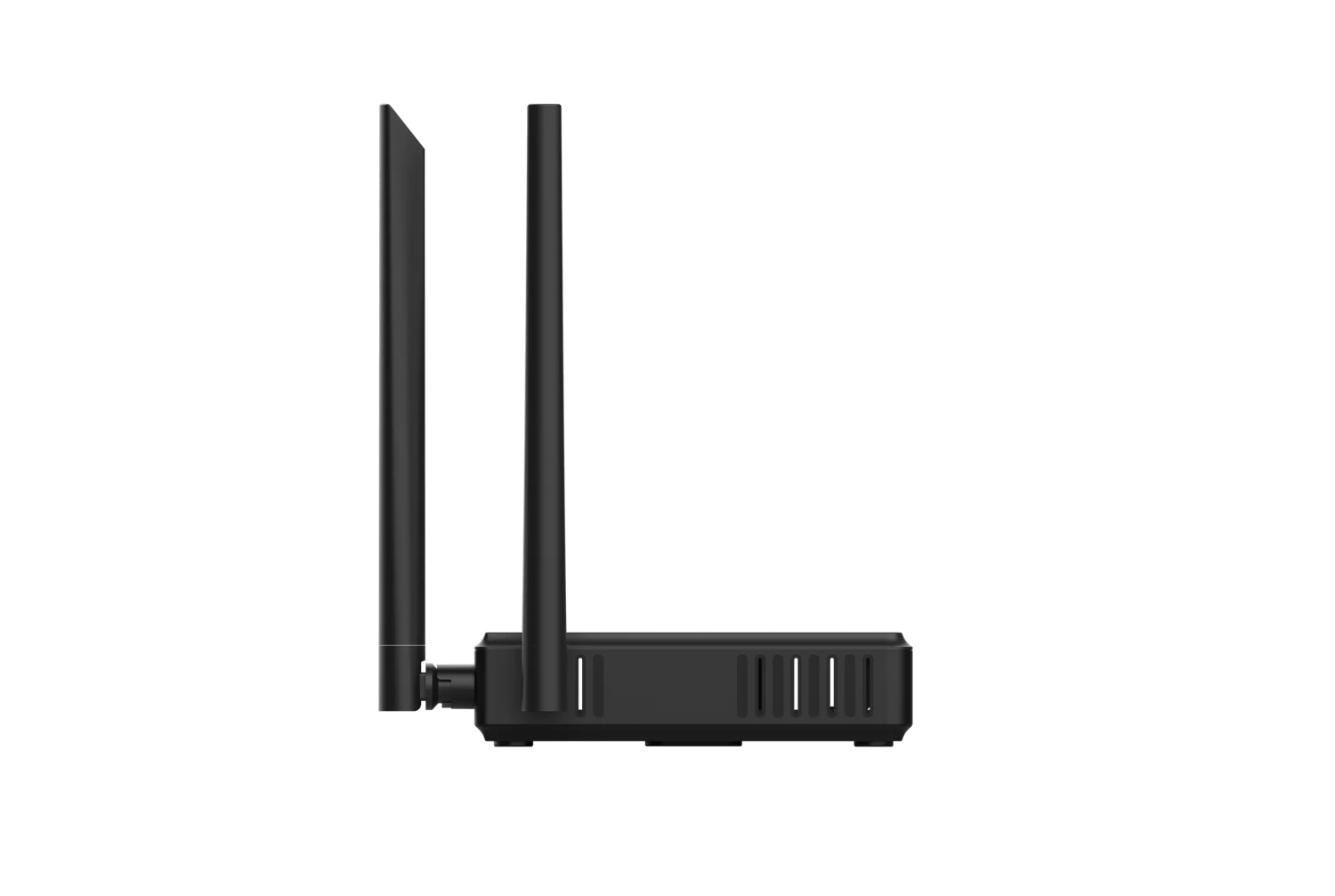

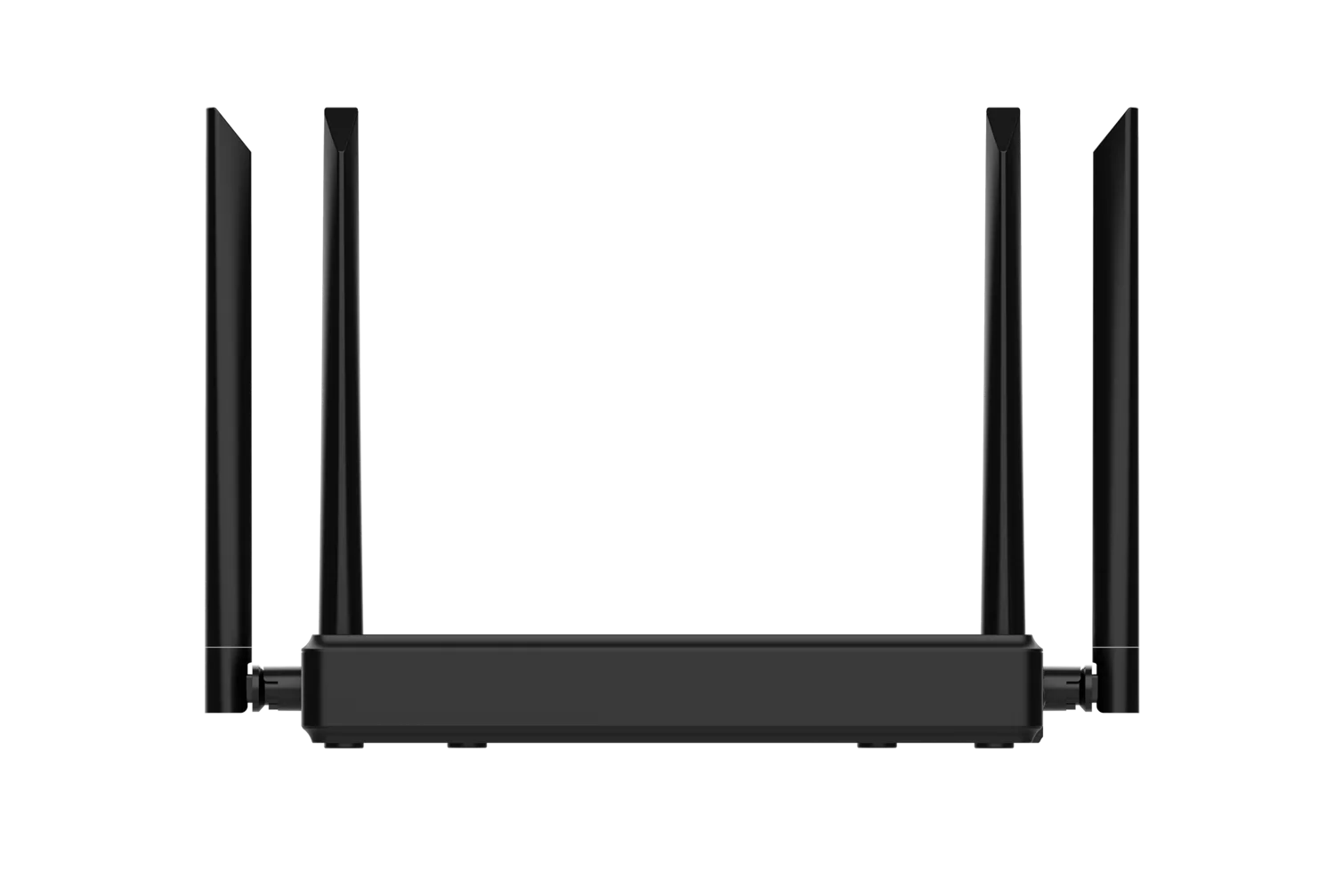

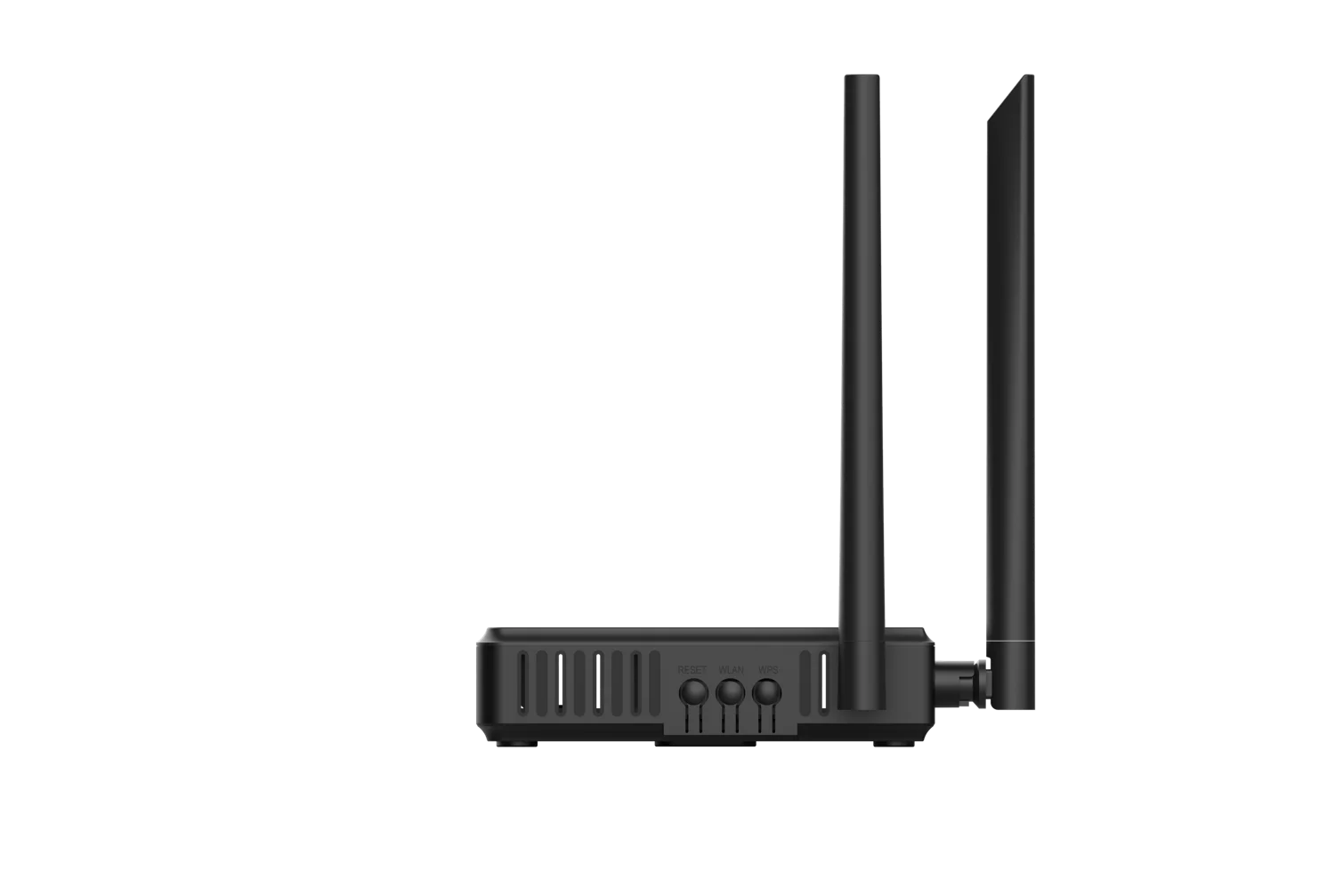

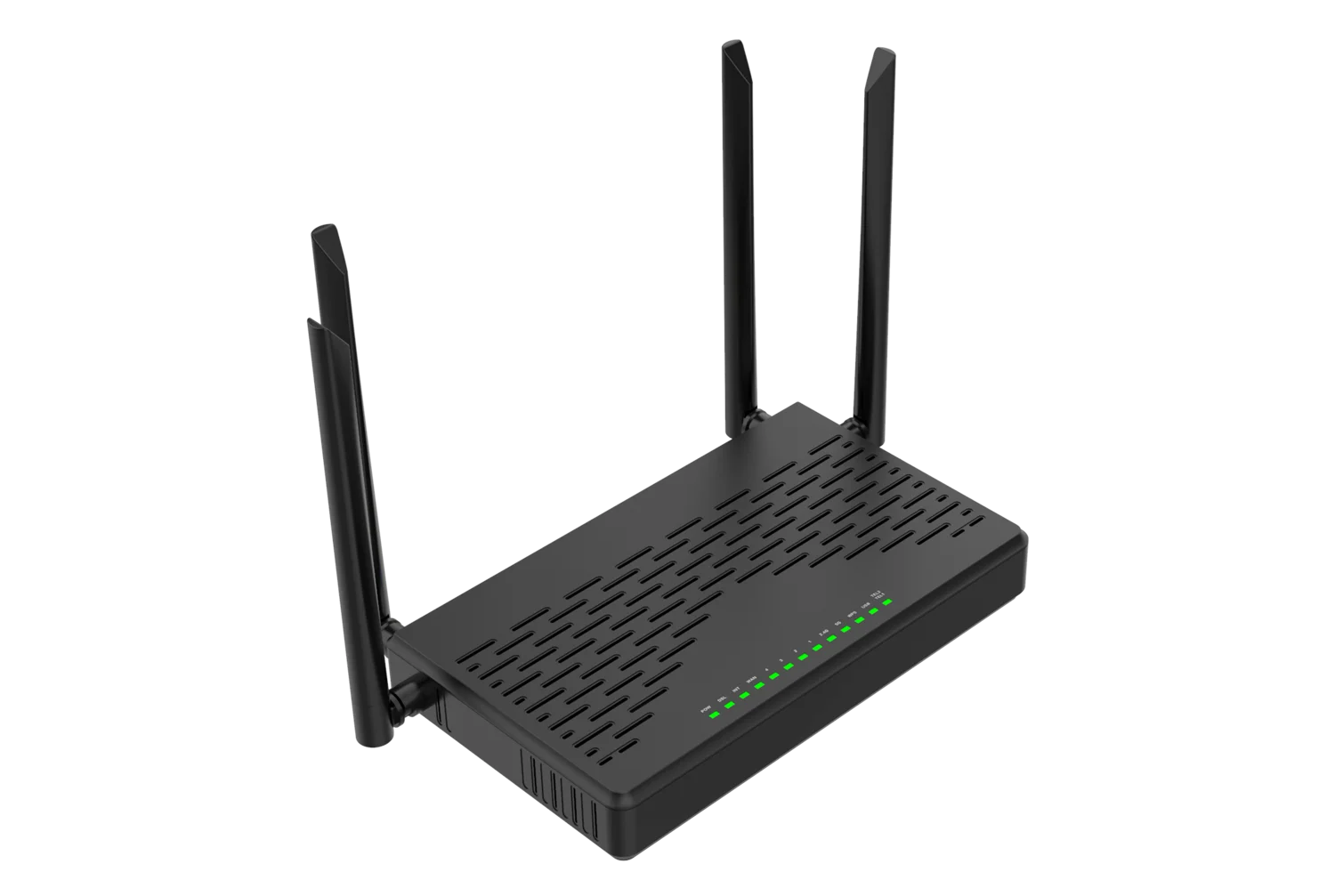

The ZXV 618 is a Gigabit dual band wireless router, which supports 2.4G & 5.8G 11ac wireless network, and provides the VoIP. It is a security solution for home, broadband remote office and small-scale SOHO network.


Details Images




Specification


item
value
Max. LAN Data Rate
1000Mbps
With Modem Function
NO
Standards And Protocols
Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac, Wi-Fi 802.11a
Wi-Fi Supported Frequency
2.4G & 5G
Supports WDS
Yes
Supports WPS
Yes
Wi-Fi Transmission Standard
802.11b
Wired Transfer Rate
10/100/1000Mbps
2.4G Wi-Fi Transmission Rate
300 Mbps
Encryption Type
WPA2, WPA2-Enterprise, WPA, WEP
Private Mold
Yes
Products Status
New
Type
Wireless
Application
Home
Function
Voip, FireWall, QoS, VPN
LAN Ports
4
WAN Ports
1
Place of Origin
China
Guangdong
5G Wi-Fi Transmission Rate
867Mbps
Product name
AC1200 Wireless Dual Band WiFi Router
Network
2.4G+5G
Keywords
High Speed 5G Wifi Router
Antenna
4* 5dBi Antennas
Wireless Speed
2.4GHz 300Mbps + 5GHz 867Mbps
Interface
4 LAN /1 WAN
Support
5G Choose One)
WIFI
IEEE802.11 N/g/b/a/ac
Chipset
EN7516GT+MT7592+MT7613B+SI32280


Product Specifications


Main Chips
EN7516GT+MT7592+MT7613B+SI32280
Flash
128MB SPI NAND
Memory
256MB DDR3 SOC
Wireless Protocol
IEEE 802.11b/a/g/n/ac
Wireless Transfer Rate
WiFi: 2.4G=300Mbps 5G=866Mbps
FR Index
2.4G 11N HT40 MCS7=16dBm(±2dB)
5G 11AC HT80 MCS9=16dBm(±2dB)
External Interface
1*WAN 10/100/1000Mbps
4*LAN 10/100/1000Mbps
2*FXS
1*USB3.0
1*DC JACK
Indicator Lights
Power, INT, WAN, LAN4-1, 2.4g, 5g, WPS, USB, FXS1-2
Buttons
1*PWR
1*WPS
1*Reset
1*WLAN
Antennas
2*2.4G 5dBi fixed external antennas
2*5G 5dBi fixed external antennas
Power Adapter
DC 12V 1.5A
Temperature
Operating Temperature: 0 ℃ to +40℃
Storage Temperature: -20 ℃ to +70 ℃
Humidity
Operating Humidity: 10% to 95% non-condensing
Storage Humidity: 5% to 95% non-condensing



Product Functions


WAN Connection
Support Bridge, DHCP, PPPoE and Static IP address Internet access, IPv4/IPv6 dual stack, wizard, Ethernet uplink modes
Wireless Function
WiFi 5 basic functions / advanced settings, Guest network, WEP / WPA / WPA2 encryption, WPS
Voice Function
G. 711 / G.729, Call transfer, Three party call, Voice activity detection, Comfortable noise, Recovery elimination, T.38 fax, D
igital map
Management Function
WEB/DHCP Server/SNTP /TR069
System Maintenance
Device management, User management, Configuration management, Upgrade management, Log management, Status statistics, Restart /
reset, Diagnostic test
Advanced Function
ALG, DMZ, Port trigger, Virtual server, DDNS, UPnP, VLAN, Port binding, QoS, IGMP, Samba, Static routing
Safety Function
Anti DoS attack, MAC filter, IP / port filter, Domain name filter, ACL filter


Basic Parameters


Dimensions
214mm*130mm*32mm
Weight
427g
Certificates
Meet CE certification standards
Order Information
[AZ618] 1*WAN 4*LAN 2*FXS 1*USB
