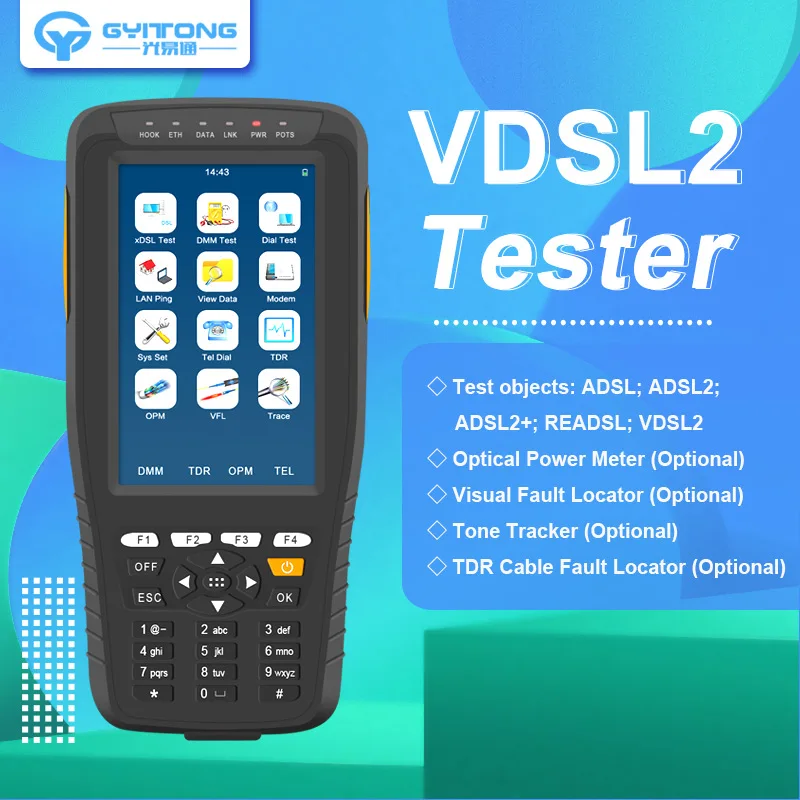

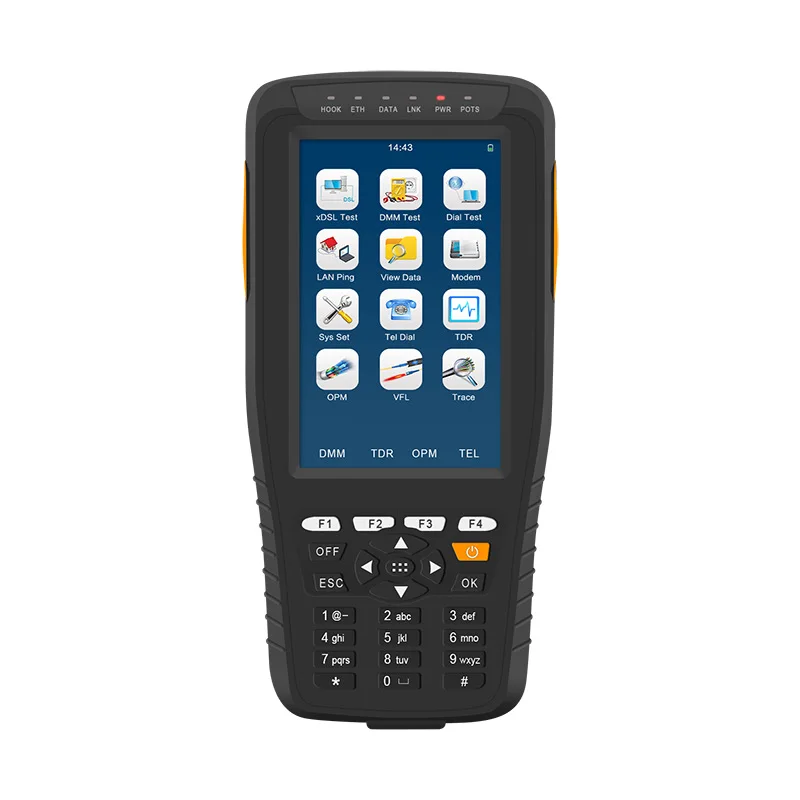

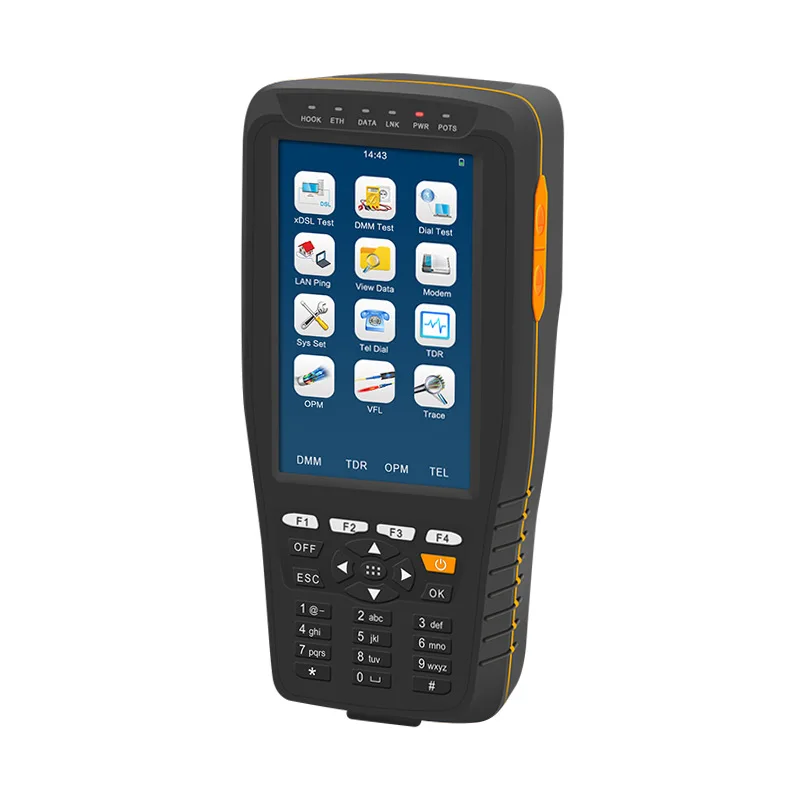

TM-600 VDSL2 Tester

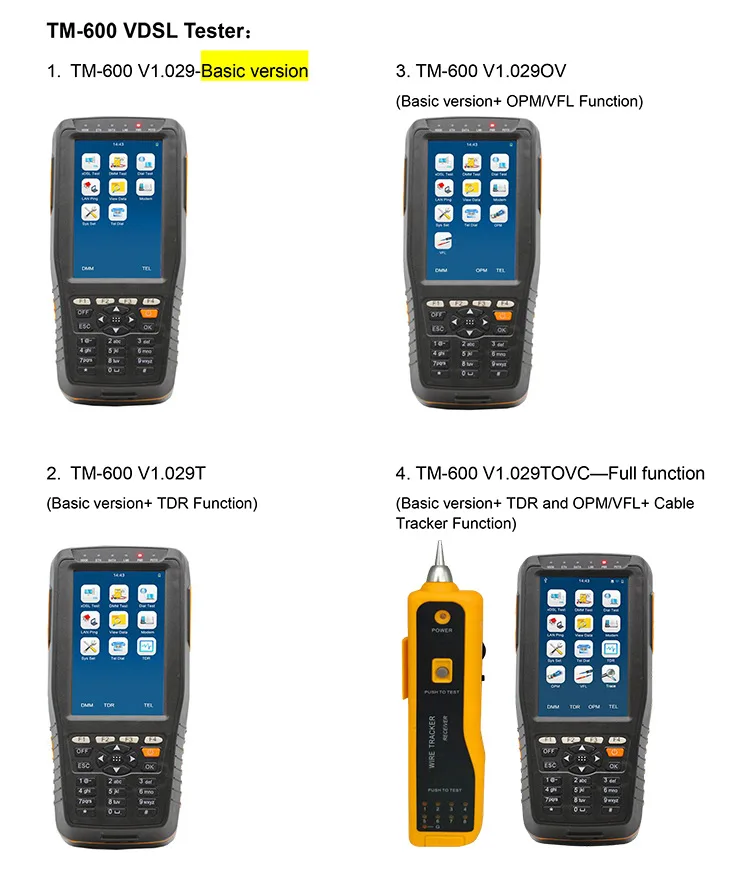

◇ Optical Power Meter (Optional)
◇ Visual Fault Locator (Optional)
◇ Tone Tracker (Optional)
◇ TDR Cable Fault Locator (Optional)


1.Specifications
TM-600 VDSL tester specially designed for xDSL line test (xDSL include: ADSL, ADSL2, ADSL2+, READSL, VDSL2 etc) and maintenance It provides xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication and so on.
TM-600 VDSL Tester also introduces the Optical Power Meter and Visual Fault Locator function into the unit, as well as the TDR function;
It is one multifunction tester with smart size, true color LCD and powerful management software as well as the 6600mah
rechargeable battery etc


2.Key Features
◇ Test objects: ADSL; ADSL2; ADSL2+; READSL; VDSL2
◇ Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance)
◇ Supports Modem emulation and simulating login to Internet
◇ Supports ISP login (username / password) and IP Ping test (WAN PING Test, LAN PING Test)
◇ Supports all multi-protocol, PPPoE / PPPoA (LLC or VC-MUX)

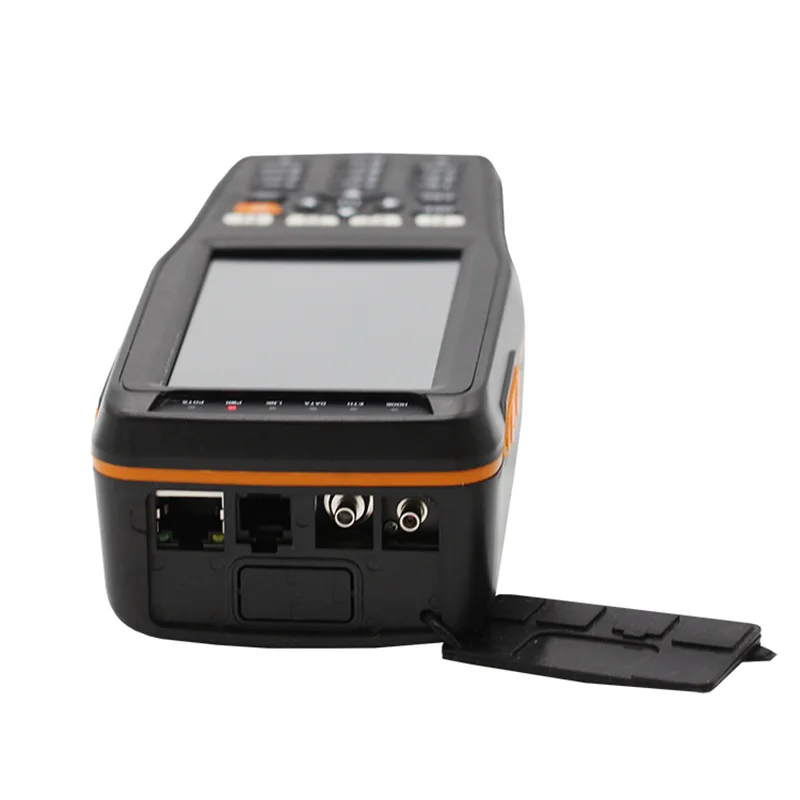

◇ Connects to CO via alligator clip or RJ11
◇ Rechargeable Li-ion Battery
◇ Beep and LEDs alarm indications (Lower Power, PPP, LAN,xDSL)
◇ Data memory fuction
◇ LCD display, Menu operation
◇ Auto shut off if no any operation on keyboard
◇ Compliant with all known DSLAMs
◇ Software management
◇ Simple, portable and money-saved


3.Functions
◇ DSL Physical layer test
◇ Modem Emulation (Replace the user Modem completely)
◇ PPPoE Dialing (RFC1683,RFC2684,RFC2516)
◇ PPPoA Dialing (RFC2364)
◇ Telephone Function
◇ DMM Test
◇ Ping Function (WAN & LAN)
◇ Data upload to computer and software management
◇ Setup system parameter: backlight time, shut off automatically time without operation, press tone,
◇ Revise PPPoE / PPPoA dial attribute, user name and password; restore factory value and so on.
◇ Check dangerous voltage
◇ Optical Power Meter (Optional)
◇ Visual Fault Locator (Optional)
◇ Tone Tracker (Optional)
◇ TDR Cable Fault Locator (Optional)


4.Specifications


ADSL2+
Standards
ITU G.992.1(G.dmt),ITU G.992.2(G.lite),ITU G.994.1(G.hs),
ANSI T1.413 issue #2,ITU G.992.5(ADSL2+)Annex L
Up channel rate
0~1.2Mbps
Down channel rate
0~24Mbps
Up/Down attenuation
0~63.5dB
Up/Down noise margin
0~32dB
Output power
Available
Error test
CRC, FEC, HEC, NCD, LOS
Display DSL connect mode
Available
Display channel bit map
Available
ADSL
Standards
ITU G.992.1 (G.dmt), ITU G.992.2(G.lite)
ITU G.994.1(G.hs), ANSI T1.413 Issue # 2
Up channel rate
0~1Mbps
Down channel rate
0~8Mbps
Up/Down attenuation
0~63.5dB
Up/Down noise margin
0~32dB
Output power
Available
Error test
CRC, FEC, HEC, NCD, LOS
Display DSL connect mode
Available
Display channel bit map
Available
VDSL2
Be compatible with ADSL2+, ADSL standard.
DSL line attenuation
DSL line noise margin
DSL line up/down channel speed (Inter/Fast mode)
DSL line up/down maximum rate
DMT sub channel bit number: 0~15, and each sub channel frequency points
DSL line error number (CRC, HEC, FEC, LCD, OCD)
DSL line local output power
DSLAM information
Error Code Second
Impulse Noise Protection (INP)
DMM Test
DC voltage (V):
0~400
AC voltage (V):
0~400
Loop resistance(Ω):
0~20000
Capacitance (nF):
0~1000
Insulation resistance (MΩ):
0~50
Optical Power Meter ( Optional)
Measurement range:
-70~+10dBm
Wavelength
850nm、1300nm、1310nm、1490nm、1550nm、1625nm
Optical Power Meter ( Optional)
Measurement range:
-70~+10dBm
Wavelength
850nm、1300nm、1310nm、1490nm、1550nm、1625nm
Tone Tracker (Optional)
With supplied accessories, it can do cable tracing and find the trend of the lines
TDR Function (Optional)-Auto Test the cable fault distance (Cable Break/ Cable Mix)
Test Range
<2.5km
Dead Zone
<1m
Resolution Rate
1m
General Specification
LCD
800x480 TFT
Power supply
Internal Rechargeable 6600mAH Li-ion battery
Battery Duration
4 to 5 hours
Working temperature
0-40 oC
Working moisture
5%-90%
Dimensions
170mm×70mm×52mm
Weight:
<0.6kg
Support 7 VDSL2 profiles: profile 8a, 8b, 8c, 8d, 12a, 12b, 17a
