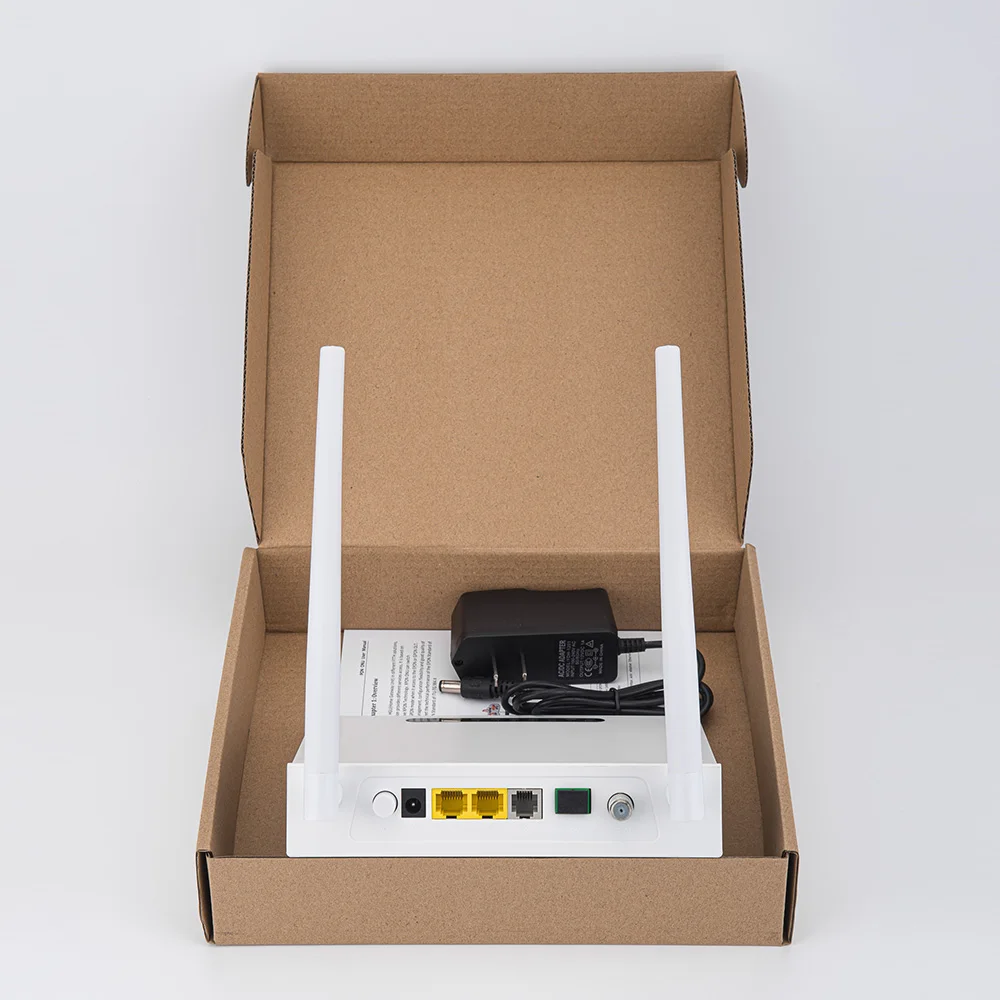

XPON ONU 1G1F WIFI CATV
Overview
l 1G1F WIFI CATV is designed as HGU (Home Gateway Unit) in deferent FTTH solutions; the carrier-class FTTH application provides data service access.
l 1G1F WIFI CATV is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
l 1G1F WIFI CATV adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
l 1G1F WIFI CATV is compliant with IEEE802.11n STD, adopts with 2x2 MIMO, the highest rate up to 300Mbps.
l 1G1F WIFI CATV is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
l 1G1F WIFI CATV is designed by Realtek chipset 9602C.
Feature
l Supports Dual Mode (can access GPON/EPON OLT).
l Supports GPON G.984/G.988 standards
l Support CATV interface for Video Service and remote control by Major OLT
l Support 802.11n WIFI (2x2 MIMO) function
l Support NAT, Firewall function.
l Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
l Support port mode of VLAN configuration
l Support LAN IP and DHCP Server configuration
l Support TR069 Remote Configuration and maintenance
l Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
l Support IPv4/IPv6 dual stack
l Support IGMP transparent/snooping/proxy
l In compliant with IEEE802.3ah standard
l Compatible with popular OLT (HW, ZTE, FiberHome...)
Specification
Technical Item | Details |
PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
LAN interface | 1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
WIFI Interface | Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS,CCK and OFDM Encoding scheme: BPSK,QPSK,16QAM and 64QAM |
CATV Interface | RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV(-7dBm optical input) AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), >35(-10dBm) |
LED | 9 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN2, WORN, NORMAL(CATV) |
Push-Button | 4, for Function of Power on/off, Reset, WPS, WIFI |
Operating condition | Temperature : 0℃~+50℃ Humidity :10%~90%(non-condensing) |
Storing Condition | Temperature : -40℃~+60℃ Humidity :10%~90%(non-condensing) |
Power supply | DC 12V/1A |
Power Consumption | <6W |
Net Weight | <0.4kg |
Panel lights and Introduction
Pilot Lamp | Status | Description |
WIFI | On | The WIFI interface is up. |
Blink | The WIFI interface is sending or/and receiving data (ACT). | |
Off | The WIFI interface is down. | |
WPS | Blink | The WIFI interface is securely establishing a connection. |
Off | The WIFI interface does not establish a secure connection. | |
PWR | On | The device is powered up. |
Off | The device is powered down. | |
LOS | Blink | The device doses not receive optical signals or with low signals. |
Off | The device has received optical signal. | |
PON | On | The device has registered to the PON system. |
Blink | The device is registering the PON system. | |
Off | The device registration is incorrect. | |
LAN1~LAN2 | On | Port (LANx) is connected properly (LINK). |
Blink | Port (LANx) is sending or/and receiving data (ACT). | |
Off | Port (LANx) connection exception or not connected. | |
WORN (CATV) | On | Input optical power is higher than 2dBm or lower than -18dBm |
Off | Input optical power is between -18dBm and 2dBm | |
Normal (CATV) | On | Input optical power is between -18dBm and 2dBm |
Off | Input optical power is higher than 2dBm or lower than -18dBm |
Application
l Typical Solution:FTTO(Office),FTTB(Building),FTTH(Home)
l Typical Service:Broadband Internet access, IPV, VOD, video surveillance, CATV etc.
