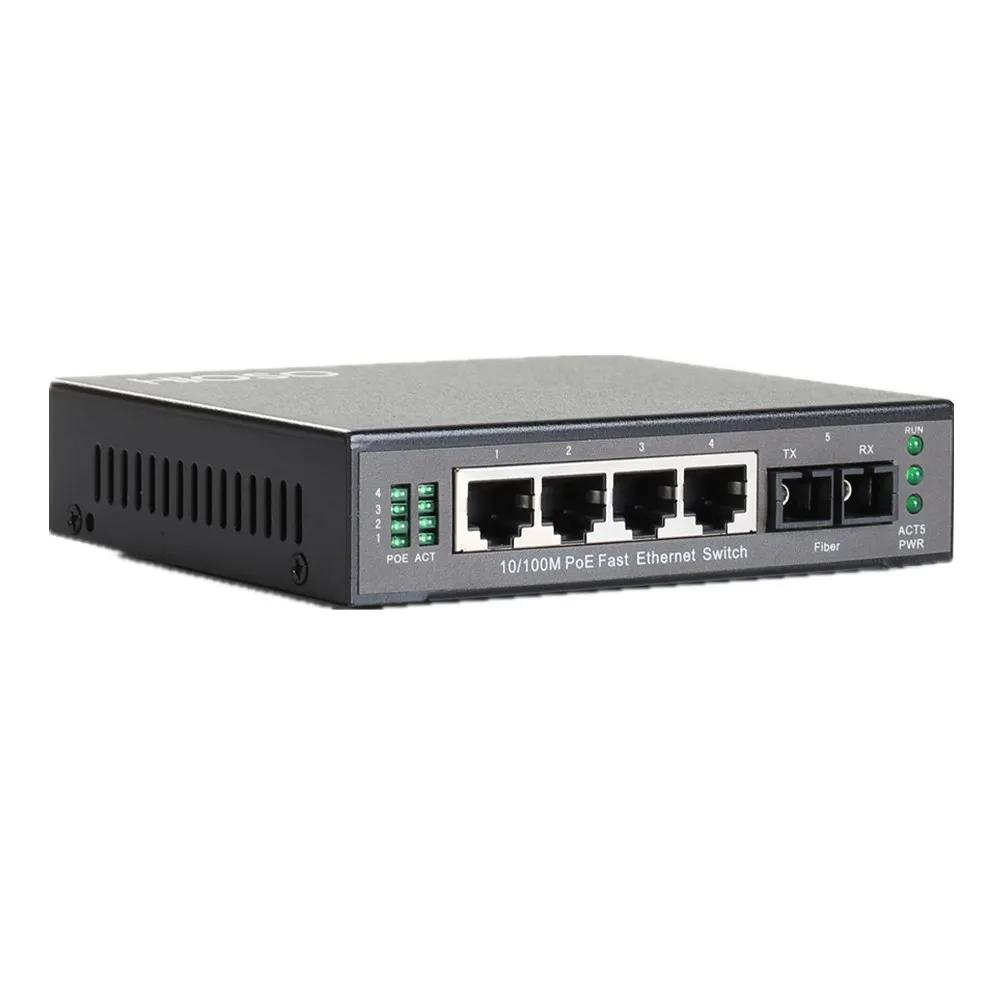

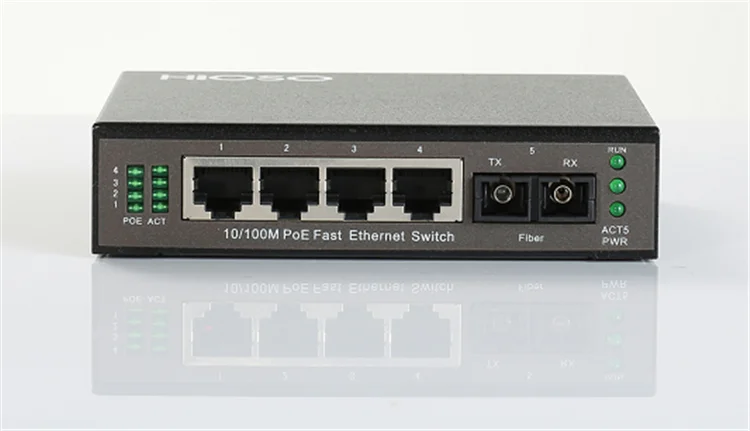

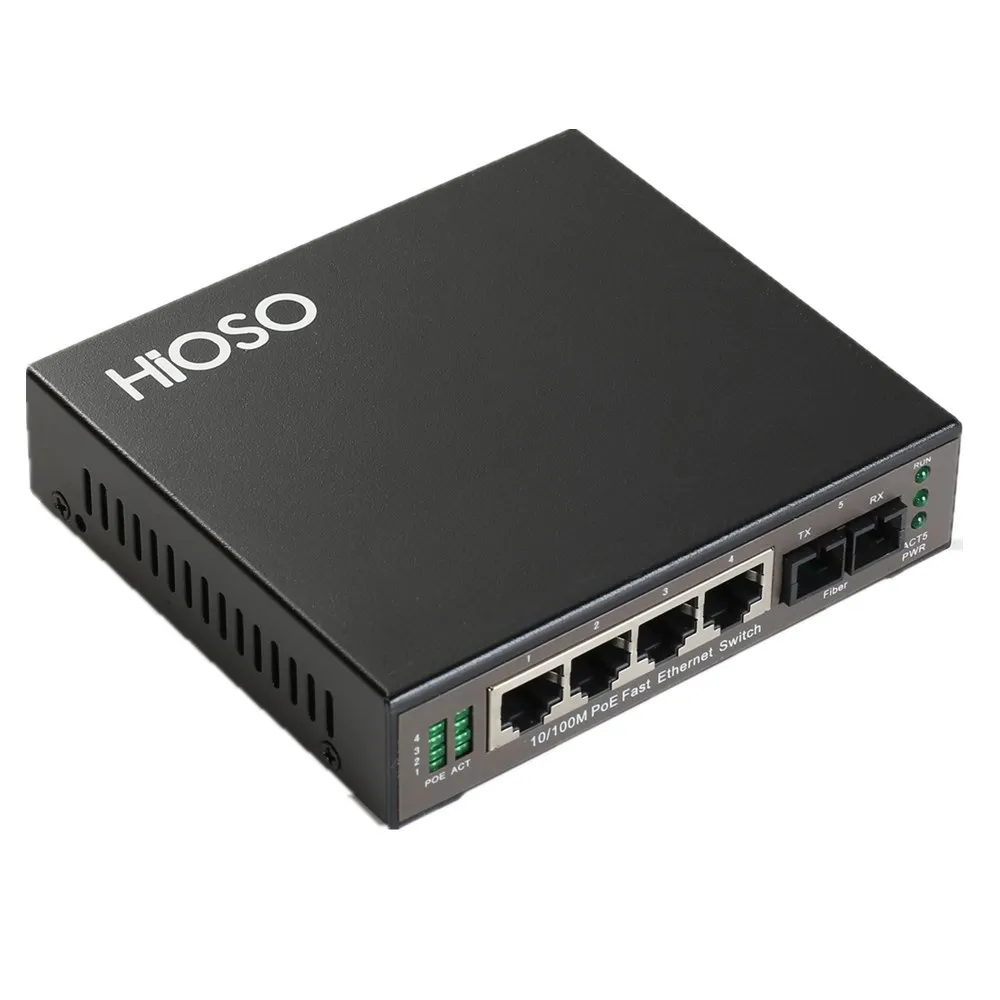

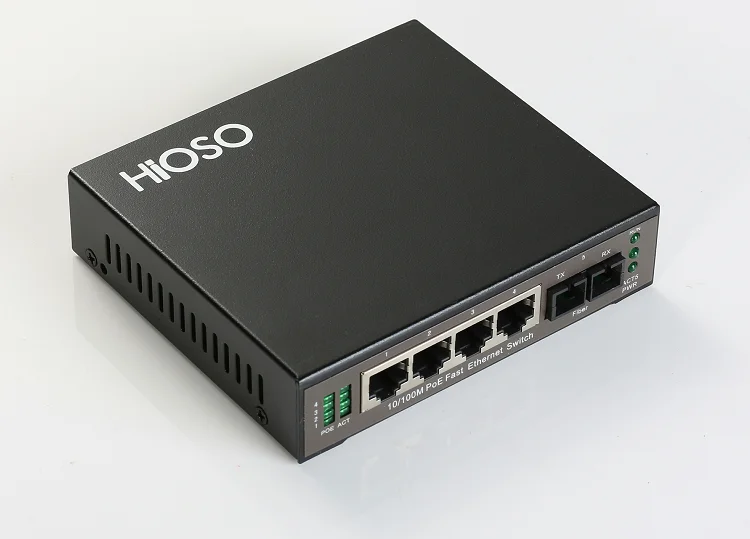

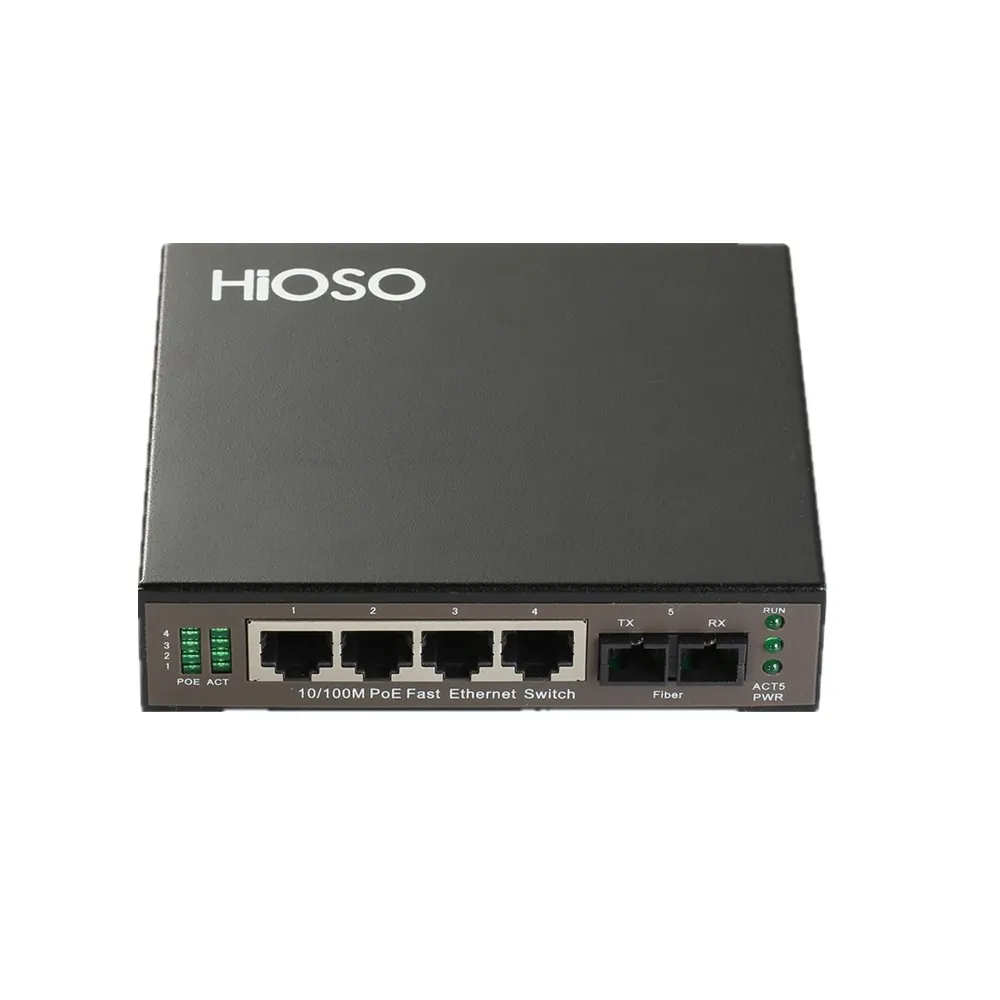

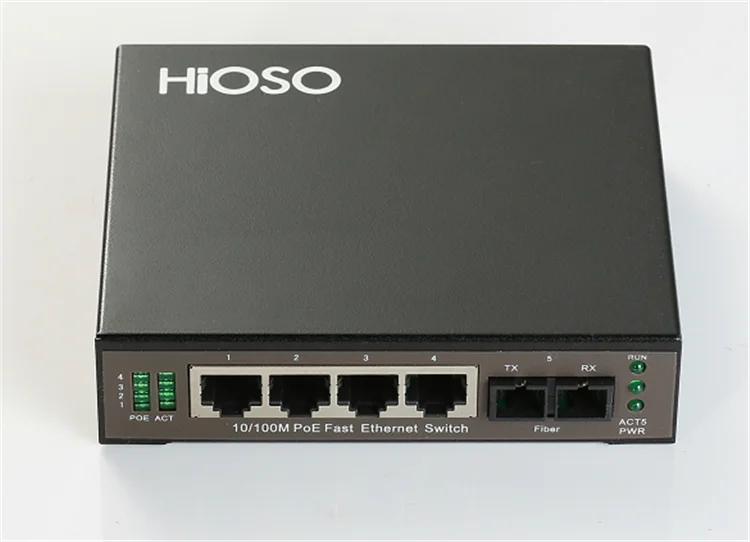

China Factory Wholesale Price DC48V 4 Port unmanaged network switch 120W POE Switch
- Category: >>>
- Supplier: HiOSO Technology Co. Ltd.
Share on (1600570312755):
Product Overview
Description
Character
l Support 4 100M PoE ports and 1 1000M FX port
l Each PoE port supports to auto discovery the standard power receiving devices
l Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
l Support each port full rate, full-duplex non-blocking forwarding
l 8K MAC learning, 1Mbit storage and forward cache space, 7.6G back bandwidth
l Optional to support CLI,WEB or SNMP
l Managed version support VLAN, STP/RSTP/MSTP, Trunk port aggregation, IGMP, port Mirroring, port isolation, broadcast storm control, loop detection, bandwidth allocation, QinQ, etc; SNMP Support LLDP, DHCP, PPPoE, ACL
l Support to provide wall-mounted hanger better for installation if need, external power design and metal casing better for heat dissipating
Technical Specification
Parameter | Specification |
Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,IEEE802.1d Spanning Tree Protocol,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p QoS,IEEE802.3ad Trunk,IEEE802.3X Flow Control |
PoE | Power supply ports: 4 ports Standard and power consumption: IEEE802.3af 15.4W, IEEE802.3at 30W Working mode: auto discovery power receiving devices and auto power supply/ cutting |
Wavelength | 850nm/1310nm/1490nm/1550nm |
Distance | 1000M fiber multi-mode: 220m (fiber 62.5/125μm)/ 550m (fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km |
Port | 4 100M RJ45 ports (PoE optional): 10/100Mbps 1 1000M FX uplink port:SC |
MAC | 8K |
Buffer memory space | 1Mbit |
Bit error rate | <1/1000000000 |
MTBF | 100000 hours |
Power | DC48V |
Power consumption | The whole device 4.8W, PoE power supplying maximum 120W |
Working temperature | -10~60℃ |
Storage temperature | -40~80℃ |
Humidity | 5%~90% non-condensing |
Dimension | 28mm (H)×120mm(W)×106mm (D) |
Order information
No | Product code | NMS | Ports | PoE ports |
1 | FOWAY1305PF-8AF | No | 4 100M TP + 1 1000M FX | 4 PoE ports IEEE802.3af 62W |
2 | FOWAY1305PF | No | 4 100M TP + 1 1000M FX | 4 PoE ports IEEE802.3af 62W |
3 | FOWAY1305PF-120W | No | 4 100M TP + 1 1000M FX | 4 PoE ports IEEE802.3af/at 120W |
4 | FOWAY1305PFM-8AF | YES | 4 100M TP + 1 1000M FX | 4 PoE ports IEEE802.3af 62W |
5 | FOWAY1305PFM | YES | 4 100M TP + 1 1000M FX | 8 PoE ports IEEE802.3af/at 62W |
6 | FOWAY1305PFM-120W | YES | 4 100M TP + 1 1000M FX | 4 PoE ports IEEE802.3af/at 120W |
