portable edgebander pvc edge band banding extrusion machine woodworking
- Category: >>>
- Supplier: Spower Machinery Technology Co. Ltd. (jinan)
Share on (1600570312999):
Product Overview
Description
Product Description
Feature
1.special and advanced PUR gluing device with high quality and better gluing performance.
2.With functions Gluing ,End cutting ,Rough trimming Fine trimming ,Scraping ,Buffing .
3.With touch screen control panel ,making it more convenient and direct while running.
4.Any errors will displayed on the screen ,make it easier to repair .
5.The fine trimming unit with high speed motor, ensure the high quality trimming performance.
6.High Quality electrical components, make sure the stable performance.
1.special and advanced PUR gluing device with high quality and better gluing performance.
2.With functions Gluing ,End cutting ,Rough trimming Fine trimming ,Scraping ,Buffing .
3.With touch screen control panel ,making it more convenient and direct while running.
4.Any errors will displayed on the screen ,make it easier to repair .
5.The fine trimming unit with high speed motor, ensure the high quality trimming performance.
6.High Quality electrical components, make sure the stable performance.
Product advantages
1.The full automatic edge banding machine can polish the edge banding board , so that the color and smoothness of the edge banding board can be better
2.The full automatic edge banding machine can also scrape the ripple marks generated in the process of curve edge banding to ensure the smoothness of plate edge banding and surrounding parts .
3.The full automatic edge banding machine can apply glue on both side of the processed workpiece and edge banding strip through special setting and structure ,so as to make the adhesion between edge banding strip and plate more firm
1.The full automatic edge banding machine can polish the edge banding board , so that the color and smoothness of the edge banding board can be better
2.The full automatic edge banding machine can also scrape the ripple marks generated in the process of curve edge banding to ensure the smoothness of plate edge banding and surrounding parts .
3.The full automatic edge banding machine can apply glue on both side of the processed workpiece and edge banding strip through special setting and structure ,so as to make the adhesion between edge banding strip and plate more firm

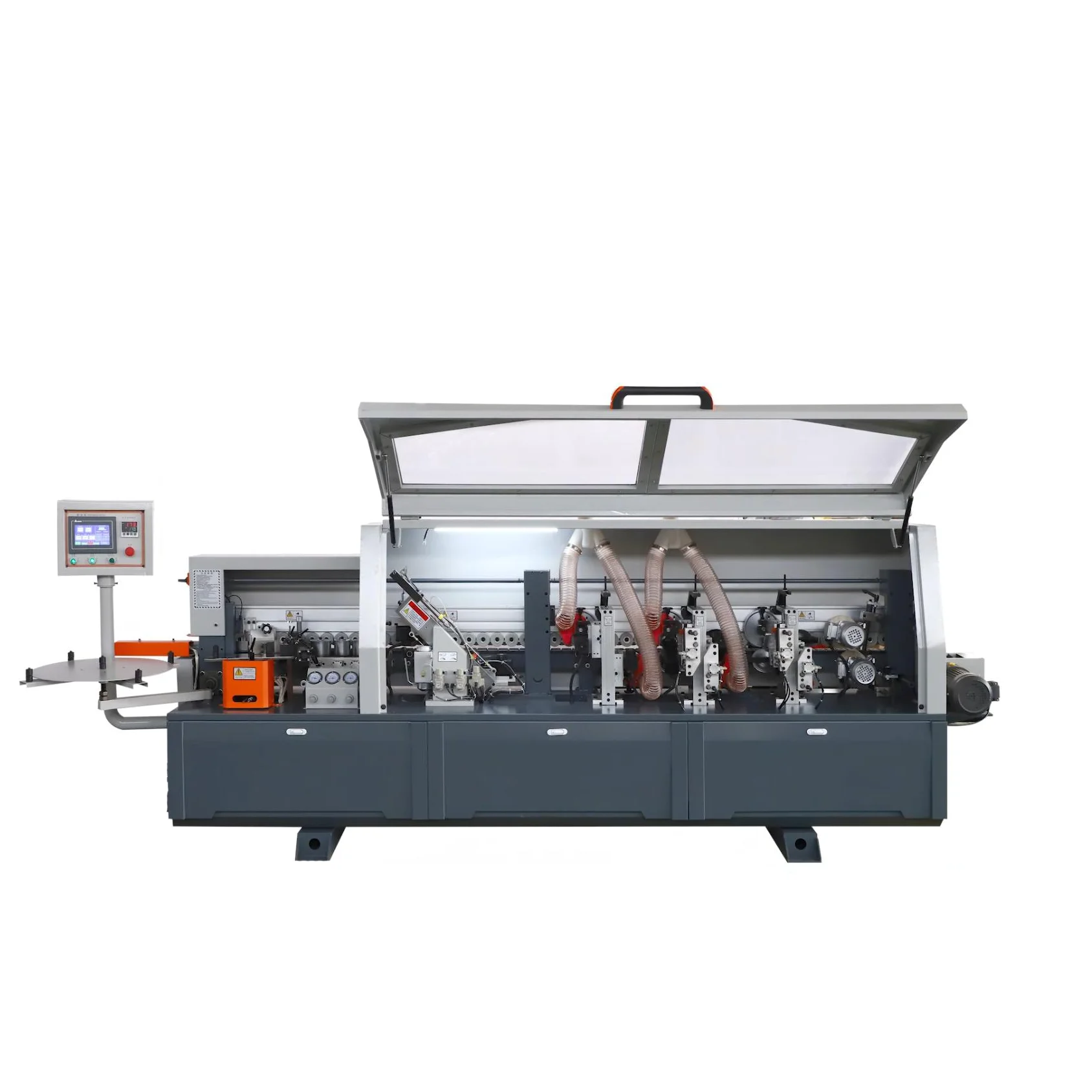

The configuration of MF506 Edge Banding Machine | ||||
Model | BCE506 | BCE506C | ||
Motor power | 7.5KW | 8.94KW | ||
Feed speed | 12m/min | 14m/min | ||
Panel Thickness | 10~60mm | 10~60mm | ||
Edge Thickness | 0.4-3mm | 0.4-3mm | ||
Panel Width | ≥80mm | ≥80mm | ||
Drive | Three-phase motor | Three-phase motor | ||
Working air pressure | 0.6Mpa | 0.6Mpa | ||
Weight | 1200KG | 1600KG | ||
Application | Kitchen Cabinet, Panel furniture,Wooden cabinet | Kitchen Cabinet, Panel furniture,Wooden cabinet | ||
Machine size | 4.2×0.85×1.6 meters | 5.2×0.85×1.65 meters | ||
Product Features | Gluing,End Cutting,Rough Trim,Fine Trim,Scraping,Buffing | Gluing,End Cutting,Rough Trim,Fine Trim,Corner Triming,Scraping,Buffing | ||
Detailed Images
Delta touch screen
The machine is with 6 functions as follows gluing ,end trimming ,rough trimming fine trimming scraping,buffing .And since it is
physical scraping ,therefore there are five functions on the screen , so scraping function is not shown on the screen.
The machine is with 6 functions as follows gluing ,end trimming ,rough trimming fine trimming scraping,buffing .And since it is
physical scraping ,therefore there are five functions on the screen , so scraping function is not shown on the screen.
Gluing
Make the edge-banding board and the edge-banding material evenly coated on both sides to ensure stronger adhesion.
Make the edge-banding board and the edge-banding material evenly coated on both sides to ensure stronger adhesion.
End cut
Through the precise linear guide rail movement, the automatic tracking by the die and high frequency high-speed motor cutting
structure are adopted to ensure smooth and smooth cutting surface
Through the precise linear guide rail movement, the automatic tracking by the die and high frequency high-speed motor cutting
structure are adopted to ensure smooth and smooth cutting surface
Rough trimming
The structure of automatic profiling and high-frequency high-speed motor is adopted to ensure the smoothness of the upper and lower parts of the trimmed plate. It is used to repair and process the excess edge banding material above and below the edge band of the plate.
The structure of automatic profiling and high-frequency high-speed motor is adopted to ensure the smoothness of the upper and lower parts of the trimmed plate. It is used to repair and process the excess edge banding material above and below the edge band of the plate.
fine trimming
The structure of automatic profiling and high-frequency high-speed motor is adopted to ensure the smoothness of the upper and lower parts of the trimmed plate. It is used to repair and process the excess edge banding material above and below the edge band of the plate.
The structure of automatic profiling and high-frequency high-speed motor is adopted to ensure the smoothness of the upper and lower parts of the trimmed plate. It is used to repair and process the excess edge banding material above and below the edge band of the plate.
Buffing
Use a cotton polishing wheel to clean the processed plates, and polish the edge-sealing end surface smoother.
Use a cotton polishing wheel to clean the processed plates, and polish the edge-sealing end surface smoother.
Application
Application: Board type: medium density fiberboard, blockboard, solid wood board, particle board, polymer door panel, plywood, etc. various man-made boards, which are widely used in panel furniture, cabinets and other furniture industries.
