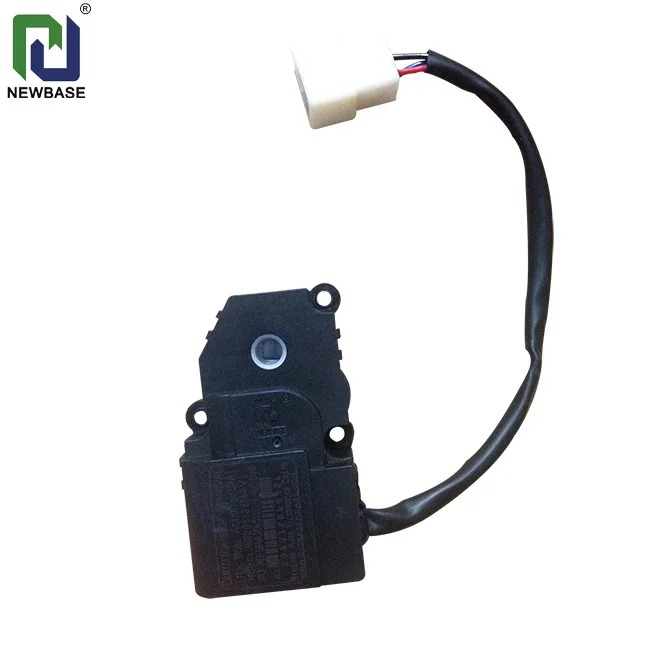

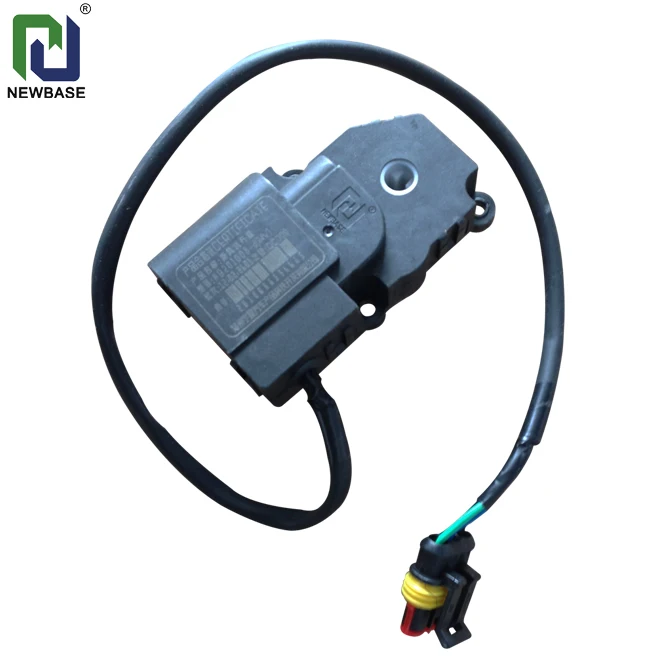

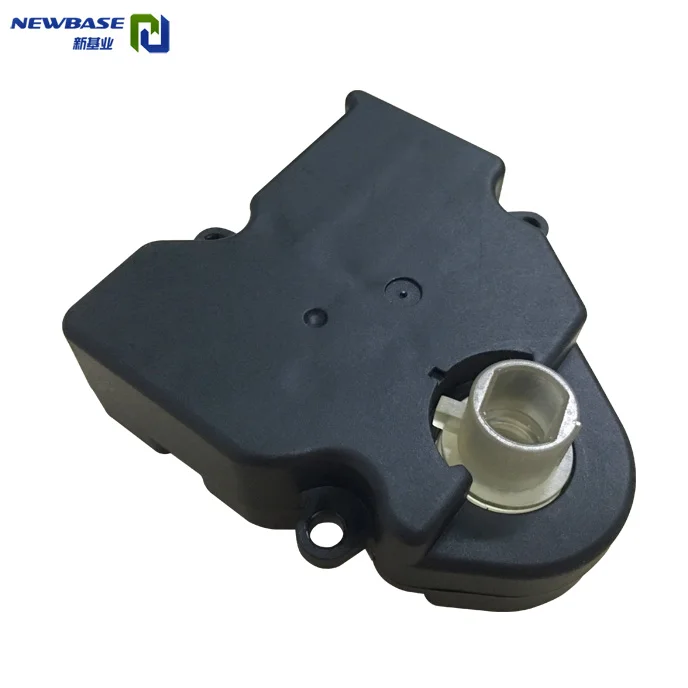

Manufacturer Customized Bus A/C Heater Blend Door Actuator
- Category: >>>
- Supplier: Zhengzhou Newbase Auto Electronics Co. Ltd.
Share on (1600570324681):
Product Overview
Description
Factory HVAC Heater Blend Door Actuator Car Turck Bus Ac Servo-actuator A/C Heater Temperature Door Mode DC12V Air Door Actuator
Specification
Technical data | ||
Power supply | DC12V(DC8V-DC16V)/DV24V(DC20V-DC30V) | |
Power consumption | 3W | |
Current | Max.70mA | |
Electrical connection | Max.1m X 0.5mm² | |
Direction of rotation | CW/CCW | |
Angle of rotation | 26°/28°/17°/41°(adjustable) | |
Torque | 4kgf.cm | |
Running time | 4.0+0.5rpm | |
Locked torque | 12kgf.cm | |
Locked current | Max.250mA | |
Noise level | Max.42dB(A) | |
Ambient temperature | -30°c—80°c | |
Storage temperature | -40°c—85°c | |
Life | Max.500,000 cycle | |
Dimensions | 75*57*30(mm) | |
Weight | 174g | |
Quality certifications | TS16949/ISO9001 | |
