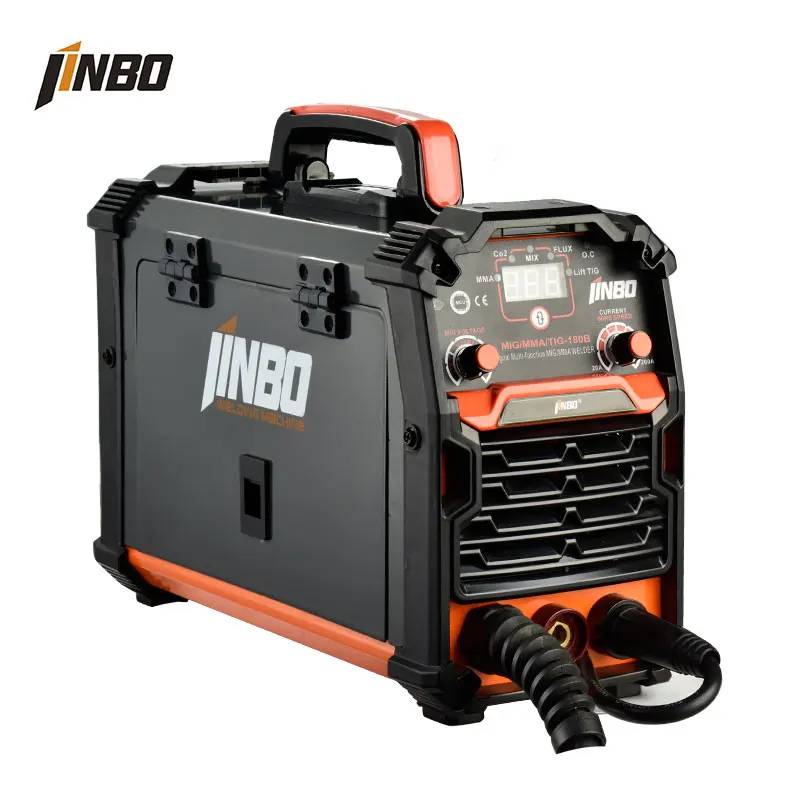

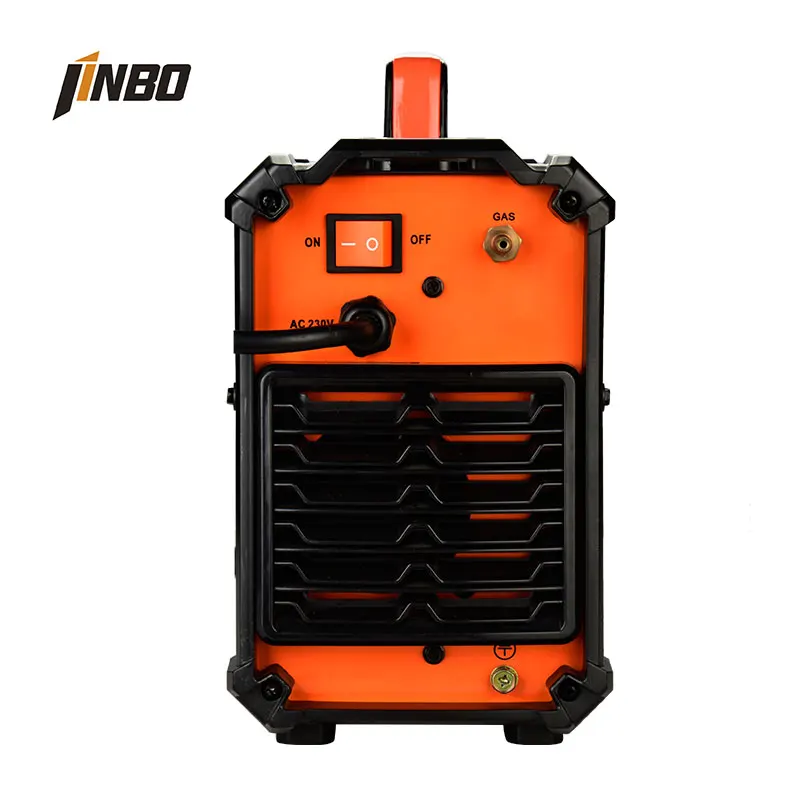

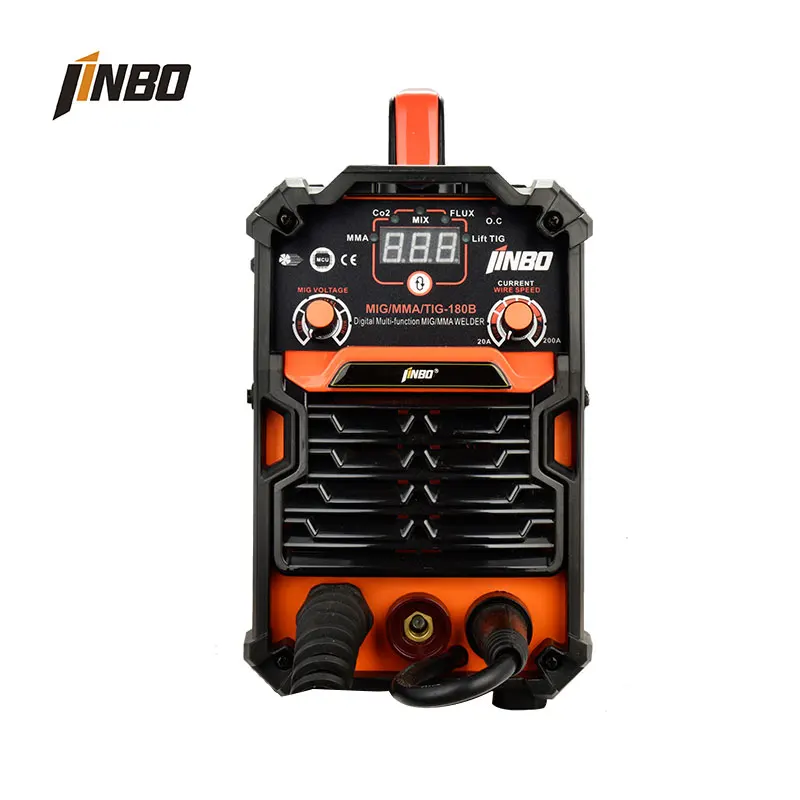

JINBO 220V Mig welder Other arc welders 180 amp MIG/TIG/MMA/CO2 DC FLUX WIRE inverter spot mig welders for sale
- Category: >>>
- Supplier: Wenling Tumas Machinery Co. Ltd.
Share on (1600570331422):
Product Overview
Description

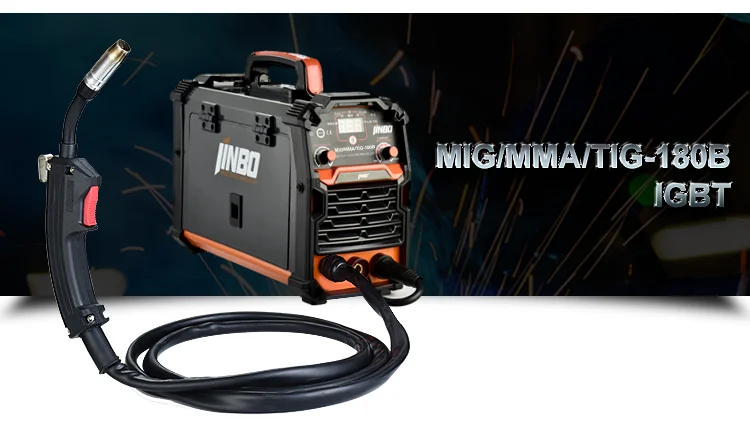

| Model | MIG/MMA/TIG-180B |
| Type | IGBT |
| AC Input Voltage(V) | AC 220V(110support) |
| Rated Input Power Capacity(KVA) | 6 |
| Input Frequency(Hz) | 50/60 |
| No-load Voltage(V) | 56 |
| Output current range(A) | 20-180 |
| Rated Duty Cycle(%) | 60% |
| Efficiency(%) | 85% |
| Class of Insulation | F |
| Protection class of case | IP21 |
| Electrode diameter(mm) | 1.6-3.2 |
| Wire diameter(mm) | 0.8/1.0 |
| Wire kilogram(KGS) | 0.5/1 |
| Quick joint Size(mm) | 10-25 |
| N.W./G.W.(kg) | 6.5/7.5 |
| Machine Size(LxWxH mm) | 385*165*250 |

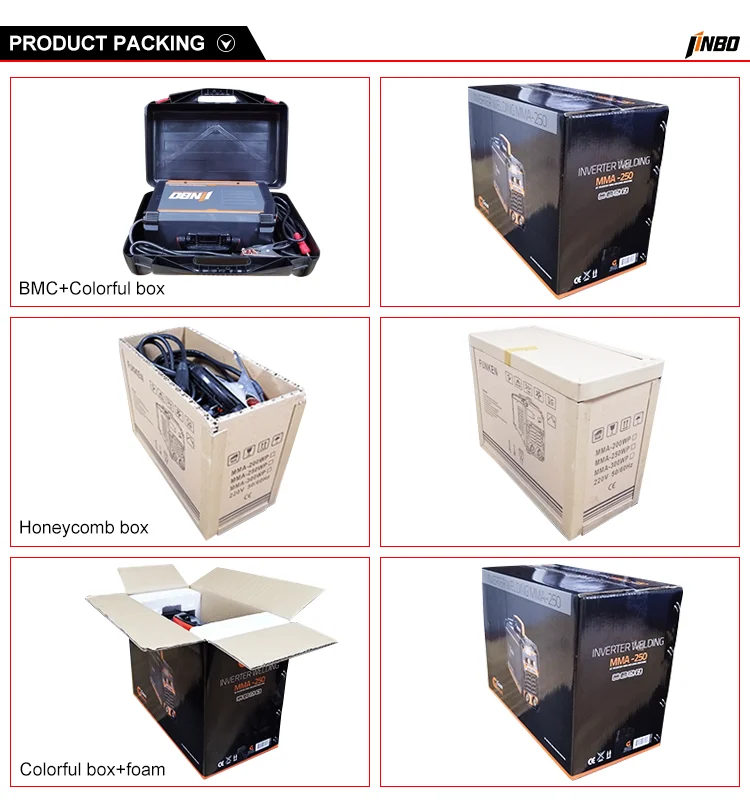

| Package Dimension(LxWxH mm) | 480*225*345 color box+foam 465*205*330 honeycomb box |

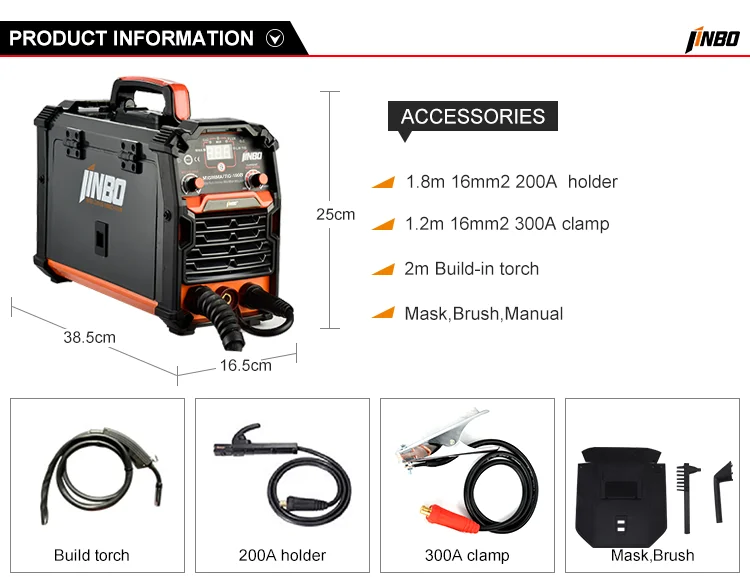

| Accessories | 1.8m 16mm2 200A holder 1.2m 16mm2 300A clamp 2m build-in torch mask, brush, manual |

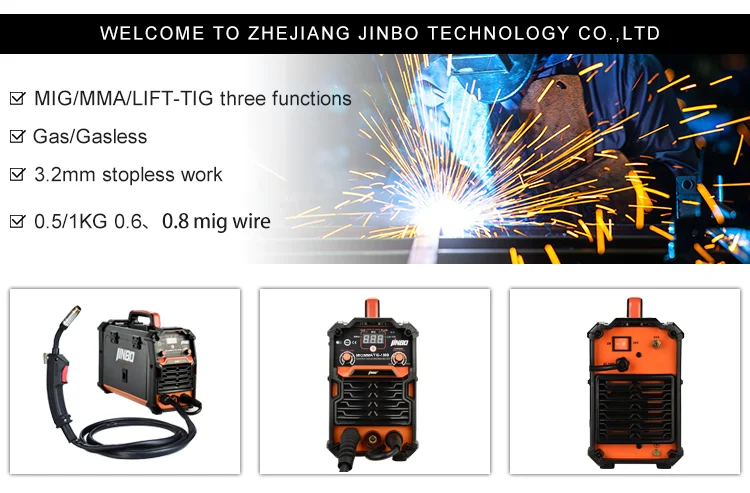

| Features | 1.Mig/Mma/lift tig- 3 function 2.gasless ,0.45kg,1kg flux mig wire 3.gas.0.45kg,1kg solid mig wire 4: 3.2mm stopless work 5: 0.5/1kg 0.8/1.0 Mig wire |
