High quality stainless steel rigid grip dipping tape oil tank use 1st grade tape measure 10m 15m 20m 30m Oil Sounding Tape
- Category: >>>
- Supplier: Swansoft Machinery Co. Ltd.
Share on (1600570342614):
Product Overview
Description

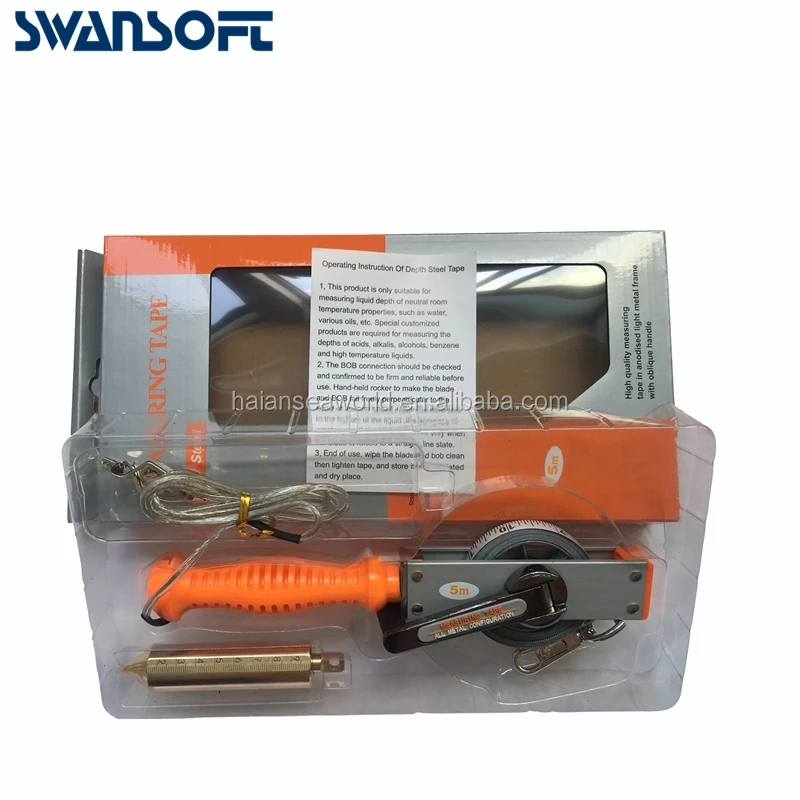

SWANSOFT Oil sounding tape

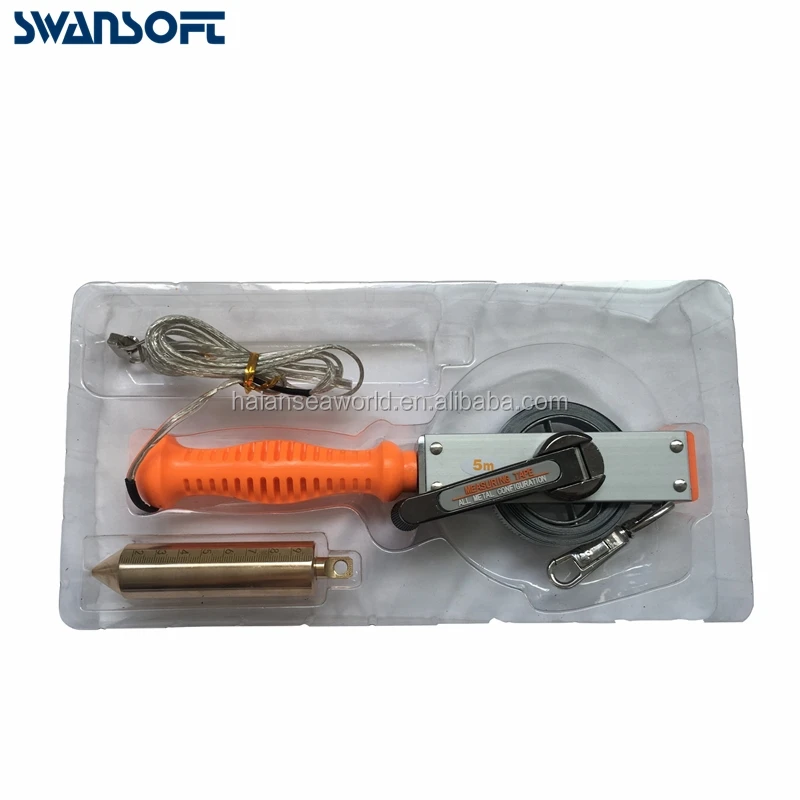

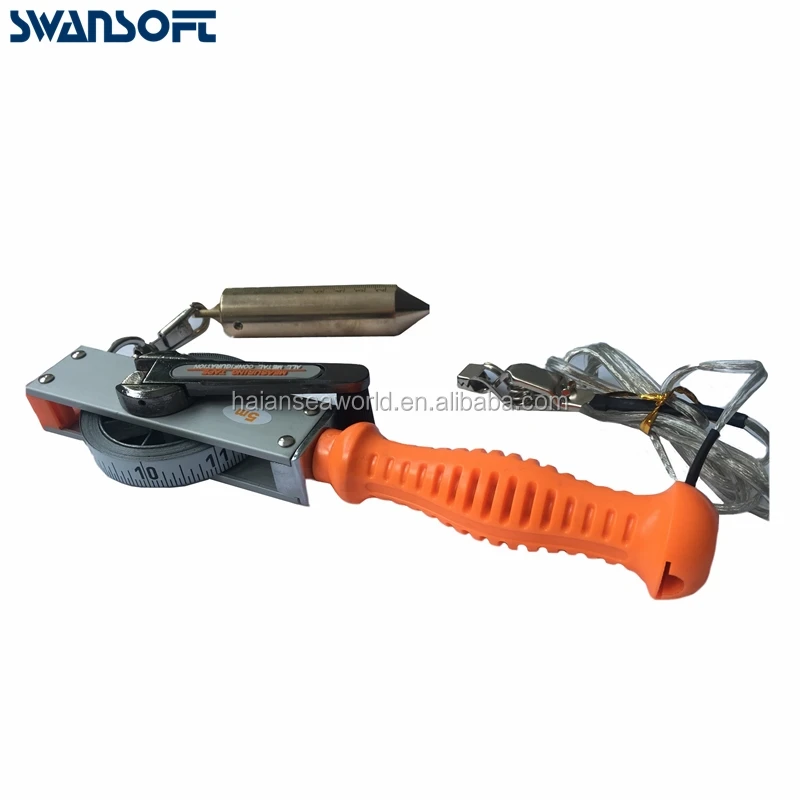

The oil sounding tape consists of handle, tape frame, crank, measuring tape, brass drawing weight, oil wiper, bracket and
connector.
The handle adopts a one-way ratchet clutch structure, which can automatically drop the scale by the weight of the ruler. The
bracket is a folding metal bracket and a card slot at the lower end, which is convenient for supporting the dipstick and guiding
static electricity.
1.The scale direction of the tape faces the handle.
2.The locker utilizes a lock switch, a pin, and a spring to position the lock cylinder of the measuring rod.
3.The oil wiper is suspended on the fixed pulley on the tape frame.
4.The measuring tape passes through the felt of the oil wiper, and the oil attached during the measurement is used. Liquid
scraping.
connector.
The handle adopts a one-way ratchet clutch structure, which can automatically drop the scale by the weight of the ruler. The
bracket is a folding metal bracket and a card slot at the lower end, which is convenient for supporting the dipstick and guiding
static electricity.
1.The scale direction of the tape faces the handle.
2.The locker utilizes a lock switch, a pin, and a spring to position the lock cylinder of the measuring rod.
3.The oil wiper is suspended on the fixed pulley on the tape frame.
4.The measuring tape passes through the felt of the oil wiper, and the oil attached during the measurement is used. Liquid
scraping.
Specification
1. The part of the core, the back cover, the handle and the handle are all metal parts; the roll part is an all-metal
anti-expansion roll system.
2. The frame is made of aluminum, which is durable and durable; the ruler is rust-proof and wear-resistant; the bottom is equipped
with an electrostatic discharge wire.

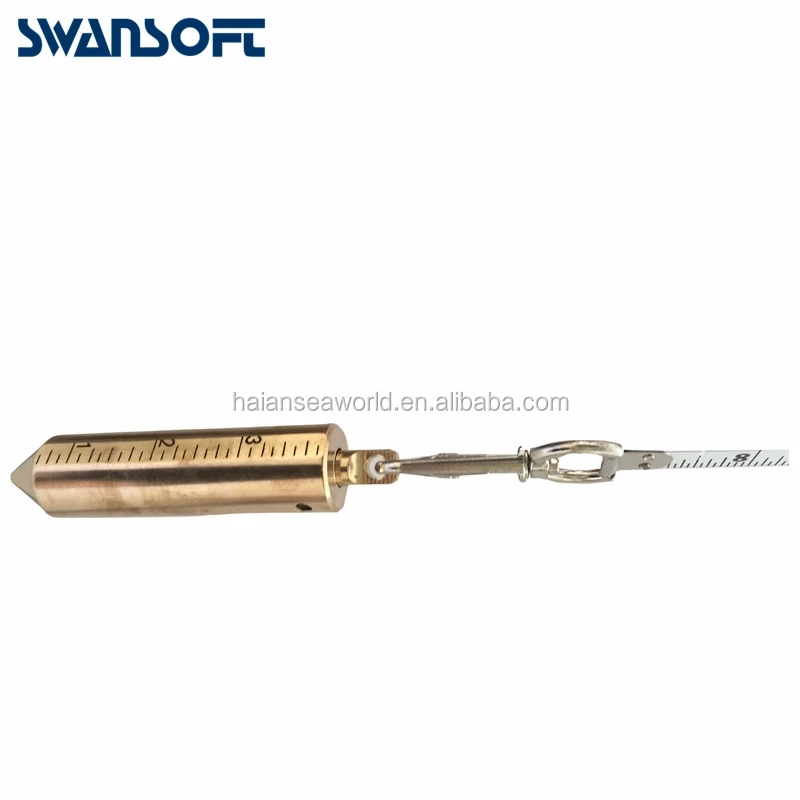

3. The joint between the oil drop and the ruler is a universal hook, the free rotation will not get stuck, and the oil drop scale
is clear.
4. Stainless steel etching process tape and oil pendant of different specifications.
anti-expansion roll system.
2. The frame is made of aluminum, which is durable and durable; the ruler is rust-proof and wear-resistant; the bottom is equipped
with an electrostatic discharge wire.
3. The joint between the oil drop and the ruler is a universal hook, the free rotation will not get stuck, and the oil drop scale
is clear.
4. Stainless steel etching process tape and oil pendant of different specifications.
Steel | |||||||||
White Tape | Black Tape | ||||||||
CODE | Length.mtr | CODE | |||||||
Metric | Metric | ||||||||
650851 | 15 | 650861 | 15 | ||||||
650852 | 20 | 650862 | 20 | ||||||
650853 | 30 | 650863 | 30 | ||||||
650864JM | 50 | ||||||||
Metric&Inch | Metric&Inch | ||||||||
650855 | 10M | 650865 | 10M | ||||||
650856 | 15M/50' | 650866 | 15M/50' | ||||||
650857 | 20M/66' | 650867 | 20M/66' | ||||||
650858 | 30M/100' | 650868 | 30M/100' | ||||||
650859JM | 50M | 650869JM | 50M | ||||||
Stainless steel | ||
CODE | Length.mtr | |
Metric | ||
650871 | 15 | |
650872 | 20 | |
650873 | 30 | |
650874JM | 50 | |
Metric&Inch | ||
650875 | 10M | |
650876 | 15M/50' | |
650877 | 15M/50' | |
650878 | 15M/50' | |
650879JM | 50M | |
