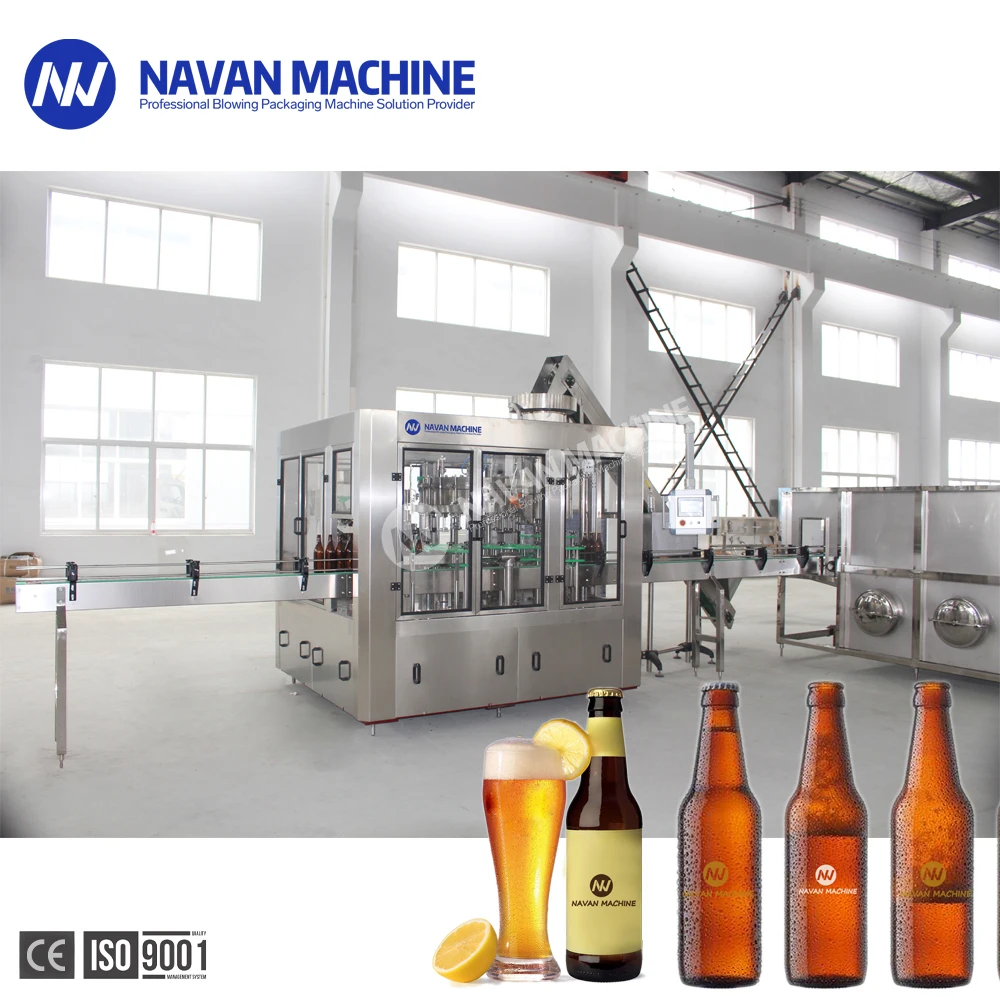

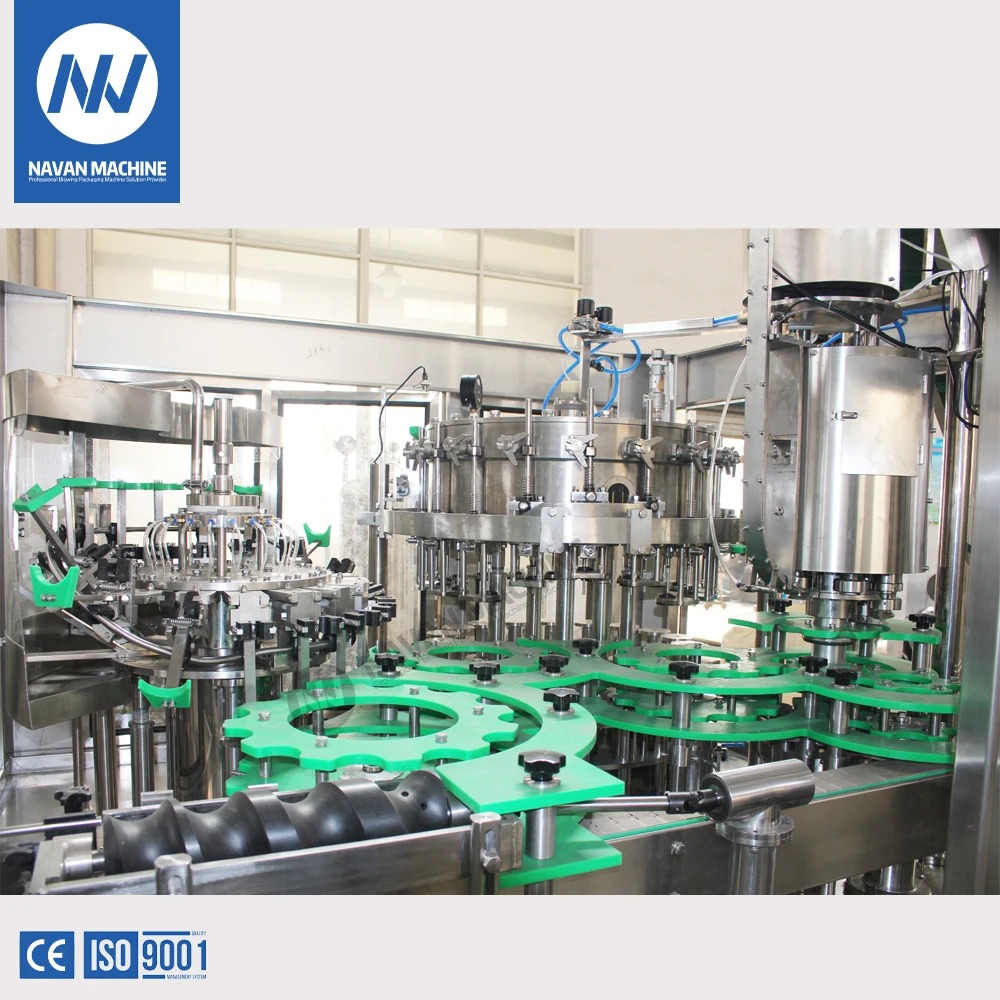

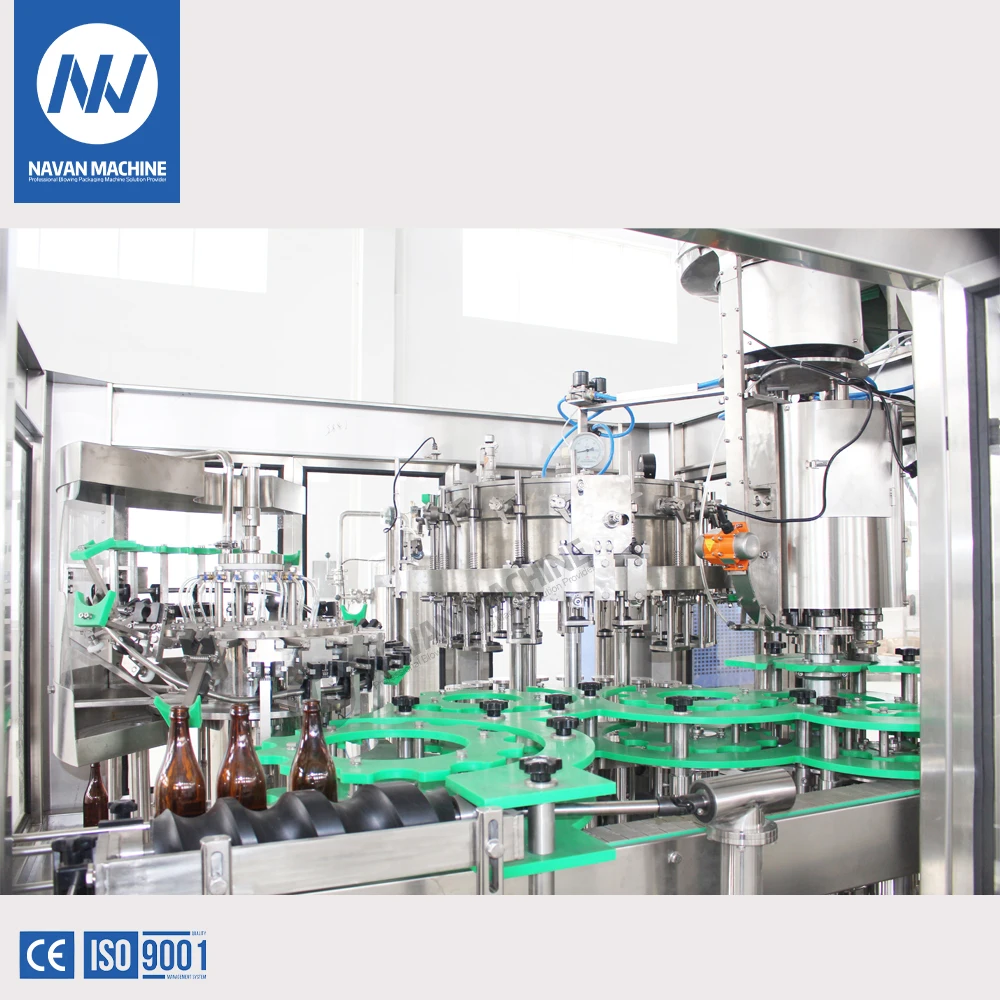

Navan Machine Full Automatic Glass Bottle Beer Wine Gin Vodka Spirit Liquor Bottling Machine
- Category: >>>
- Supplier: Zhangjiagang Navan Industrial Co. Ltd.
Share on (1600570343125):
Product Overview
Description
Navan Machine Full Automatic Glass Bottle Beer Wine Gin Vodka Spirit Liquor Bottling Machine
This glass bottle filler and capper can meet the filling -sealing requirements
of different sealing manners for capper, T-cork , wooden cork capper, screw capper etc , and can be applied to water, carbonated
soft drink ,fruit juice, coffee drink, protein drinks, beer, rice wine and so on, with domestic technology leading level. So it is
the good machine choosing for middle and beginning factory .1 - Bottle packing solutions to reduce your total cost of ownership
2 - Higher speeds with gentler handling
3 - Hygienic production for top quality water
4 - Reduced consumption with more efficient resources use
of different sealing manners for capper, T-cork , wooden cork capper, screw capper etc , and can be applied to water, carbonated
soft drink ,fruit juice, coffee drink, protein drinks, beer, rice wine and so on, with domestic technology leading level. So it is
the good machine choosing for middle and beginning factory .1 - Bottle packing solutions to reduce your total cost of ownership
2 - Higher speeds with gentler handling
3 - Hygienic production for top quality water
4 - Reduced consumption with more efficient resources use

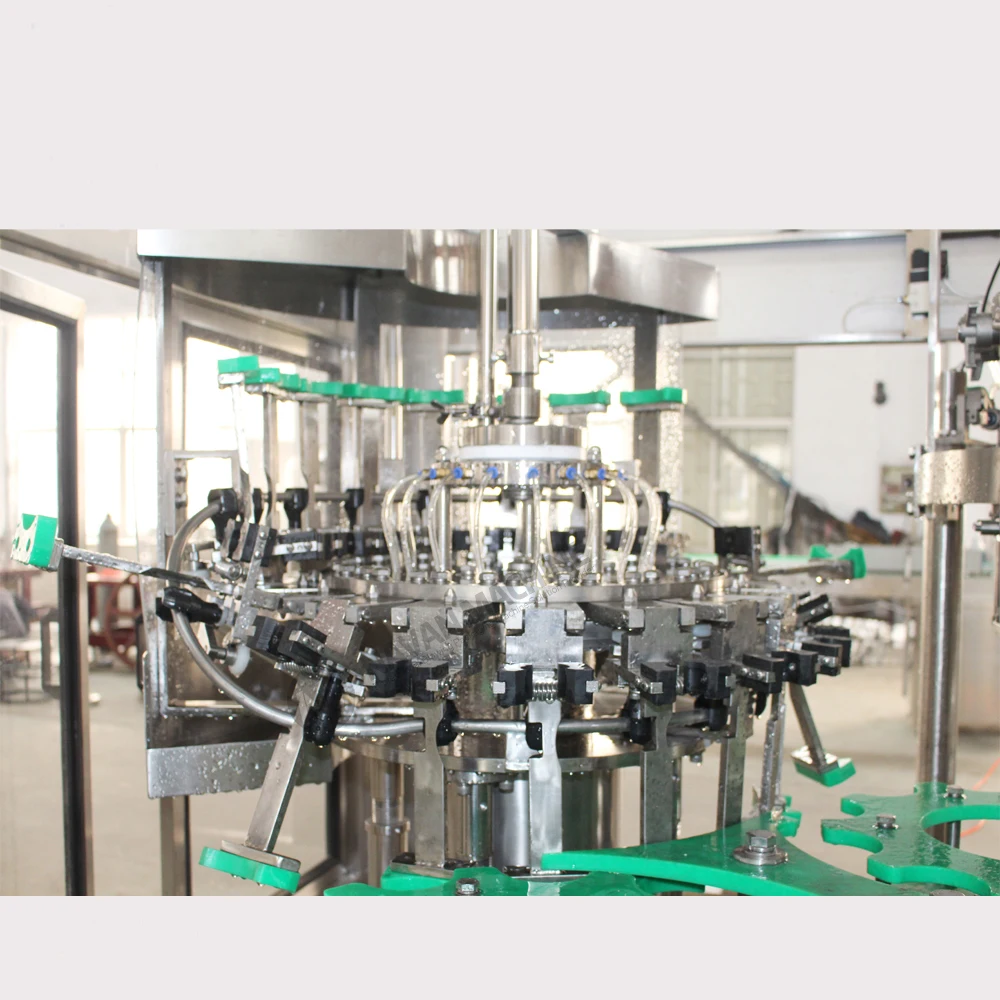

Washing Parts
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.

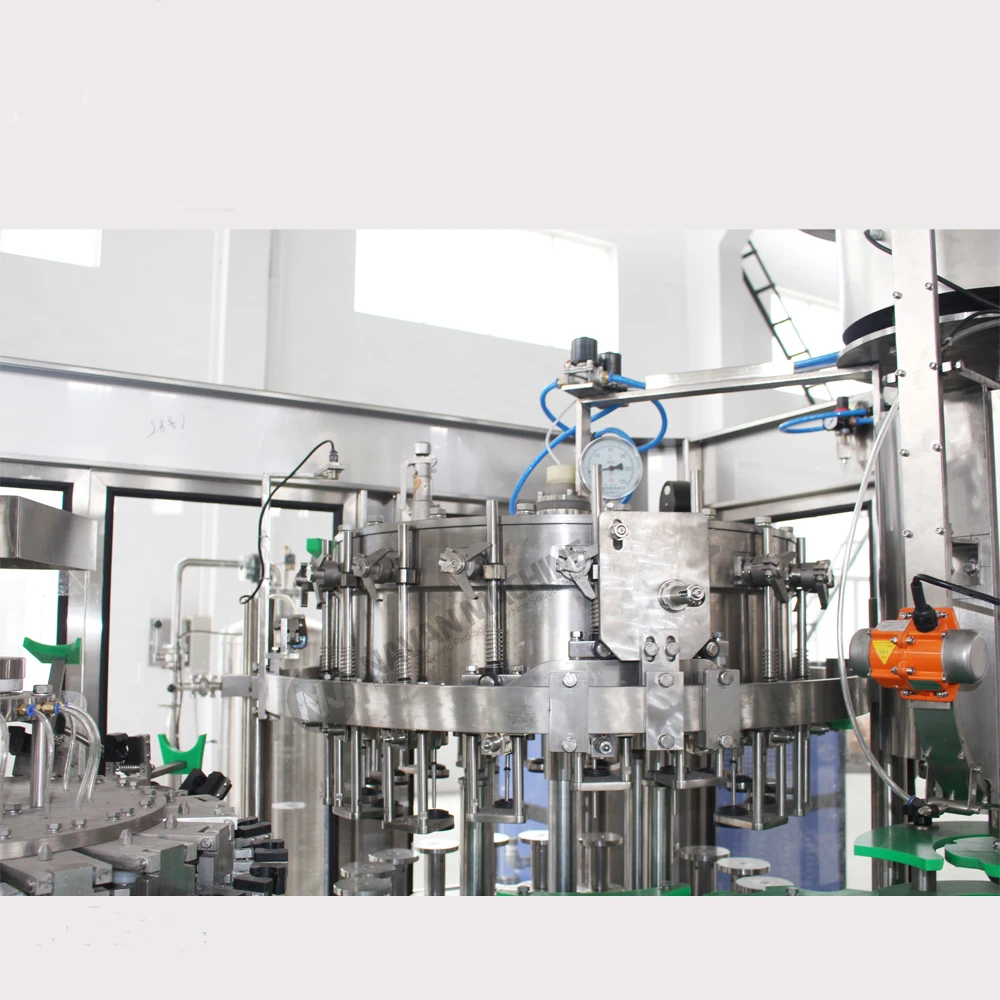

Filling Parts
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

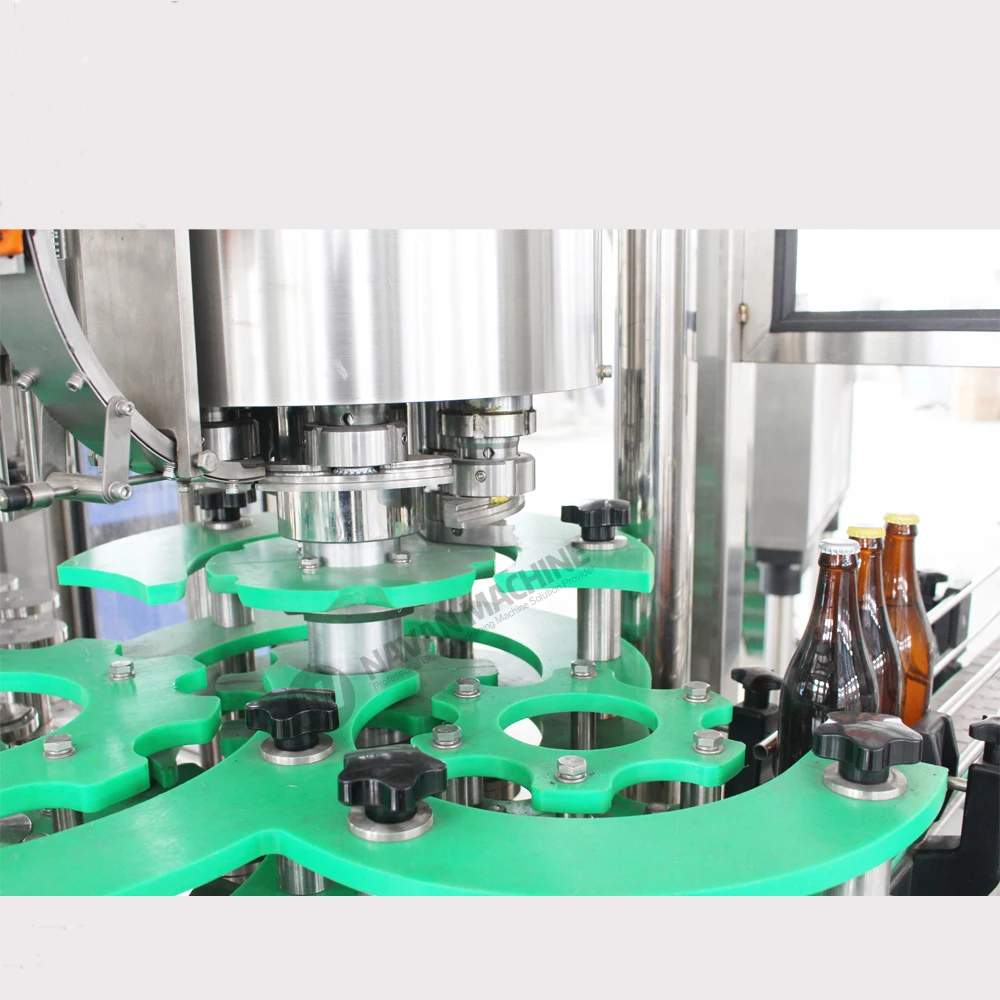

Capping Parts.
The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping
head.
head.
Product paramenters
Model | NPXGF14-12-1 | NPXGF18-18-6 | NPXGF24-24-6 | NPXGF32-32-8 | NPXGF40-40-10 | NPXGF50-50-12 | ||||||
Capacity(Bottle /Hour 330ml) | 1000-1500 | 3000-5000 | 6000-8000 | 8000-10000 | 12000-15000 | 15000-18000 | ||||||
Suitable bottle specification | Volume=200-1500ml Diameter φ=50-100mm Bottle height H=160 ~340mm | |||||||||||
Rinsing Water pressure (MPa) | 0.25 ~ 0.3 | |||||||||||
Filling pressure (MPa) | 0.15~ 0.5 | |||||||||||
Main Power(kw) | 2.2 | 3 | 4 | 7.5 | 7.5 | 11 | ||||||
Overall dimensions (mm) | 2700*1500*2300 | 3012*2012*3260 | 3280*2420*3200 | 4430*2880*3200 | 4650*3200*3200 | 4987*3846* 3200 | ||||||
Weight (kg) | 2800 | 3800 | 5000 | 6800 | 8800 | 11000 | ||||||
All machines could be customized , we could design and produce machines according to your request. | ||||||||||||
