Smooth and Pretty Road Line Thermoplastic Road Marking Machine With high Precision Cast Iron hopper
- Category: >>>
- Supplier: Jiangsu Luxinda Traffic Facilities Co. Ltd.
Share on (1600570345337):
Product Overview
Description
Product Description

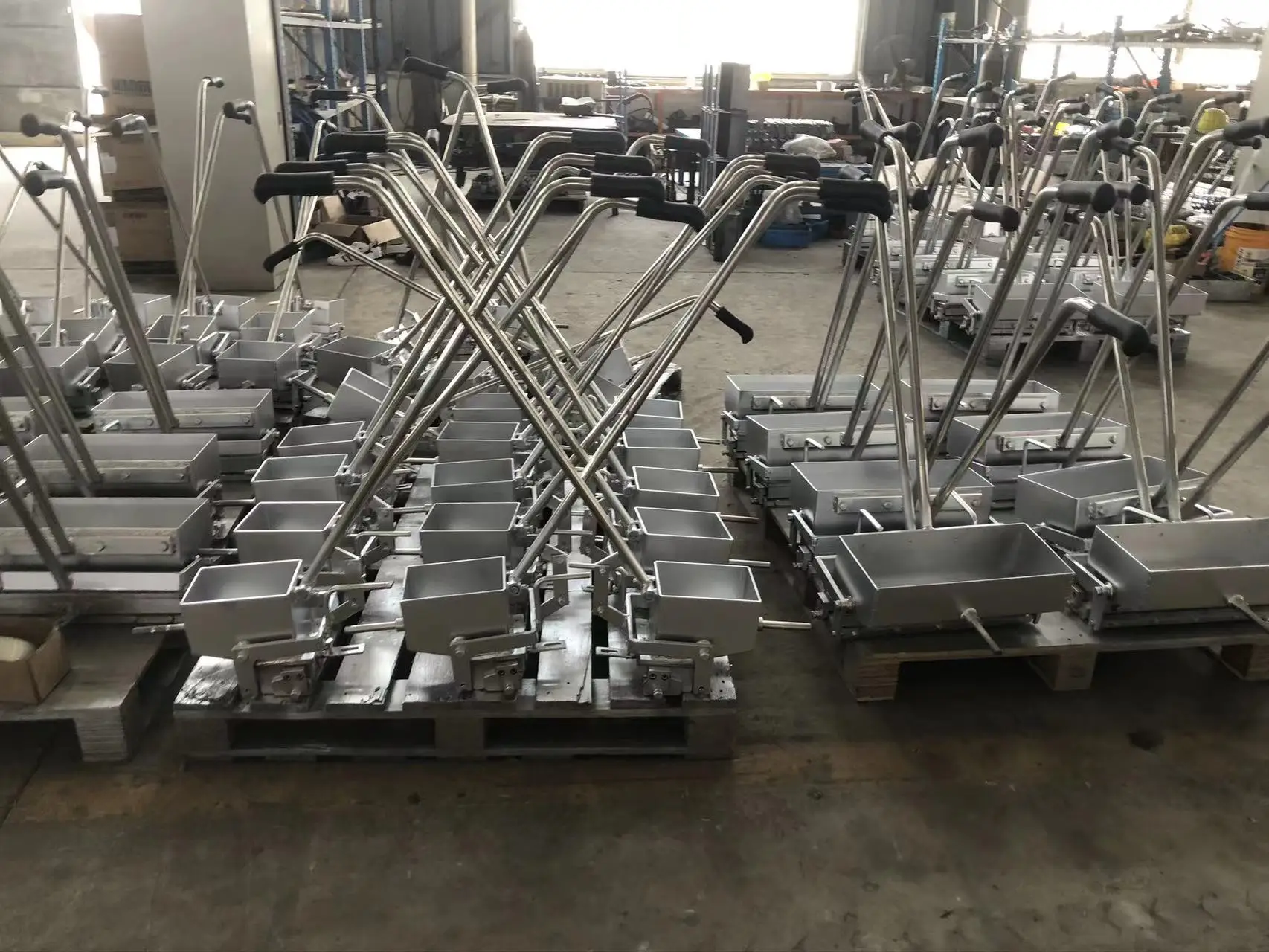

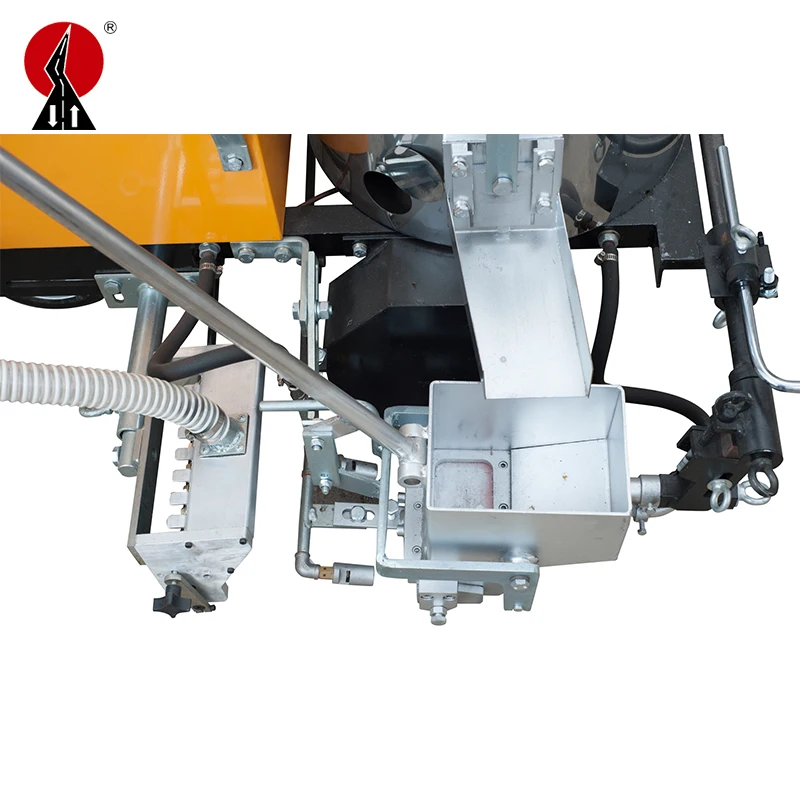

1. High-precision one-piece cast iron marking shoe.
2. The edge of the marking shoe is uniform, the thickness is equal, and the line shape is beautiful.
2. The edge of the marking shoe is uniform, the thickness is equal, and the line shape is beautiful.
2. Forward speed: 15km/h, backward speed: 10km/h.

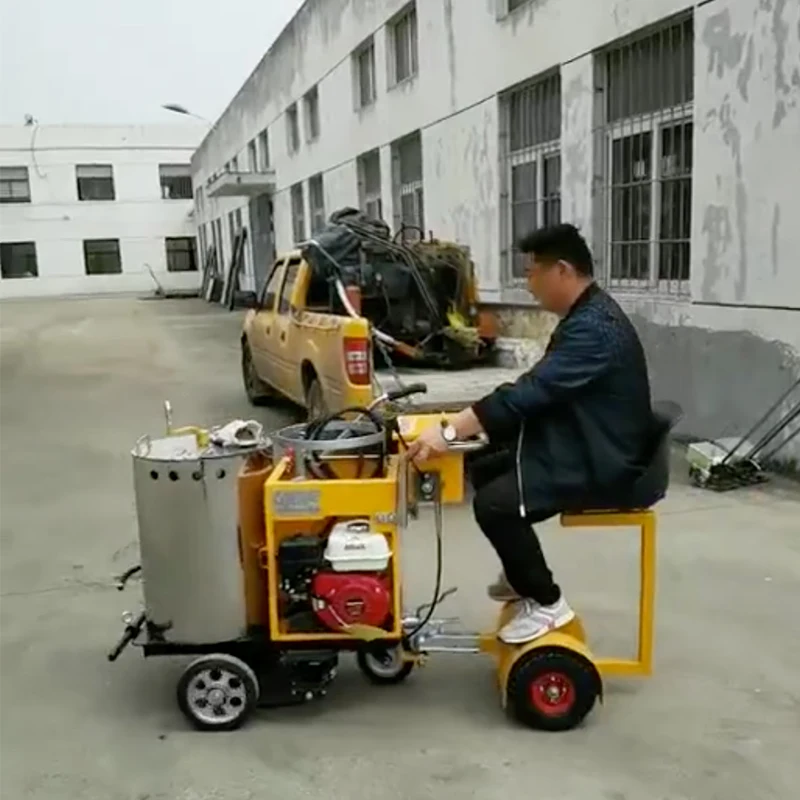

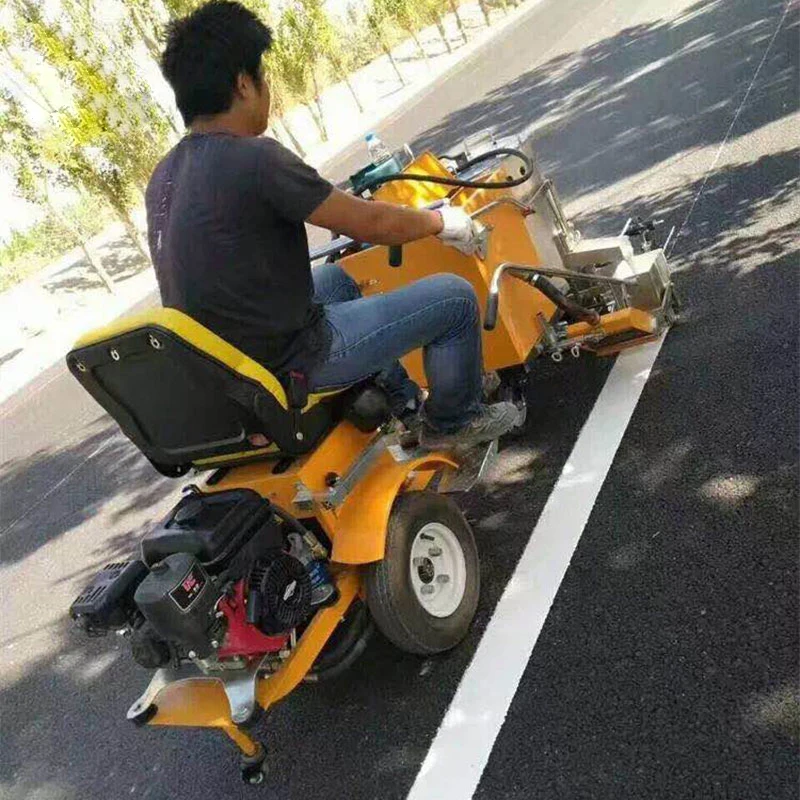

Compatible with stand-up ride+ self-propelled marking machine

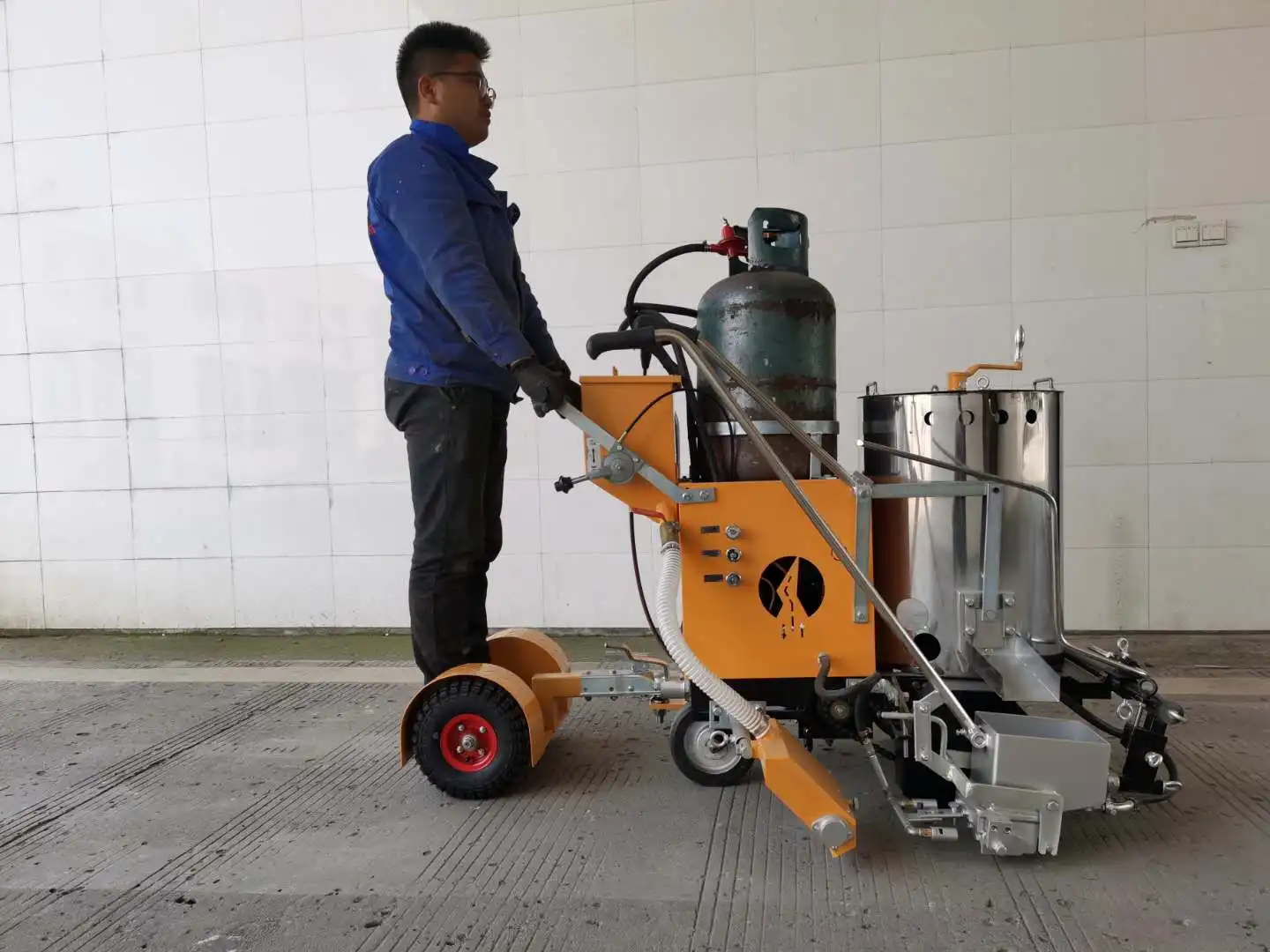

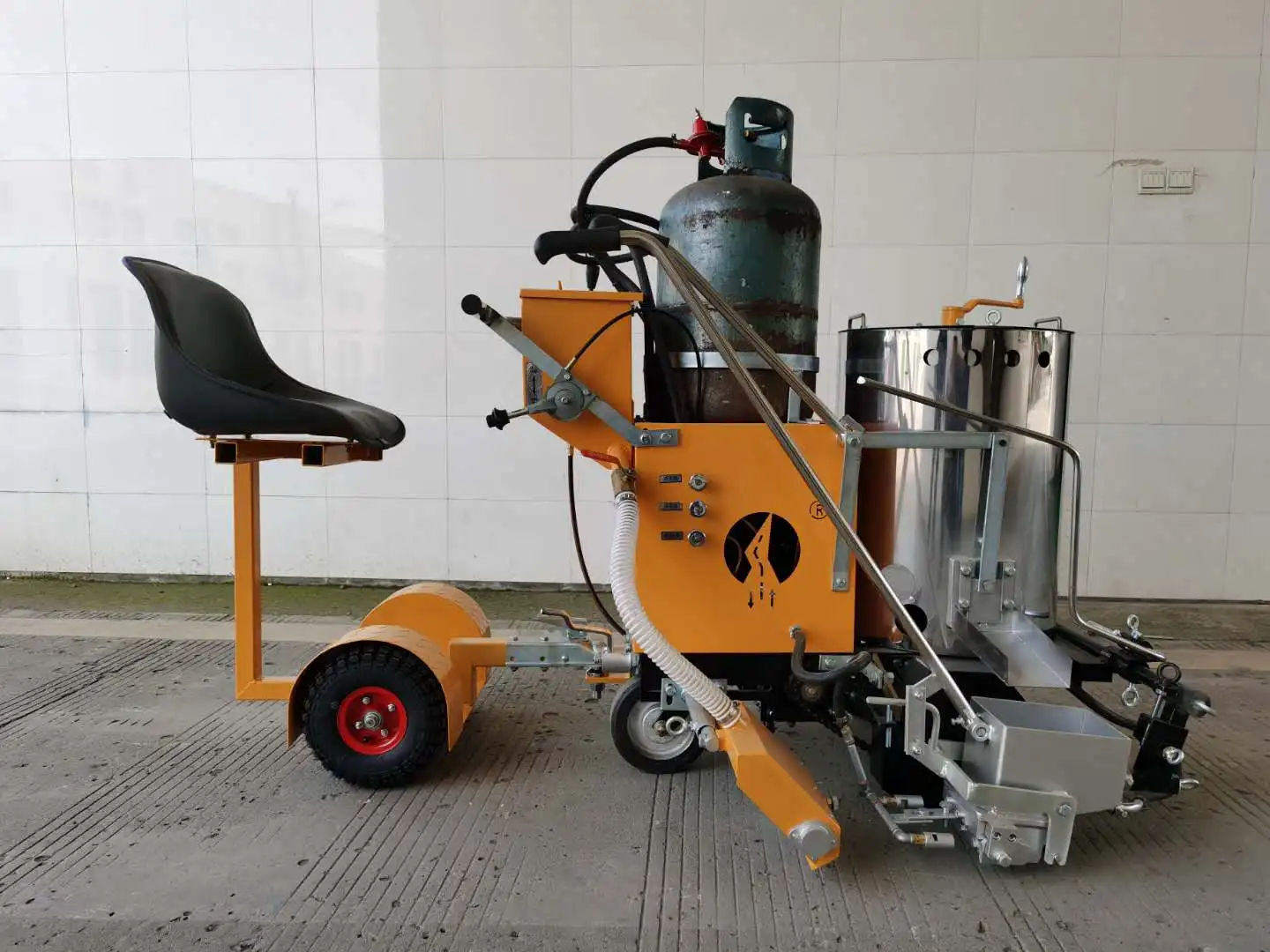

Unpowered ride system + self-propelled marking machine

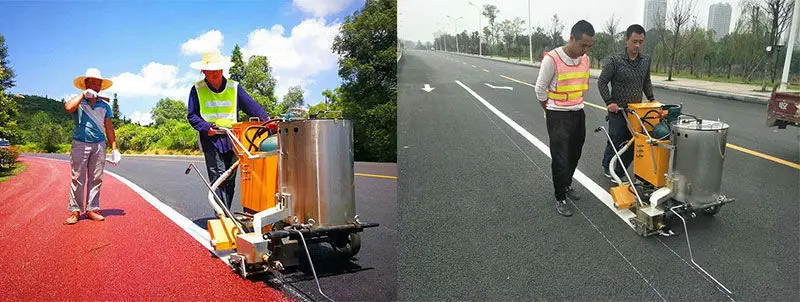

Application
Specification
Marking equipment | high-precision integrated marking shoe,screeding type,standard configuration: 150mm |
Grounded blade | inlaid hard alloy,and also have pure alloyed grounded blade for your choice |
Paint container capacity | 100kg(4 bags thermoplastic paint) |
Paint container | double layer stainles steel,equipped with inserted dismountable manumotive stirring device ,the container is removable & interchangeable for quick color changes |
Glass beads container capacity | 10kg |
Glass beads container | Automatic spreader |
Glass beads dispenser | 100/150/200/250/300/400/450mm(optional) |
Line thickness | 1.0-3.0mm(adjustable) |
Line marking width | 50/100/150/200/250/300/400/450mm(optional) |
Heating temperature | 180~210℃ |
Heating Mode | Liquefied petroleum gas heating |
Gas tank | 15kg |
wheel | High temperature resistance soft rubber,rear wheel equipped with localiser to make the machine walk along the straight line |
Speed | 1.5km/h |
Driving method | Hand-push |
Machine Weight | 126kg |
Dimension | 1150×850×950mm |
