Высококачественная и прочная охлаждающая подставка с рамкой из алюминиевого сплава
- Category: Animal & Poultry Husbandry Equipment >>>
- Supplier: Shandong Jindun Energy Conservation & Environmental Protection Equipment Co. Ltd.
Share on (1600570368270):
Product Overview
Description
Product Description
High evaporation efficiency
Super wetting properties
Low pressure drop when wet
No water carry-over
Strong and self supporting
Long life time
Technical parameter
Thickness | Wind speed | 0.60 | 0.80 | 1.00 | 1.20 | 1.40 | 1.60 | 1.80 | 2.00 |
100mm | Pressure drop | 7.0 | 8.0 | 11.0 | 16.0 | 20.0 | 24.0 | 28.0 | 35.0 |
100mm | Efficiency | 82.0 | 80.0 | 78.3 | 76.5 | 74.9 | 73.3 | 72.0 | 70.8 |
150mm | Pressure drop | 10.0 | 13.0 | 18.0 | 23.0 | 30.0 | 38.0 | 45.0 | 54.4 |
150mm | Efficiency | 92.5 | 91.3 | 90.0 | 88.7 | 87.5 | 86.5 | 85.4 | 84.5 |
Overall dimensions available
7090 | 7060 | 5090 | |
H*(height) mm | 1500/1800/2000 | 1500/1800/2000 | 1500/1800/2000 |
L(length) mm | 600/300 | 600/300 | 600/300 |
D(thickness) mm | 100/150/200/300 | 100/150/200/300 | 100/150/200/300 |
α | 45° | 15° | 45° |
β | 45° | 45° | 45° |
Hp | 7 | 7 | 5 |

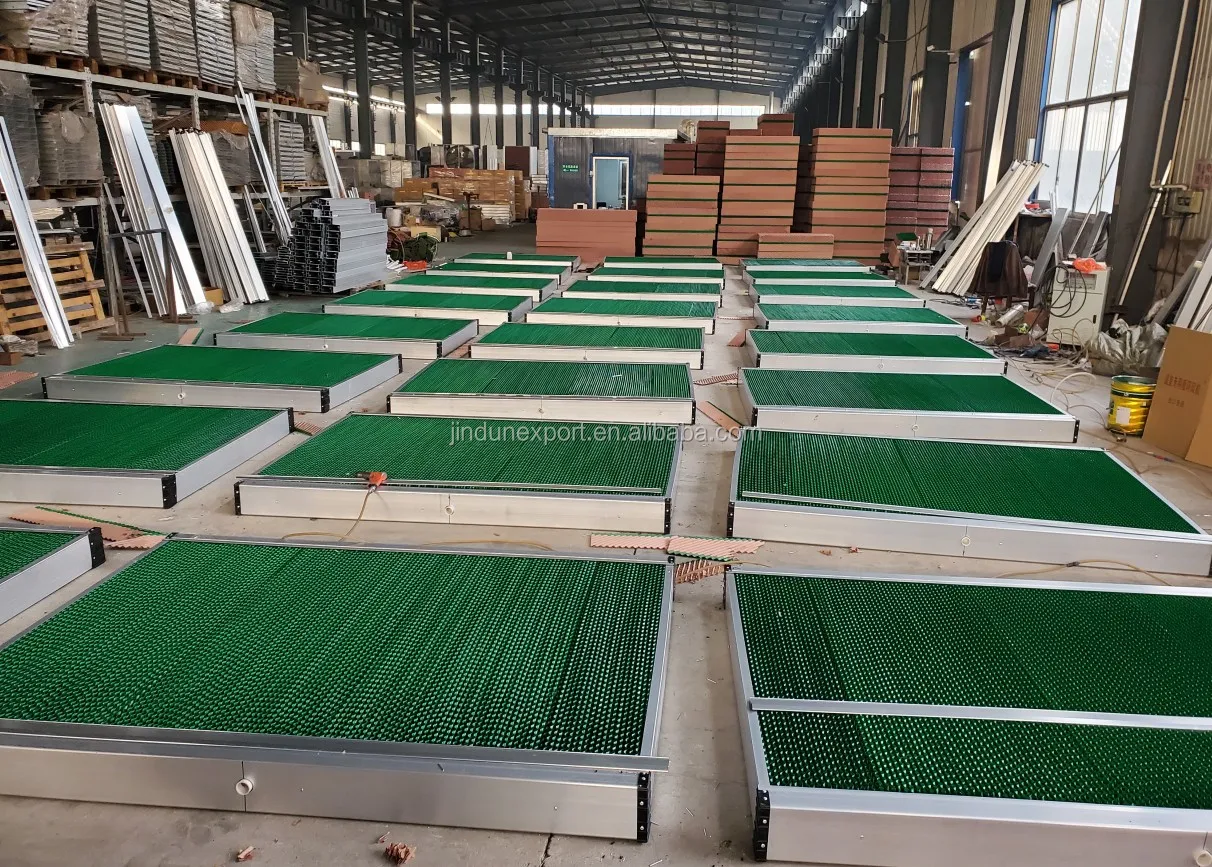

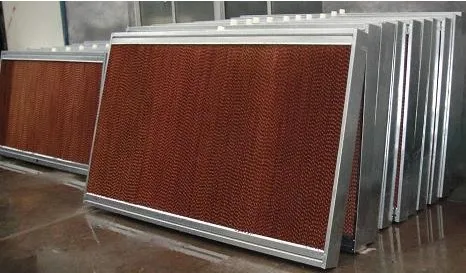

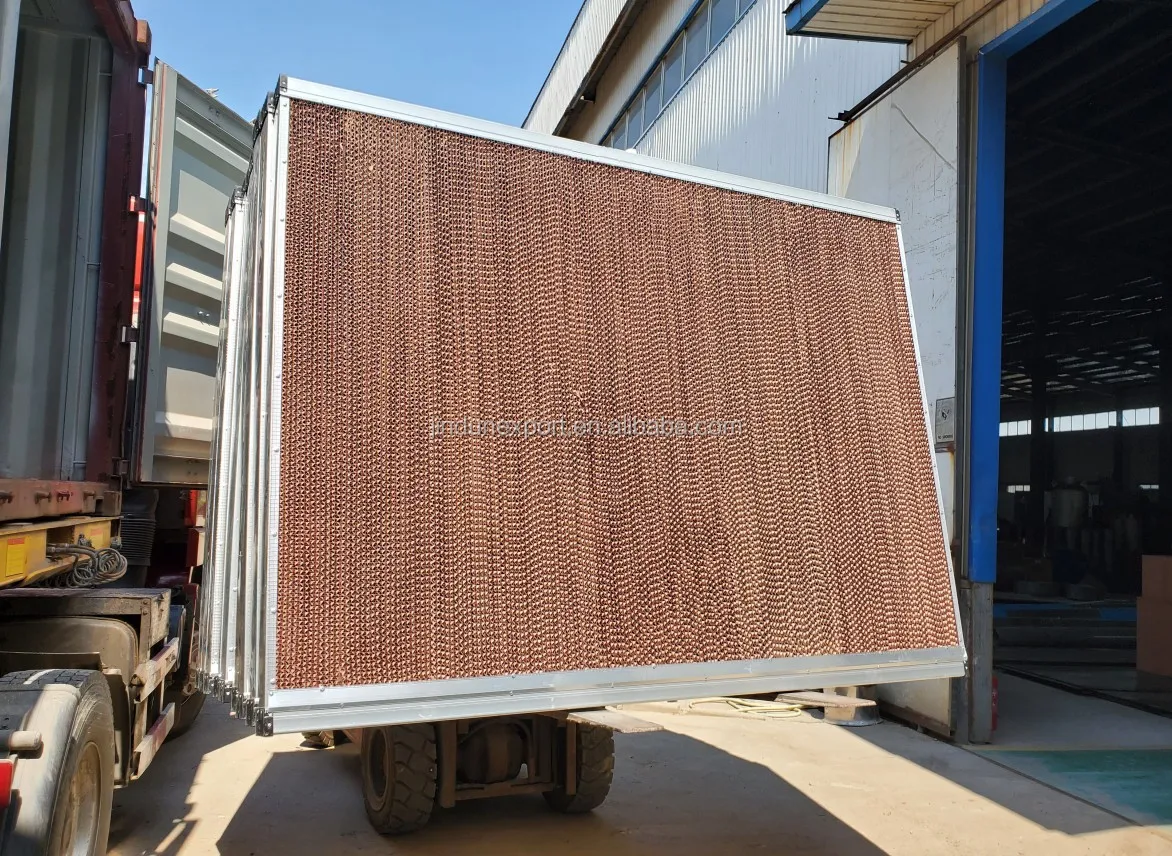

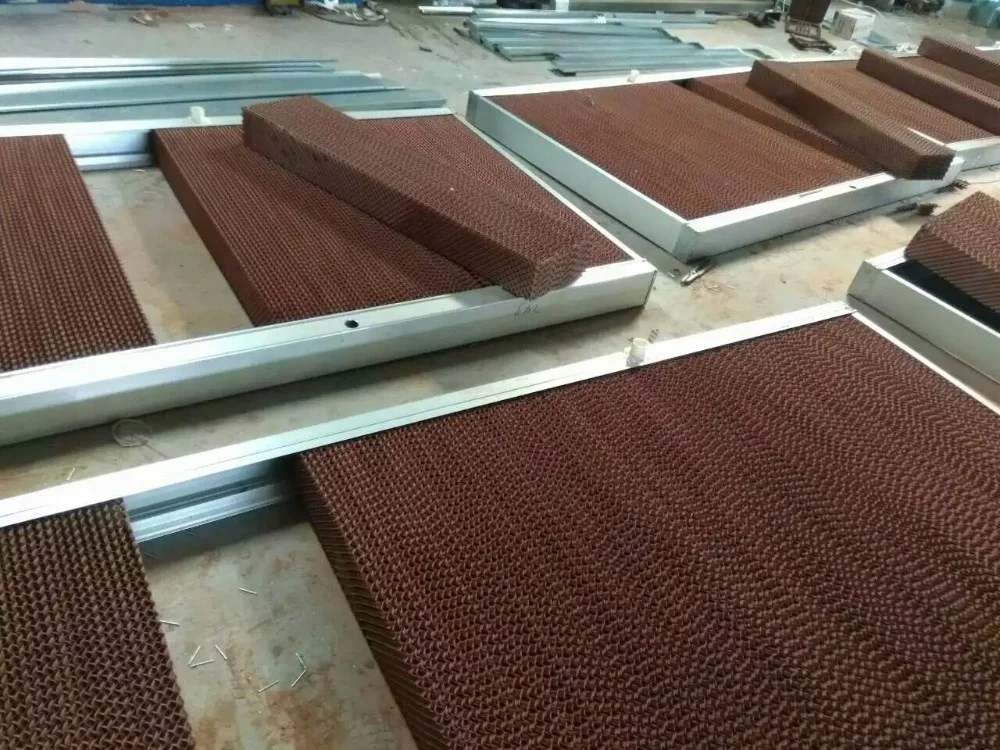

Frames can be supplied together with cooling pads
Three kinds of frames are available
1.Stainless steel frame
2.Aluminum alloy frame
3.Galvanized Plate frame

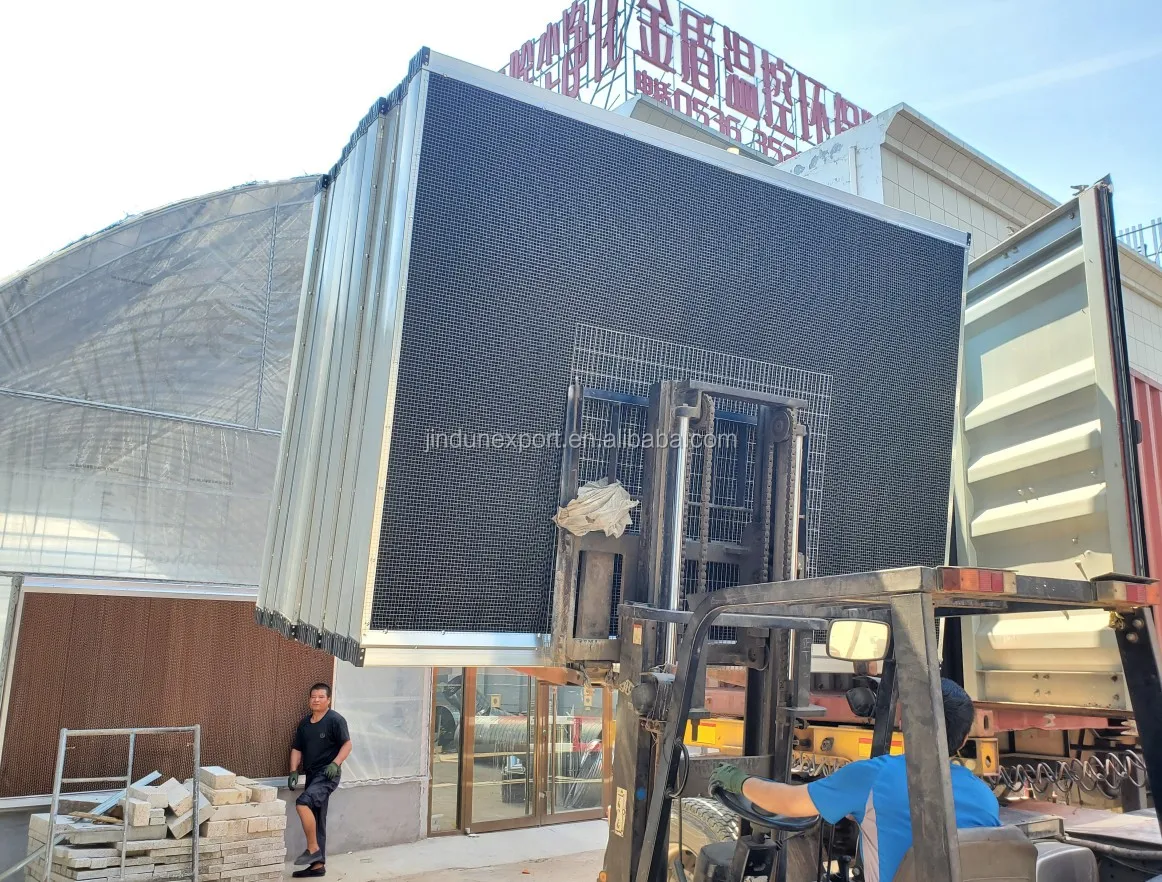

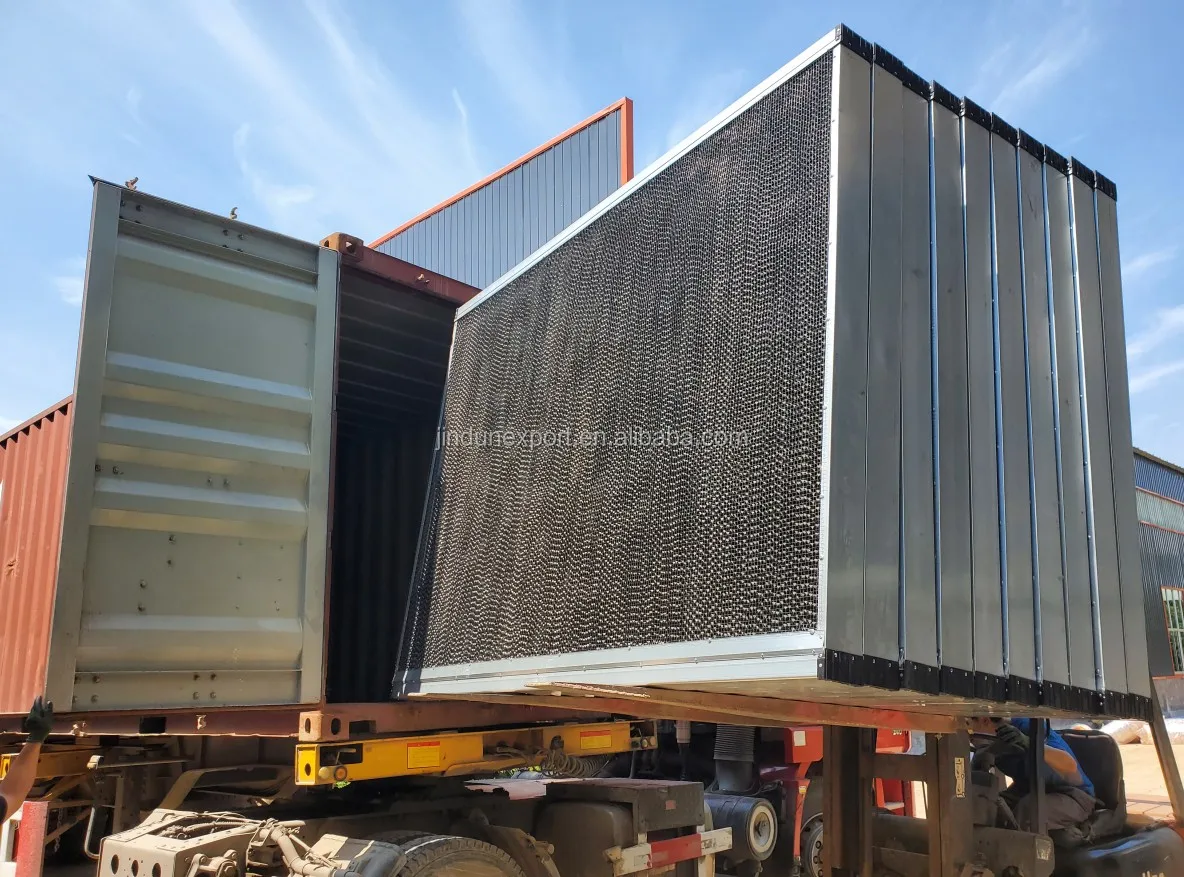

Packaging & Shipping
Company information

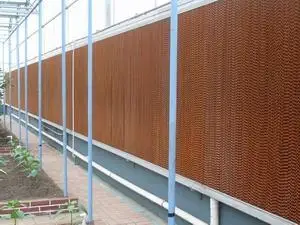

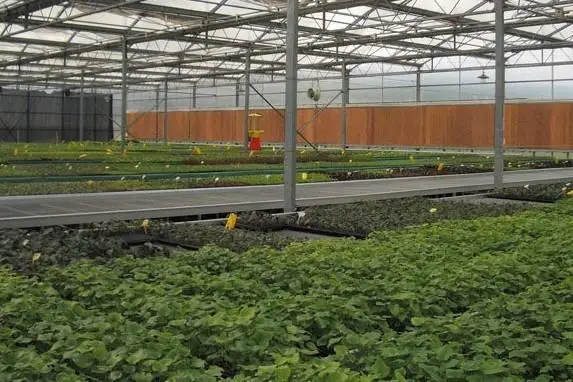

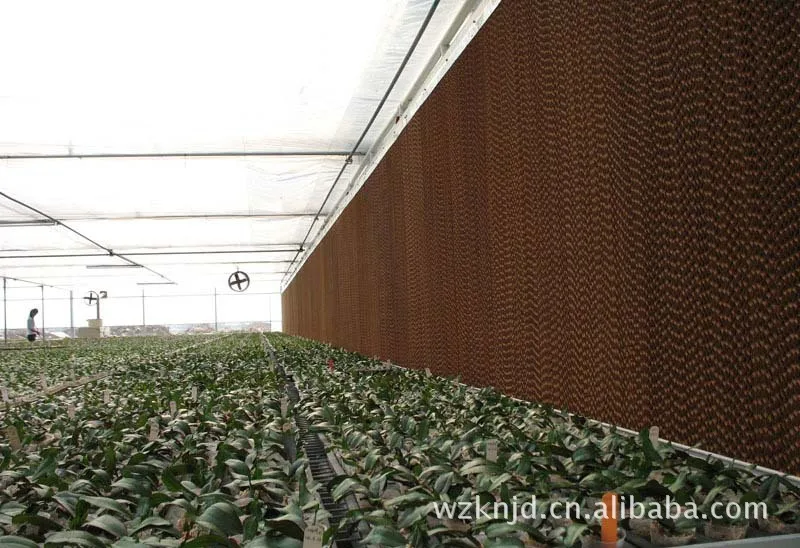

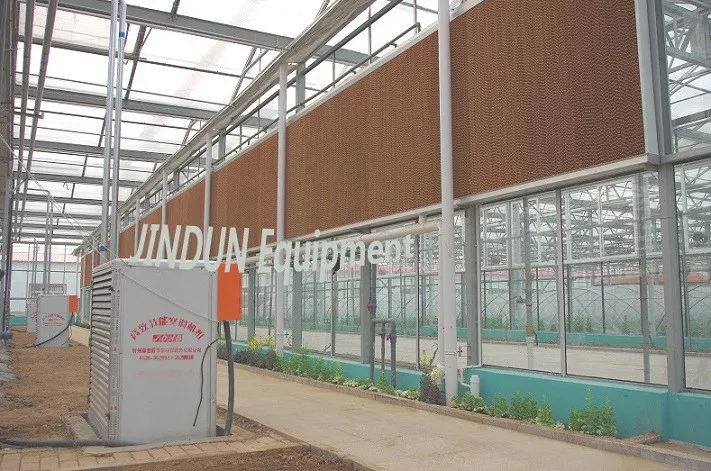

Jindun’s evaporative cooling pad is used in systems where high e ficiency cooling is required. It can be used for many different cooling purposes but is particularly suitable for cooling o f livestock buildings and greenhouses when higher air velocity is required.

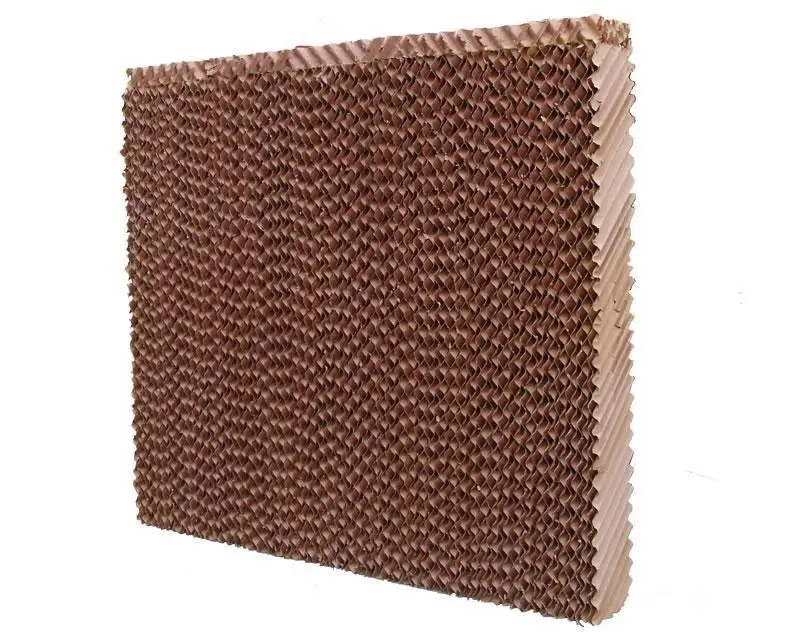

The evaporative cooling pad consists of specially impregnated anc corrugated cellulose paper sheets with different flute angles, that have been bonded together. This unique design yields a cooling pad with high evaporation efficiency while still operating at a very low pressure drop.
The evaporative cooling pad consists of specially impregnated anc corrugated cellulose paper sheets with different flute angles, that have been bonded together. This unique design yields a cooling pad with high evaporation efficiency while still operating at a very low pressure drop.
The water flows down the corrugated surface ofthe evaporative cooling pad. Part of the water is evaporated by the warm and dry air that passes through the pad.The rest of the water assists in washing the pad and is drained back to the pump station through a gutter system.
The heat that is needed for the evaporation is taken from the air itself. The air that leaves the pad is therefore cooled and humidified simultaneously without any external energy supply for the evaporation process. This is nature’s own cooling process.
The heat that is needed for the evaporation is taken from the air itself. The air that leaves the pad is therefore cooled and humidified simultaneously without any external energy supply for the evaporation process. This is nature’s own cooling process.
